Batch Effects After Normalization

Author

Philipp Sven Lars Schäfer

Published

November 28, 2024

1 Packages

Code
suppressPackageStartupMessages({
  library(tidyverse)
  library(ggdark)
  library(vsn)
  library(lme4)
  library(DESeq2)
  library(factoextra)
  library(FactoMineR)
  library(magick) # formatting
  source(file.path("..", "src", "read_data.R"))
  source(file.path("..", "src", "generate_targets.R"))
  source(file.path("..", "src", "model.R"))
  source(file.path("..", "src", "batch_effects.R"))
  source(file.path("..", "src", "normalize_integrate.R"))
})
knitr::knit_hooks$set(crop = knitr::hook_pdfcrop) # formatting

2 Data

Code
input_dir = file.path("..", "data")
Code
celltype_meta <- read_celltype_meta(input_dir)
gene_meta <- read_gene_meta(input_dir)
protein_meta <- read_protein_meta(input_dir)

meta_data <- read_harmonized_meta_data(input_dir)

RECOMPUTE <- TRUE
if (RECOMPUTE) {
  experimental_data <- read_raw_experimental_data(input_dir)
  experimental_data <- filter_experimental_data(meta_data=meta_data,
                                                experimental_data=experimental_data,
                                                gene_meta=gene_meta)
  experimental_data <- normalize_experimental_data(meta_data=meta_data,
                                                   raw_experimental_data=experimental_data,
                                                   gene_meta=gene_meta)
  write_rds(experimental_data,
            file = file.path(input_dir, "prc_datasets",
                             "normalized_experimental_data.RDS"))
} else {
  experimental_data <- read_rds(file = file.path(input_dir, "prc_datasets",
                                                 "normalized_experimental_data.RDS"))
}
pbmc_cell_frequency | Removed 550 specimens because missing in meta data
plasma_ab_titer | Removed 6931 specimens because missing in meta data
plasma_cytokine_concentration_by_olink | Removed 495 specimens because missing in meta data
pbmc_cell_frequency | Removed 56 features because not in feature subset
plasma_ab_titer | Removed 48 features because not in feature subset
plasma_cytokine_concentration_by_olink | Removed 234 features because not in feature subset
t_cell_polarization | Removed 3 features because not in feature subset
plasma_cytokine_concentration_by_olink | Removed 300 features because qc warning
plasma_ab_titer | Removed 10540 measurements because wrong unit used
plasma_cytokine_concentration_by_olink | Removed 2400 measurements because wrong unit used
plasma_cytokine_concentration_by_legendplex | Removed 8 because specimen is outlier
plasma_cytokine_concentration_by_olink | Removed specimen 750, 760, 824, 833, 894, 903 because fraction of measurements below LOQ > 50%
plasma_ab_titer | Removed specimen 674, 675, 676 because fraction of measurements below LOD > 50%
converting counts to integer mode
Code
experimental_data <- experimental_data[-which(names(experimental_data) ==
                                                "pbmc_gene_expression_counts")]
specimen_per_day <- get_specimen_per_day(meta_data=meta_data)

3 Conclusions

3.1 PBMC Fractions

  • No further processing needed I guess.

3.2 PBMC Gene Expression

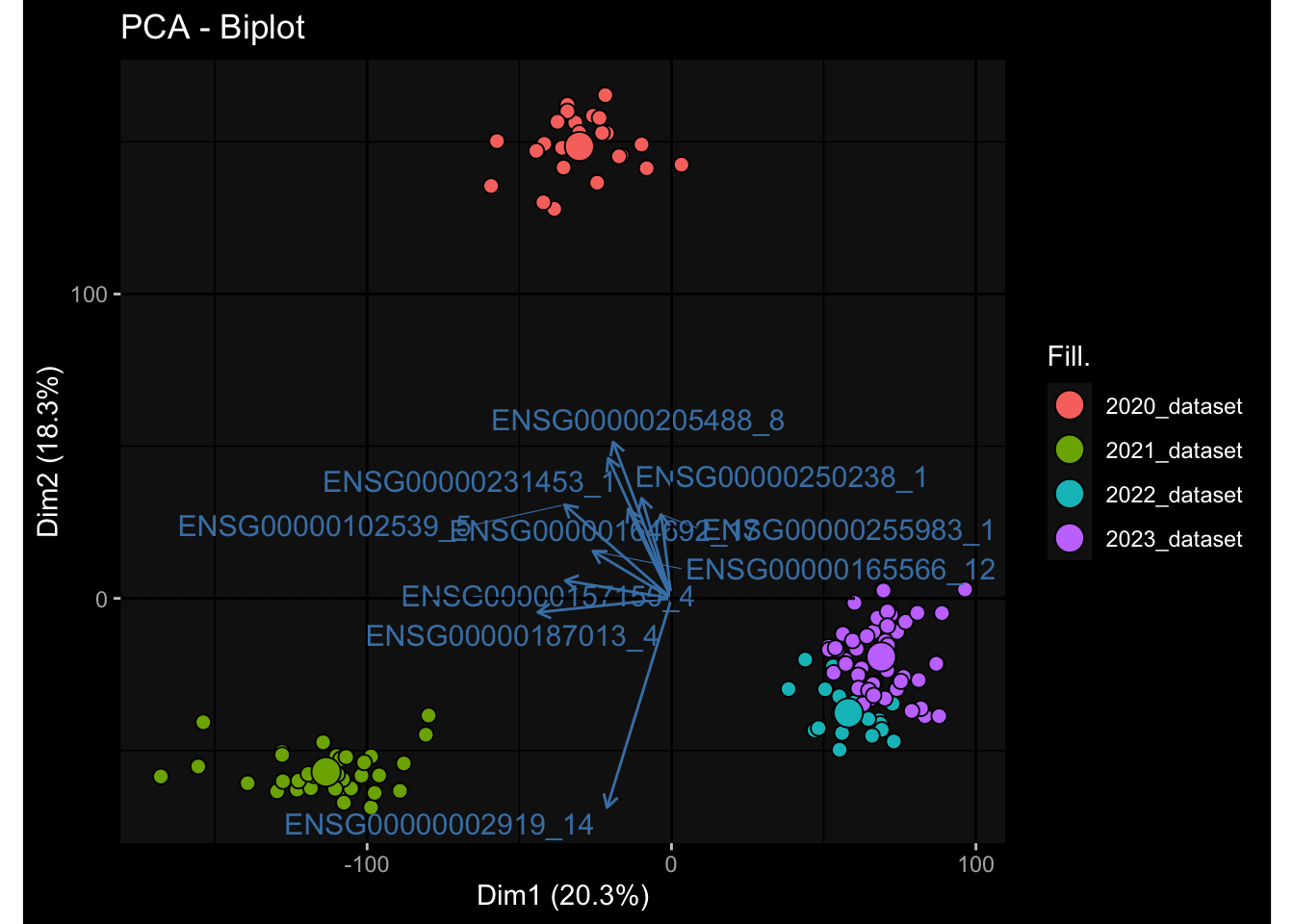

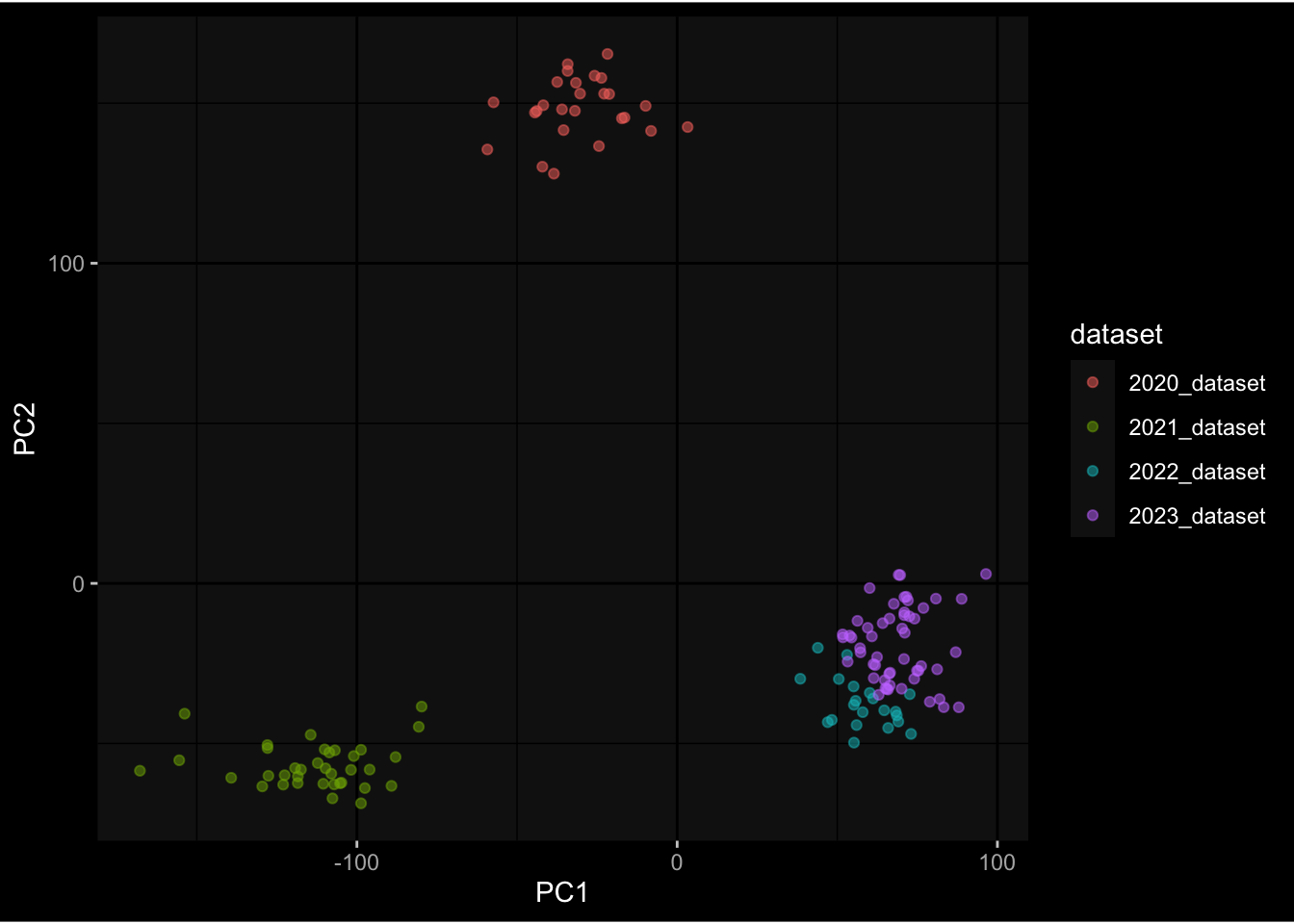

  • Very strong cohort-specific effects for baseline specimen and post-booster specimen

3.3 Plasma Antibody Levels

  • Slight batch effect. Not sure whether it needs some kind of batch correction or not.

3.4 Plasma Cytokine Concentration by Legendplex

  • Slight batch effect. Not sure whether it needs some kind of batch correction or not. The data distribution looks odd anyway!

3.6 T Cell Activation

  • No further processing needed I guess.

3.7 T Cell Polarization

  • Specimen are only available for baseline, most of the variance is explained by interaction terms age_at_boost:dataset and infancy_vac:dataset. TODO: Think about what to make of this.

4 Results

Code
##| crop: true # interfers with dynamic toc generation

for (day in names(specimen_per_day)) {
  # day <- names(specimen_per_day)[1]

  cat("\n\n")
  cat(paste0("## ", day))
  cat("\n\n")

  specimen_df <- specimen_per_day[[day]]

  for (assay in names(experimental_data)) {
    # assay <- names(experimental_data)[4]

    cat("\n\n")
    cat(paste0("### ", assay))
    cat("\n\n")

    feature_col <- experimental_data_settings[[assay]]$feature_col
    value_col <- experimental_data_settings[[assay]]$value_col

    assay_df_long <- experimental_data[[assay]]
    #str(assay_df_long)

    specimen_df_filtered <- specimen_df %>%
      dplyr::filter(specimen_id %in% unique(assay_df_long$specimen_id))

    if (nrow(specimen_df_filtered) <= 3) {
      cat(paste0("Fewer than 3 specimen for this combination of assay and day available"))
    } else {
      assay_mtx_wide <- assay_df_long %>%
        dplyr::select(dplyr::all_of(c("specimen_id", feature_col, value_col))) %>%
        tidyr::pivot_wider(names_from=dplyr::all_of(feature_col),
                           values_from=dplyr::all_of(value_col)) %>%
        tibble::column_to_rownames(var="specimen_id") %>%
        as.matrix() %>%
        .[as.character(specimen_df_filtered$specimen_id), ]

      impute_mode <- "knn"
      stopifnot(impute_mode %in% c("zero", "median", "knn"))

      if (any(is.na(assay_mtx_wide))) {
        cat(paste0("Non-zero fraction of NAs: ",
                   round(mean(is.na(assay_mtx_wide)), 4)))
        # data: matrix with genes in the rows, samples in the columns
        if (impute_mode == "zero") {
          assay_mtx_wide[is.na(assay_mtx_wide)] <- 0
        } else if (impute_mode == "knn") {
          assay_mtx_wide <- t(impute::impute.knn(data=t(assay_mtx_wide))$data)
        } else if (impute_mode == "median") {
          col_medians <- matrixStats::colMedians(assay_mtx_wide, na.rm=TRUE)
          for (colname in colnames(assay_mtx_wide)) {
            col_vec <- assay_mtx_wide[, colname]
            col_vec[is.na(col_vec)] <- col_medians[colname]
            assay_mtx_wide[, colname] <- col_vec
          }
        }
        stopifnot(!any(is.na(assay_mtx_wide)))
      }

      # dist_mtx <- as.matrix(dist(assay_mtx_wide))
      # dist_mtx_median <- median(dist_mtx[lower.tri(dist_mtx)])
      # dist_mtx_binary <- dist_mtx > (3 * dist_mtx_median)
      # outliers <-
      #  which(rowSums(dist_mtx_binary) > (10*median(rowSums(dist_mtx_binary))))
      # no_outliers <- rownames(dist_mtx)[!rownames(dist_mtx) %in% names(outliers)]
      # assay_mtx_wide <- assay_mtx_wide[no_outliers, ]

      #str(assay_mtx_wide)
      suppressMessages({
        suppressWarnings({

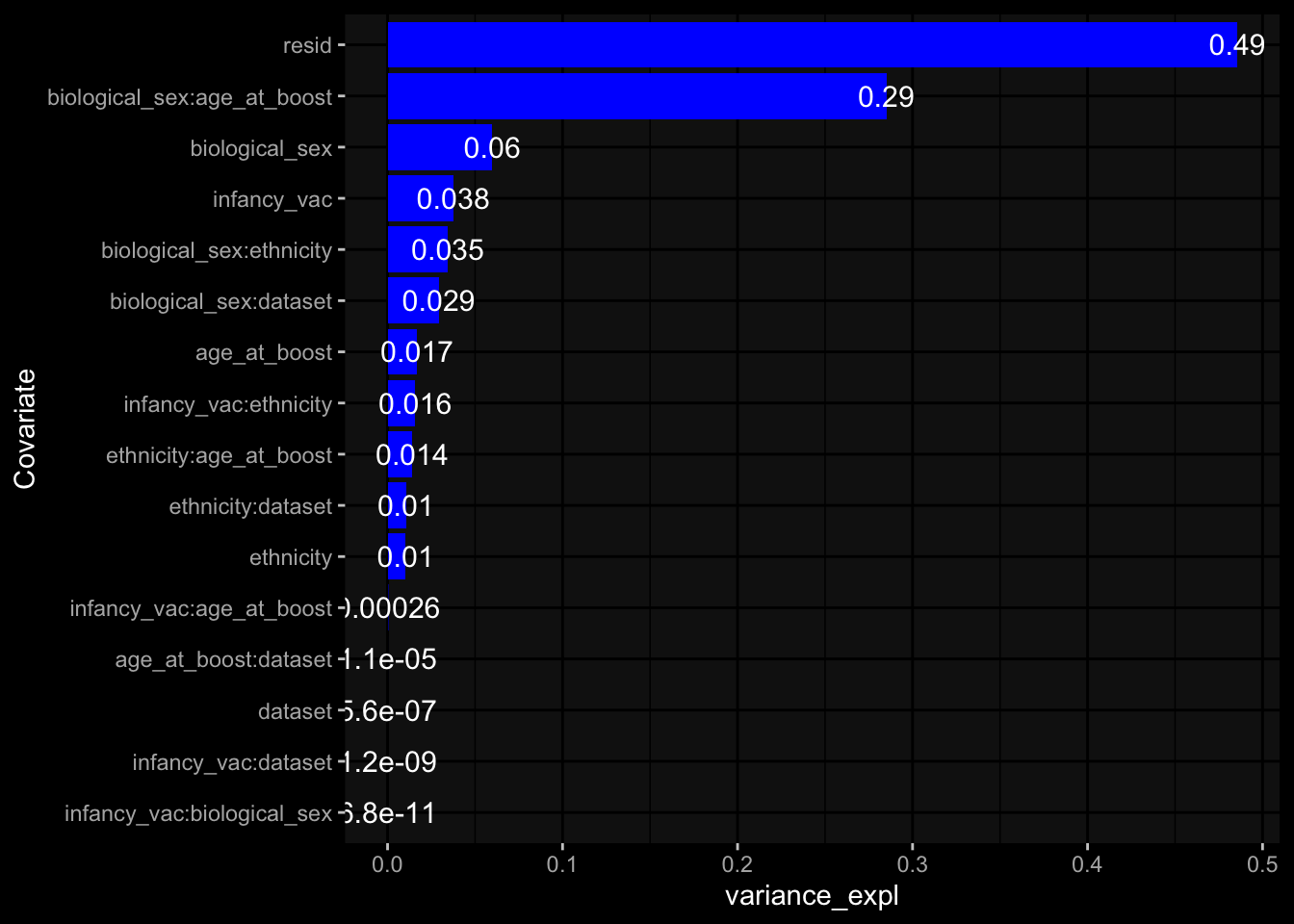

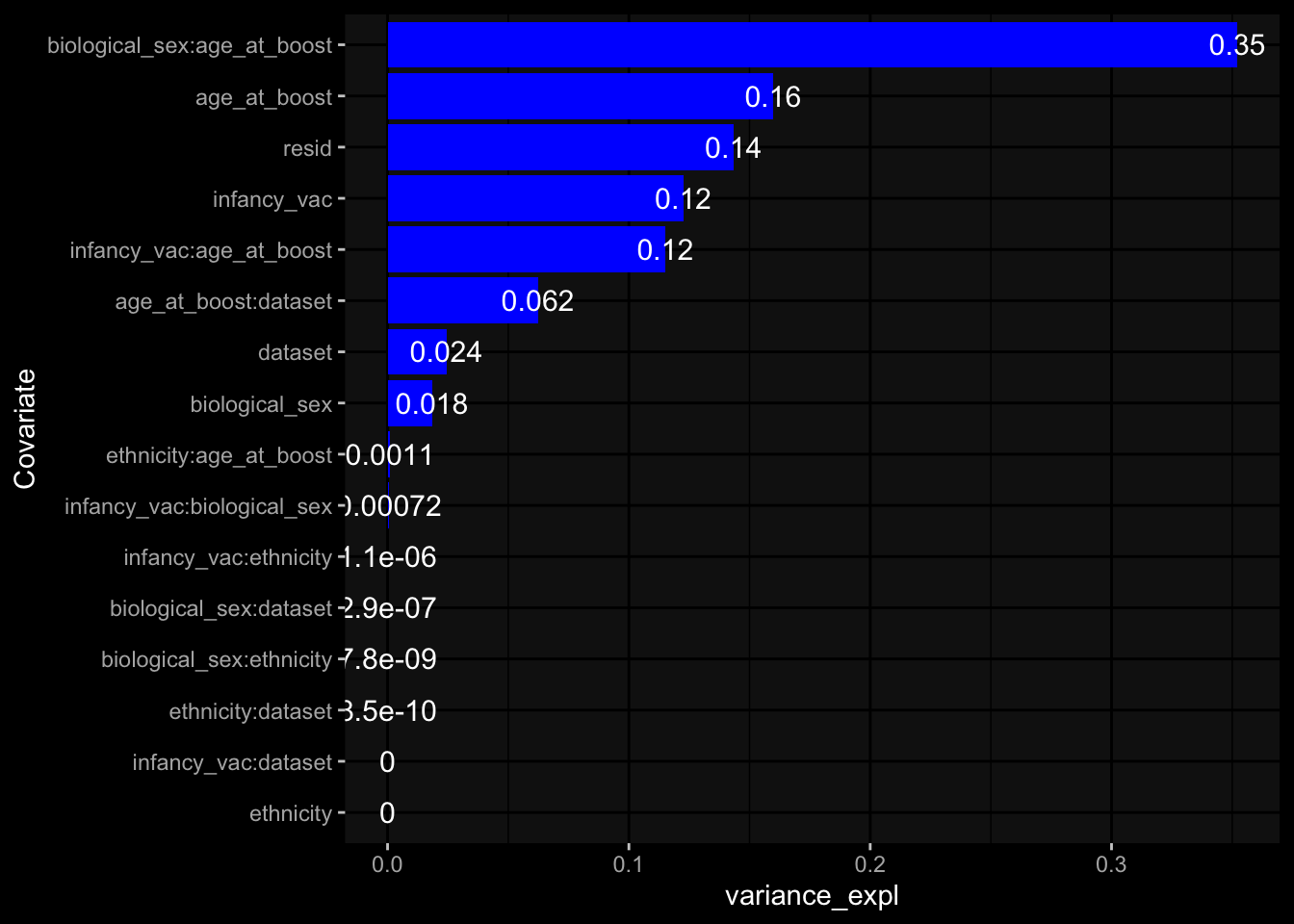

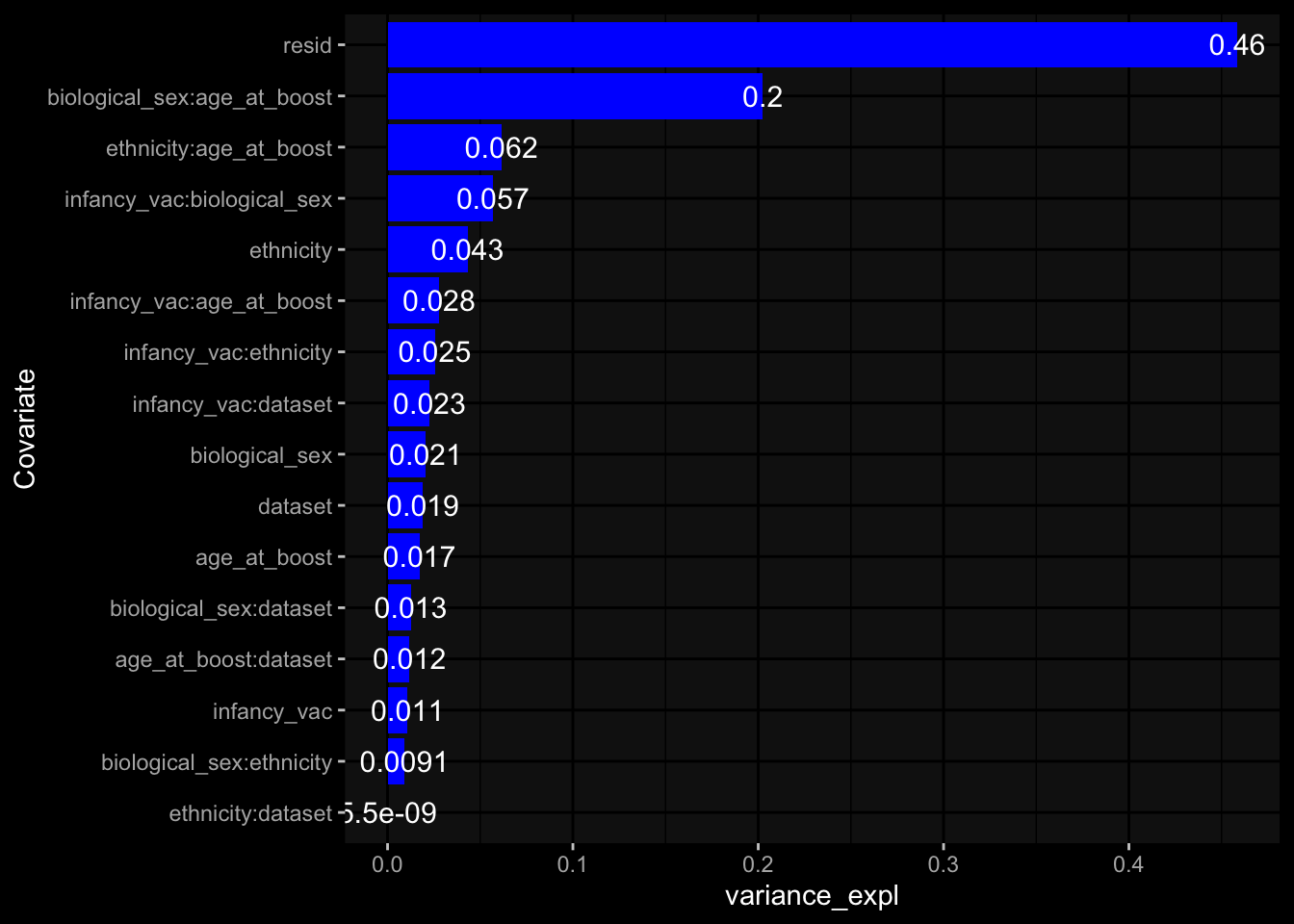

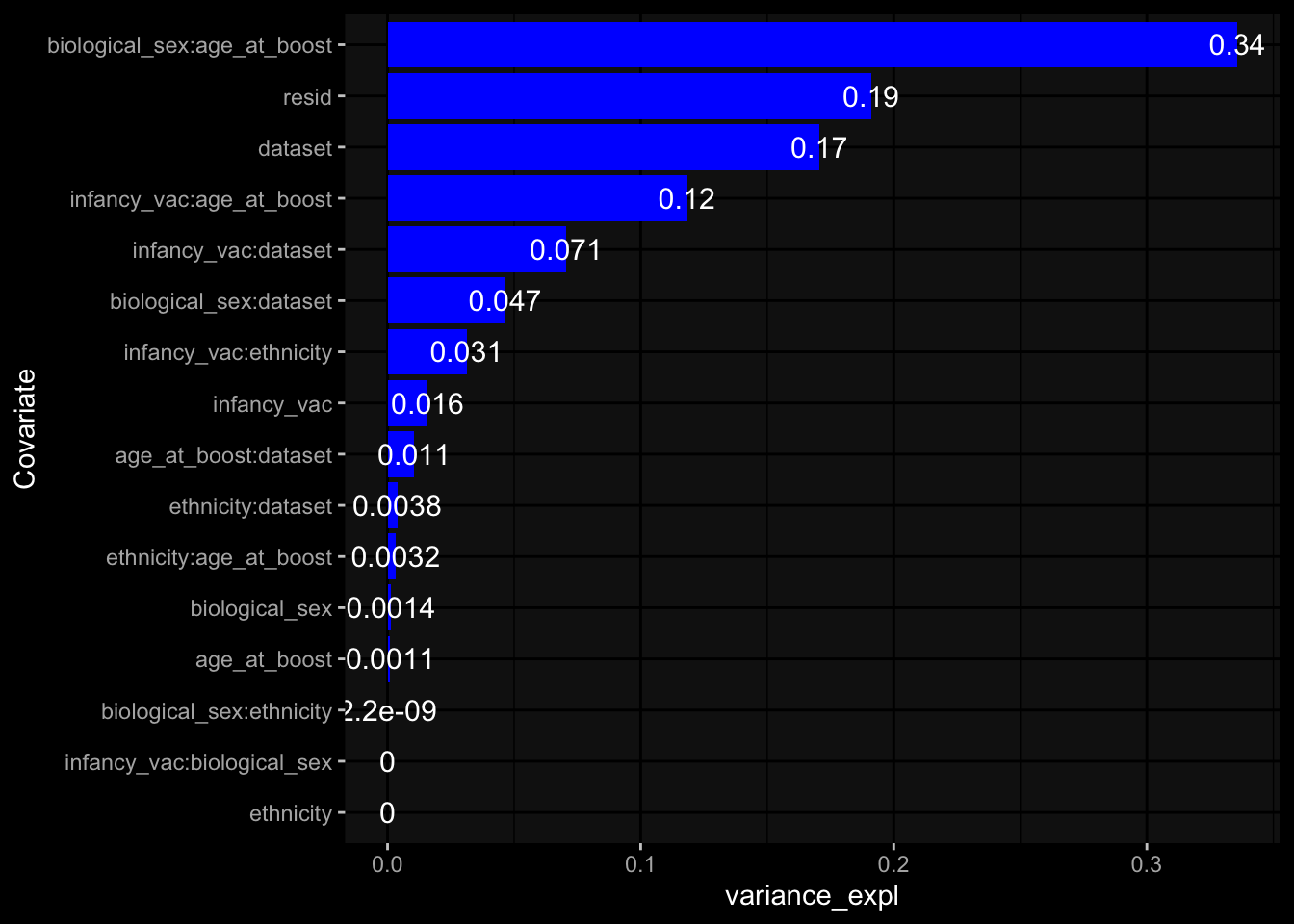

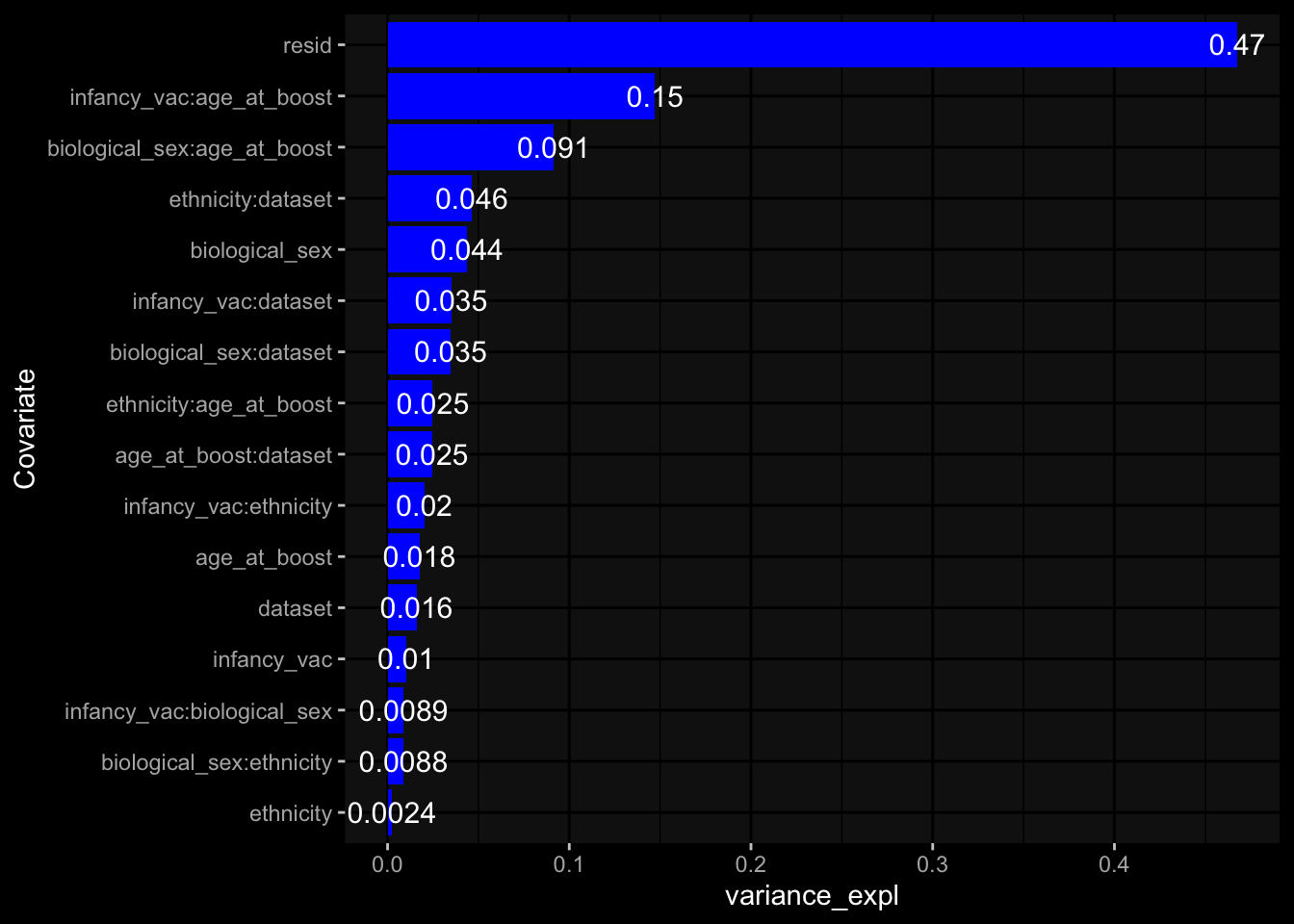

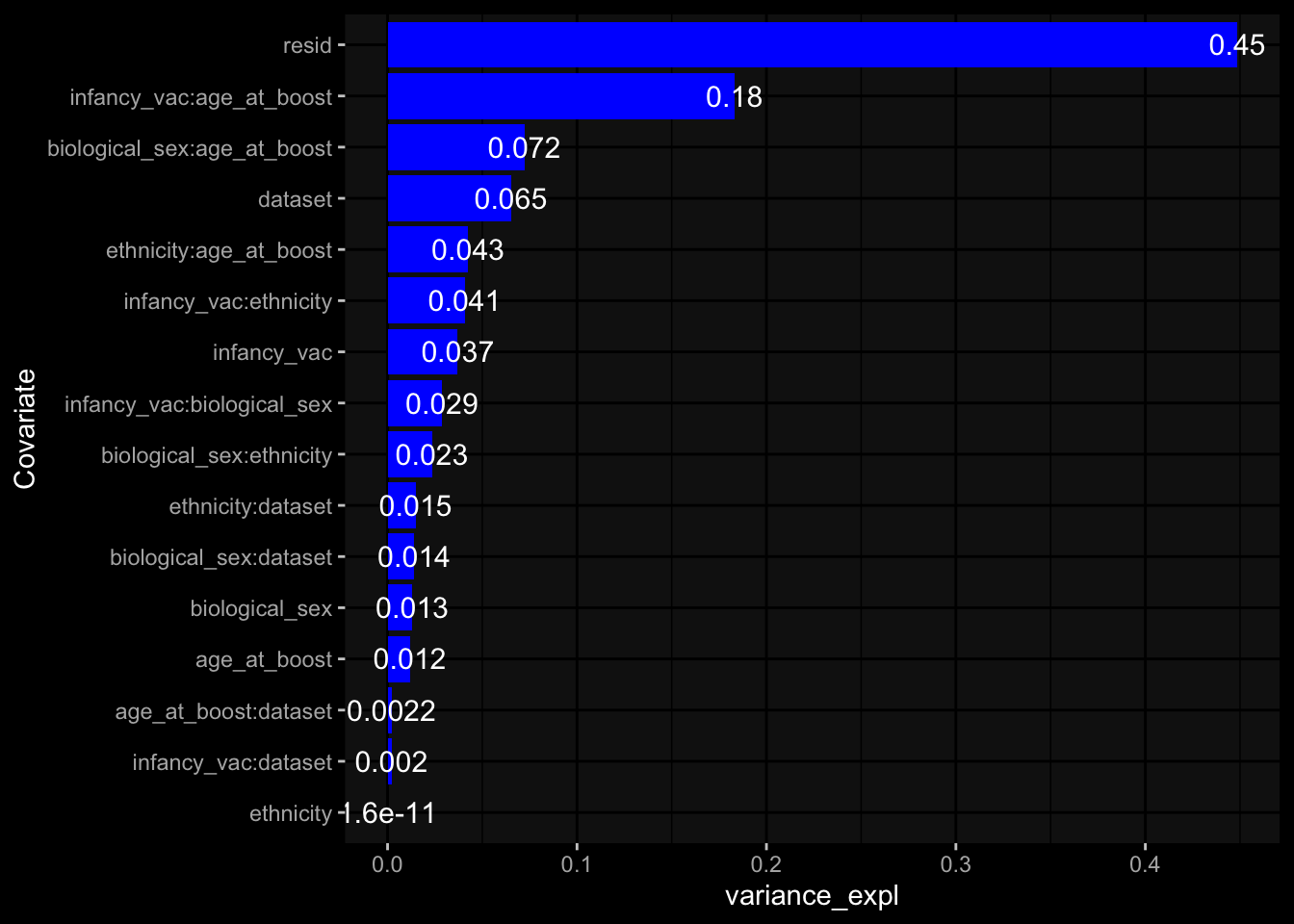

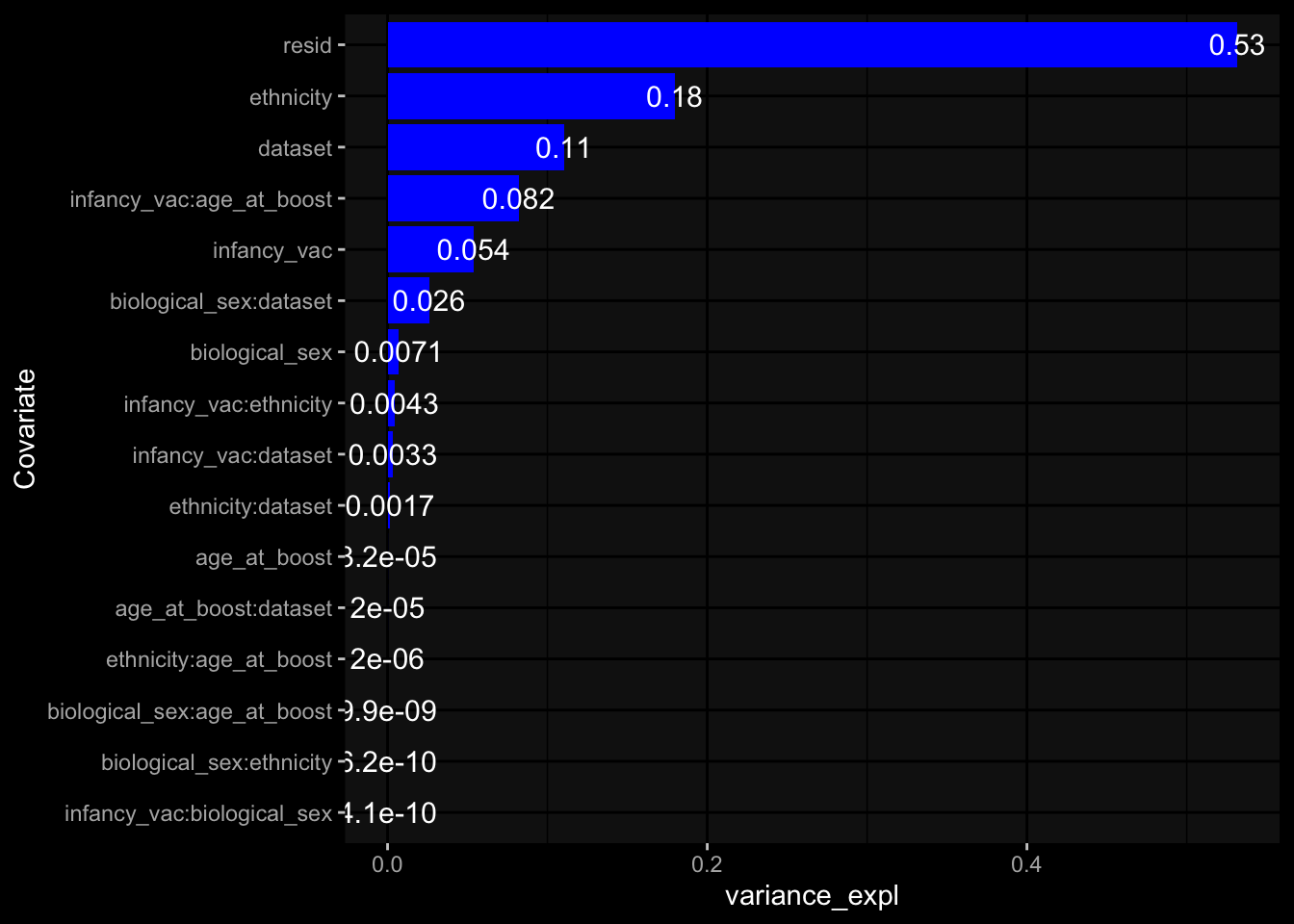

          p1 <- pvca_analysis(assay_mtx_wide=assay_mtx_wide,
                              meta_data=meta_data)$p1
        })
      })
      print(p1)

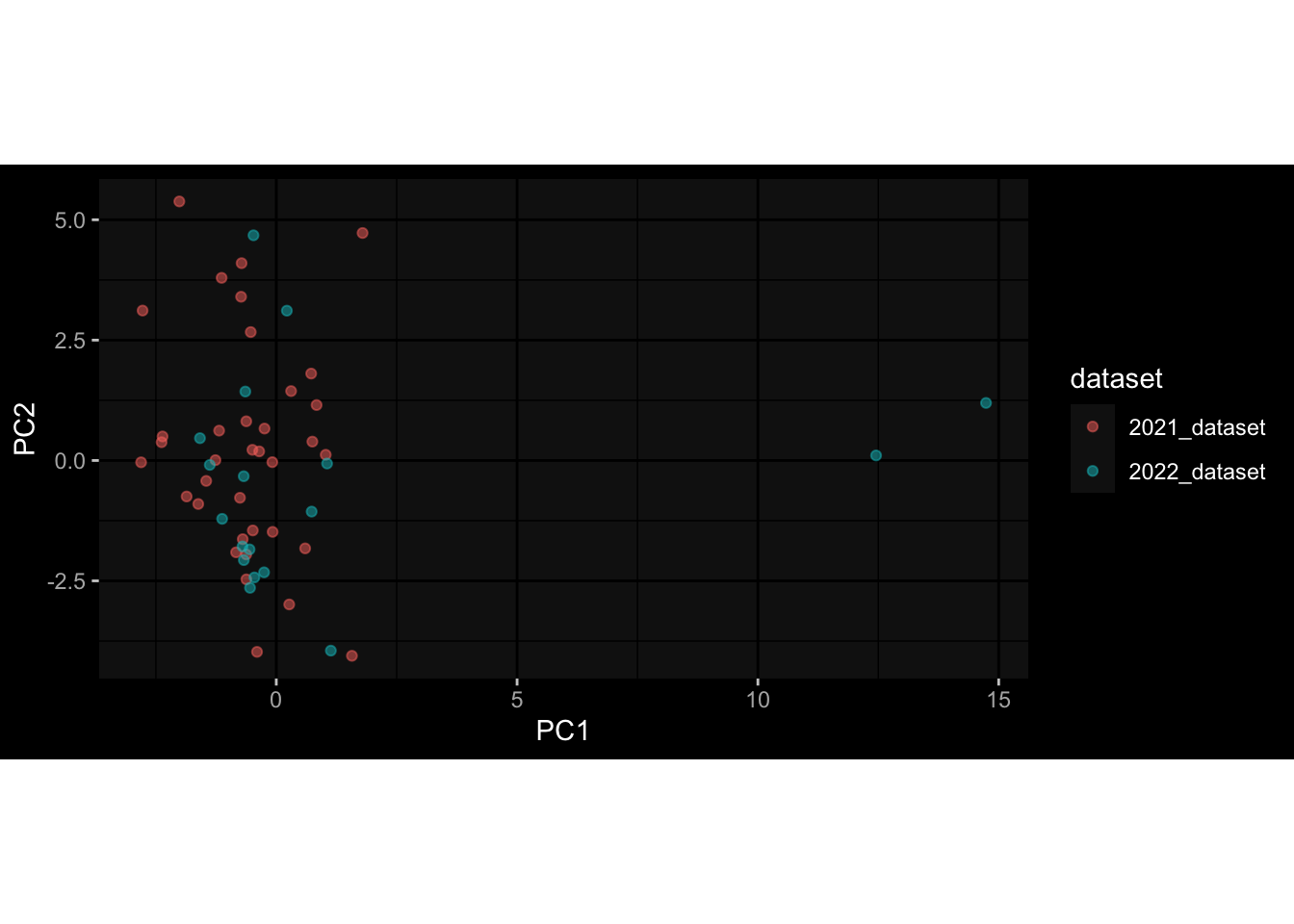

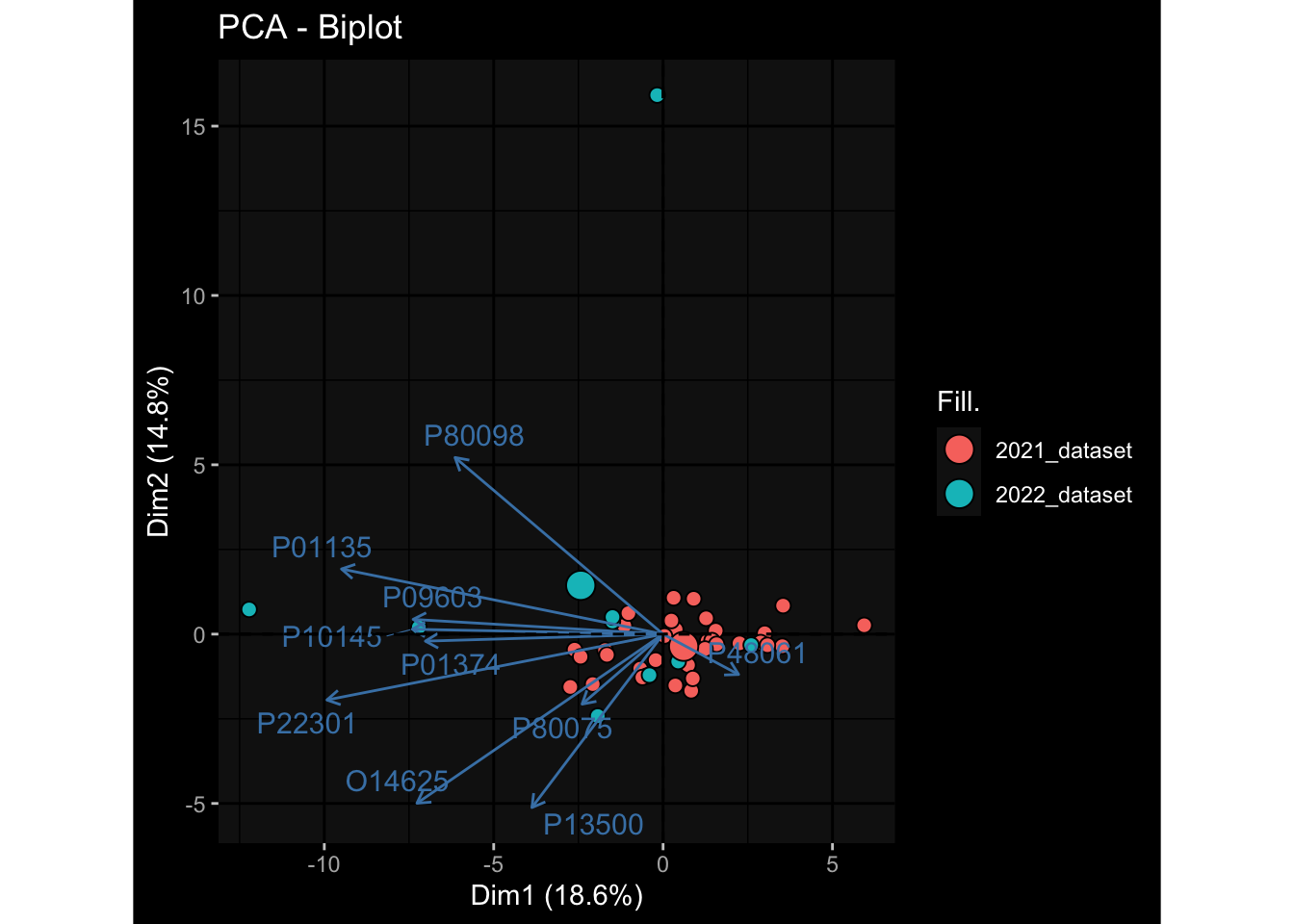

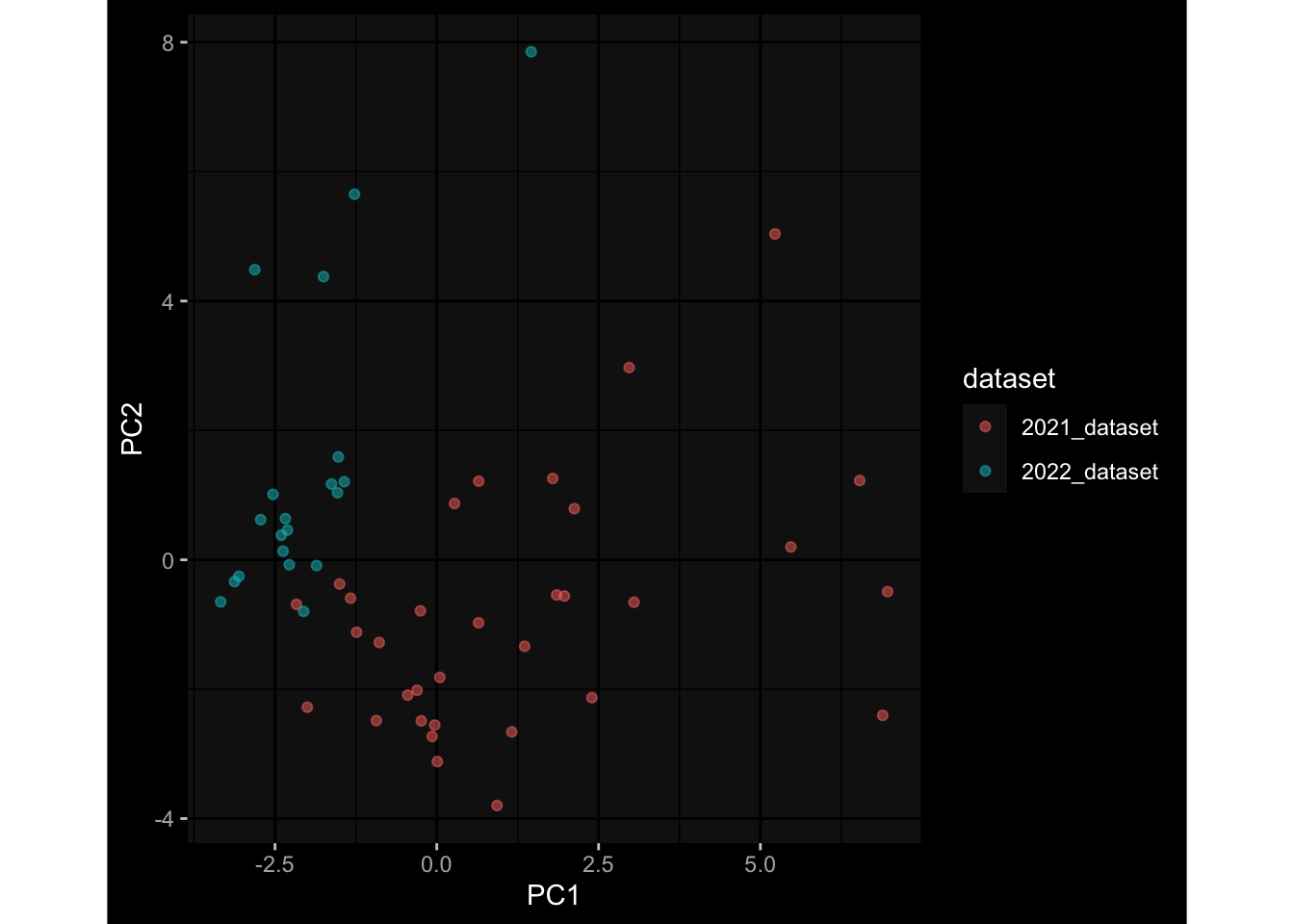

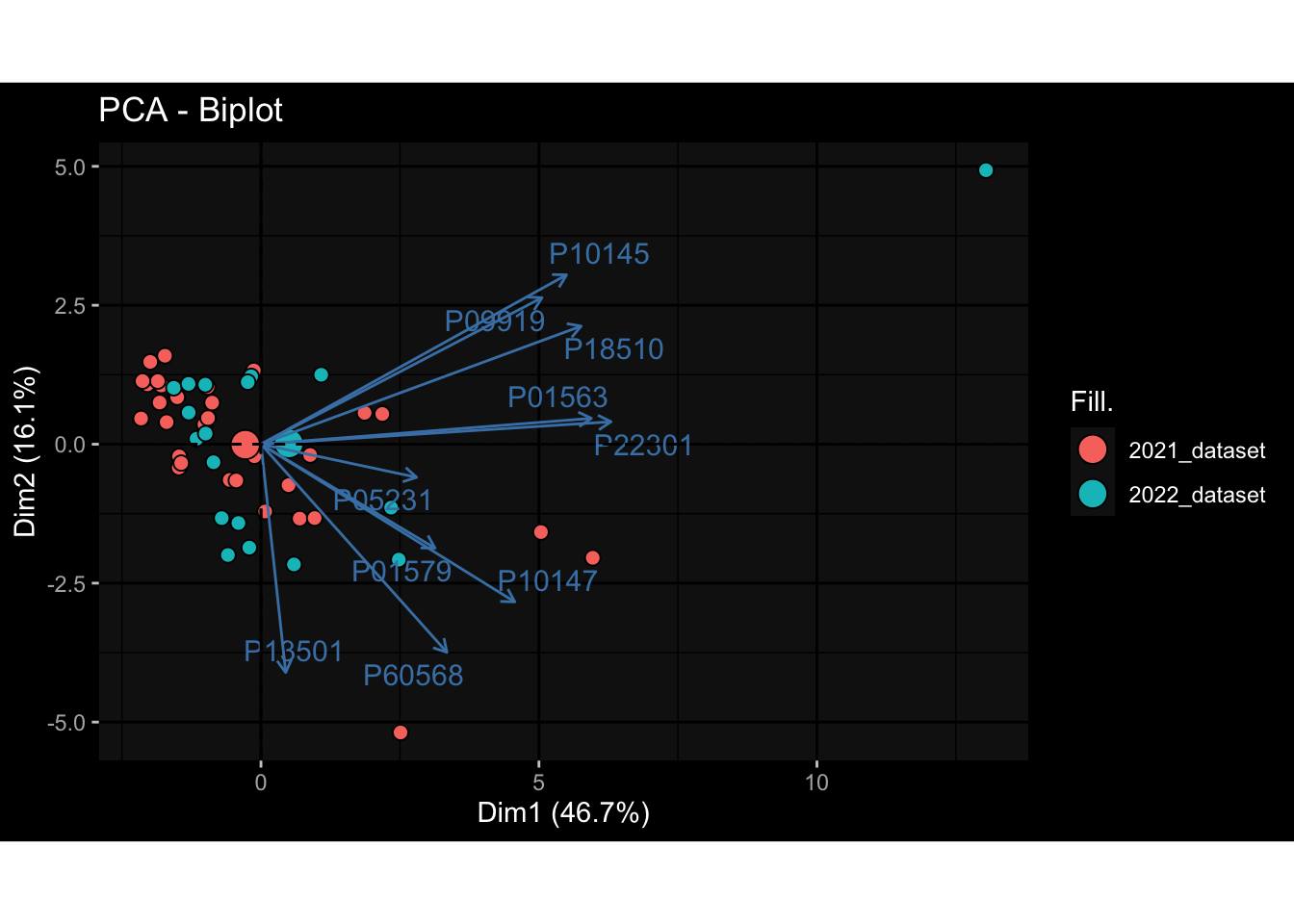

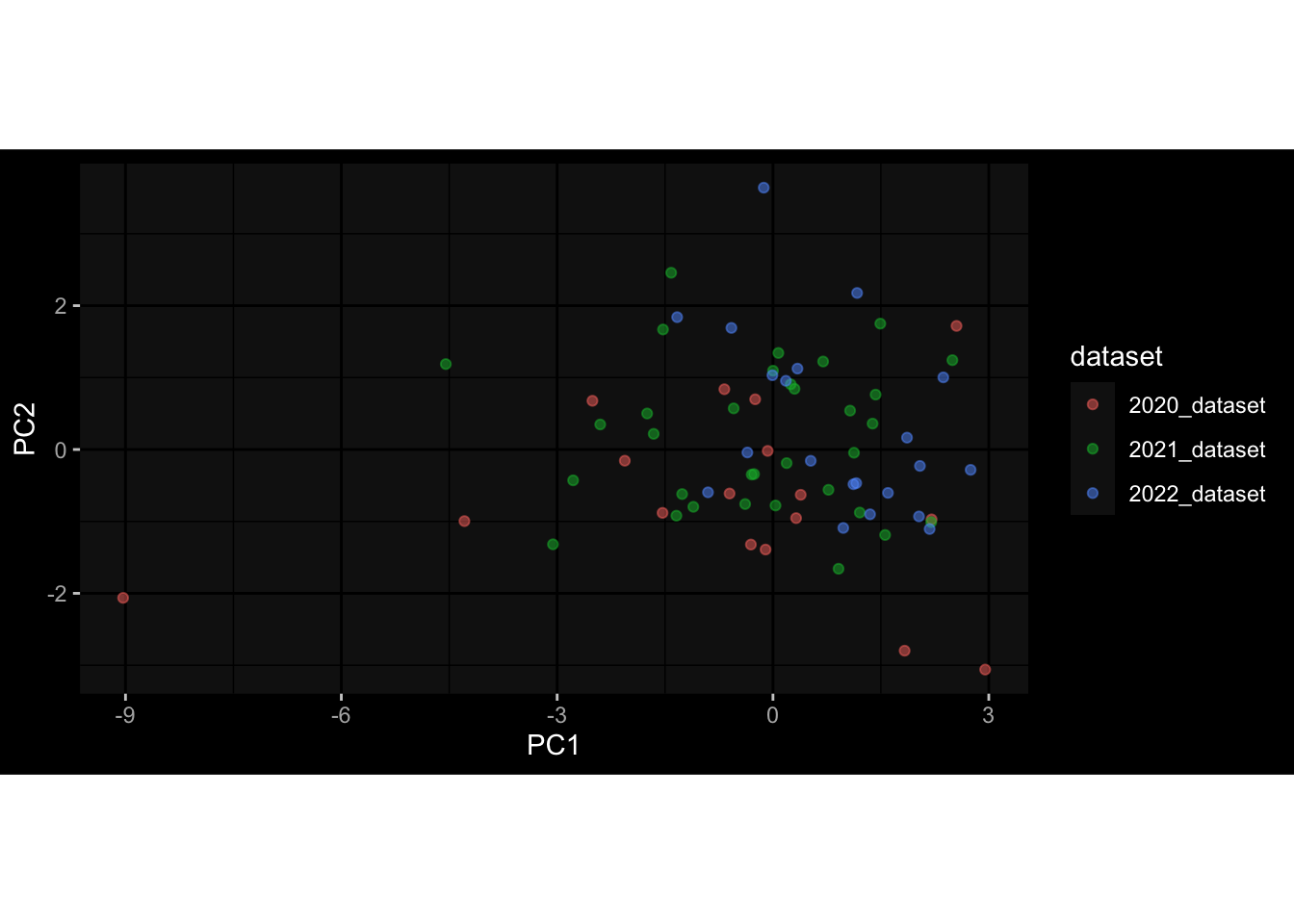

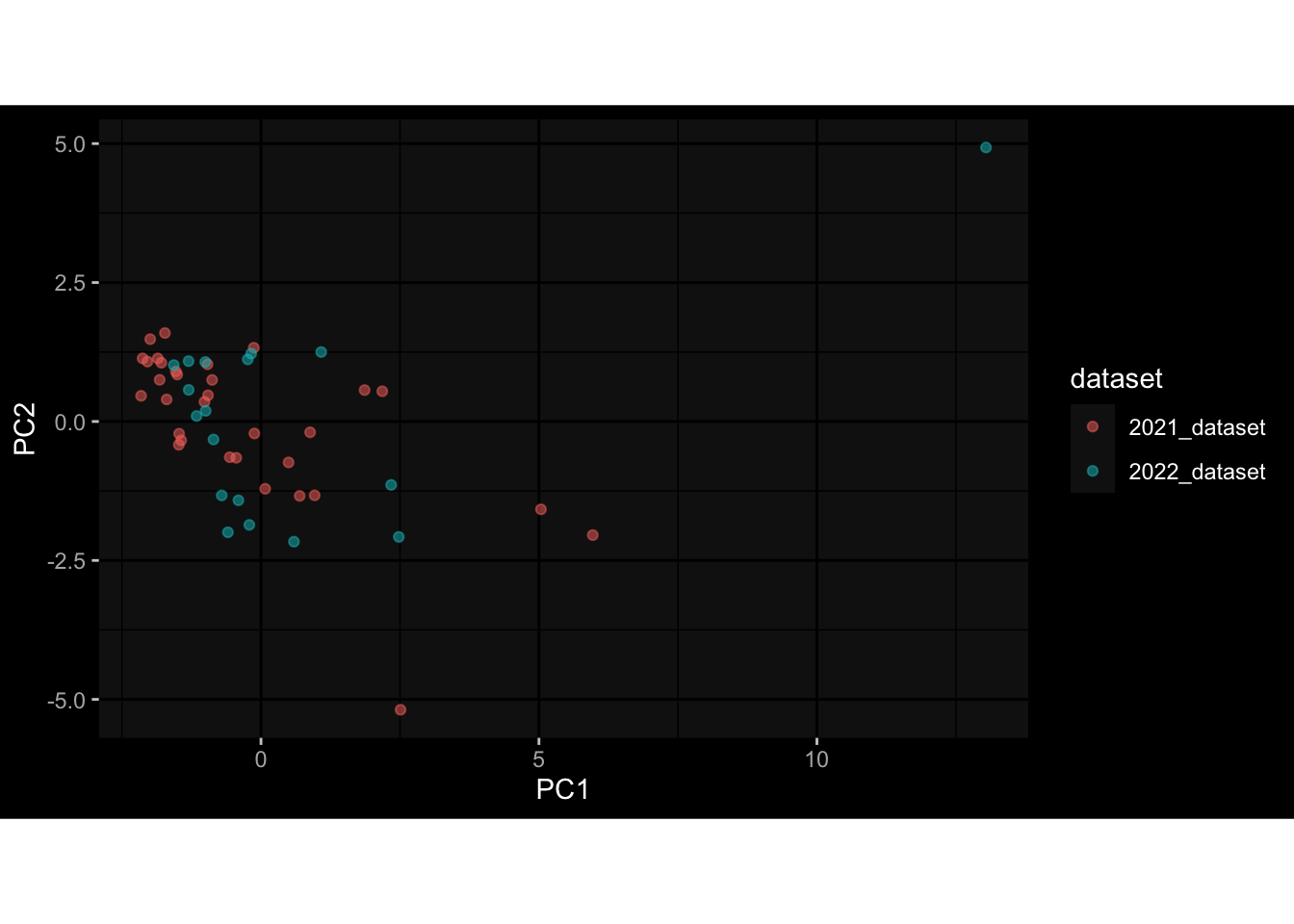

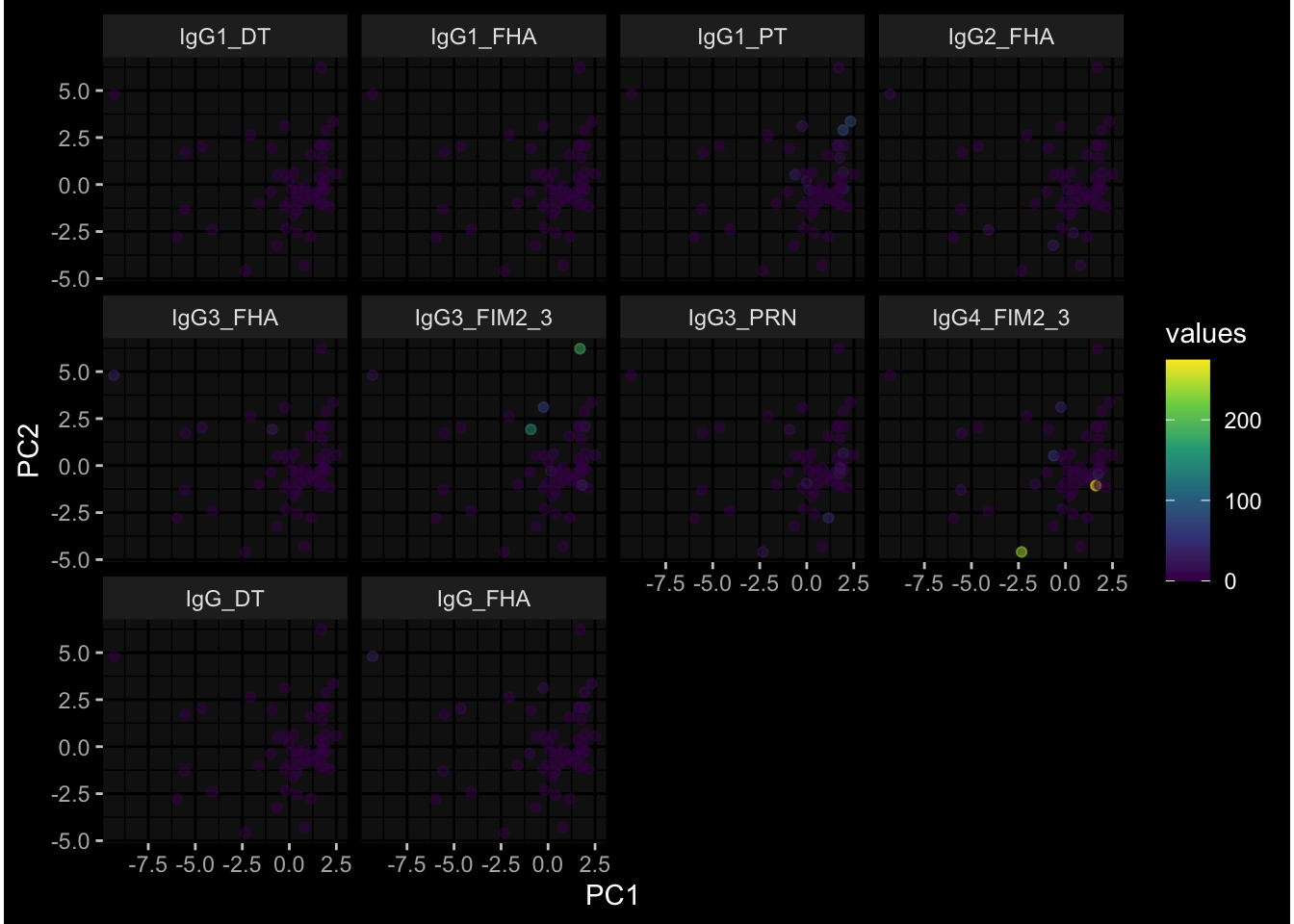

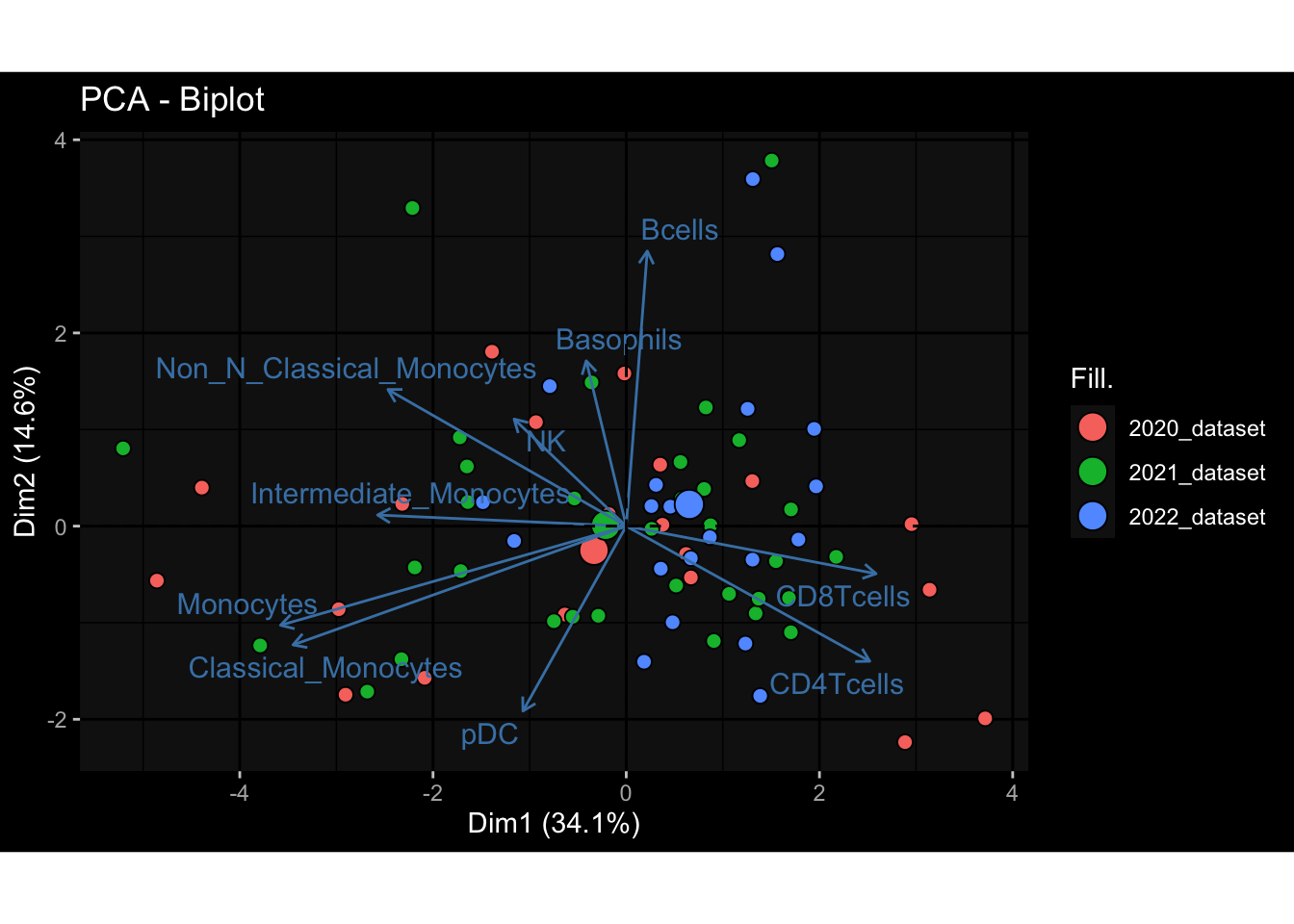

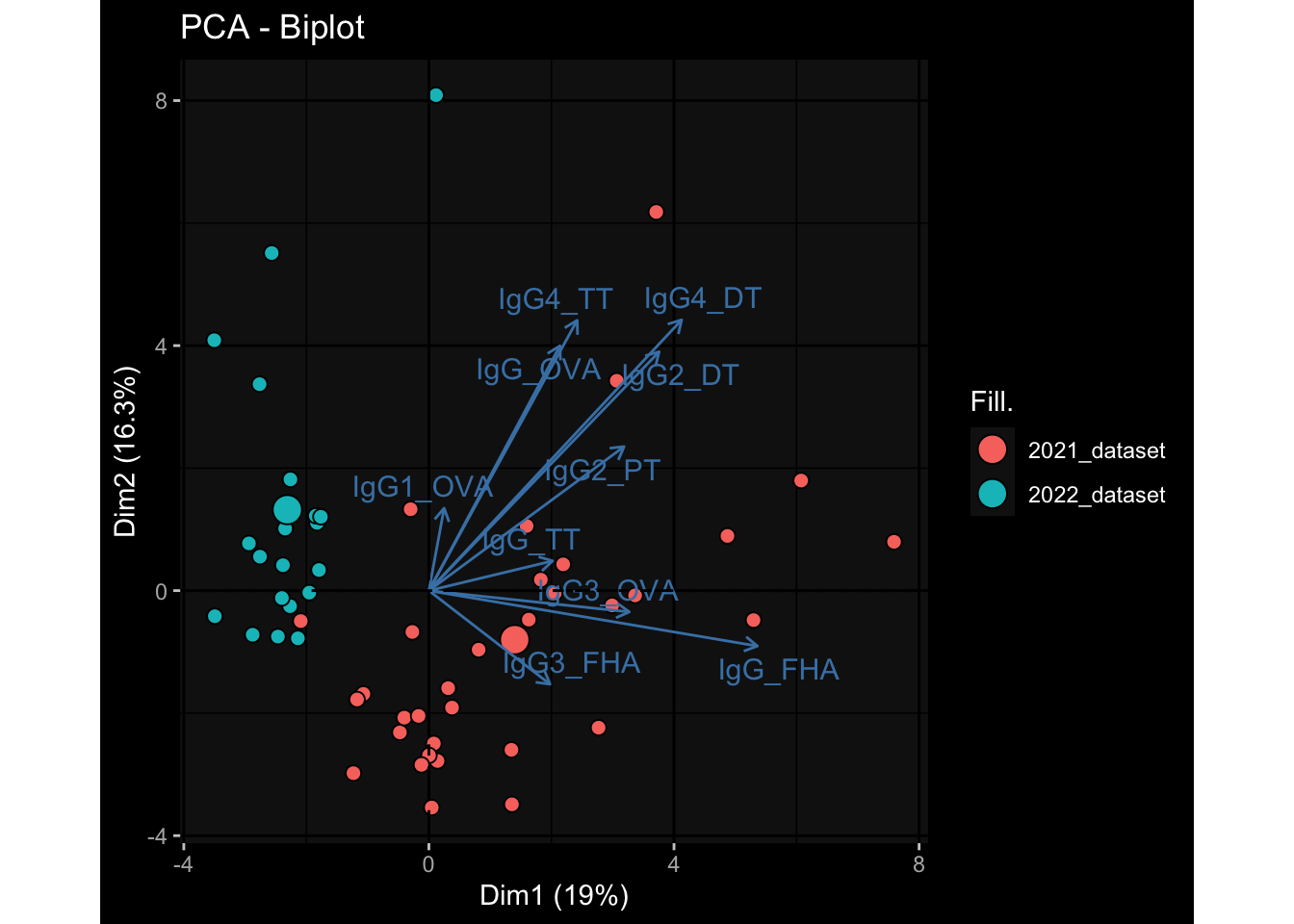

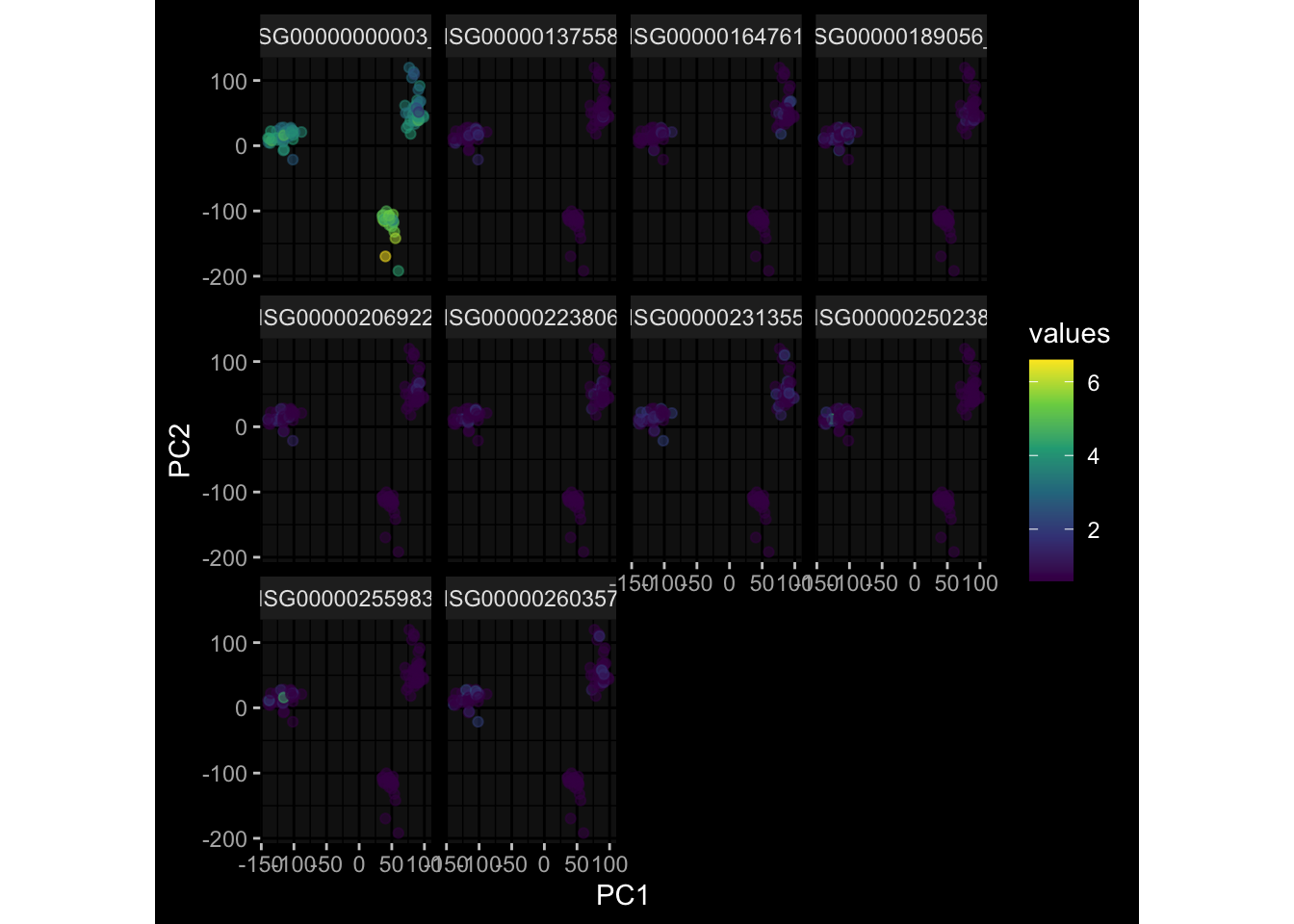

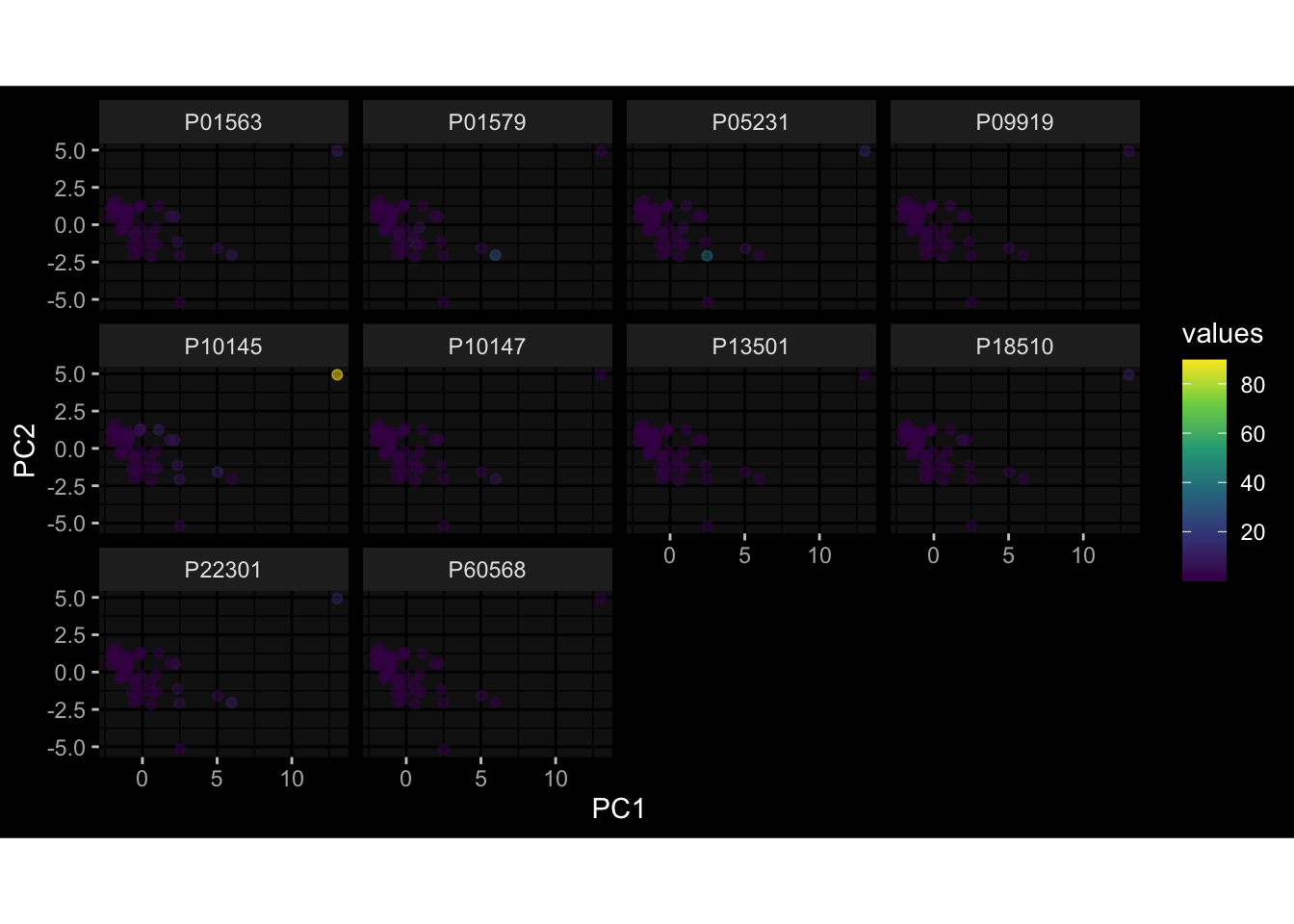

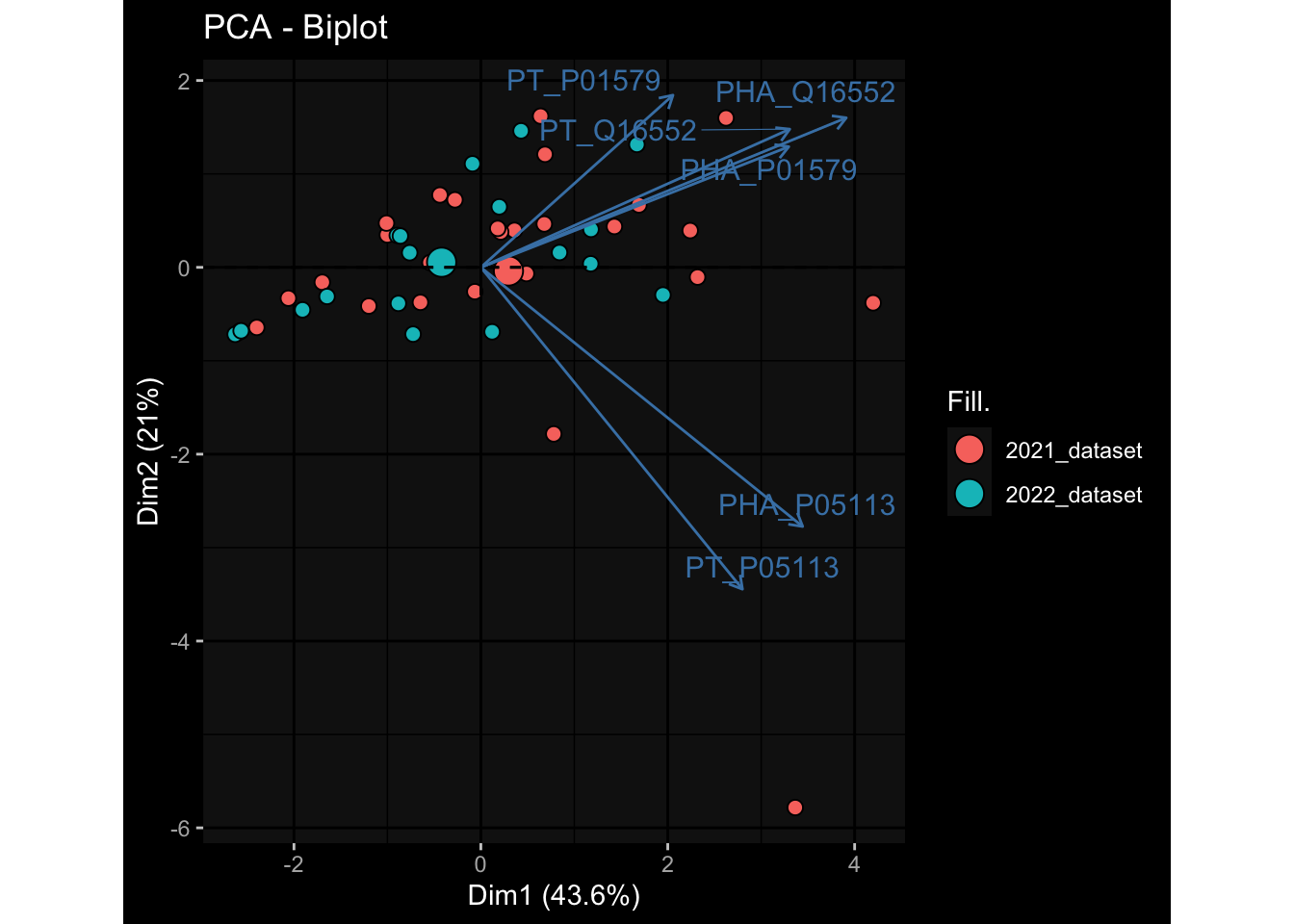

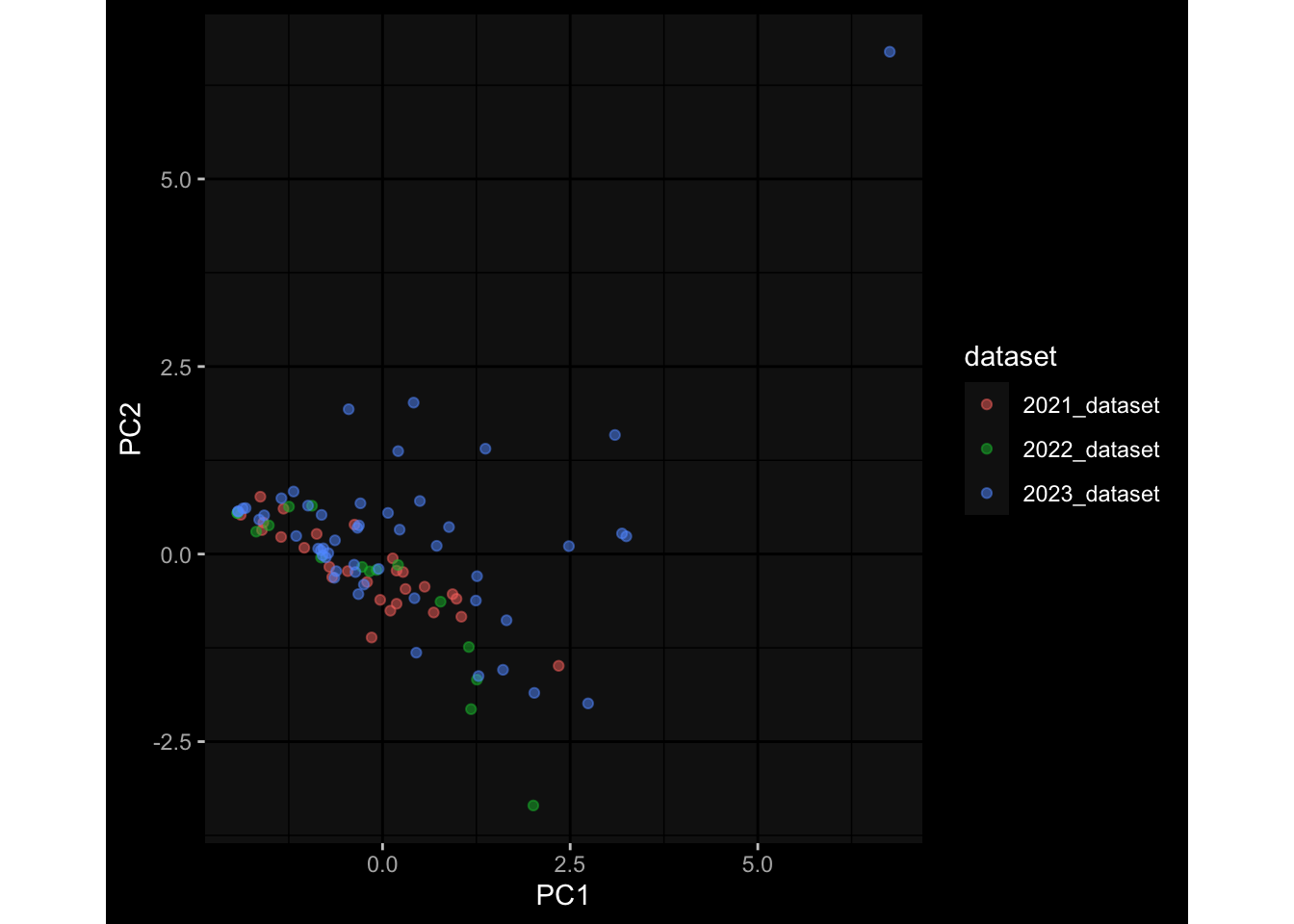

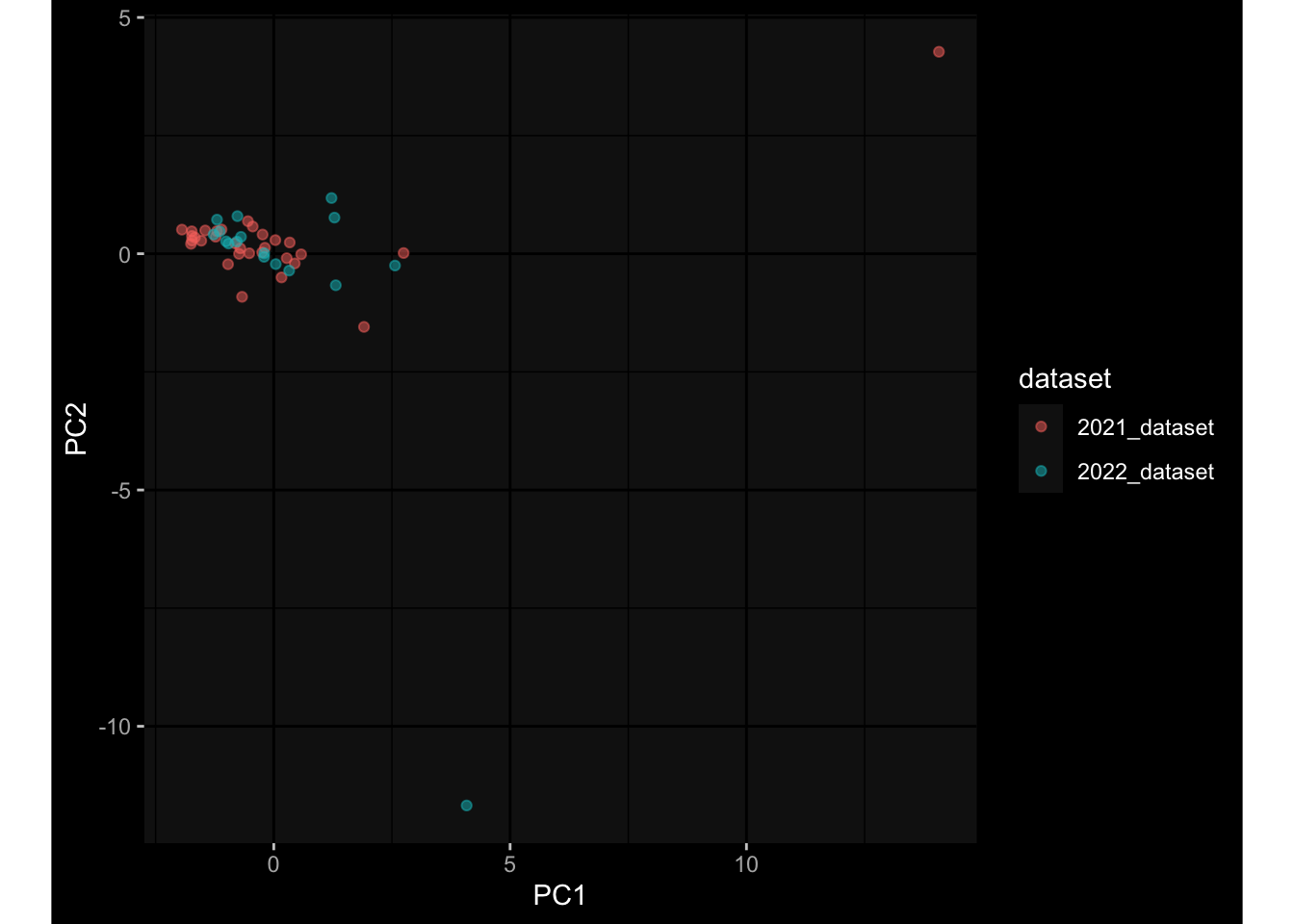

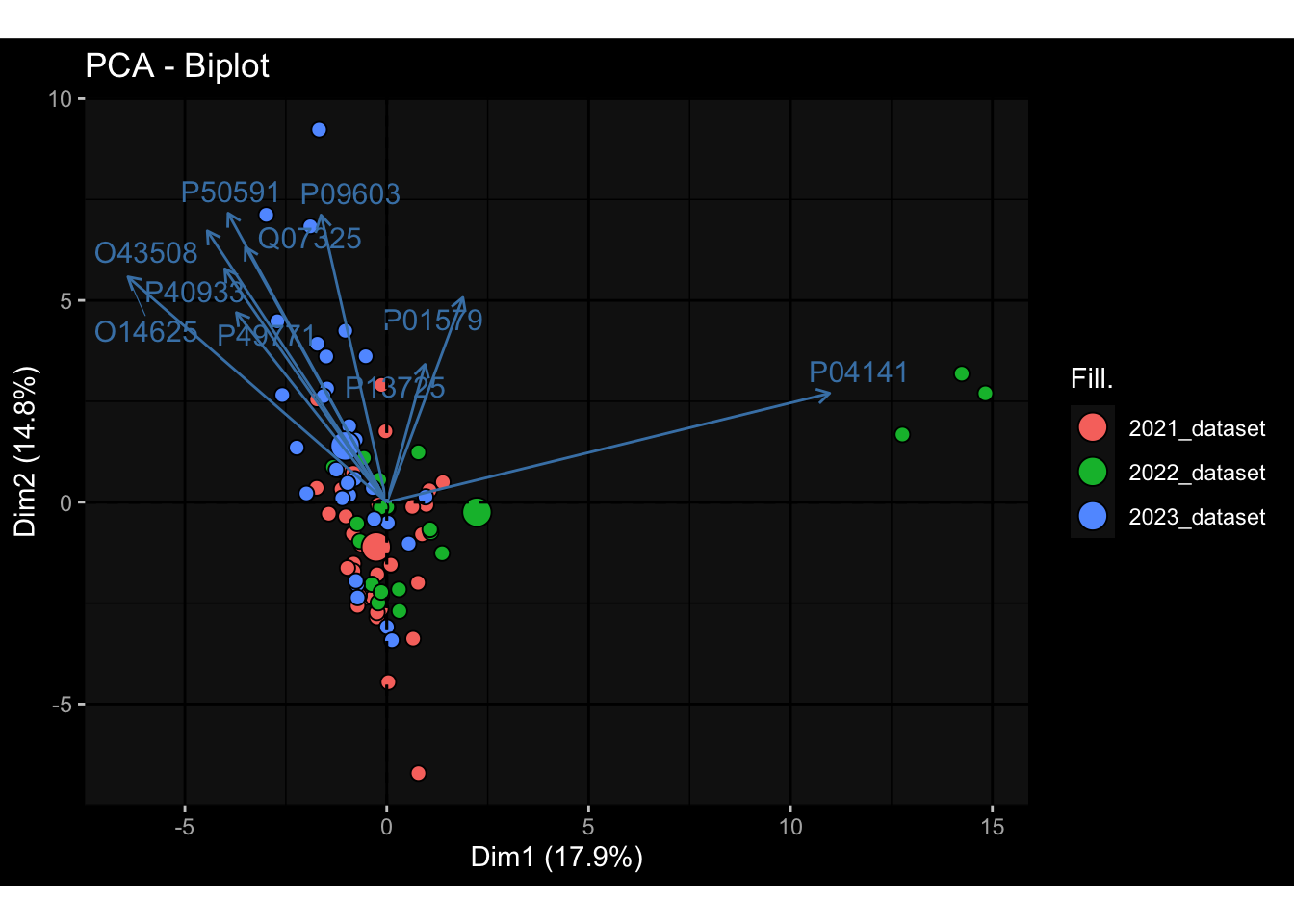

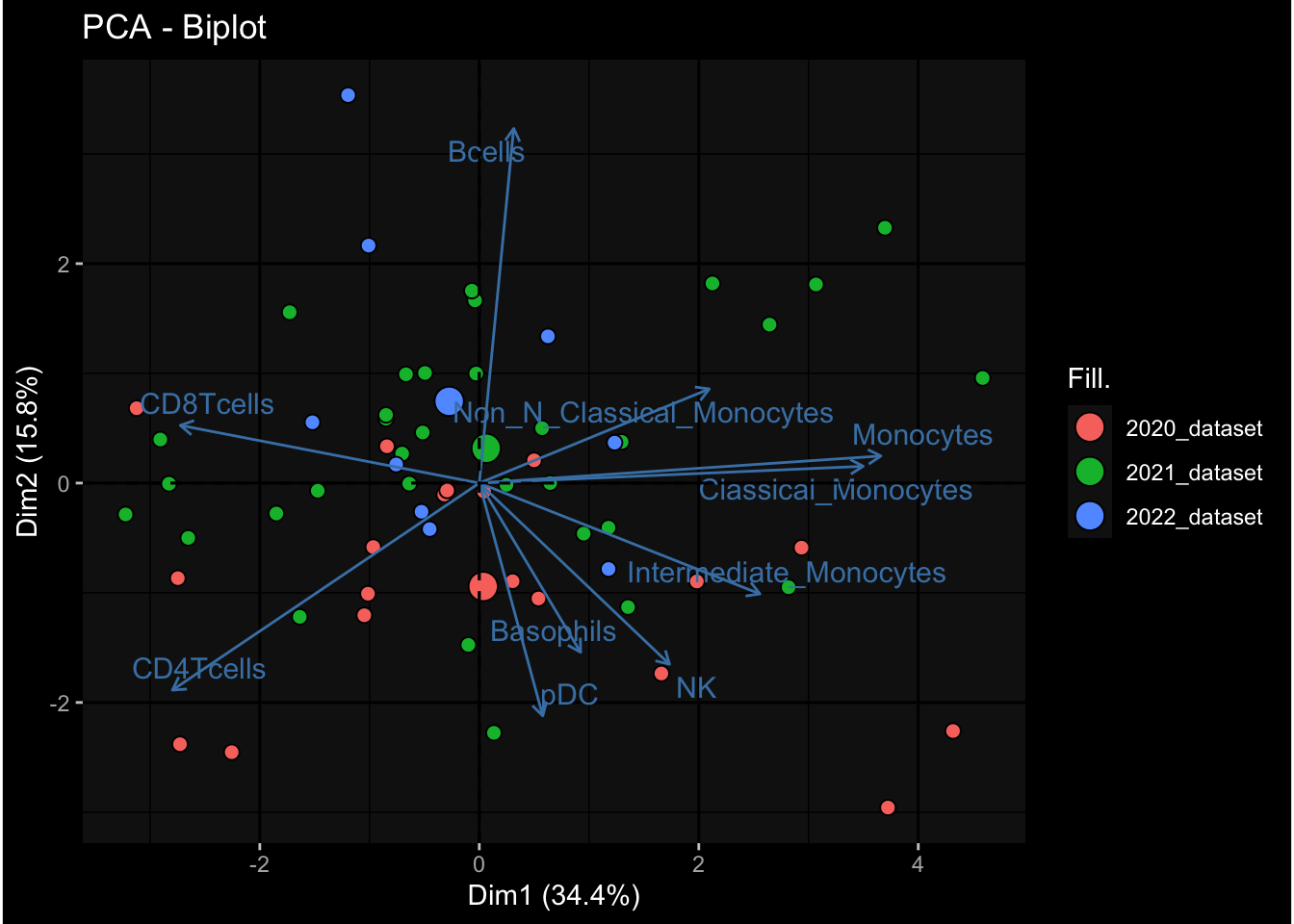

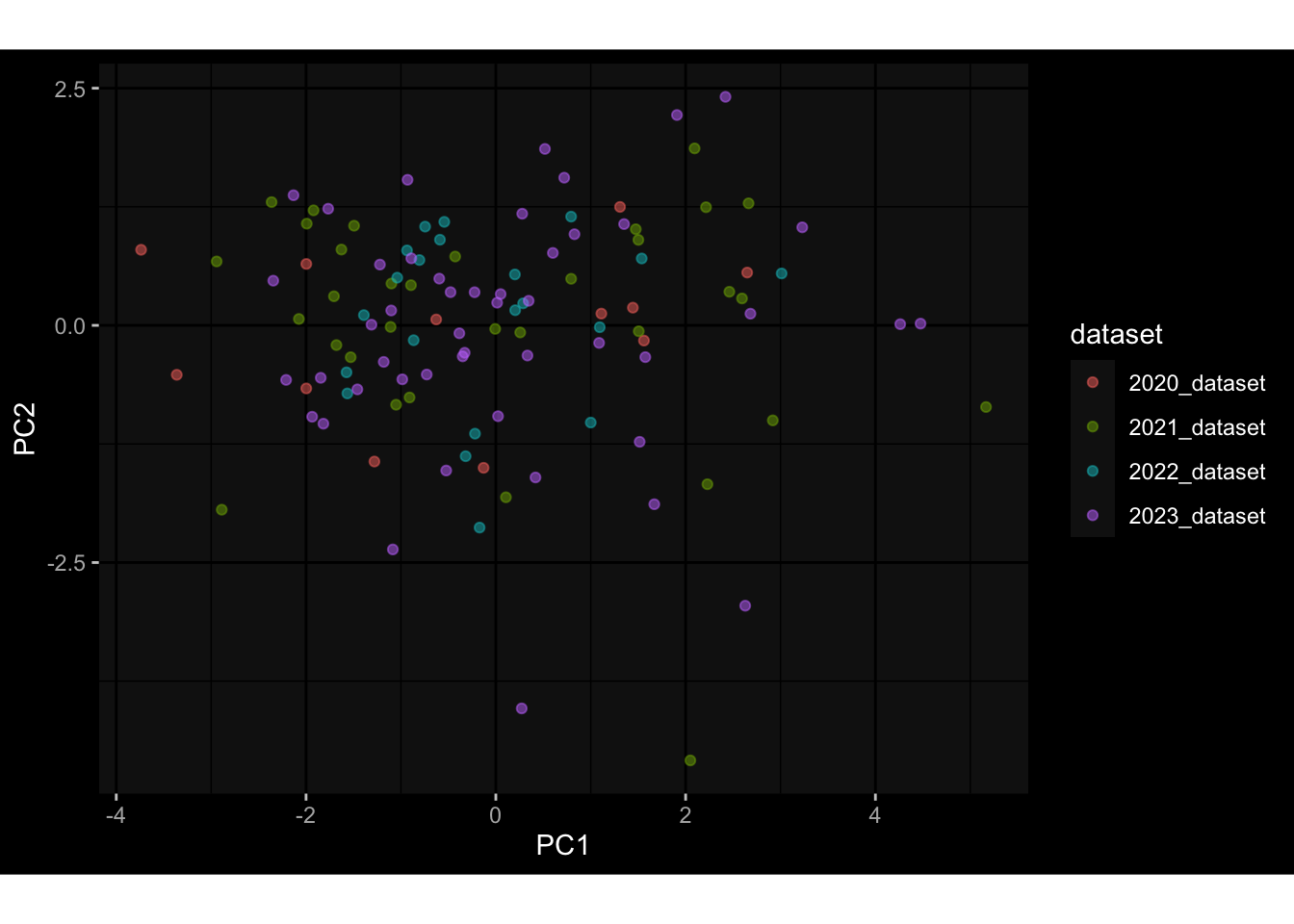

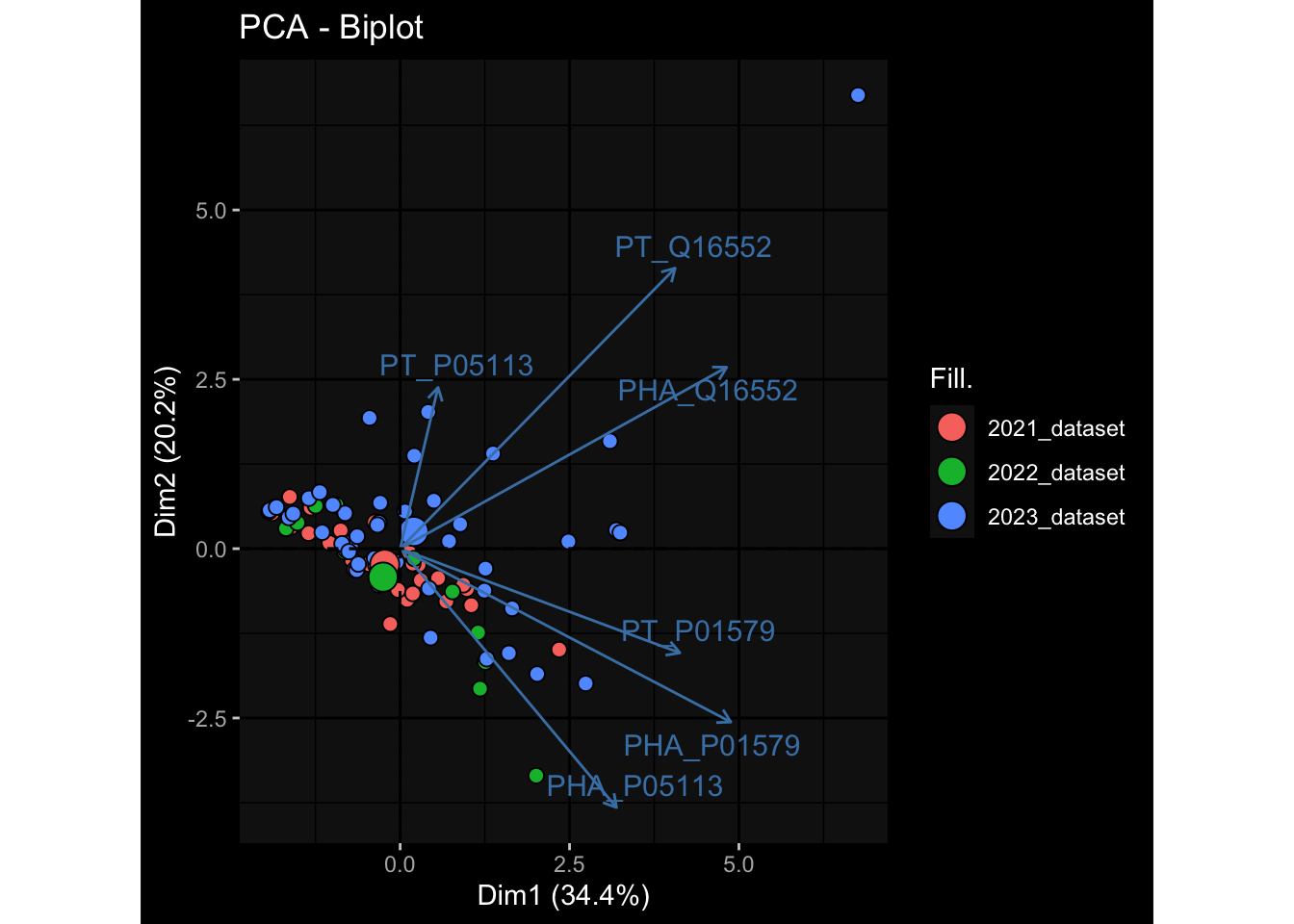

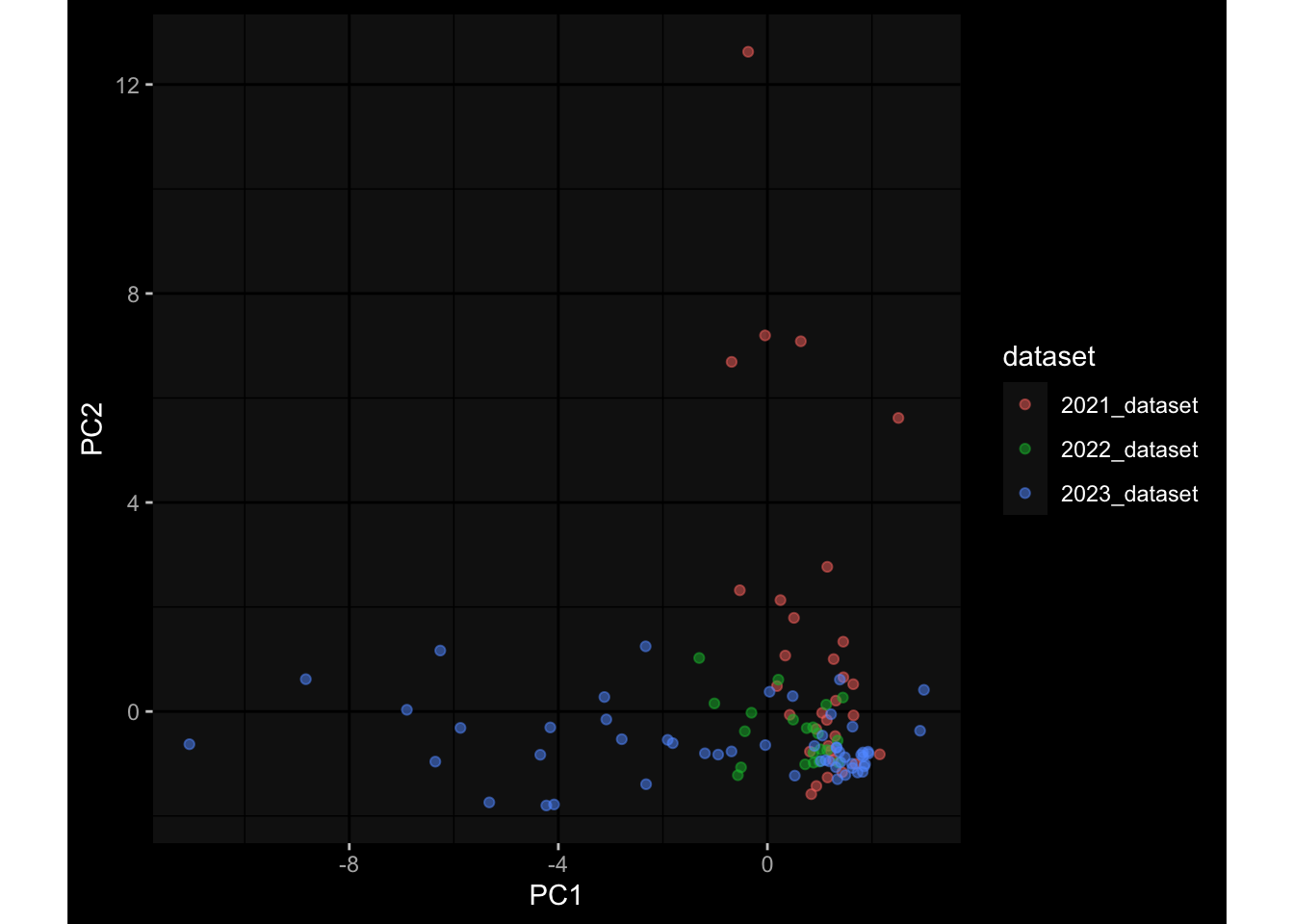

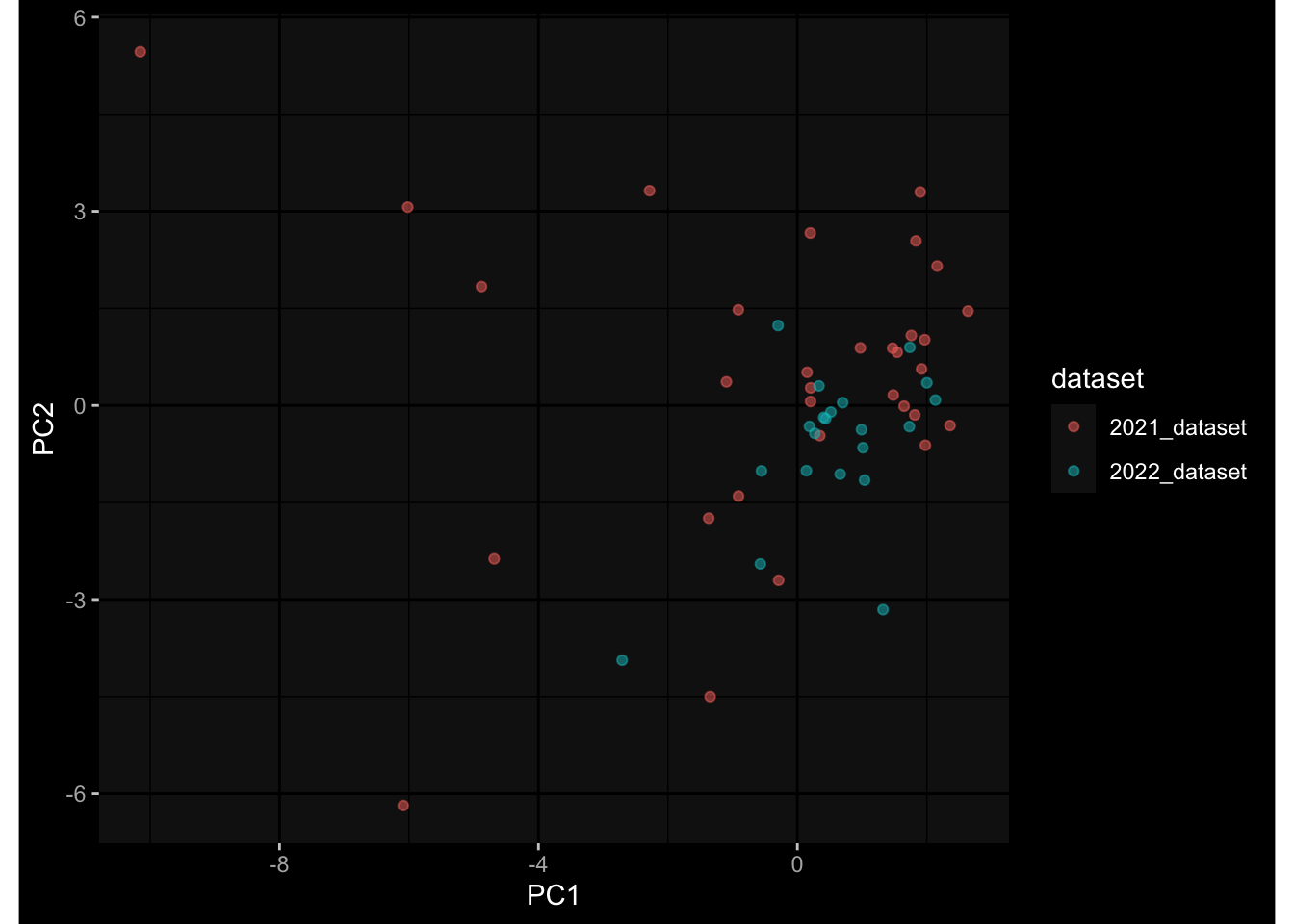

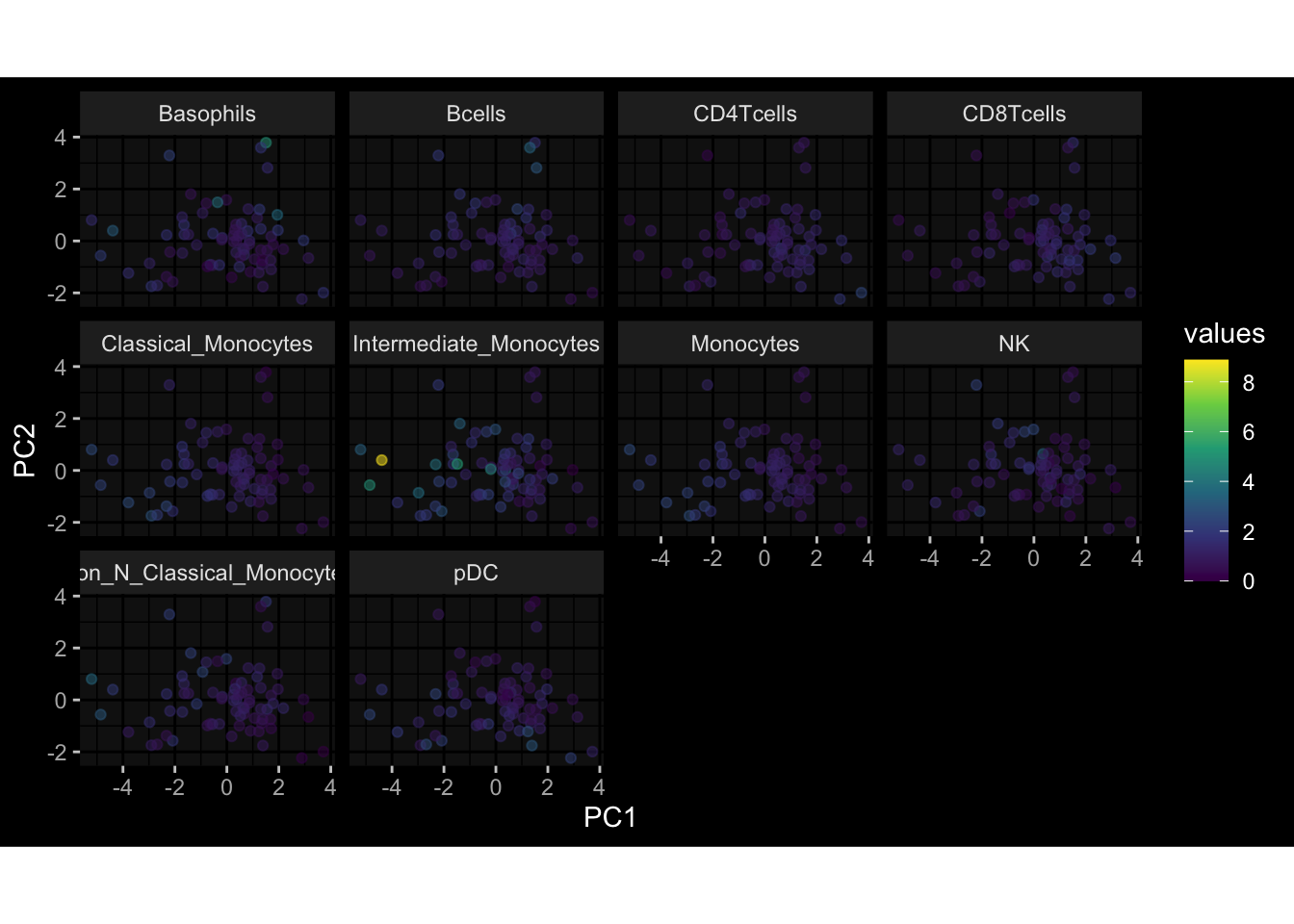

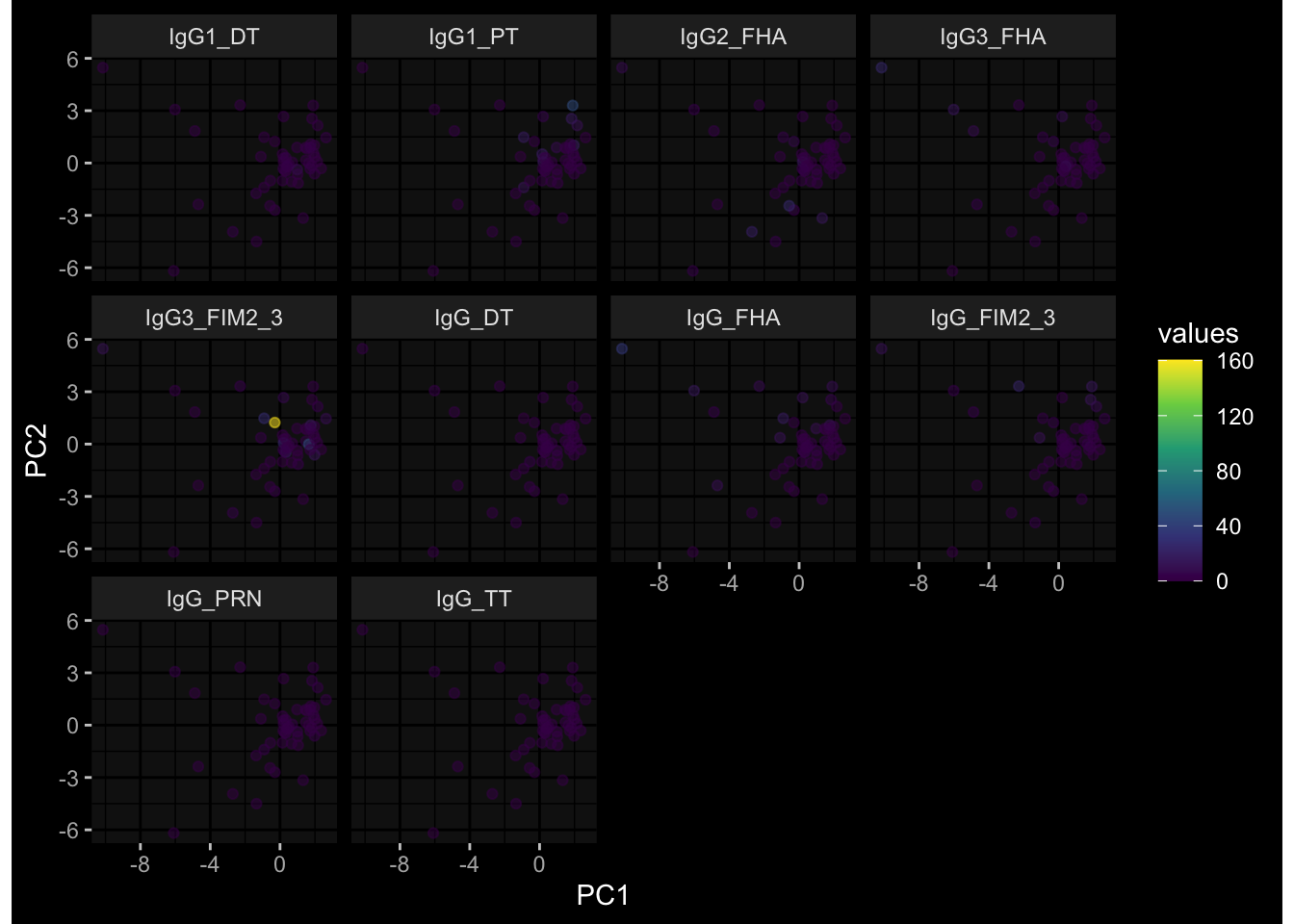

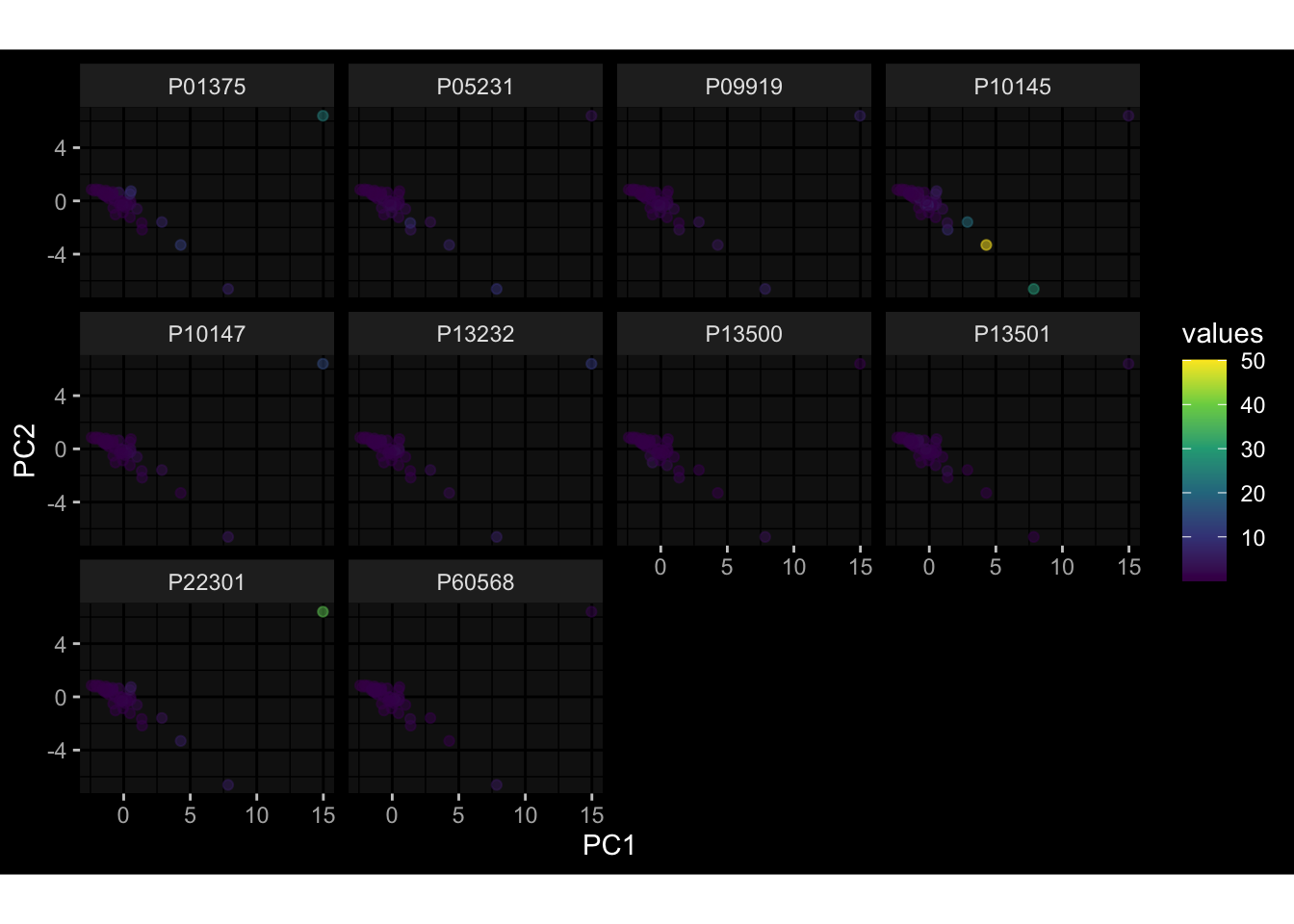

      plist <- generate_pca_plots(assay_mtx_wide=assay_mtx_wide,
                                  meta_data=meta_data)
      print(plist$p1)
      print(plist$p2)
      print(plist$p3)
    }
    cat(paste0("\n\n"))
  }
}

4.1 day_0

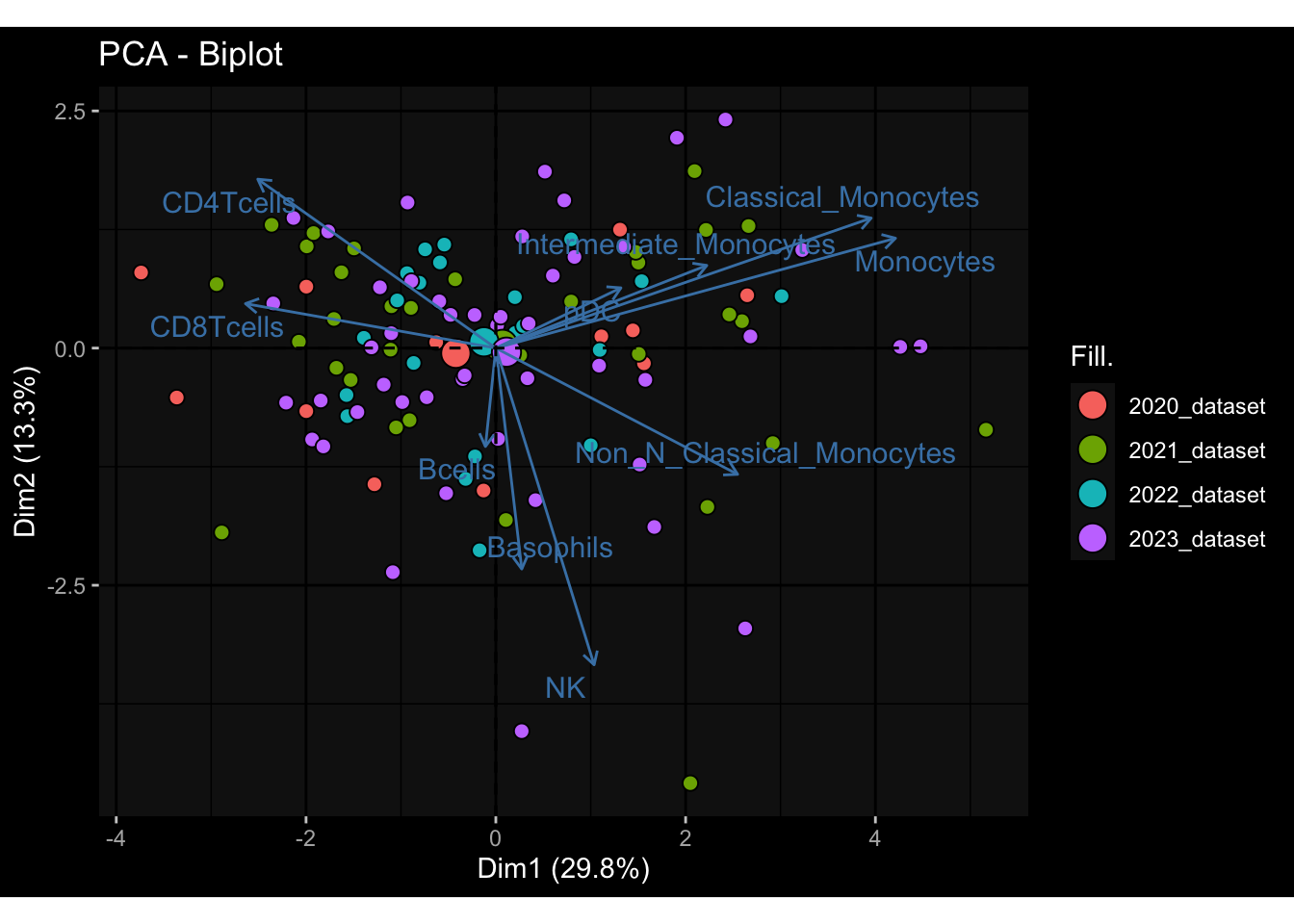

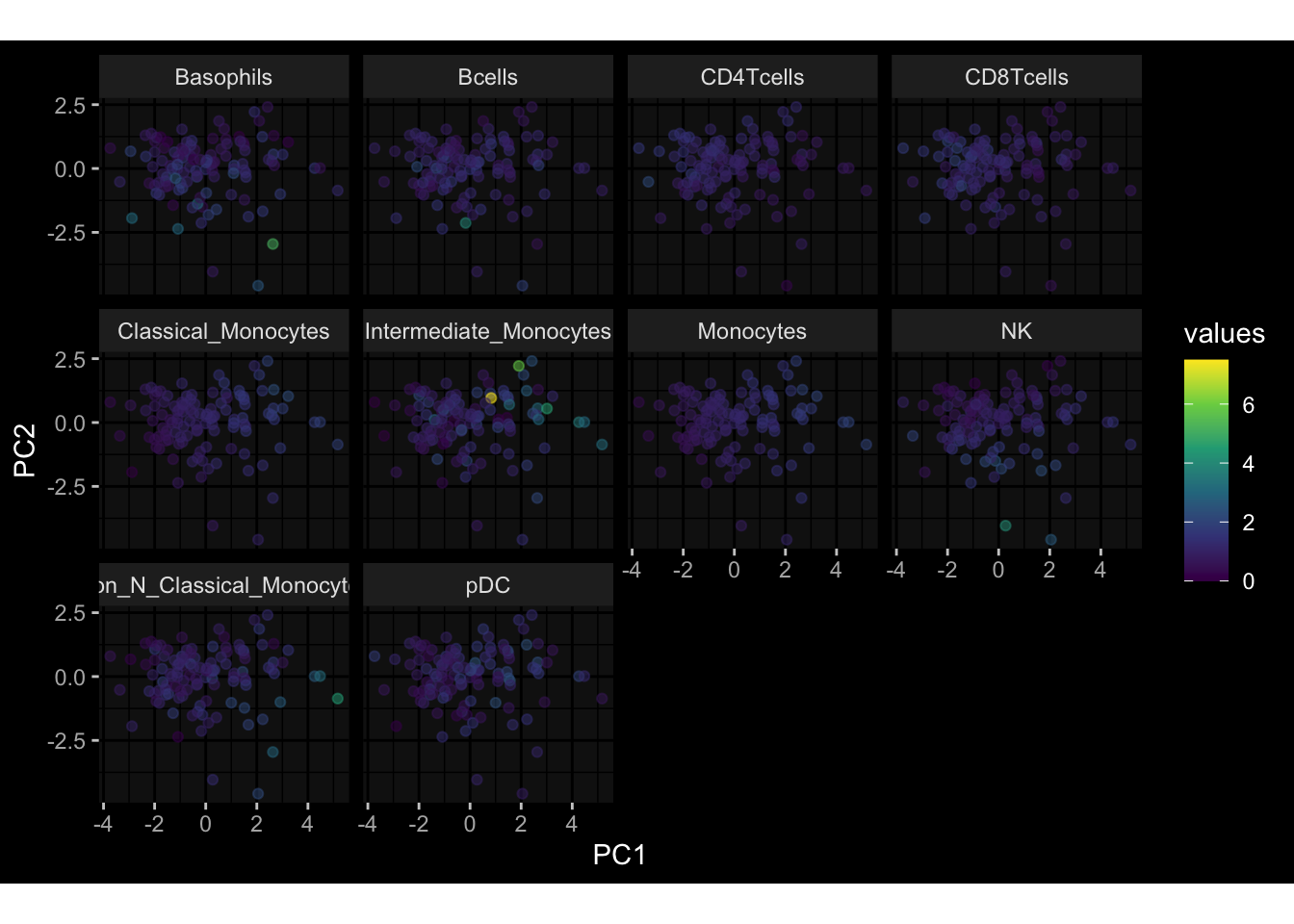

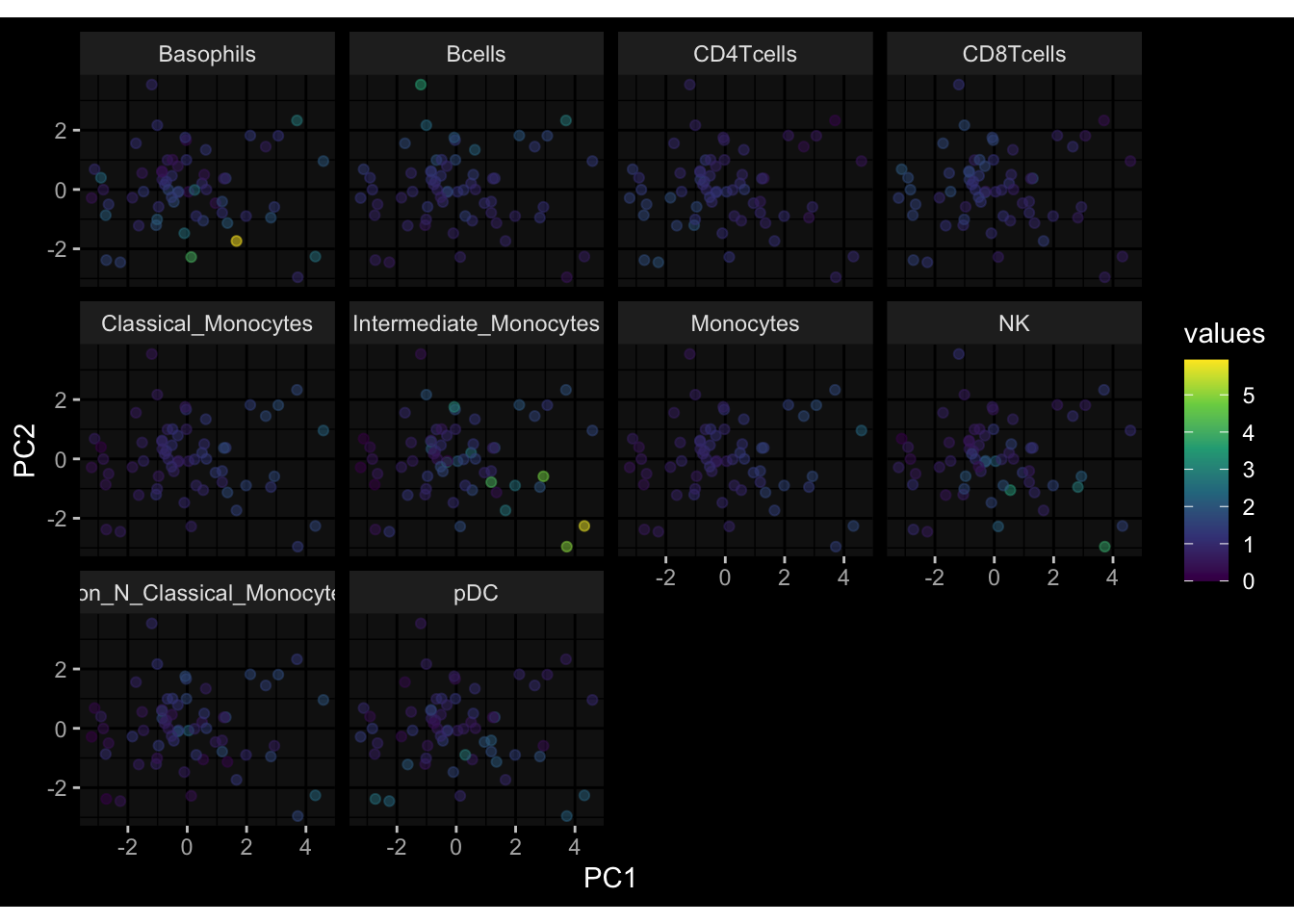

4.1.1 pbmc_cell_frequency

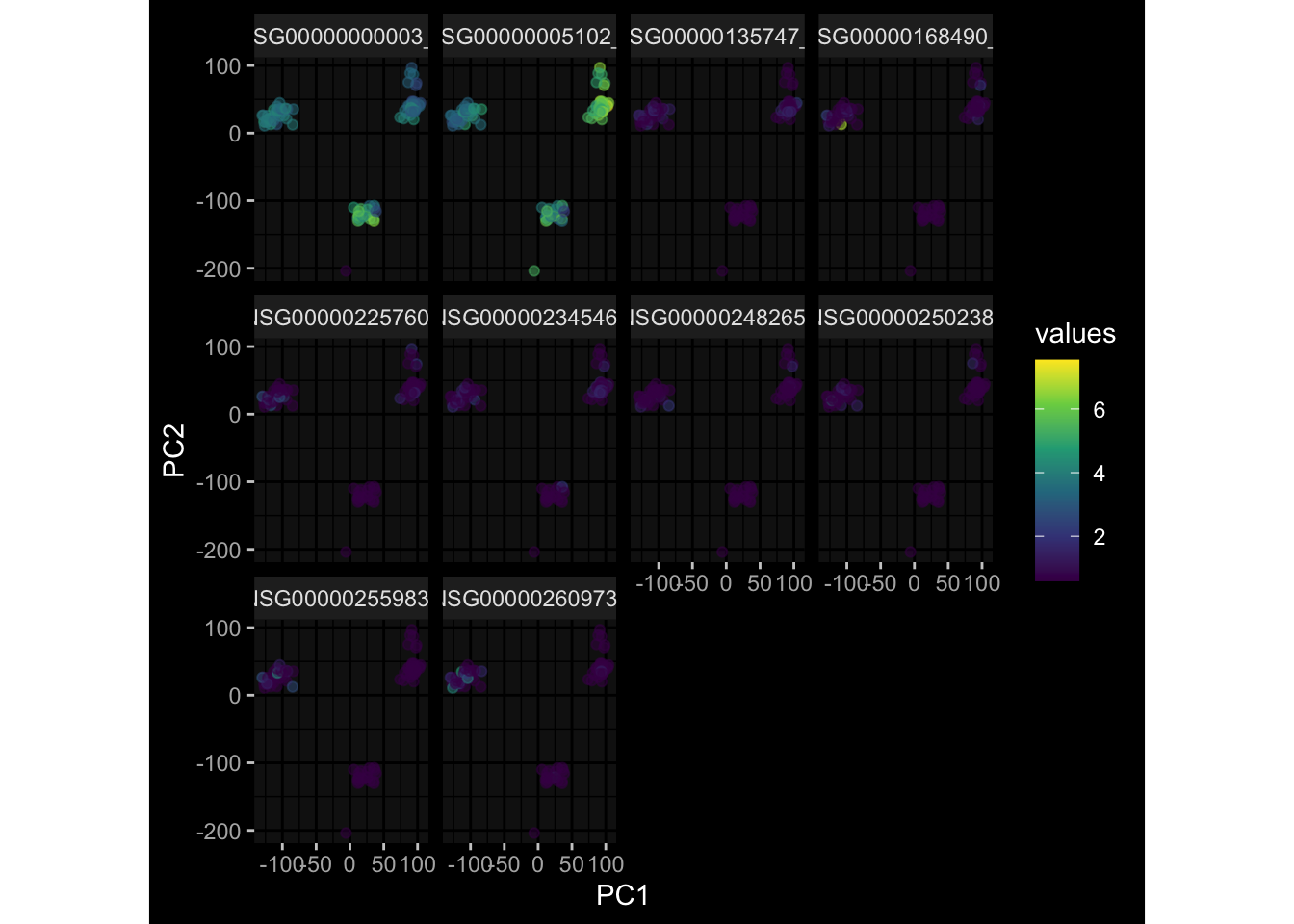

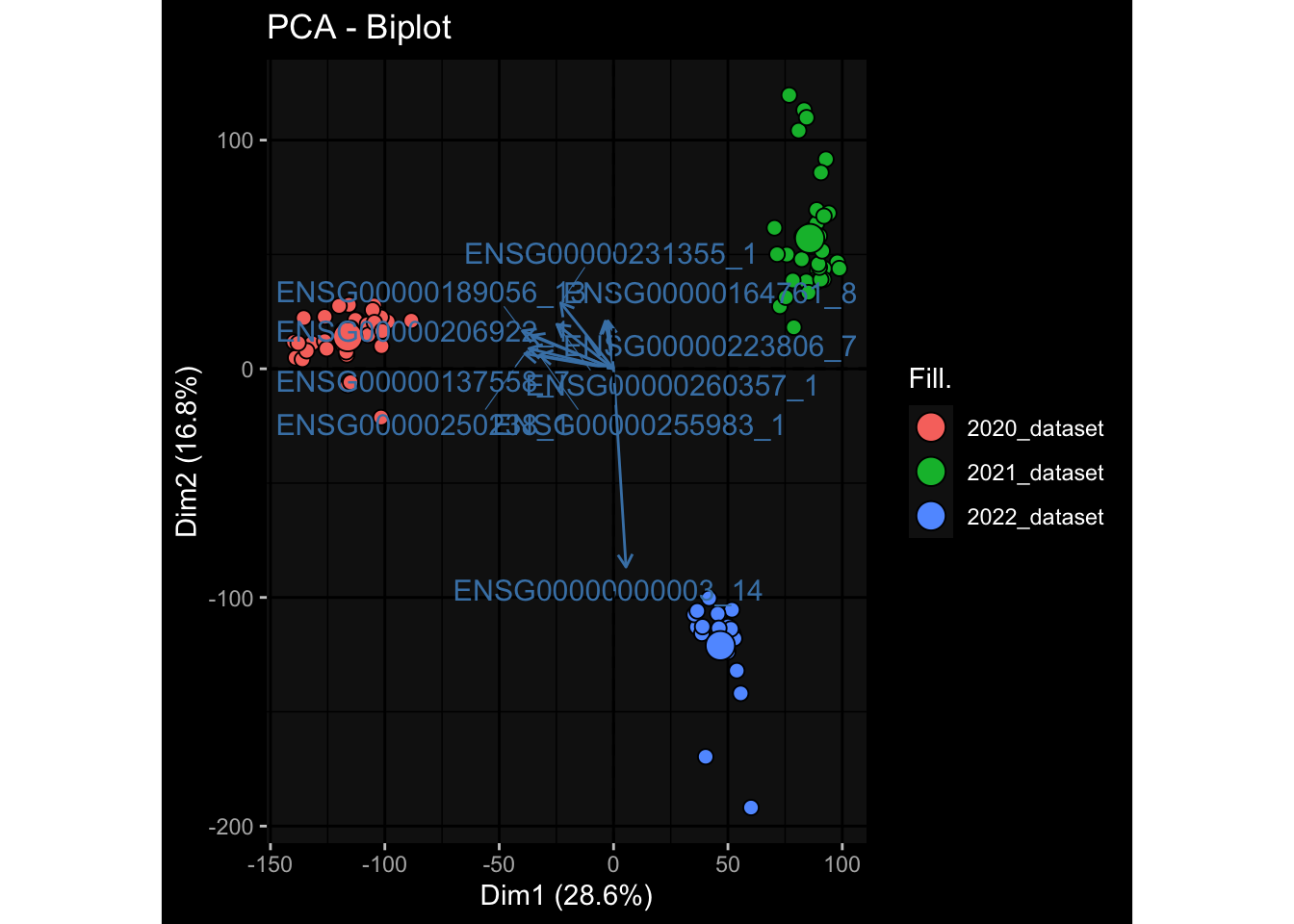

4.1.2 pbmc_gene_expression

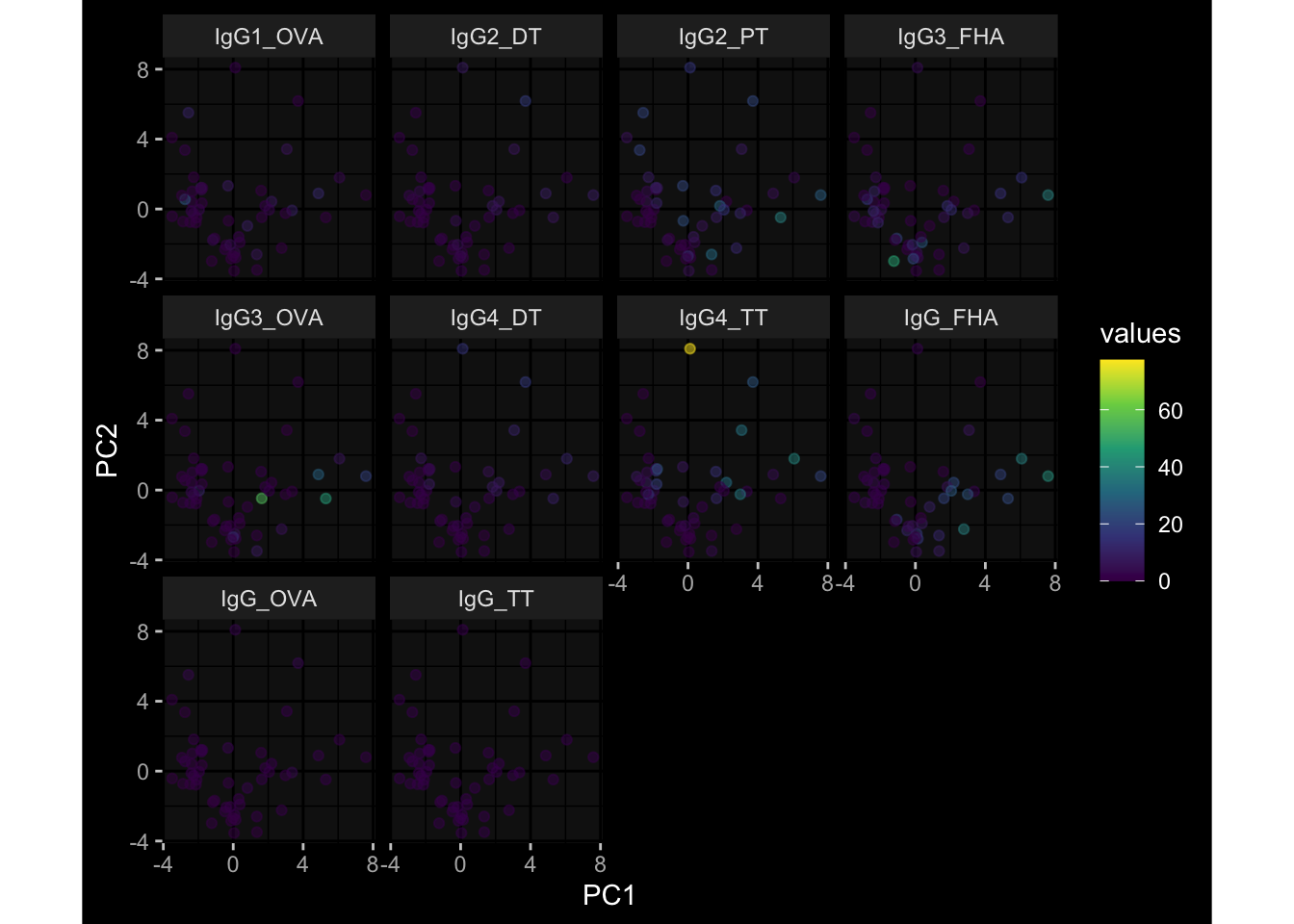

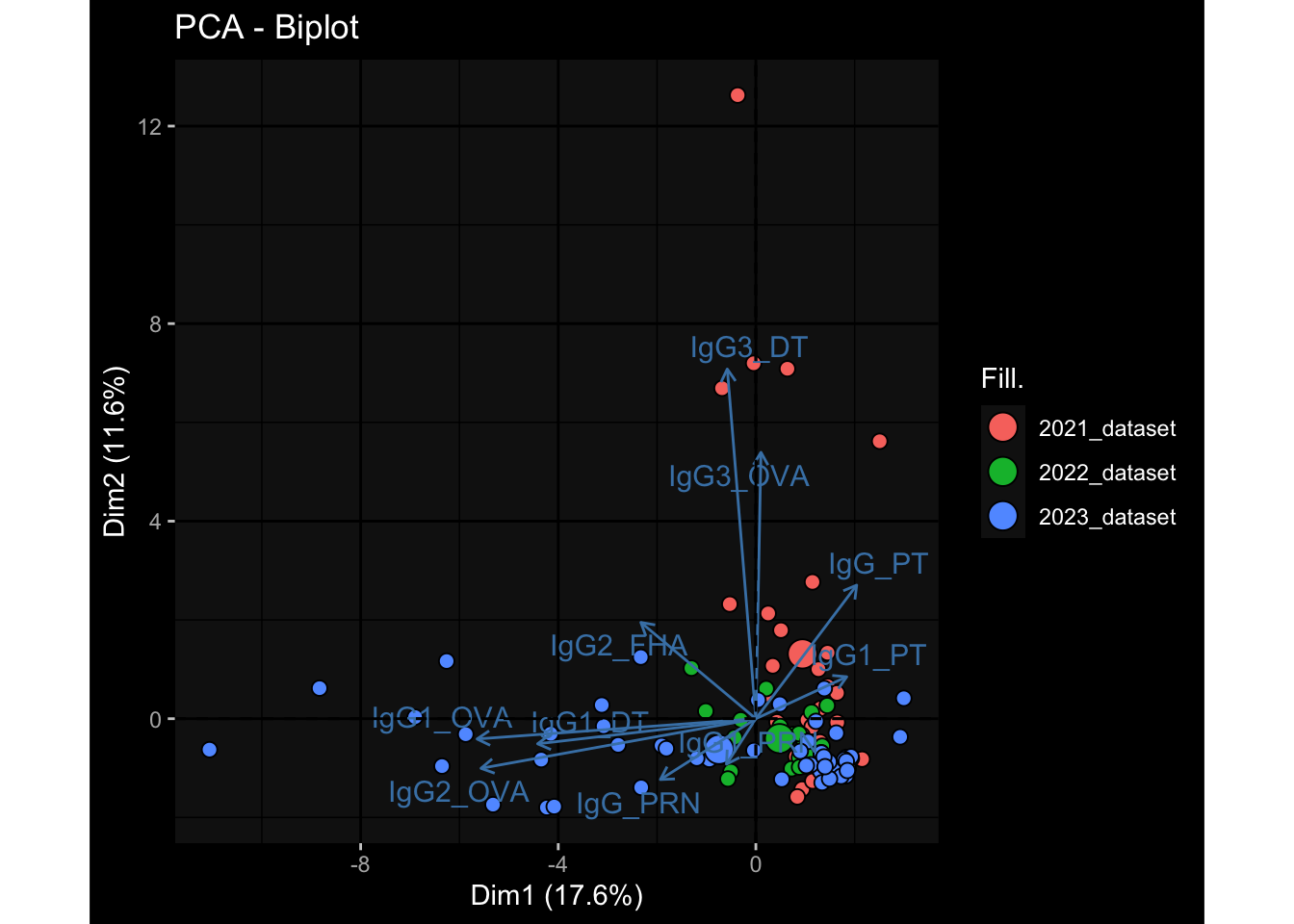

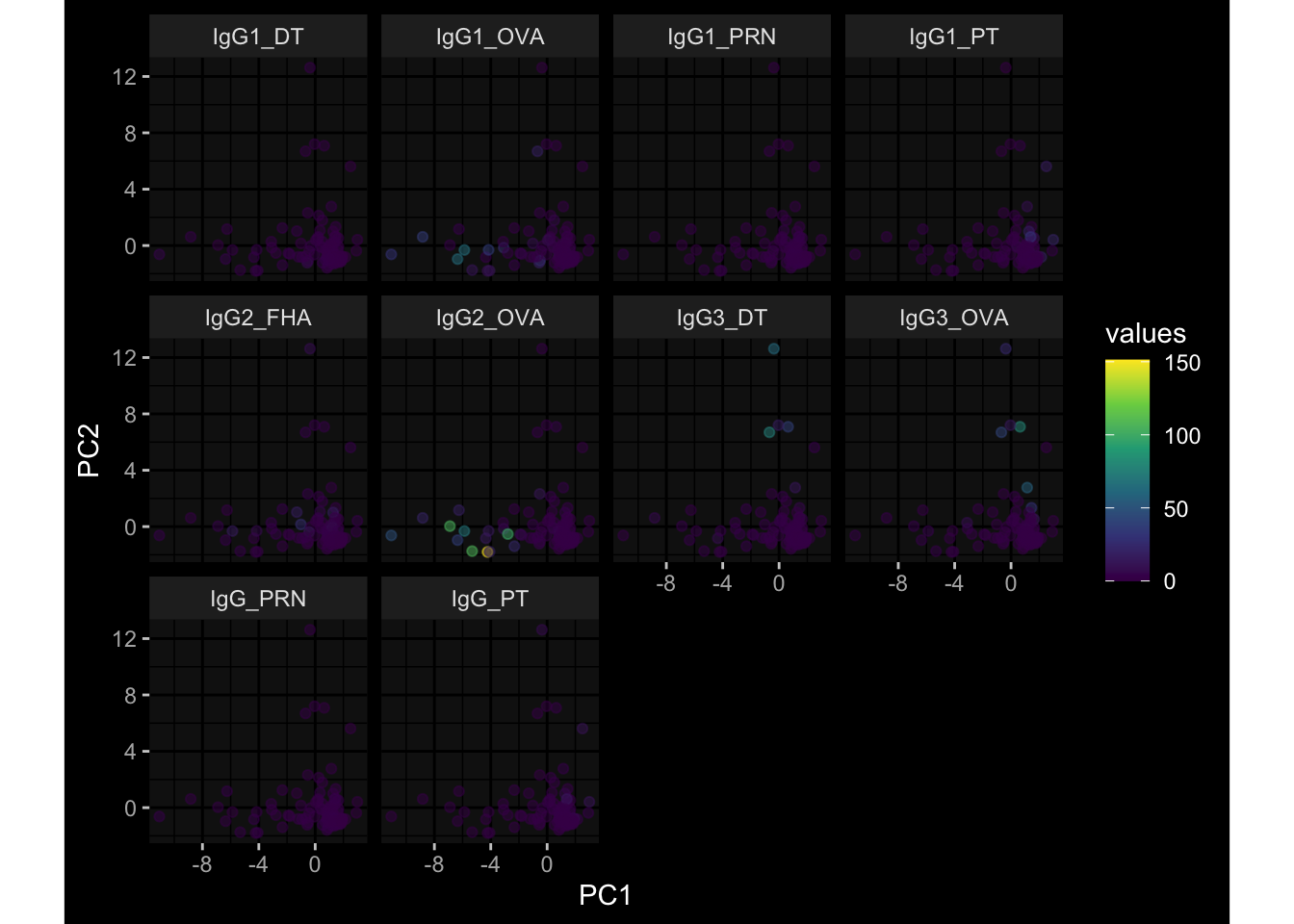

4.1.3 plasma_ab_titer

4.1.4 plasma_cytokine_concentration_by_legendplex

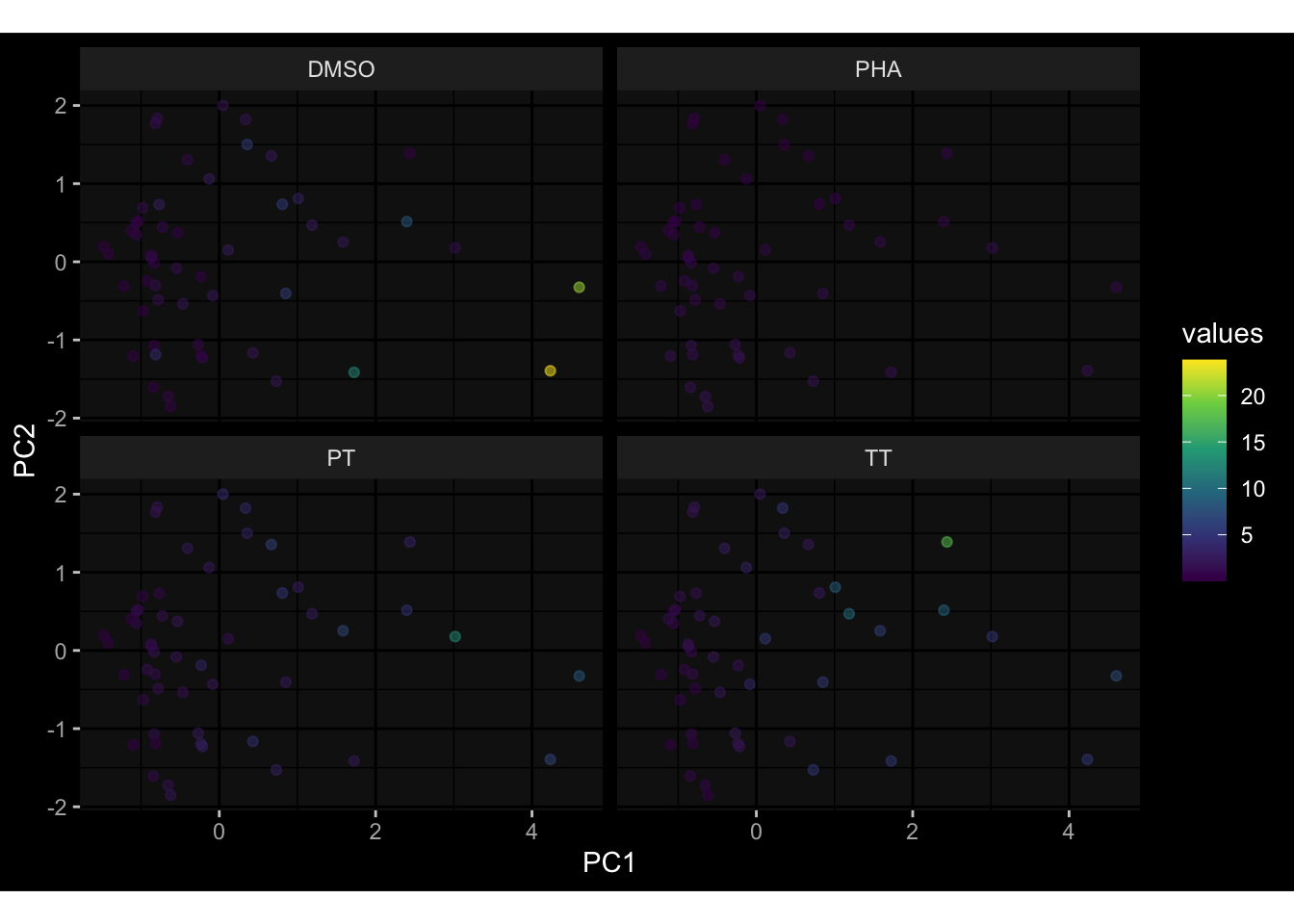

4.1.6 t_cell_activation

Non-zero fraction of NAs: 0.059

4.1.7 t_cell_polarization

Non-zero fraction of NAs: 0.0106

4.2 day_1

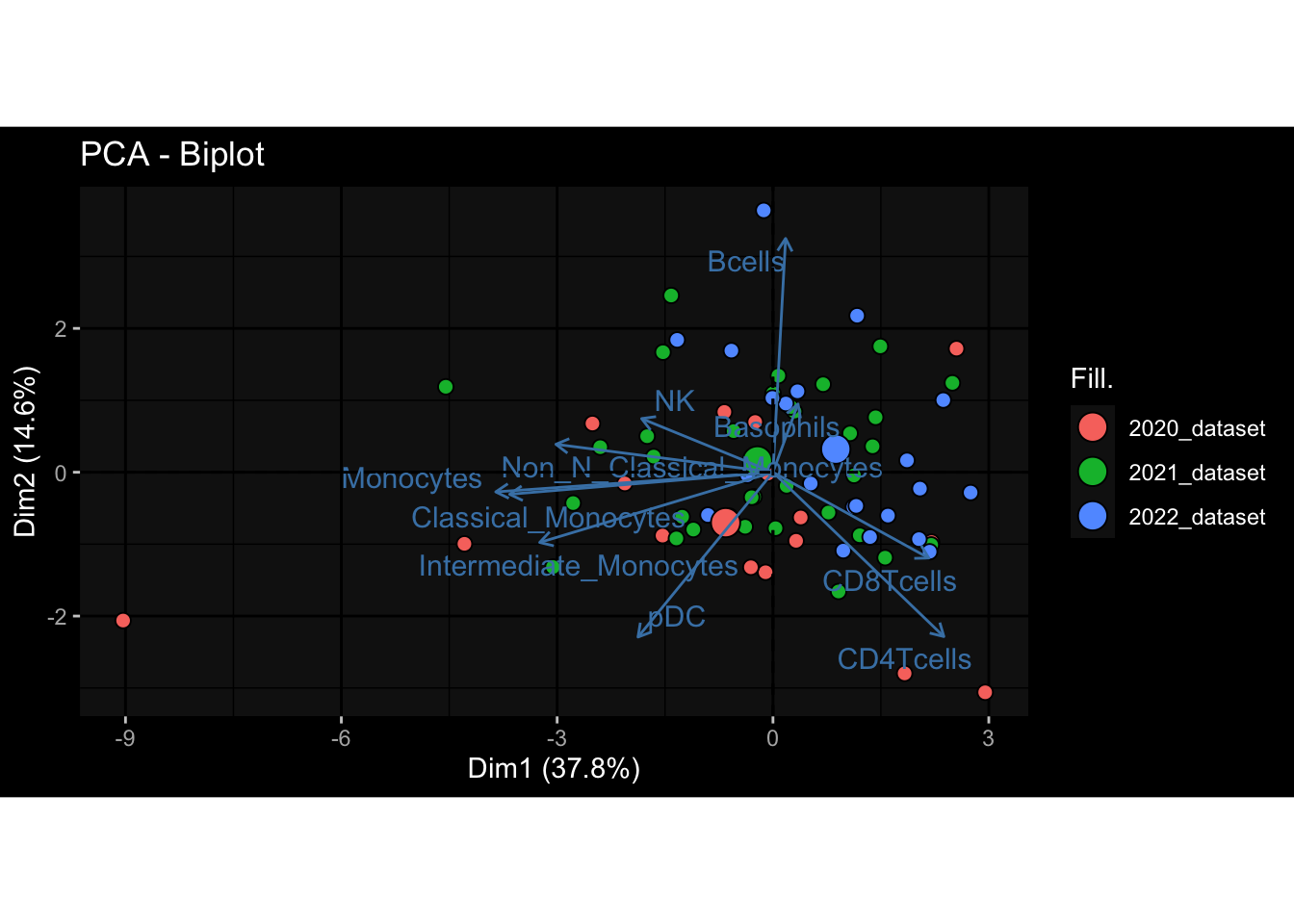

4.2.1 pbmc_cell_frequency

4.2.2 pbmc_gene_expression

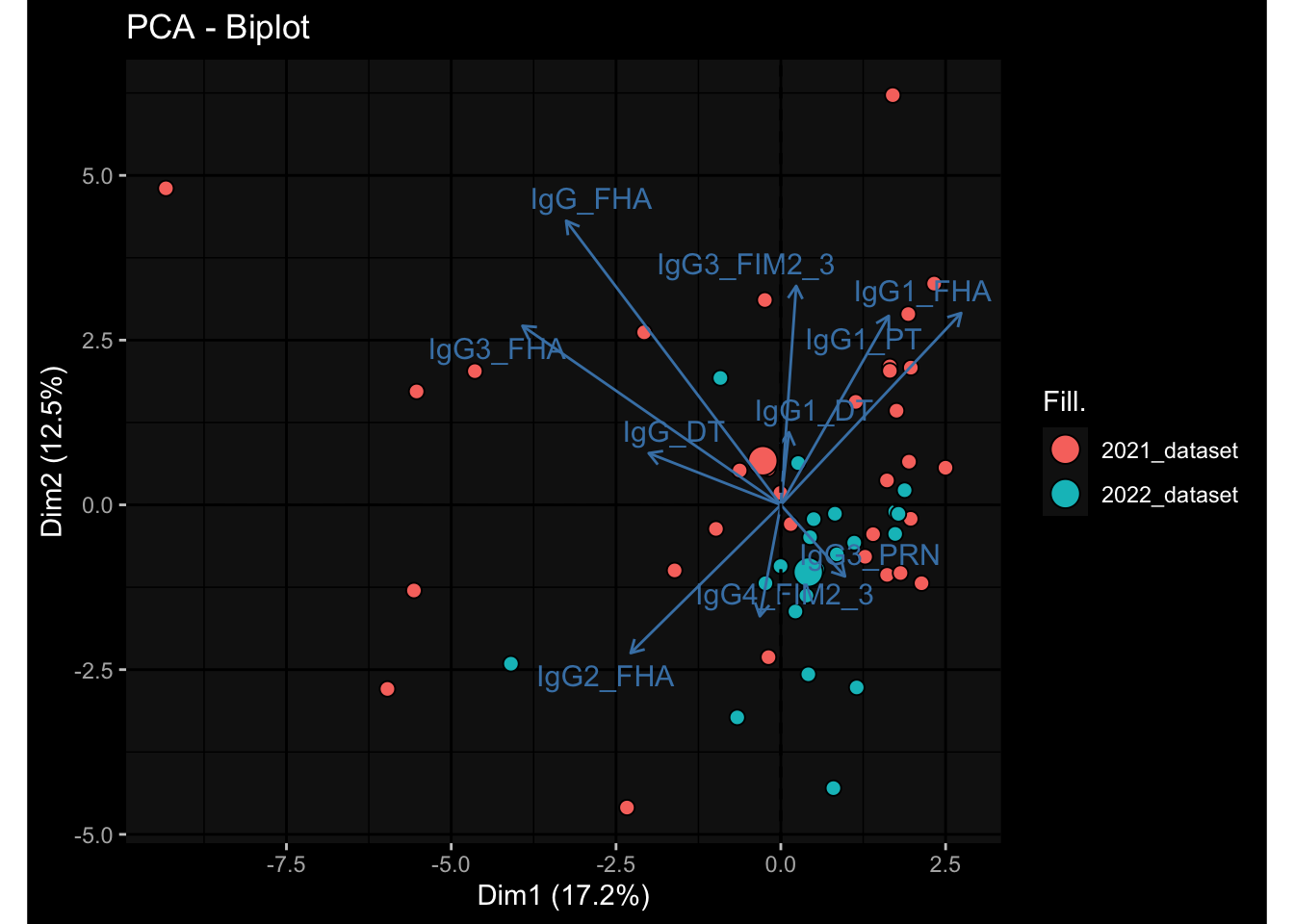

4.2.3 plasma_ab_titer

4.2.4 plasma_cytokine_concentration_by_legendplex

4.2.6 t_cell_activation

Fewer than 3 specimen for this combination of assay and day available

4.2.7 t_cell_polarization

Fewer than 3 specimen for this combination of assay and day available

4.3 day_3

4.3.1 pbmc_cell_frequency

4.3.2 pbmc_gene_expression

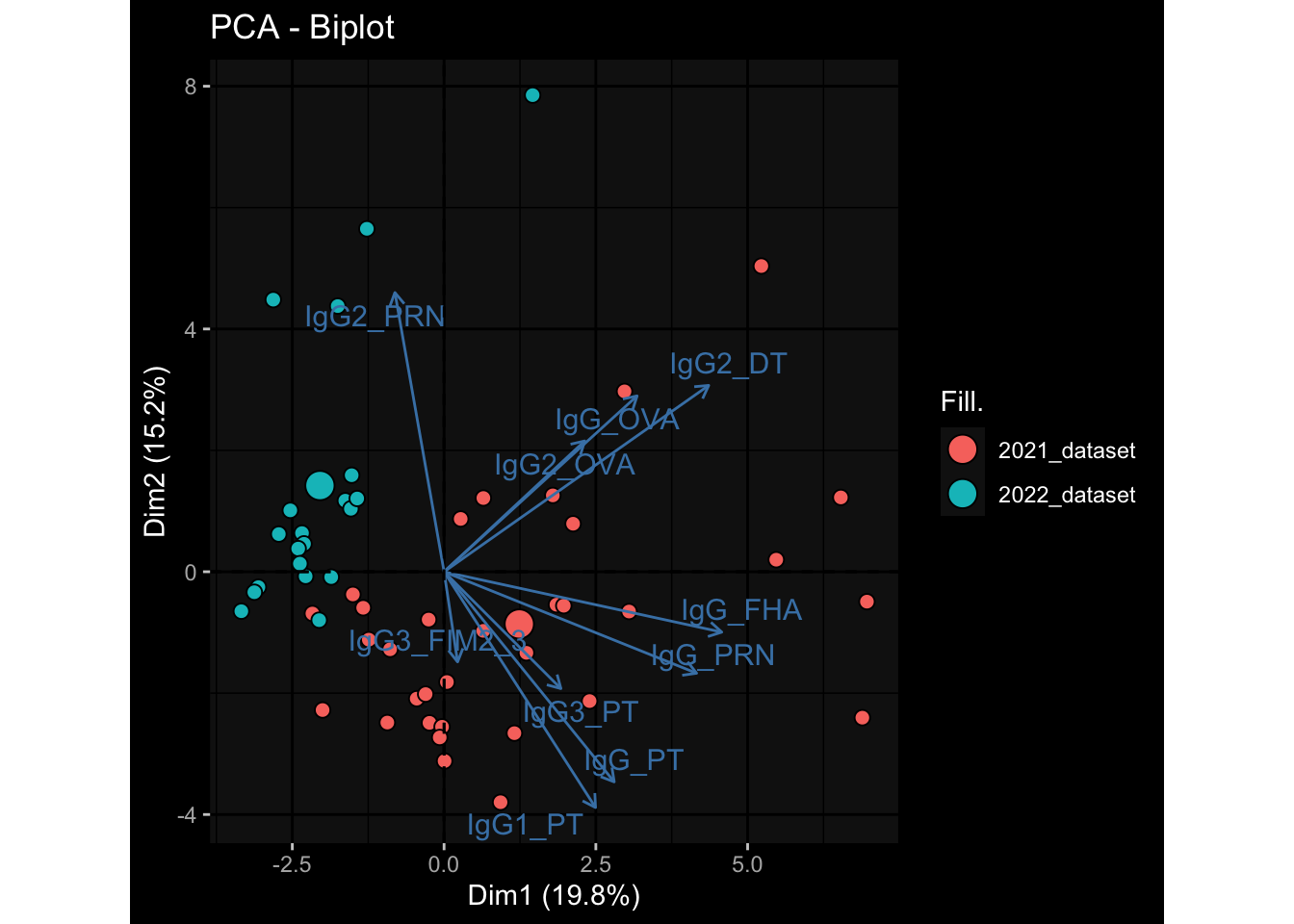

4.3.3 plasma_ab_titer

4.3.4 plasma_cytokine_concentration_by_legendplex

4.3.6 t_cell_activation

Fewer than 3 specimen for this combination of assay and day available

4.3.7 t_cell_polarization

Fewer than 3 specimen for this combination of assay and day available

4.4 day_14

4.4.1 pbmc_cell_frequency

4.4.2 pbmc_gene_expression

4.4.3 plasma_ab_titer

4.4.4 plasma_cytokine_concentration_by_legendplex

4.4.6 t_cell_activation

Fewer than 3 specimen for this combination of assay and day available

4.4.7 t_cell_polarization

Fewer than 3 specimen for this combination of assay and day available

4.5 day_30

4.5.1 pbmc_cell_frequency

Fewer than 3 specimen for this combination of assay and day available

4.5.2 pbmc_gene_expression

Fewer than 3 specimen for this combination of assay and day available

4.5.3 plasma_ab_titer

4.5.4 plasma_cytokine_concentration_by_legendplex

Fewer than 3 specimen for this combination of assay and day available

4.5.6 t_cell_activation

4.5.7 t_cell_polarization

Non-zero fraction of NAs: 0.0435
