suppressPackageStartupMessages({
library(tidyverse)
library(ggdark)
library(vsn)
library(lme4)
library(DESeq2)
library(factoextra)
library(FactoMineR)
library(magick) # formatting
source(file.path("..", "src", "read_data.R"))
source(file.path("..", "src", "generate_targets.R"))
source(file.path("..", "src", "model.R"))
source(file.path("..", "src", "batch_effects.R"))
})
knitr::knit_hooks$set(crop = knitr::hook_pdfcrop) # formattinginput_dir = file.path("..", "data")meta_data <- read_harmonized_meta_data(input_dir)
gene_meta <- read_gene_meta(input_dir)
protein_meta <- read_protein_meta(input_dir)
celltype_meta <- read_celltype_meta(input_dir)
experimental_data <- read_raw_experimental_data(input_dir)
experimental_data <- filter_experimental_data(meta_data=meta_data,
experimental_data=experimental_data,
gene_meta=gene_meta)pbmc_cell_frequency | Removed 550 specimens because missing in meta dataplasma_ab_titer | Removed 6931 specimens because missing in meta dataplasma_cytokine_concentration_by_olink | Removed 495 specimens because missing in meta datapbmc_cell_frequency | Removed 56 features because not in feature subsetplasma_ab_titer | Removed 48 features because not in feature subsetplasma_cytokine_concentration_by_olink | Removed 234 features because not in feature subsett_cell_polarization | Removed 3 features because not in feature subsetplasma_cytokine_concentration_by_olink | Removed 300 features because qc warningplasma_ab_titer | Removed 10540 measurements because wrong unit usedplasma_cytokine_concentration_by_olink | Removed 2400 measurements because wrong unit usedplasma_cytokine_concentration_by_legendplex | Removed 8 because specimen is outlierplasma_cytokine_concentration_by_olink | Removed specimen 750, 760, 824, 833, 894, 903 because fraction of measurements below LOQ > 50%plasma_ab_titer | Removed specimen 674, 675, 676 because fraction of measurements below LOD > 50%specimen_per_day <- get_specimen_per_day(meta_data=meta_data)age_at_boost:dataset and infancy_vac:dataset. TODO: Think about what to make of this.##| crop: true # interfers with dynamic toc generation
for (day in names(specimen_per_day)) {
# day <- names(specimen_per_day)[1]
cat("\n\n")
cat(paste0("## ", day))
cat("\n\n")
specimen_df <- specimen_per_day[[day]]
for (assay in names(experimental_data)) {
# assay <- names(experimental_data)[4]
cat("\n\n")
cat(paste0("### ", assay))
cat("\n\n")
feature_col <- experimental_data_settings[[assay]]$feature_col
value_col <- experimental_data_settings[[assay]]$value_col
assay_df_long <- experimental_data[[assay]]
#str(assay_df_long)
specimen_df_filtered <- specimen_df %>%
dplyr::filter(specimen_id %in% unique(assay_df_long$specimen_id))
if (nrow(specimen_df_filtered) <= 3) {
cat(paste0("Fewer than 3 specimen for this combination of assay and day available"))
} else {
assay_mtx_wide <- assay_df_long %>%
dplyr::select(dplyr::all_of(c("specimen_id", feature_col, value_col))) %>%
tidyr::pivot_wider(names_from=dplyr::all_of(feature_col),
values_from=dplyr::all_of(value_col)) %>%
tibble::column_to_rownames(var="specimen_id") %>%
as.matrix() %>%
.[as.character(specimen_df_filtered$specimen_id), ]
impute_mode <- "knn"
stopifnot(impute_mode %in% c("zero", "median_feature", "knn"))
if (any(is.na(assay_mtx_wide))) {
cat(paste0("Non-zero fraction of NAs: ",
round(mean(is.na(assay_mtx_wide)), 4)))
# data: matrix with genes in the rows, samples in the columns
if (impute_mode == "zero") {
assay_mtx_wide[is.na(assay_mtx_wide)] <- 0
} else if (impute_mode == "knn") {
assay_mtx_wide <- t(impute::impute.knn(data=t(assay_mtx_wide))$data)
} else if (impute_mode == "median_feature") {
col_medians <- matrixStats::colMedians(assay_mtx_wide, na.rm=TRUE)
for (colname in colnames(assay_mtx_wide)) {
col_vec <- assay_mtx_wide[, colname]
col_vec[is.na(col_vec)] <- col_medians[colname]
assay_mtx_wide[, colname] <- col_vec
}
}
stopifnot(!any(is.na(assay_mtx_wide)))
}
if (assay == "pbmc_gene_expression") {
# normalization using vst from DEseq2
#str(assay_mtx_wide)
# Create DESeq dataset object
min_counts <- 200
min_samples <- 20
genes_to_keep <- colnames(assay_mtx_wide)[
(colSums(assay_mtx_wide) >= min_counts) &
(colSums(assay_mtx_wide > 0) >= min_samples)
]
assay_mtx_wide <- assay_mtx_wide[ , genes_to_keep]
#str(assay_mtx_wide)
# check that all column (gene) names are unique
stopifnot(length(colnames(assay_mtx_wide)) == length(unique(colnames(assay_mtx_wide))))
assay_mtx_wide <-
DESeq2::DESeqDataSetFromMatrix(countData = t(assay_mtx_wide),
colData = tibble::tibble(specimen_id=rownames(assay_mtx_wide)),
design = ~ 1)
# DESeq2 normalization with variance stabilizing transformation (vst)
assay_mtx_wide <- DESeq2::estimateSizeFactors(assay_mtx_wide, quiet=TRUE) ## estimate size factor
assay_mtx_wide <- DESeq2::estimateDispersions(assay_mtx_wide, quiet=TRUE)
assay_mtx_wide <- DESeq2::varianceStabilizingTransformation(assay_mtx_wide, blind=TRUE)
assay_mtx_wide <- t(assay(assay_mtx_wide))
}
# dist_mtx <- as.matrix(dist(assay_mtx_wide))
# dist_mtx_median <- median(dist_mtx[lower.tri(dist_mtx)])
# dist_mtx_binary <- dist_mtx > (3 * dist_mtx_median)
# outliers <-
# which(rowSums(dist_mtx_binary) > (10*median(rowSums(dist_mtx_binary))))
# no_outliers <- rownames(dist_mtx)[!rownames(dist_mtx) %in% names(outliers)]
# assay_mtx_wide <- assay_mtx_wide[no_outliers, ]
#str(assay_mtx_wide)
suppressMessages({
suppressWarnings({

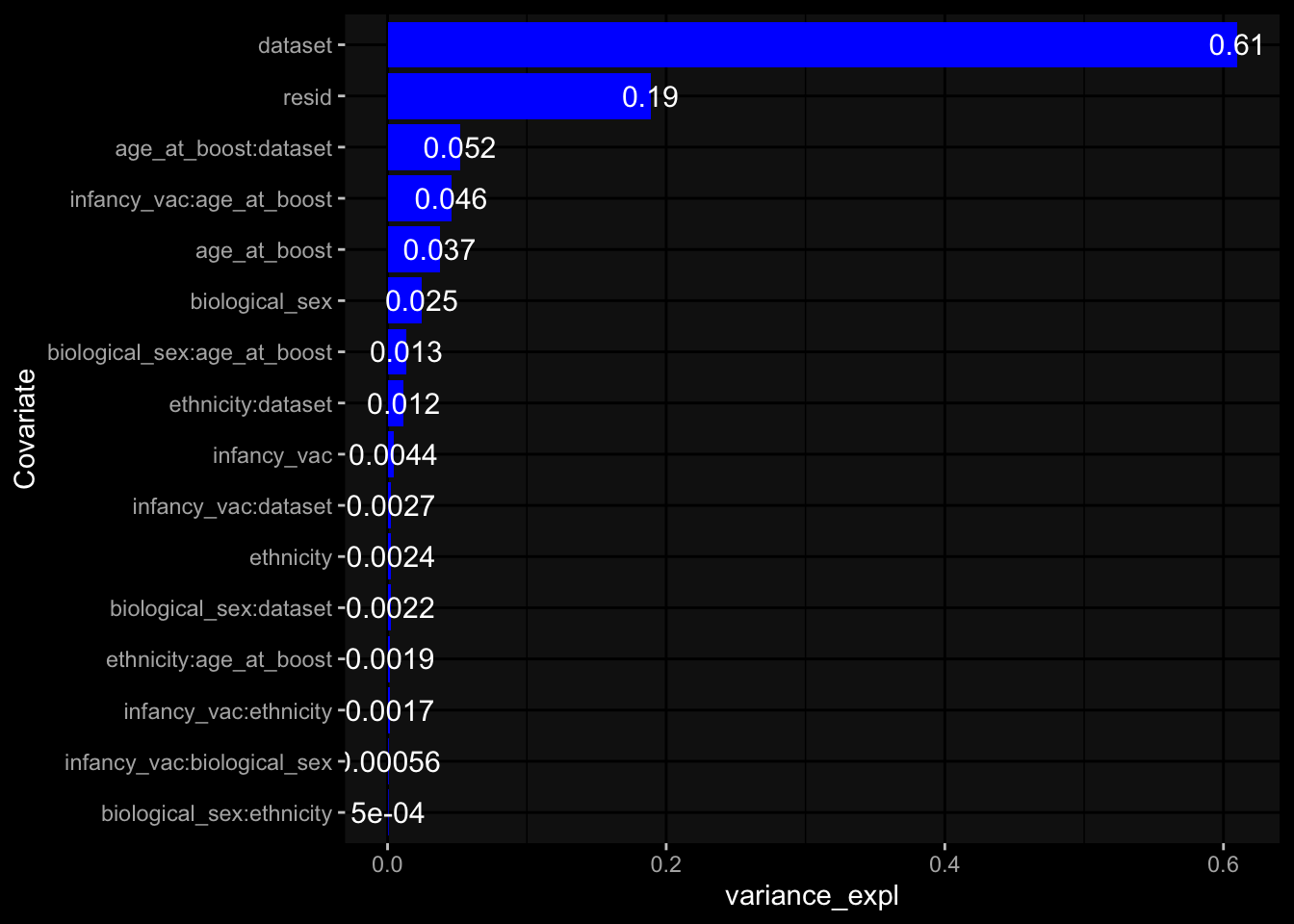

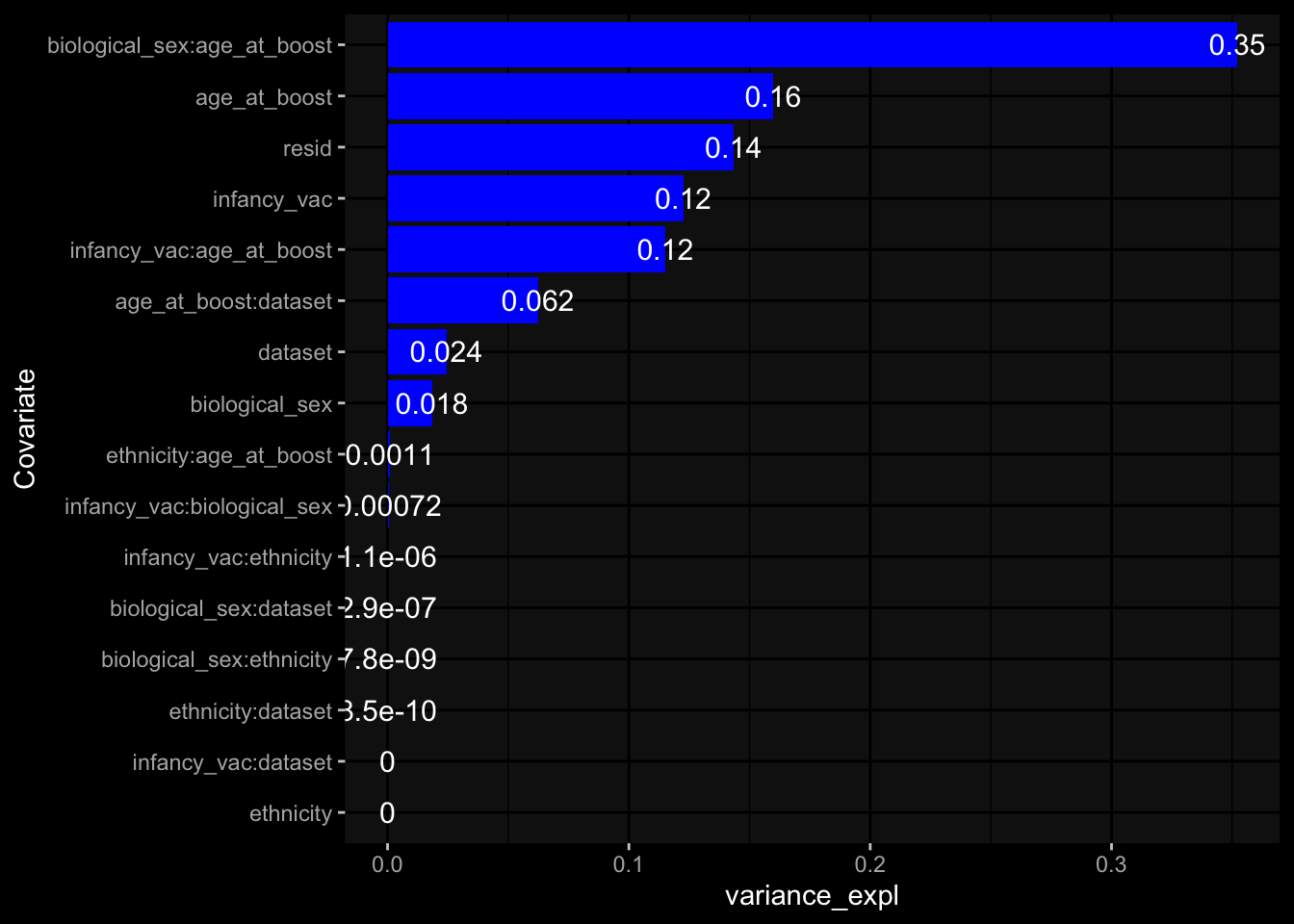

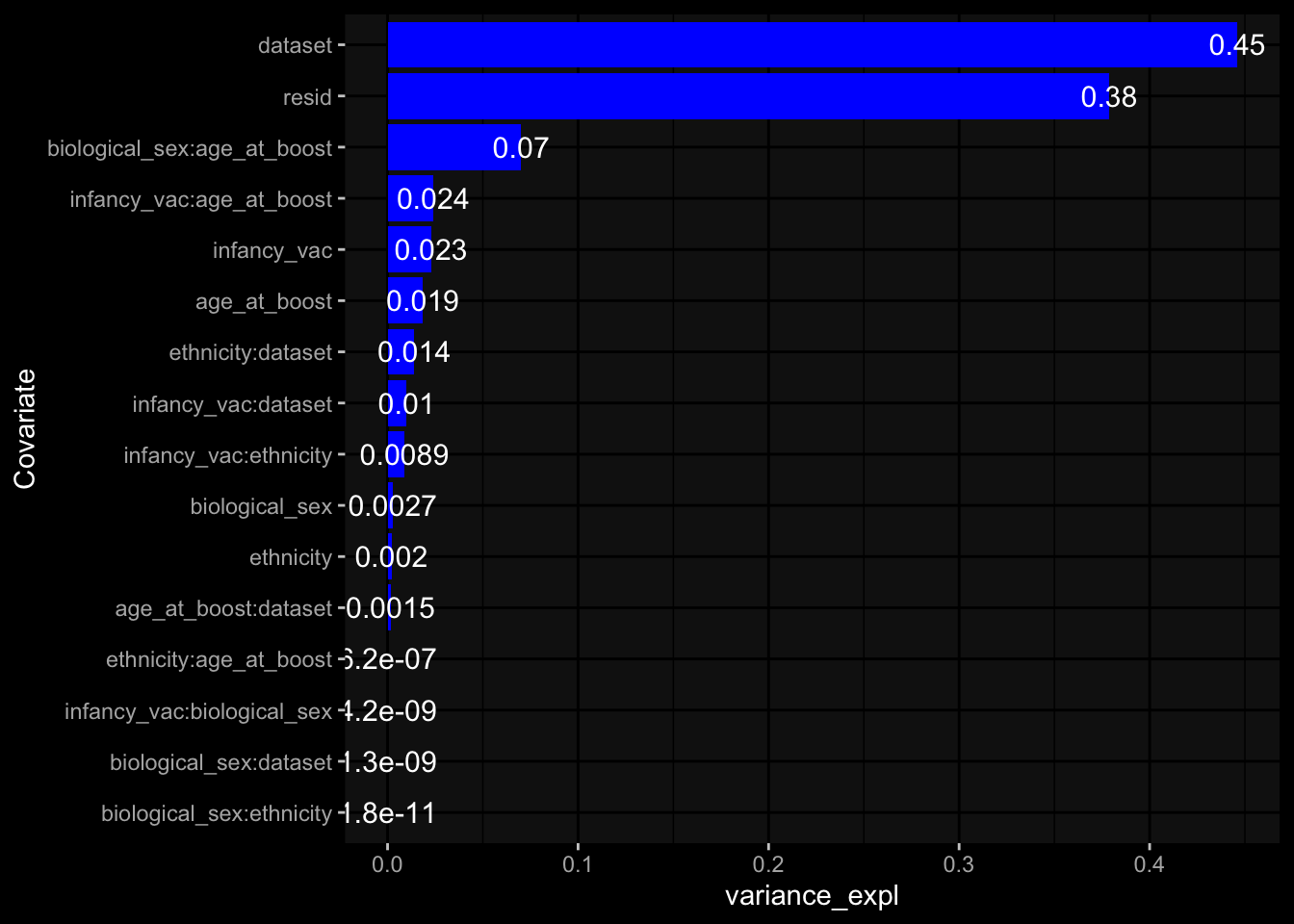

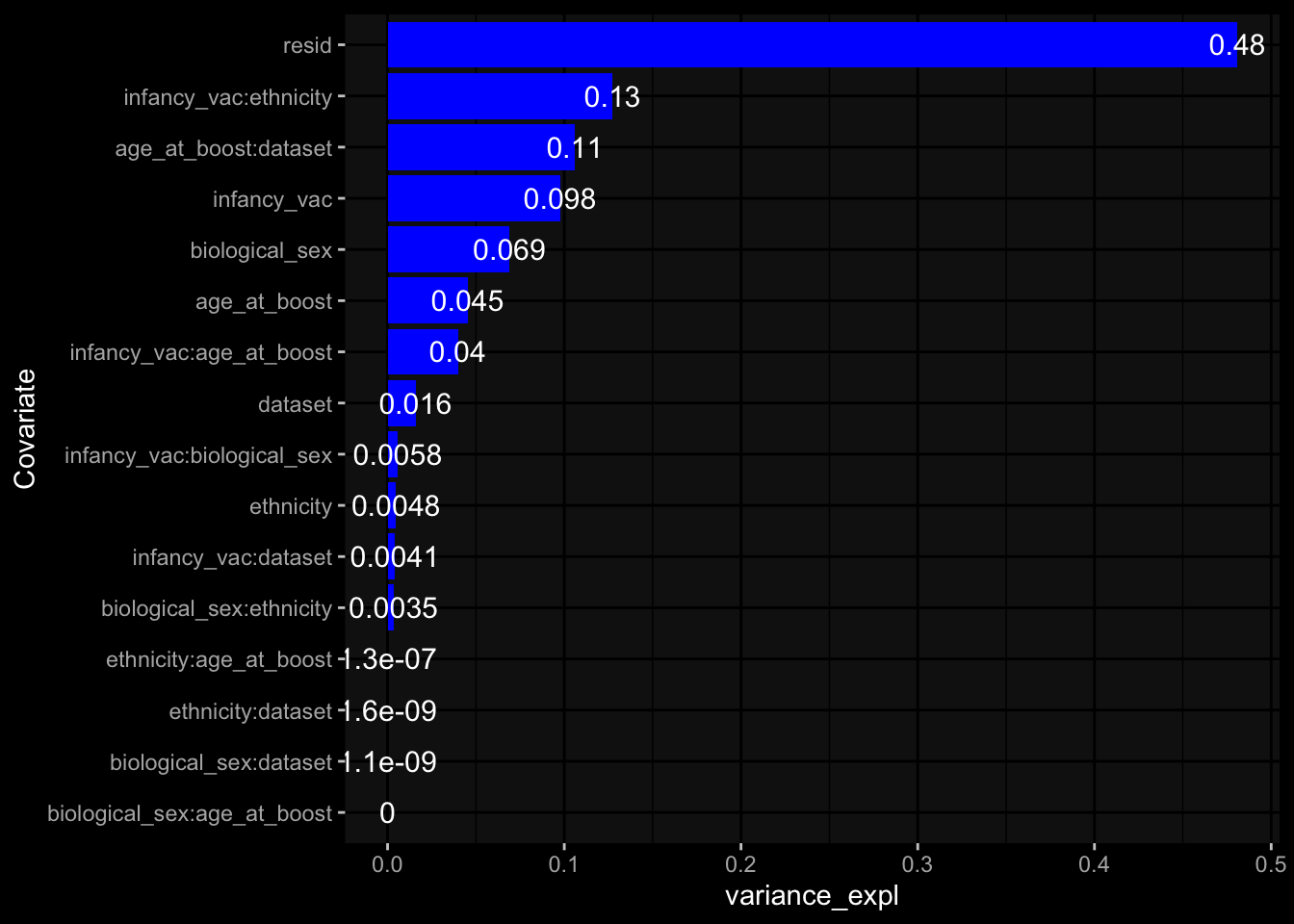

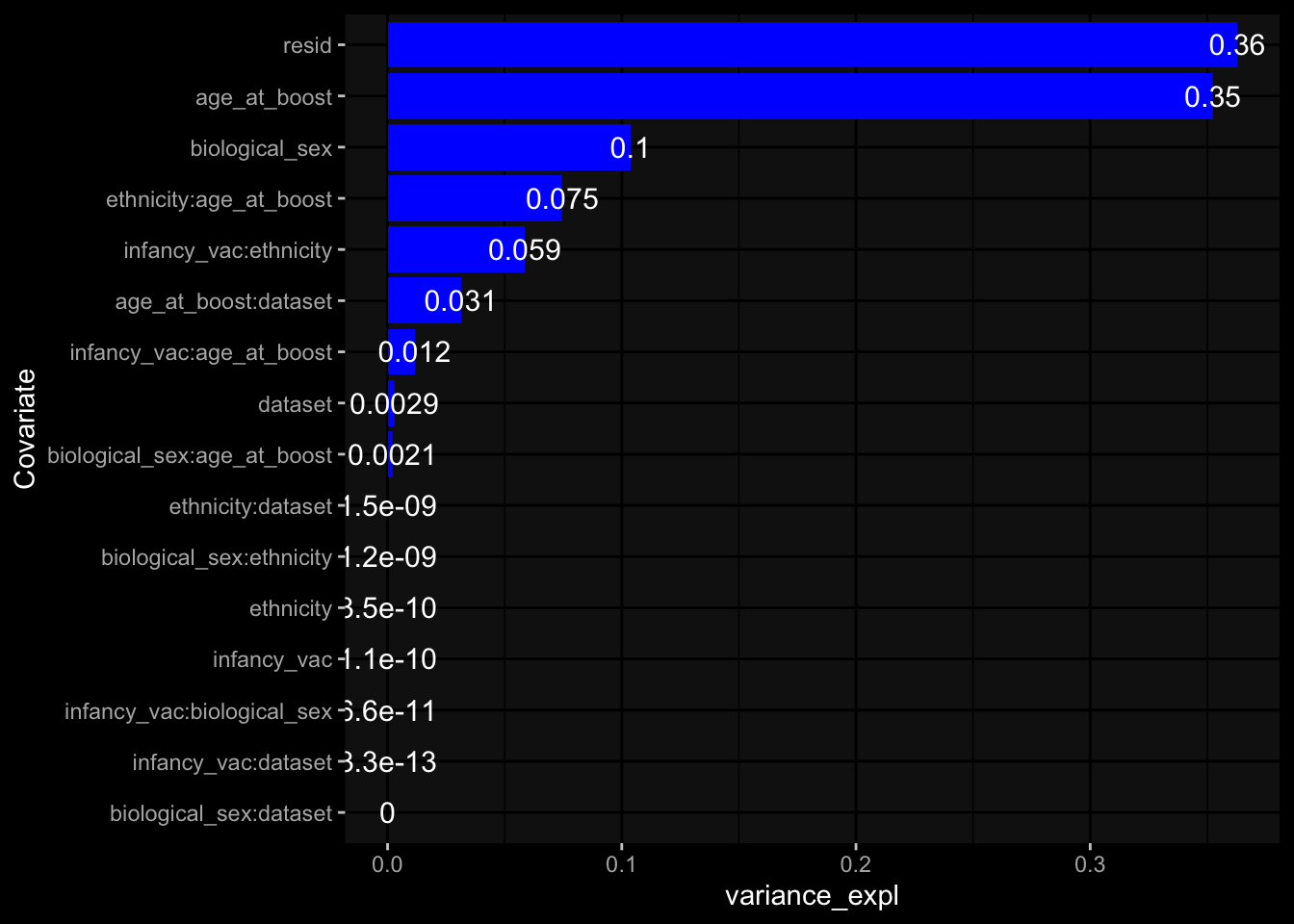

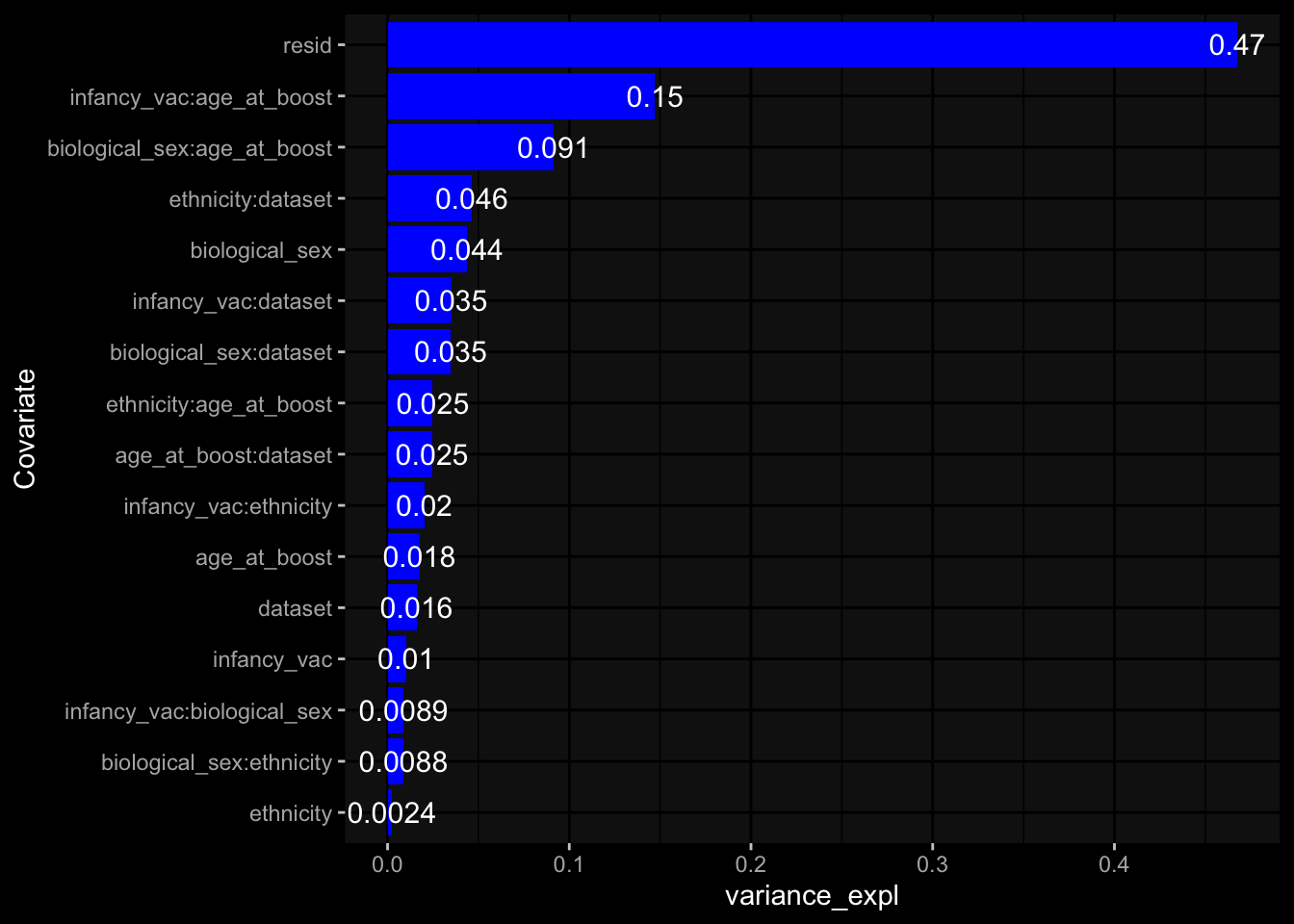

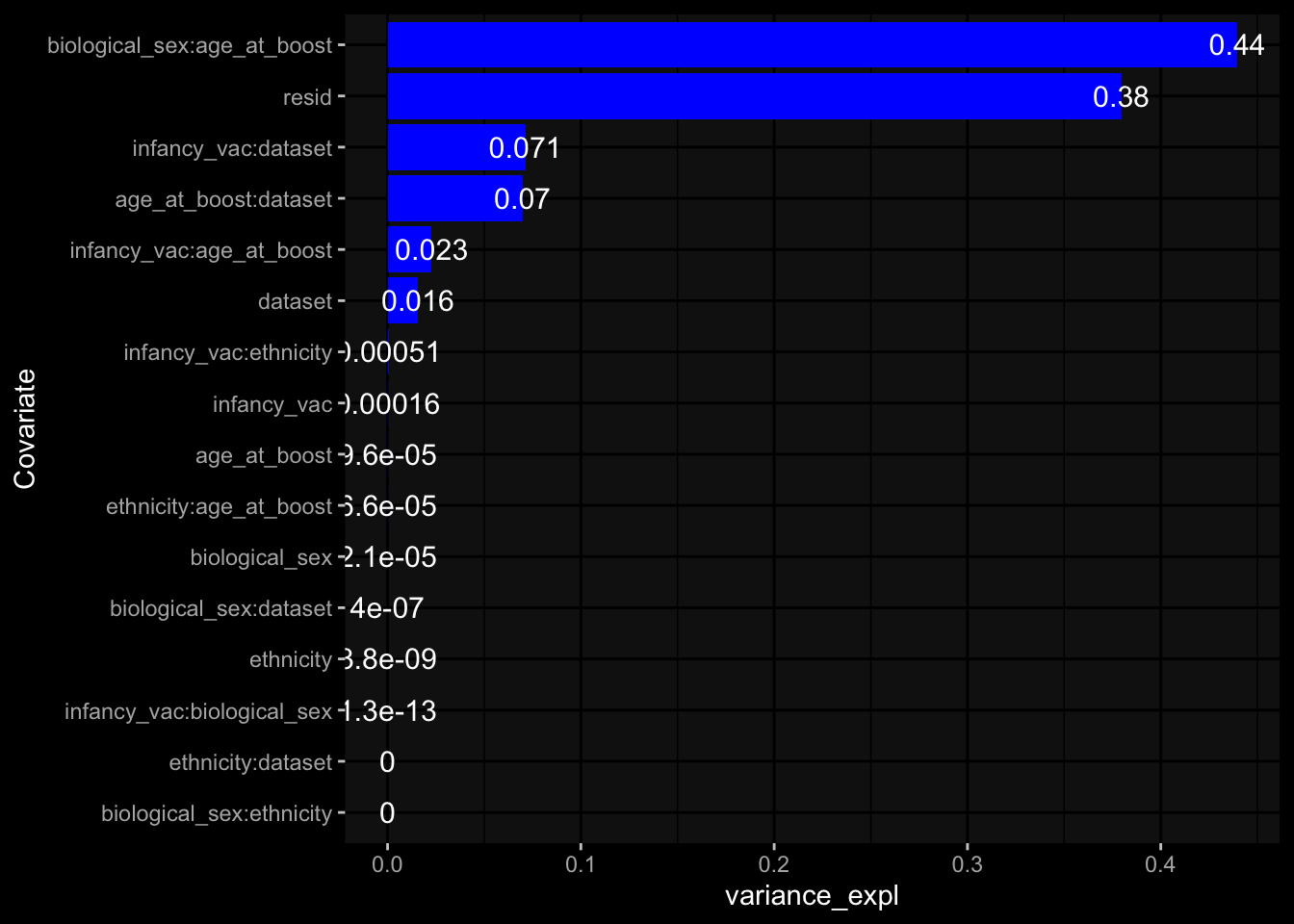

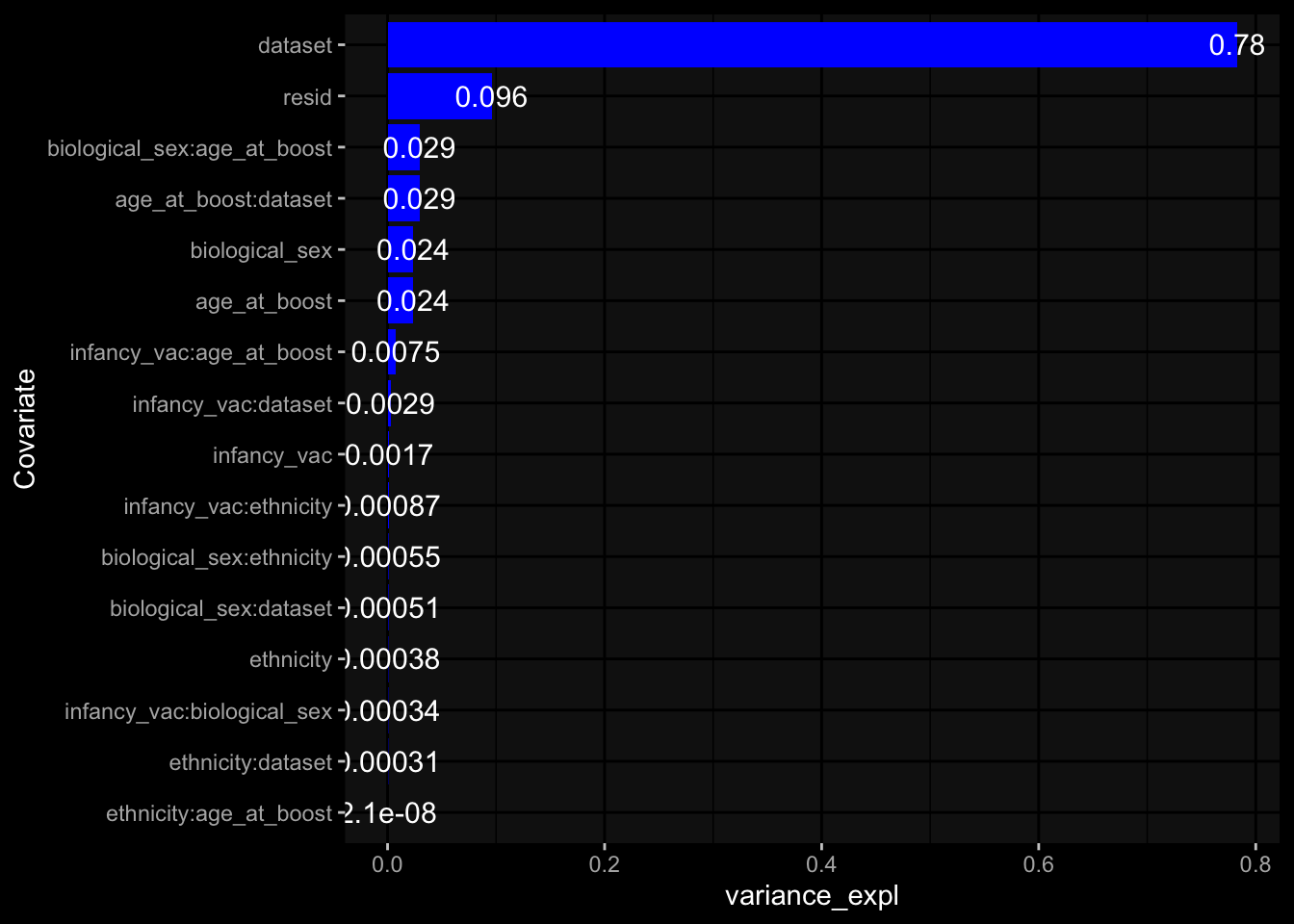

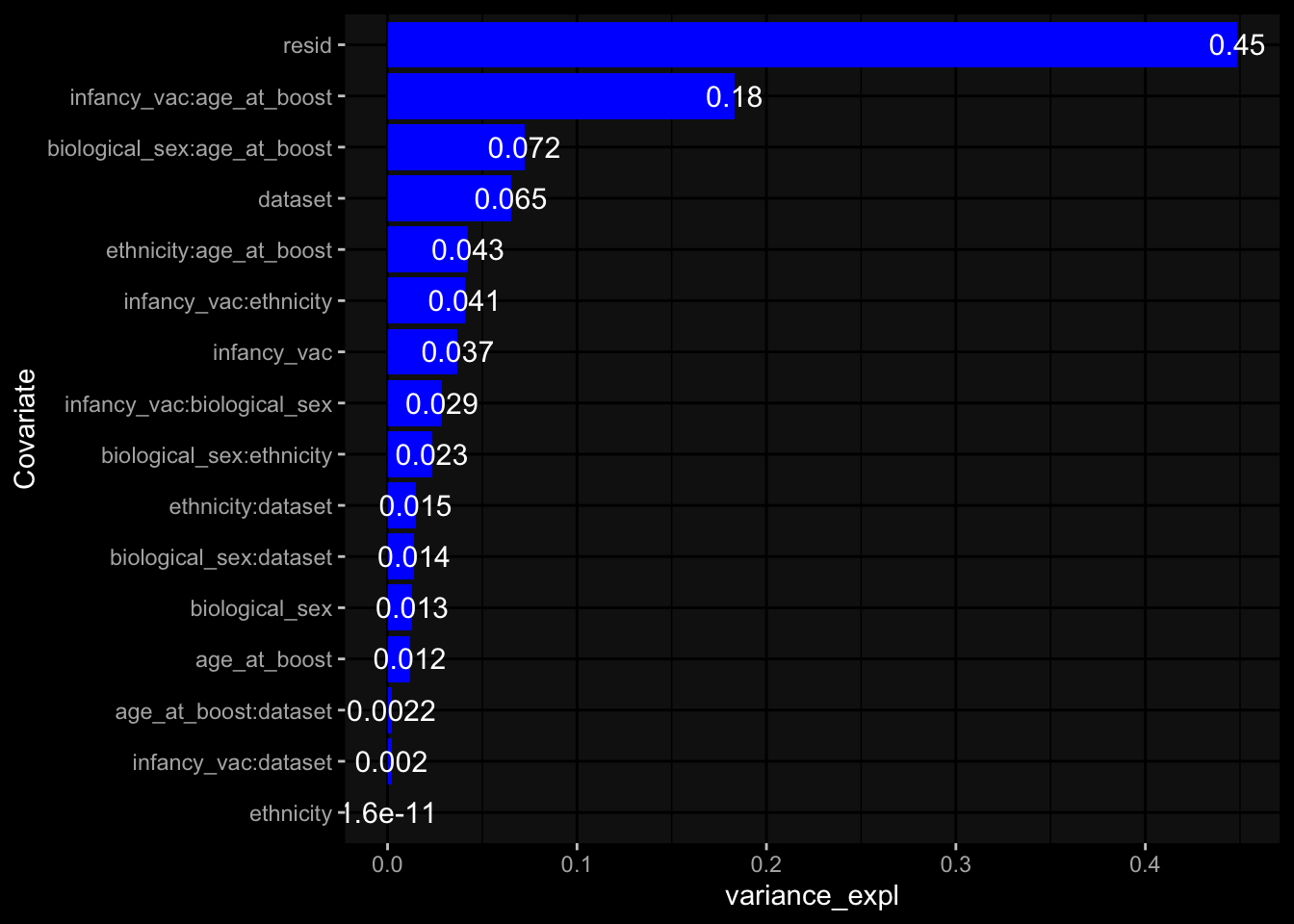

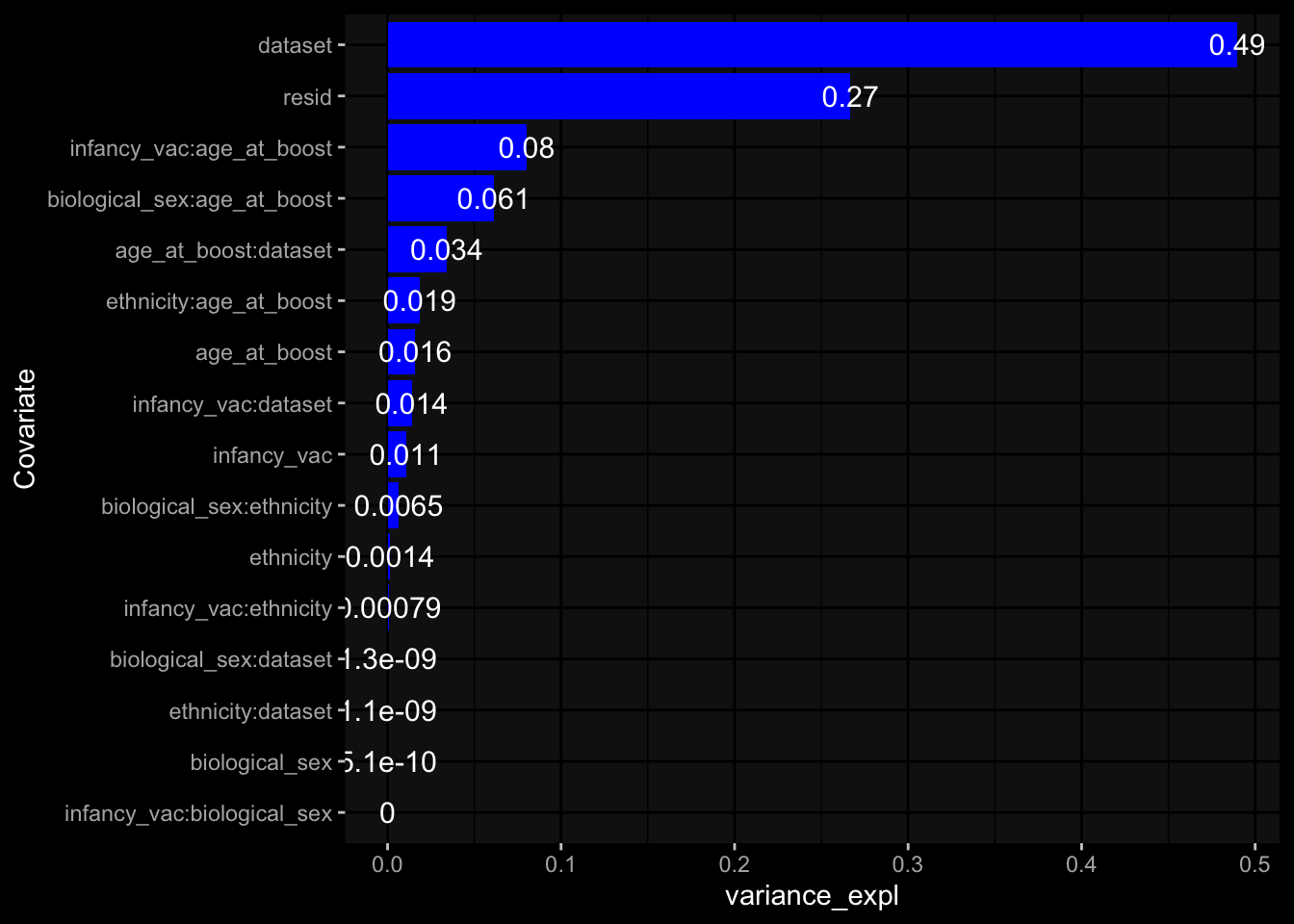

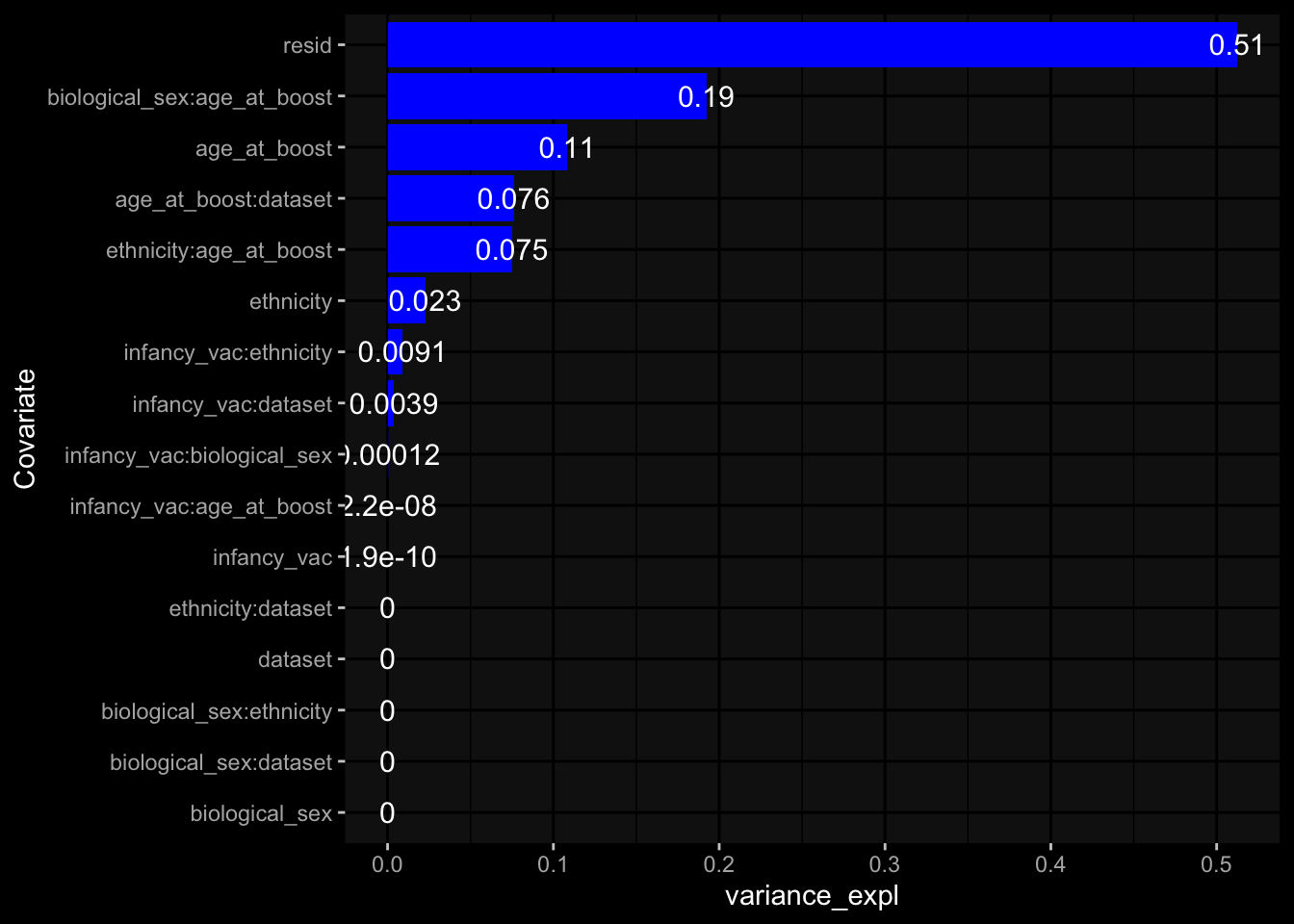

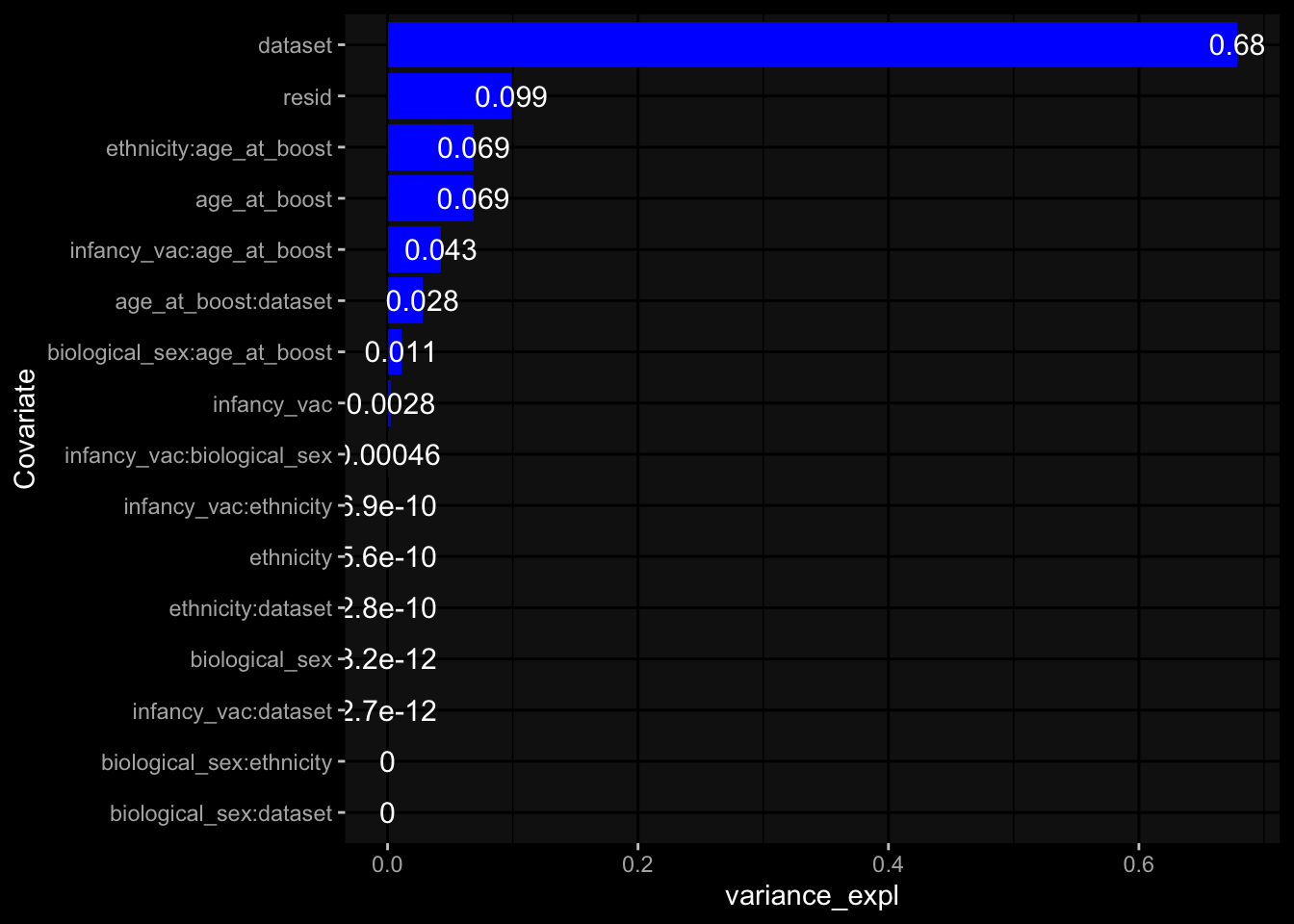

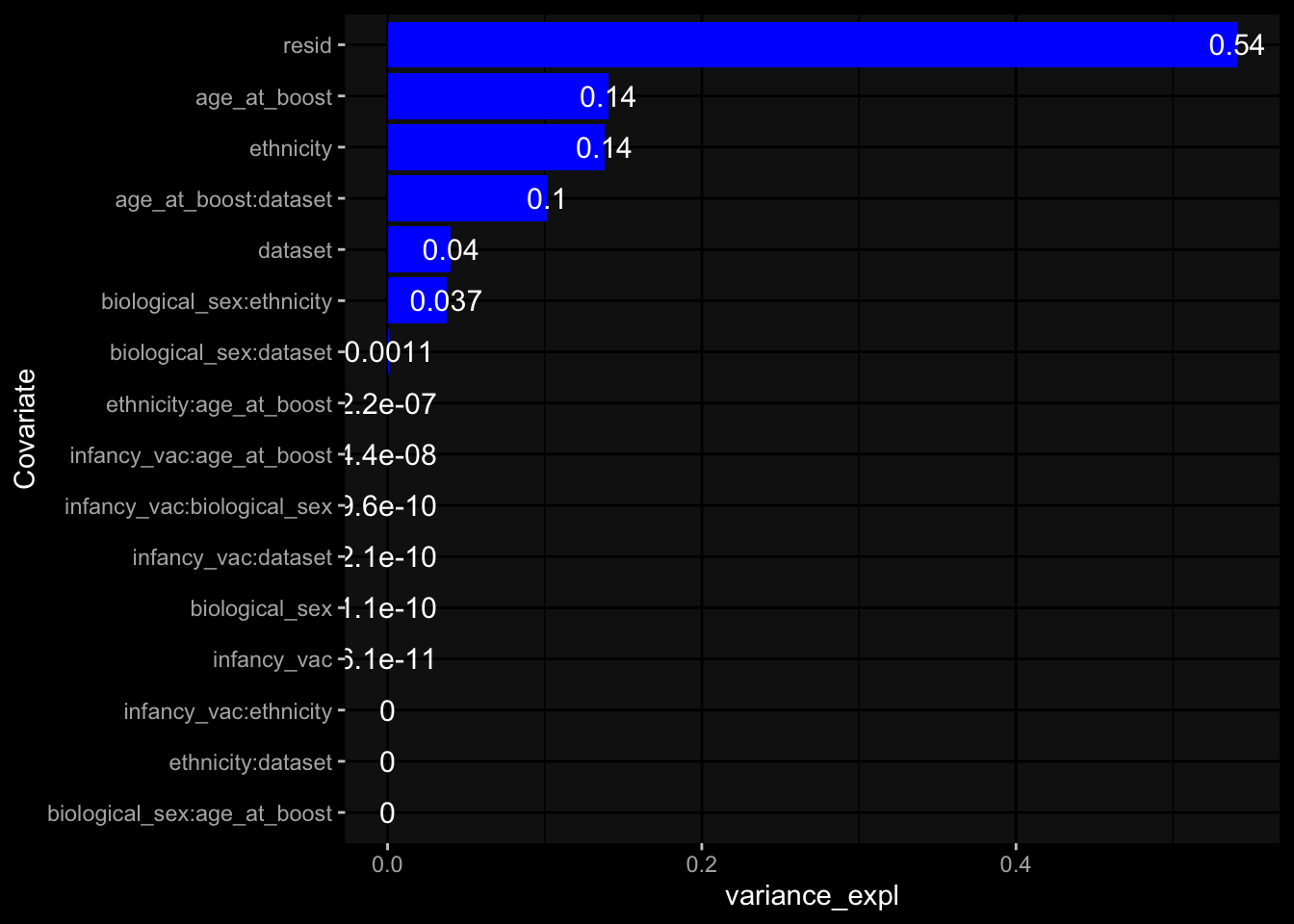

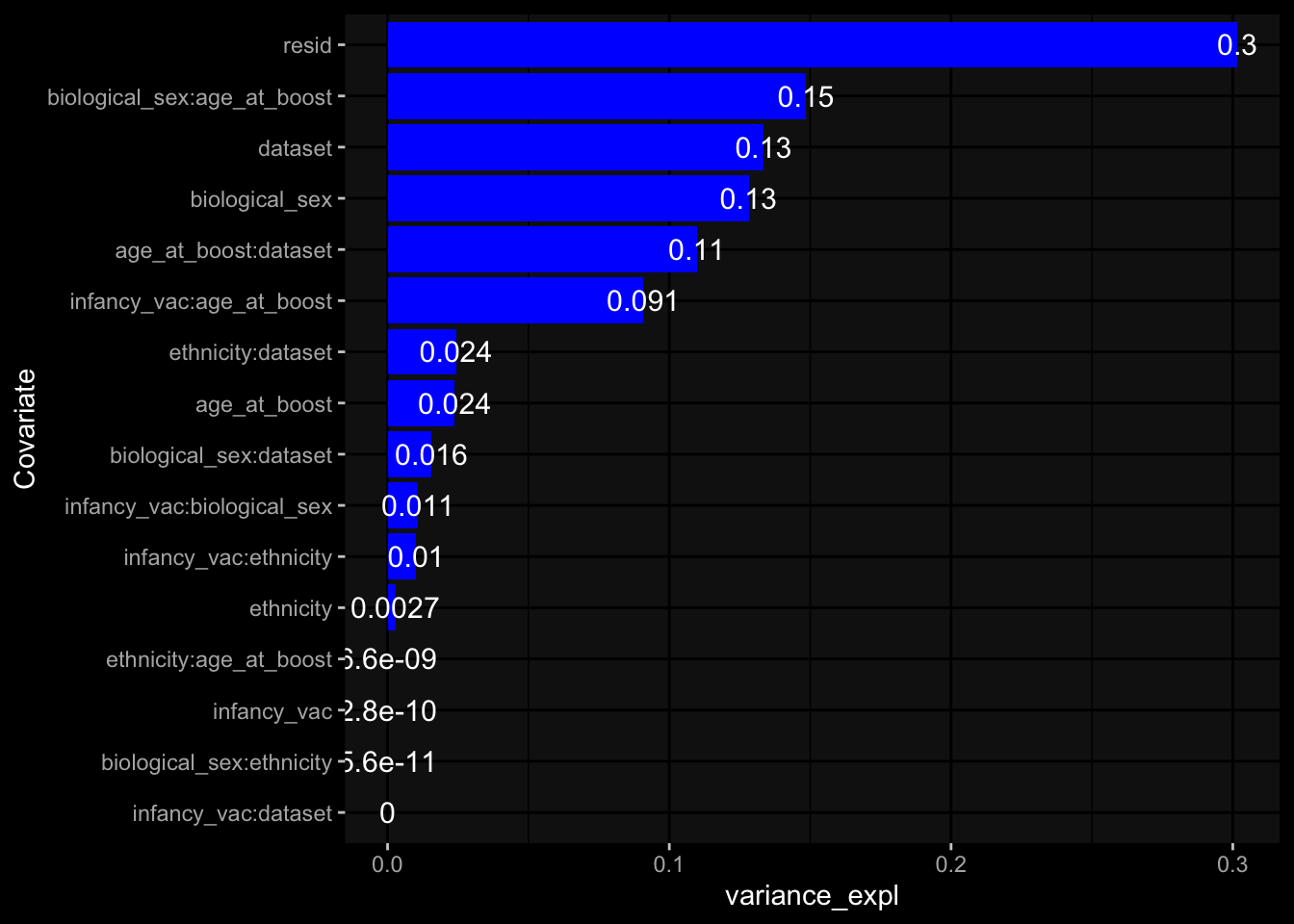

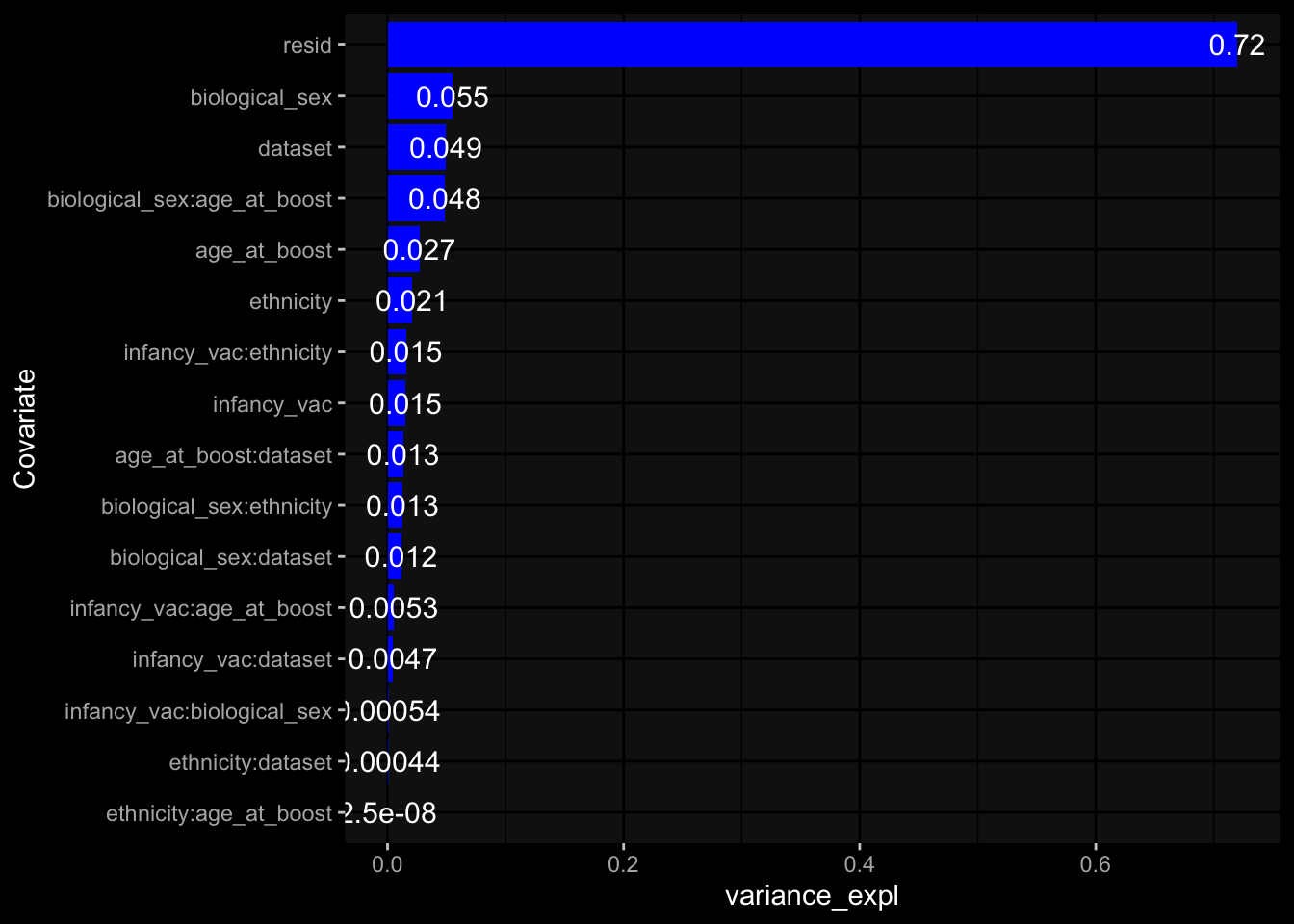

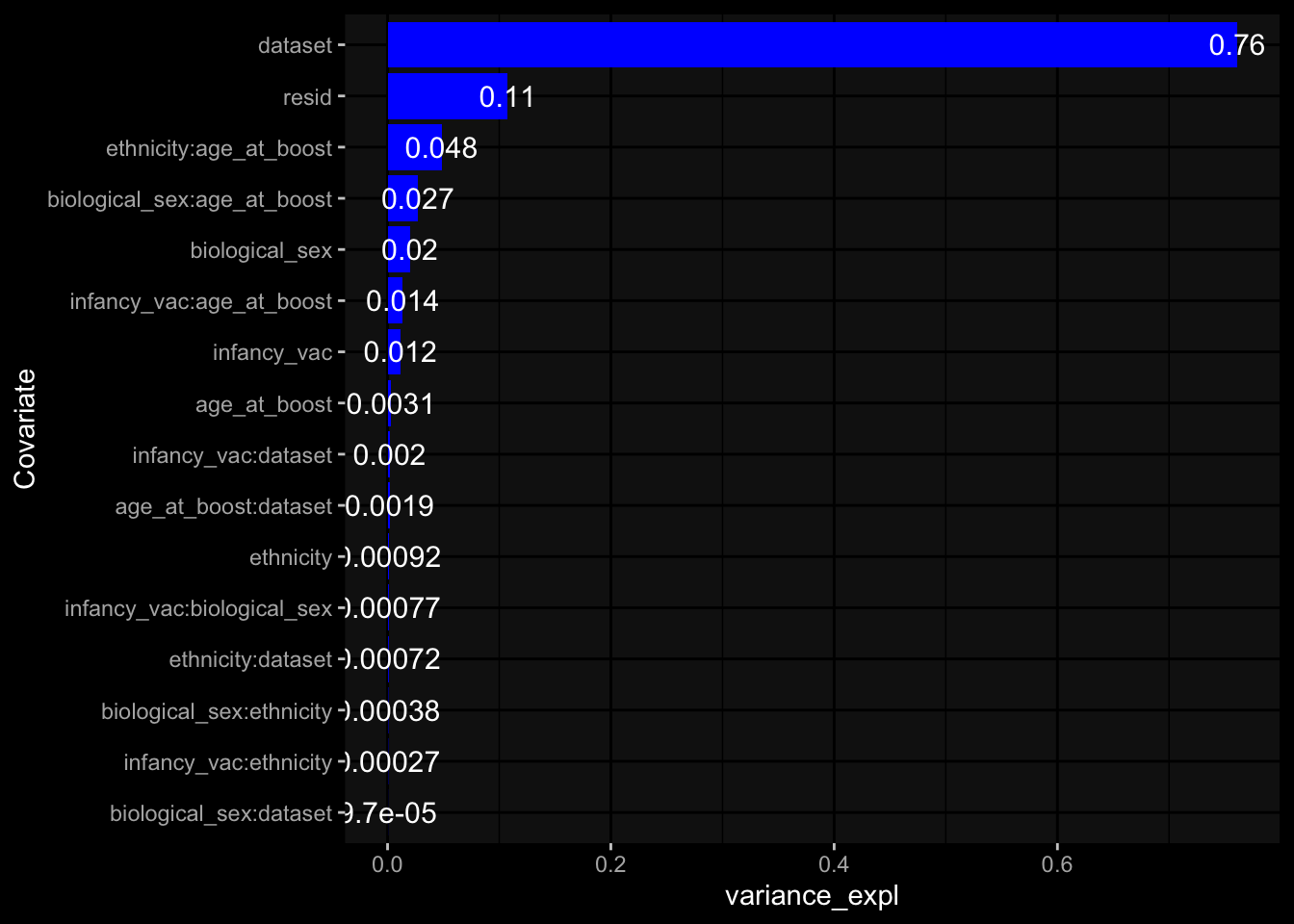

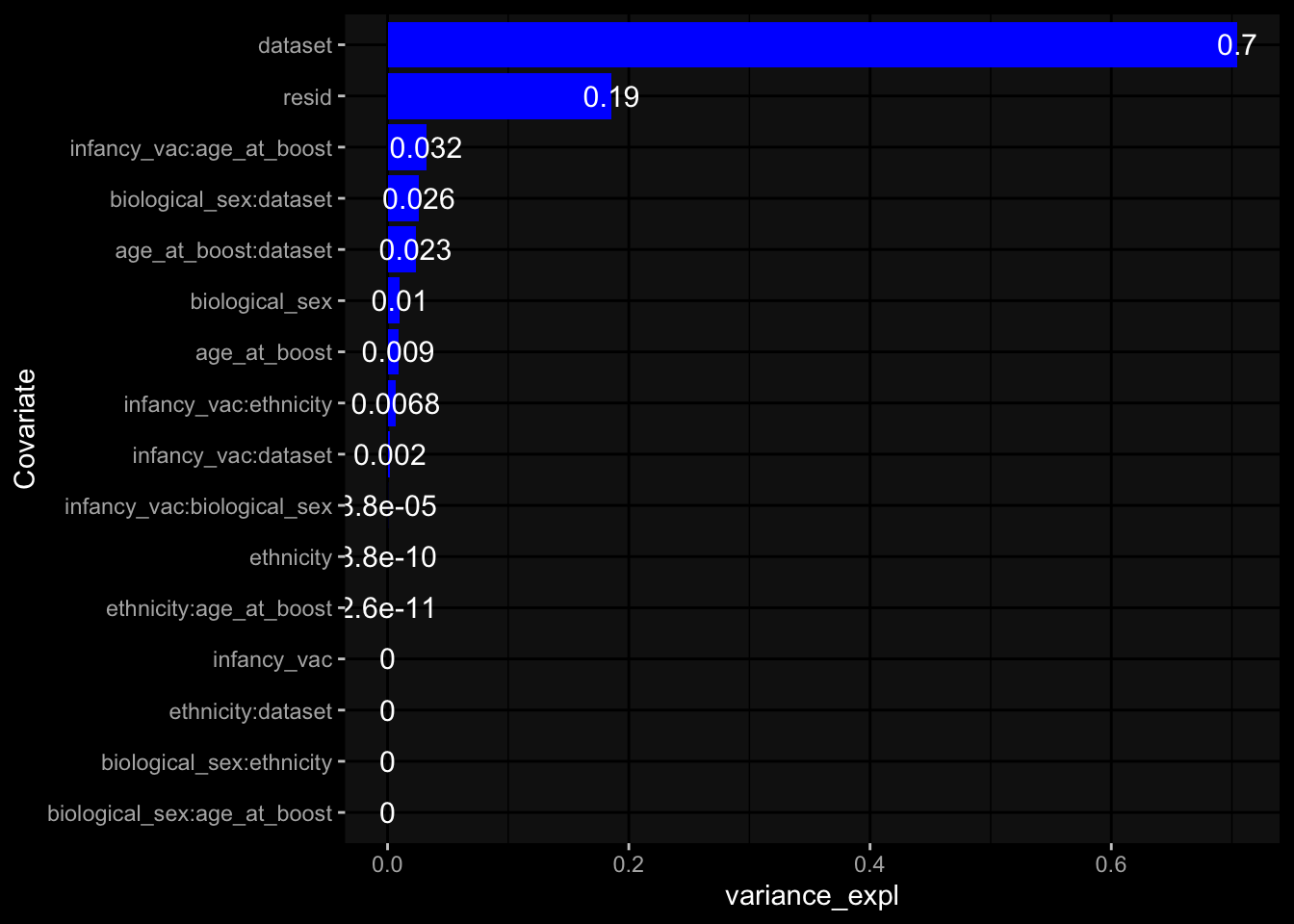

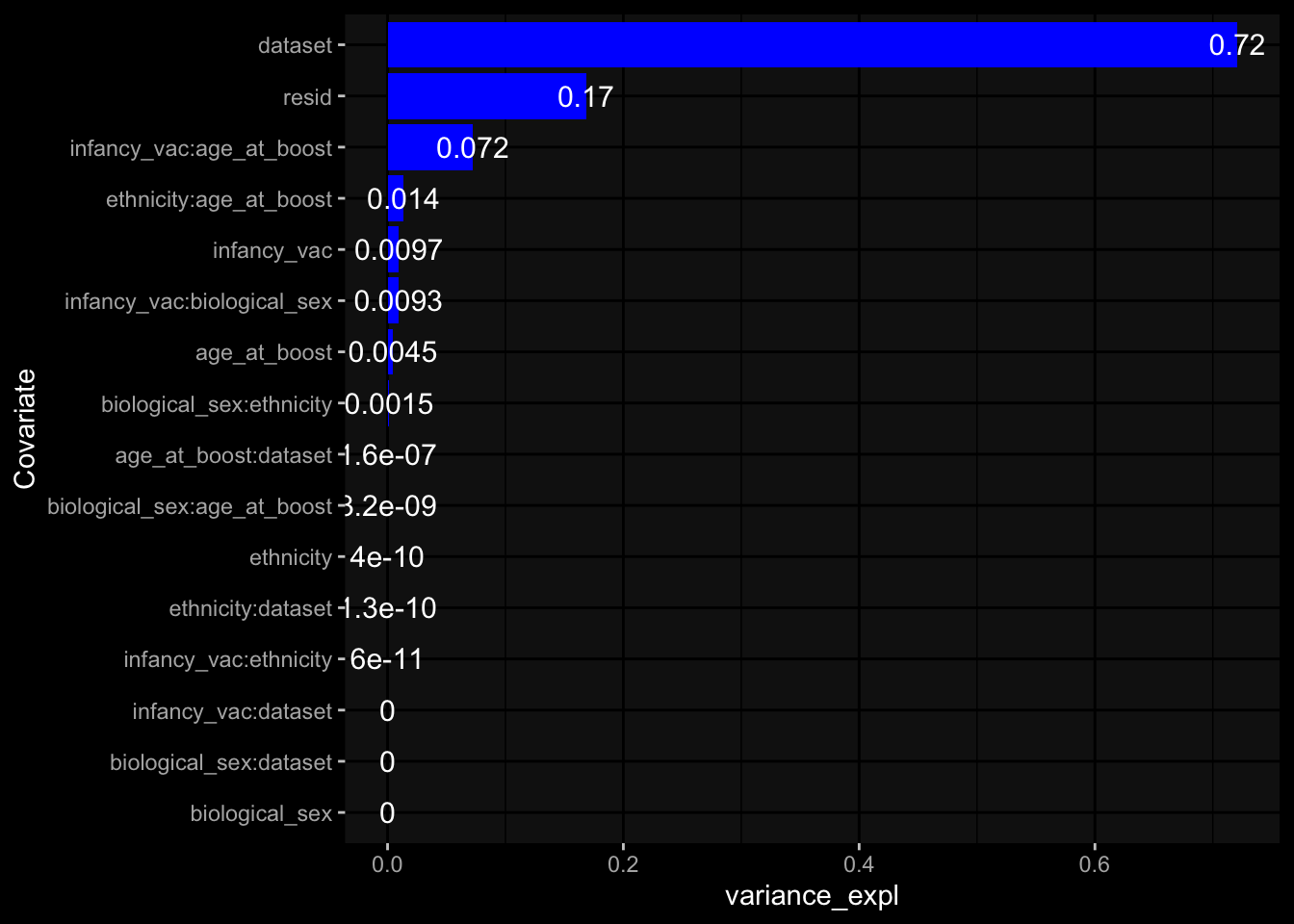

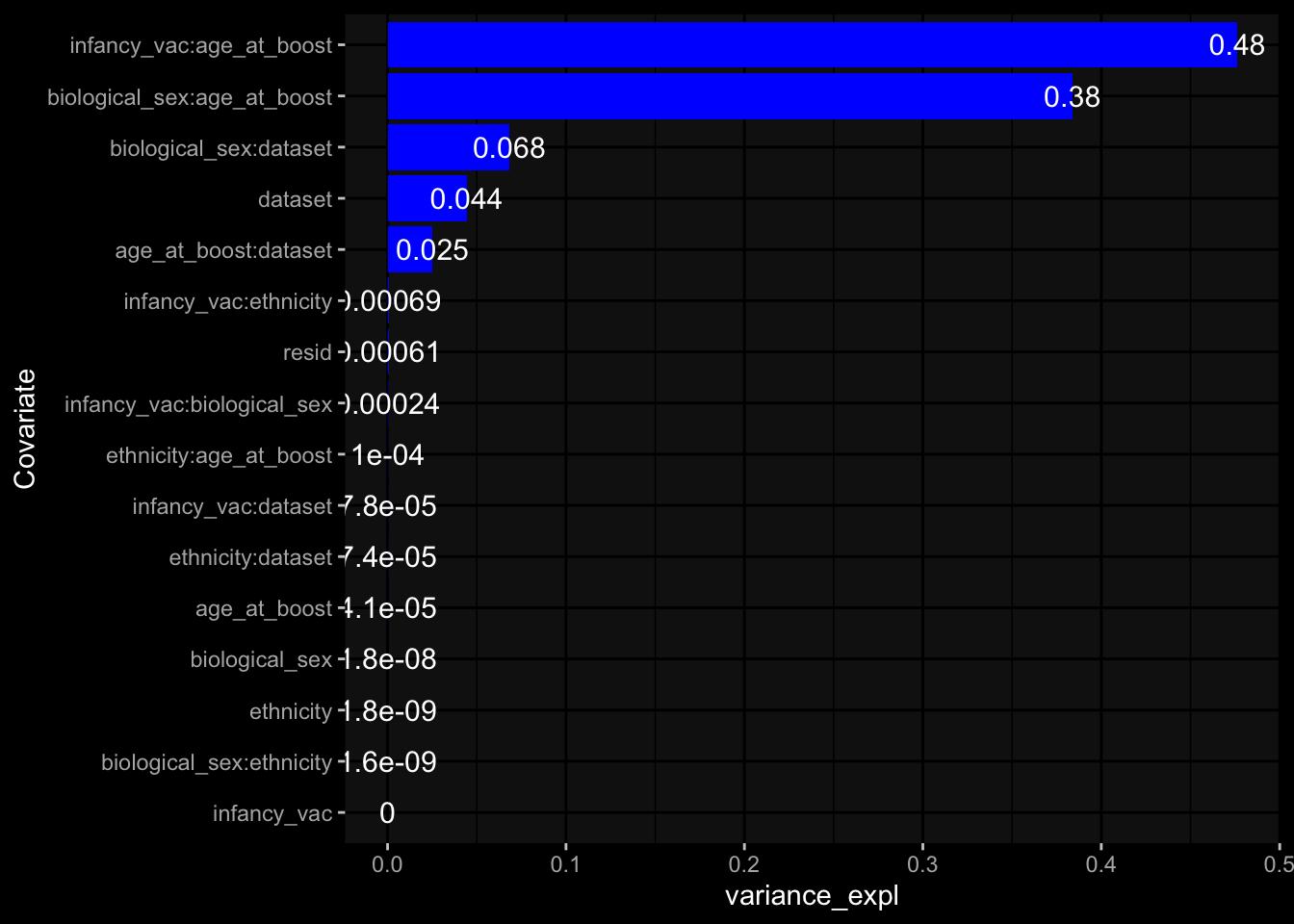

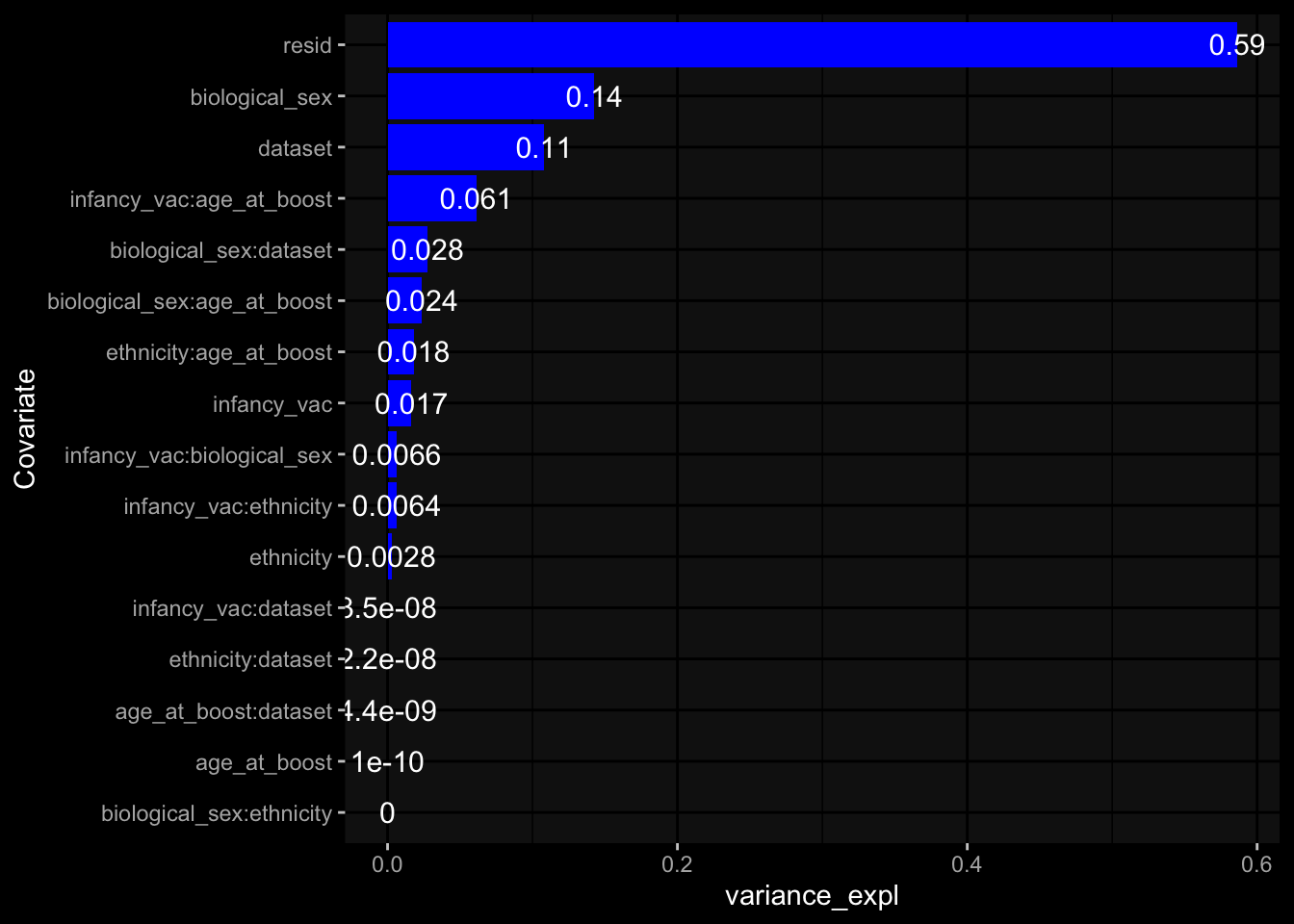

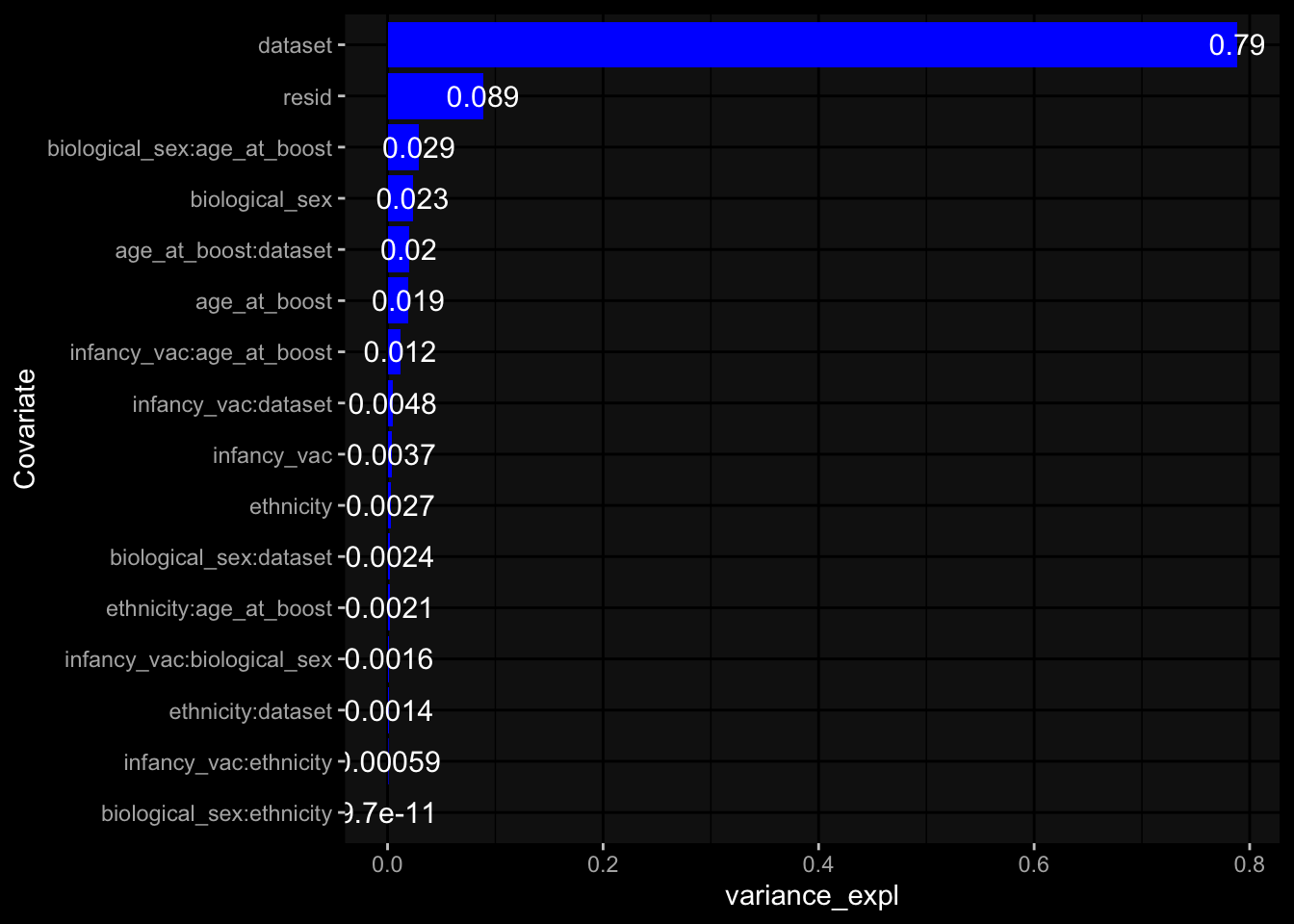

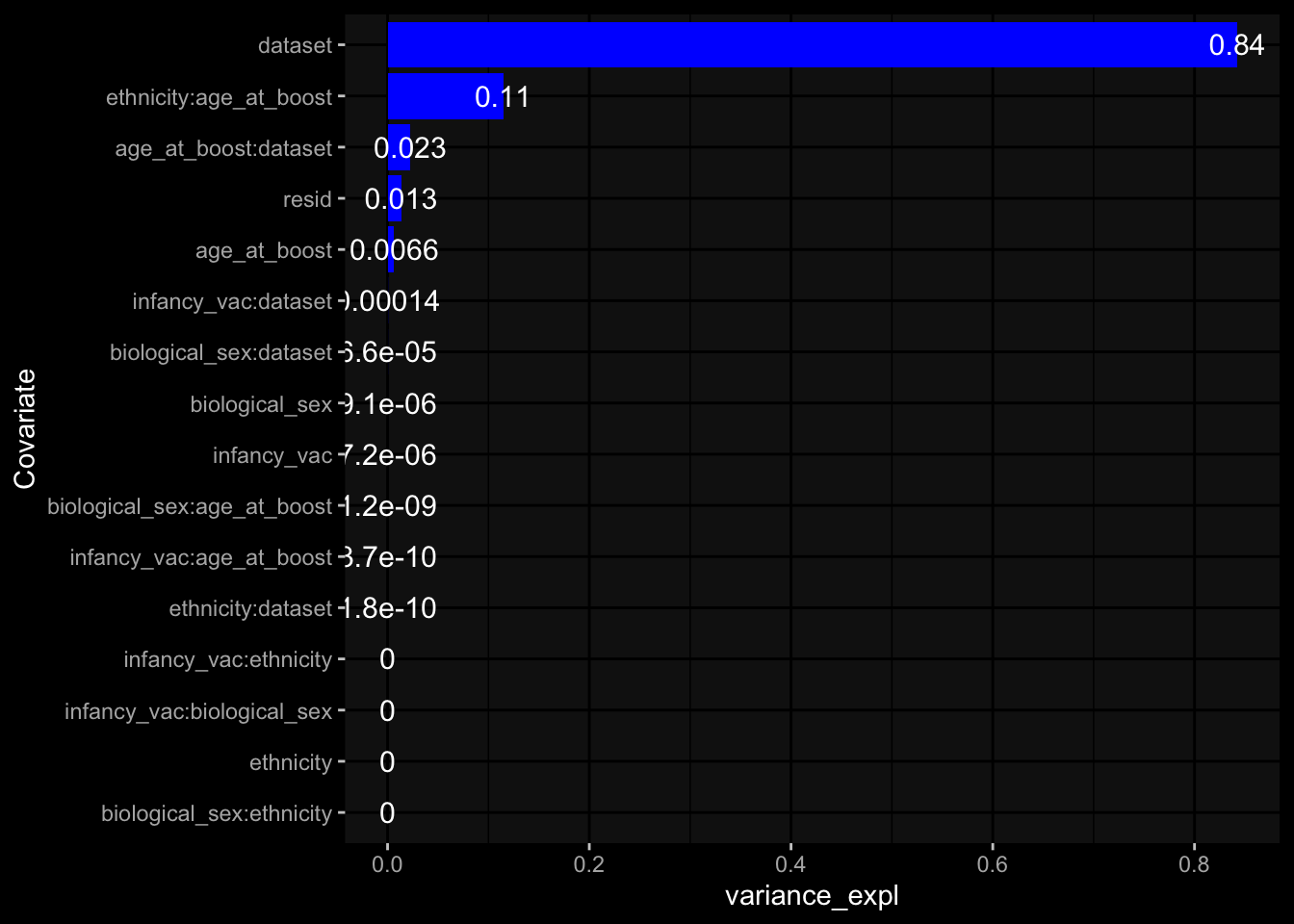

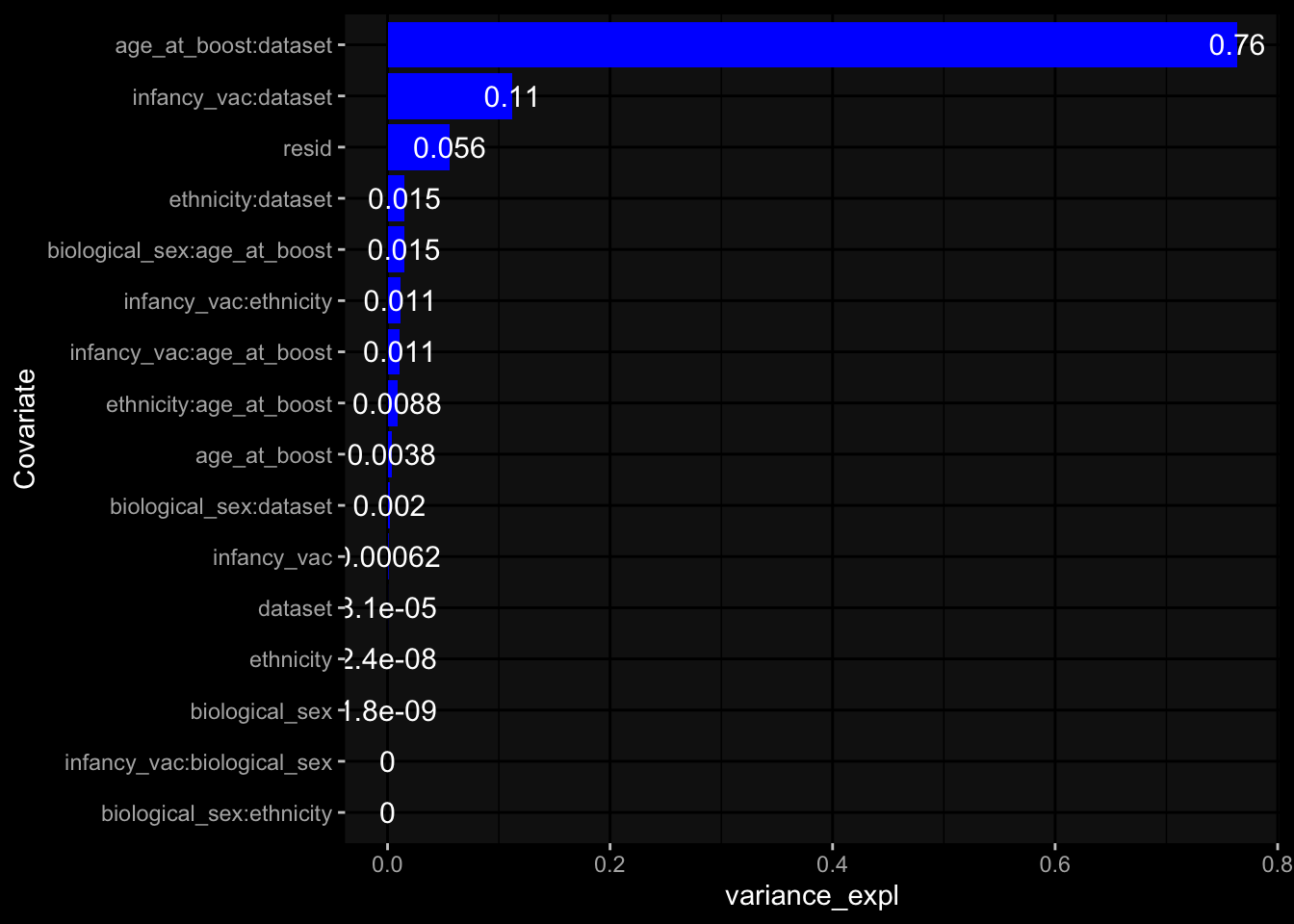

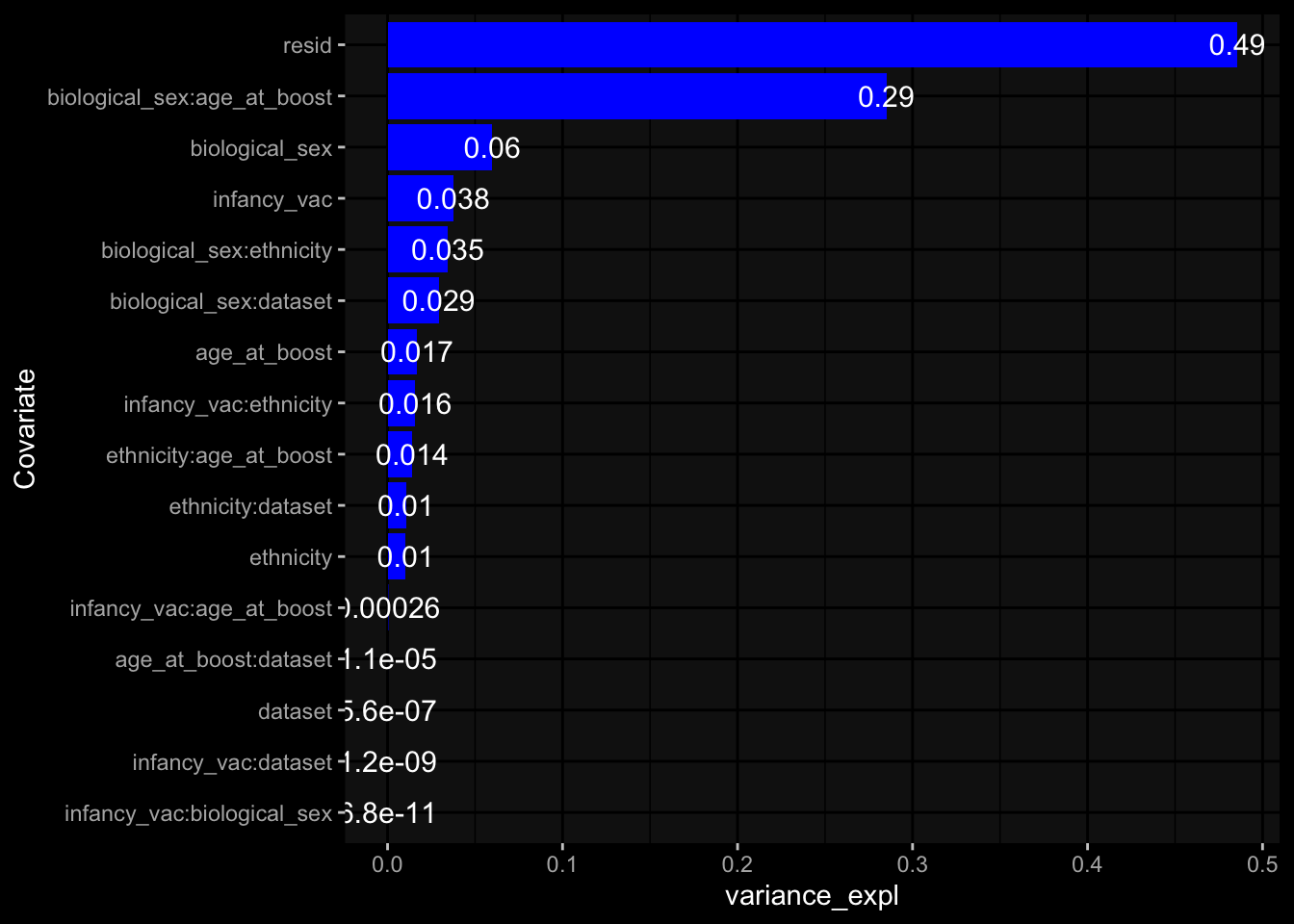

p1 <- pvca_analysis(assay_mtx_wide=assay_mtx_wide,
meta_data=meta_data)$p1
})
})
print(p1)

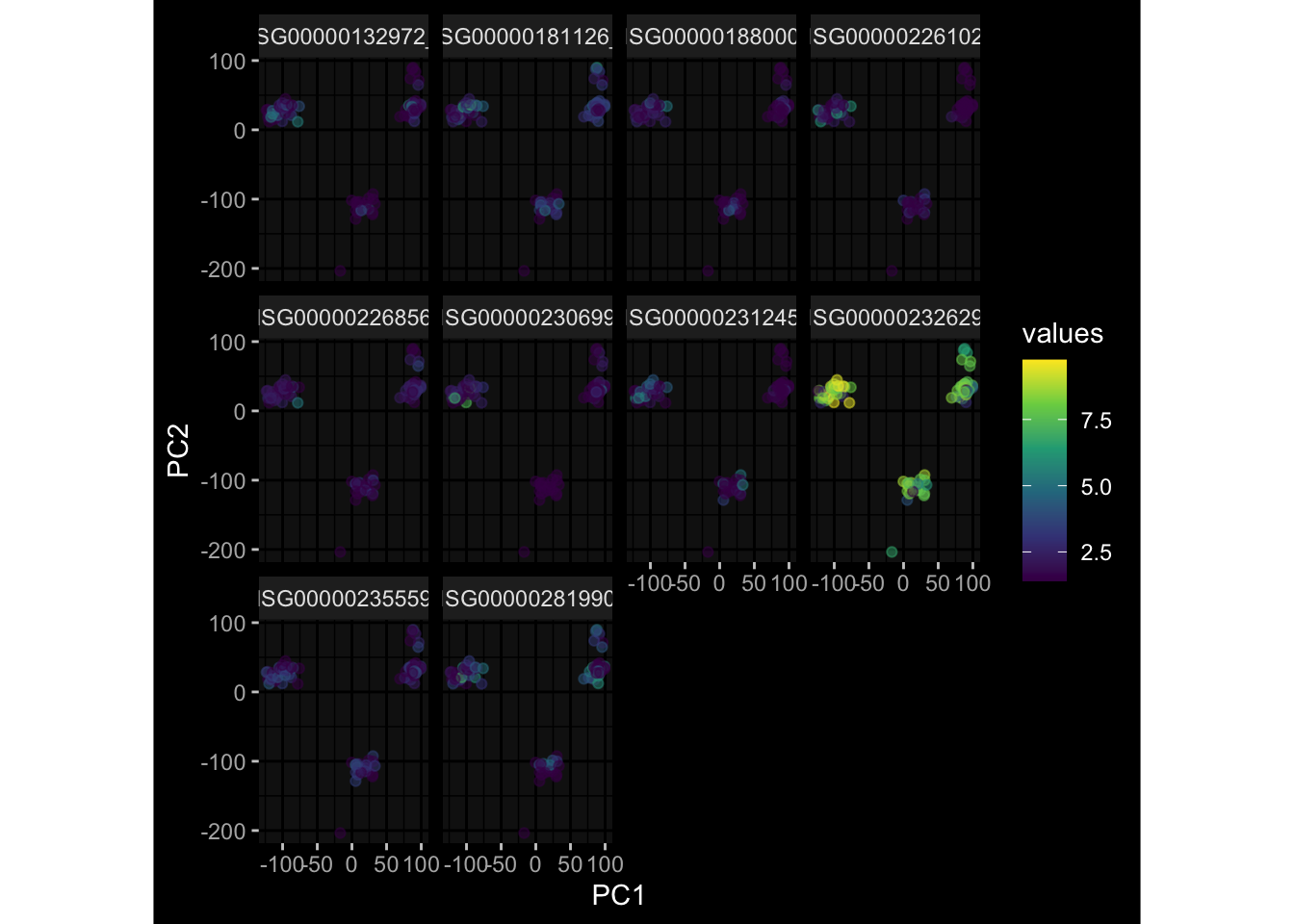

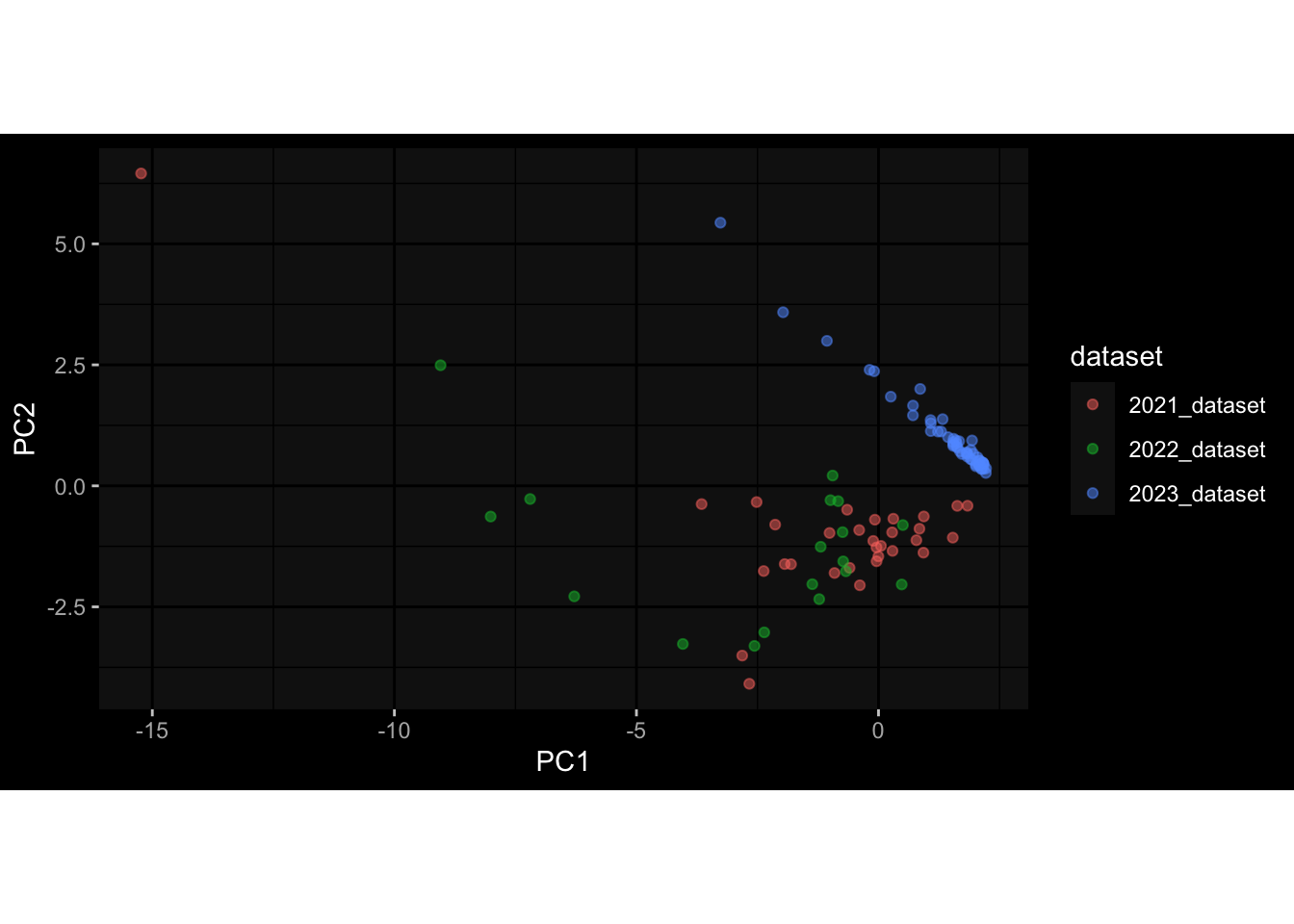

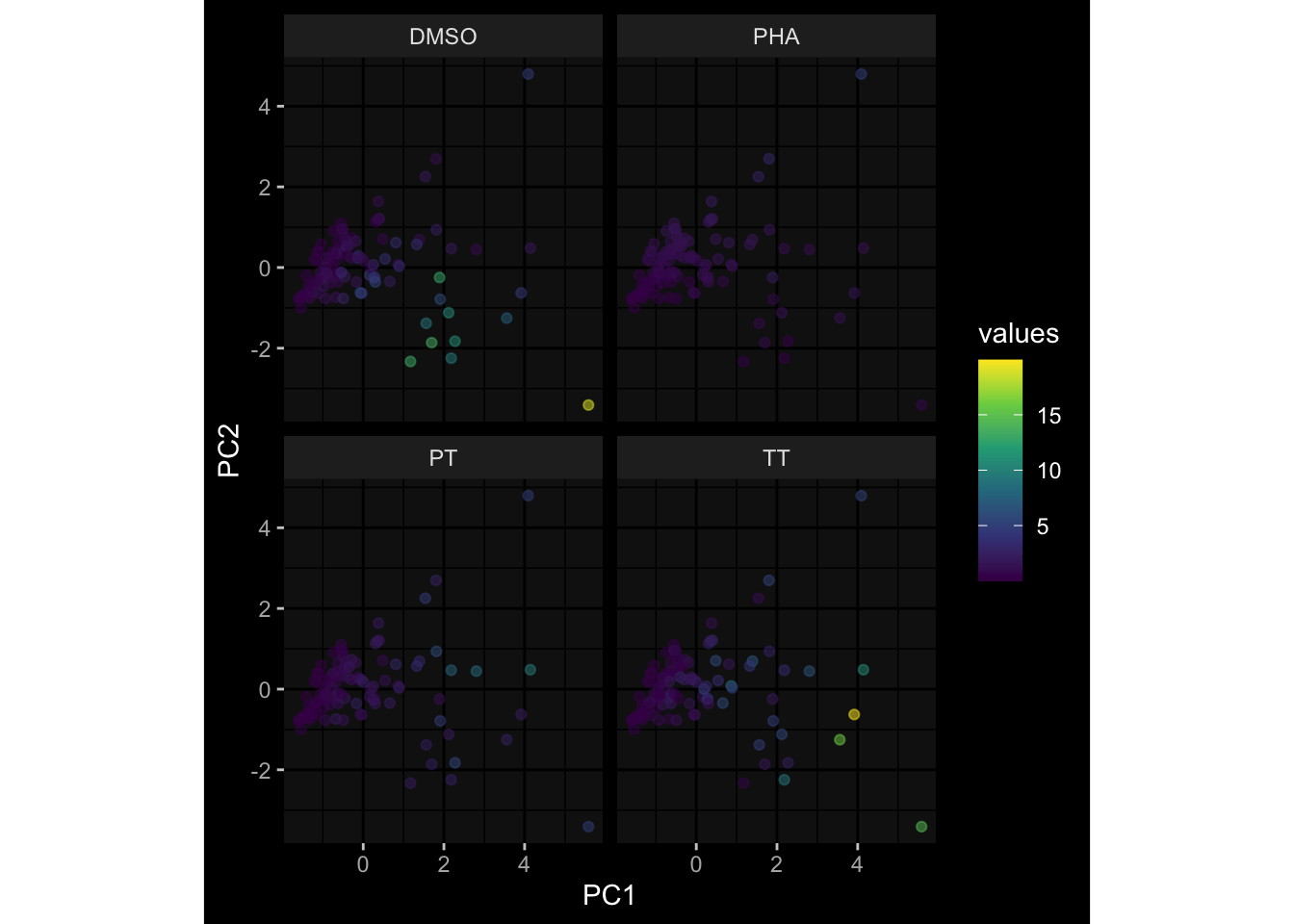

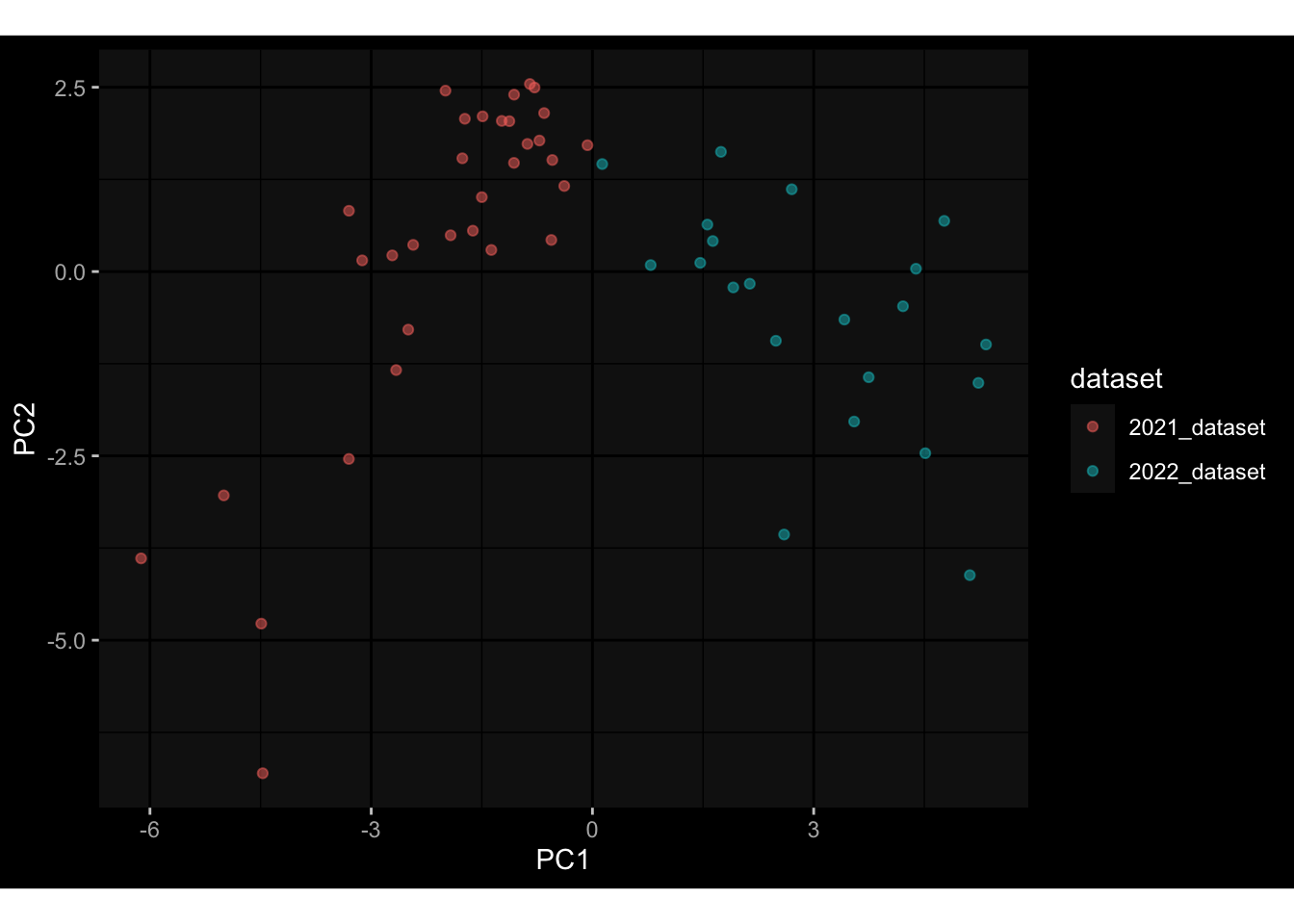

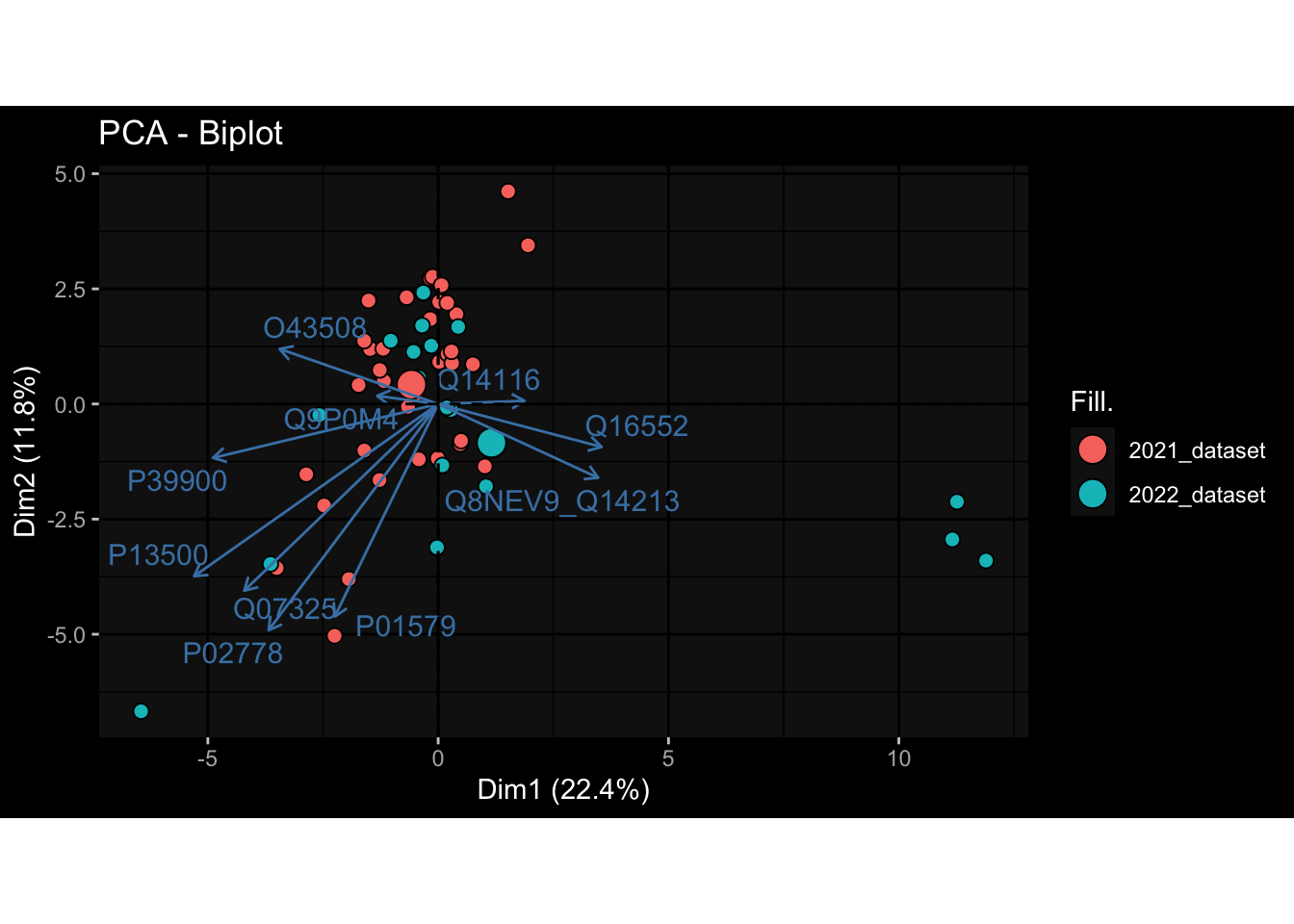

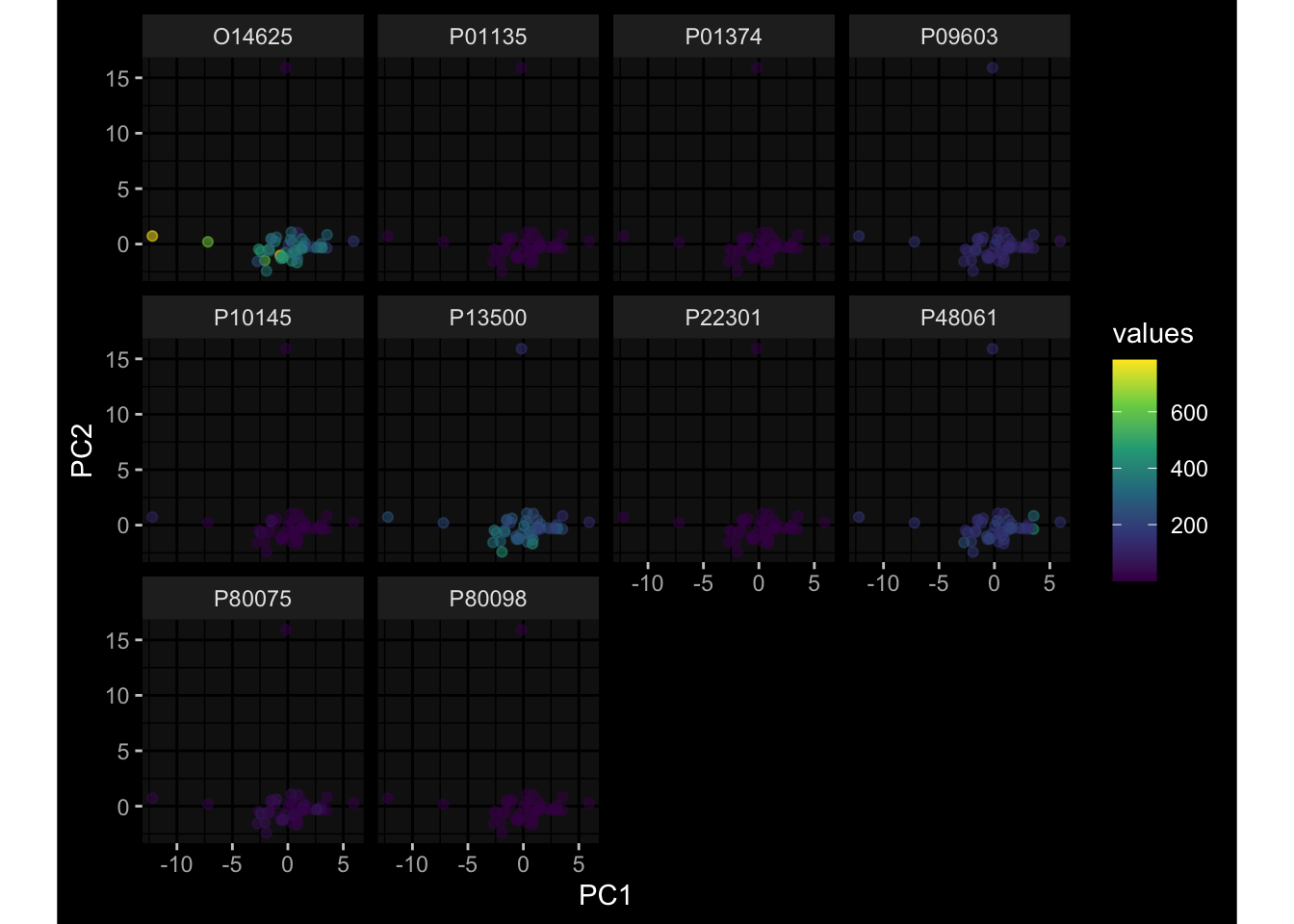

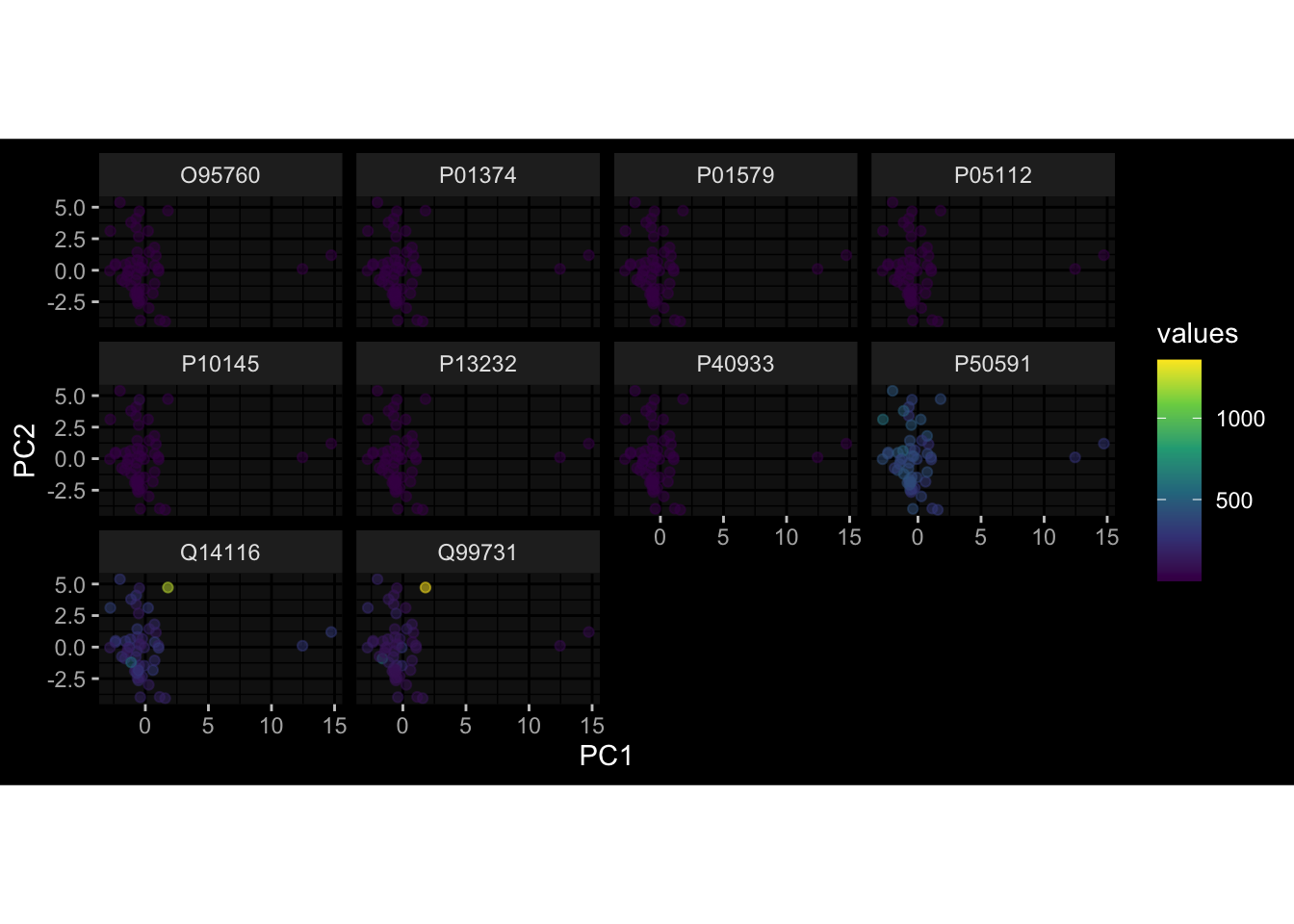

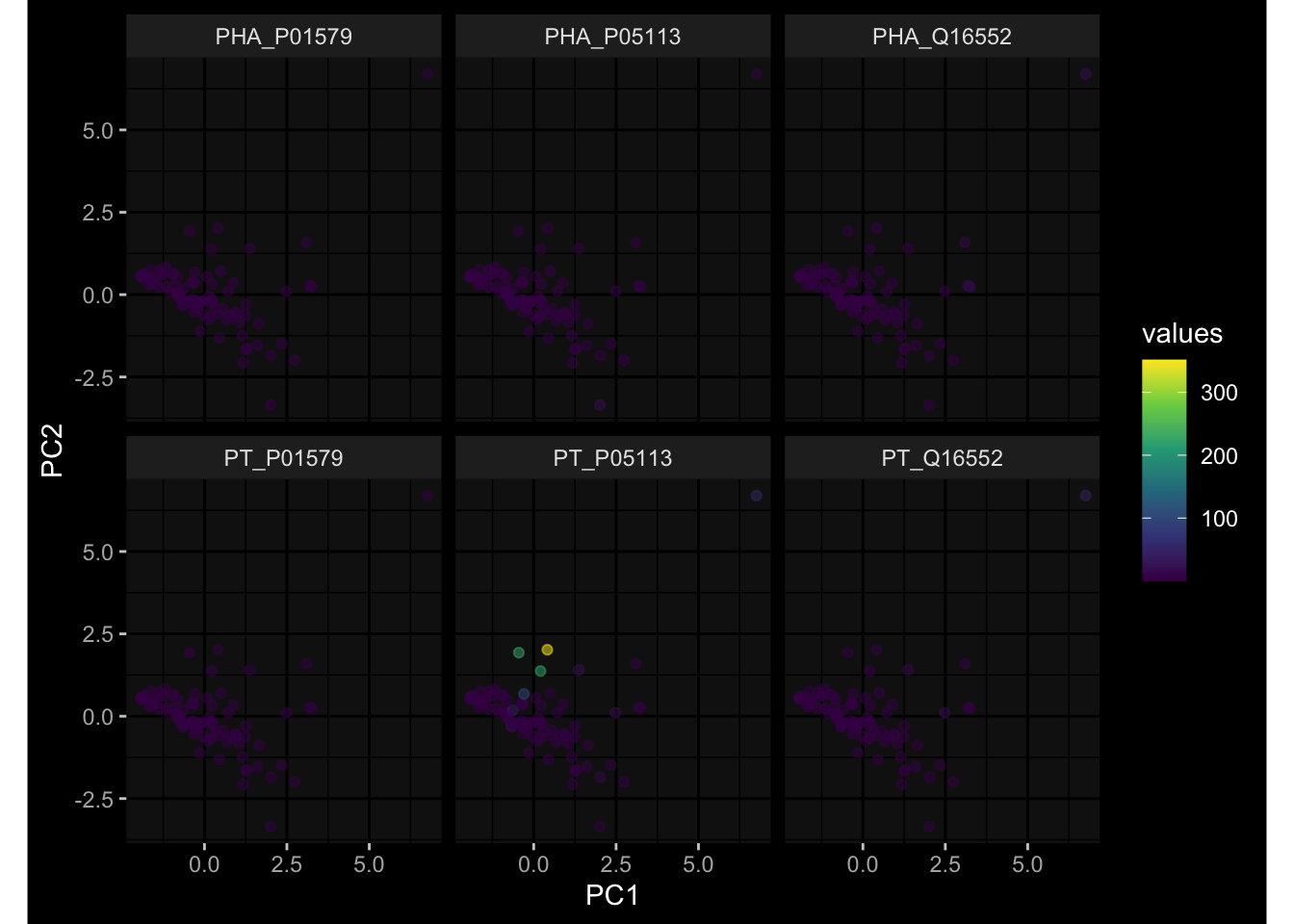

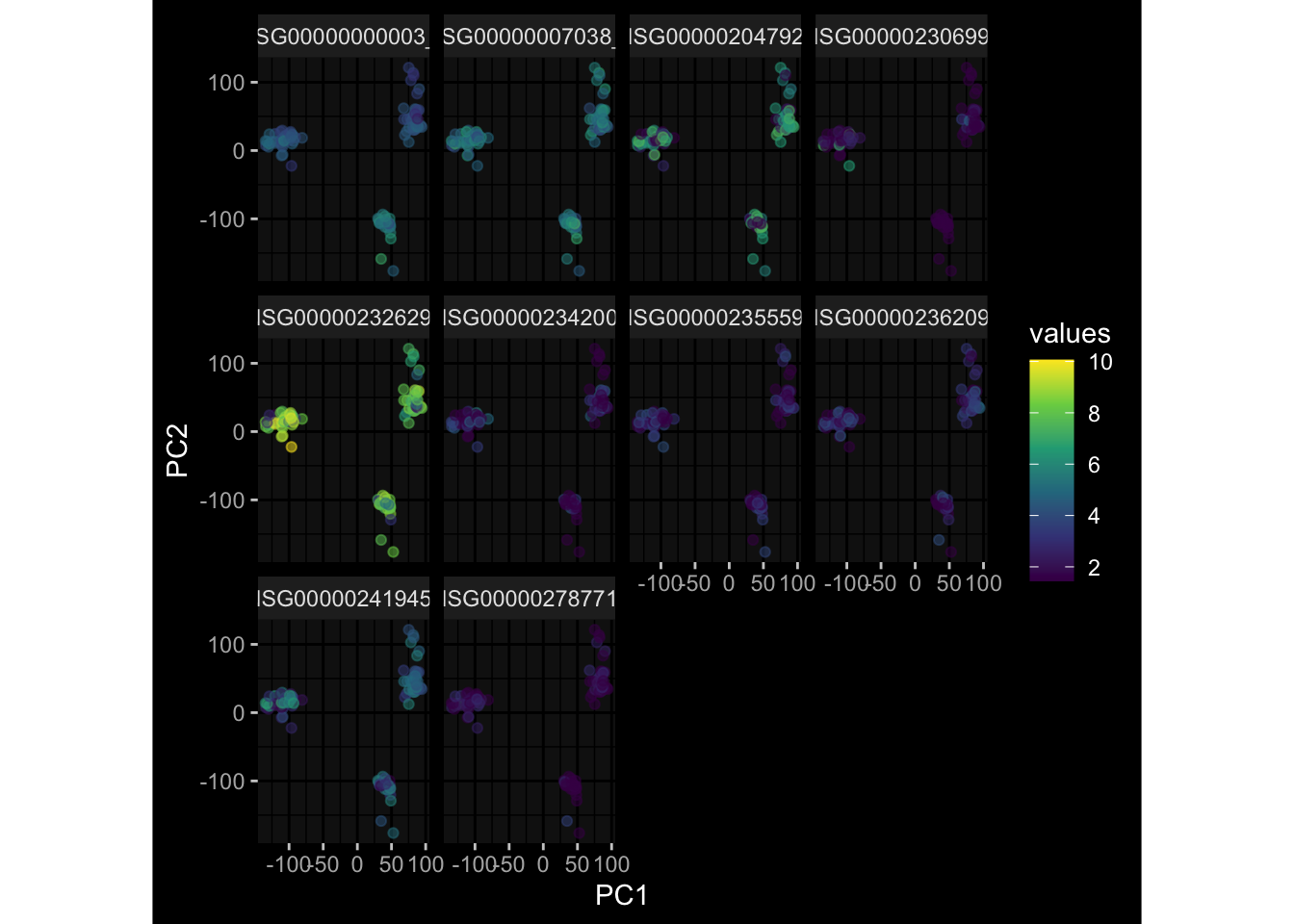

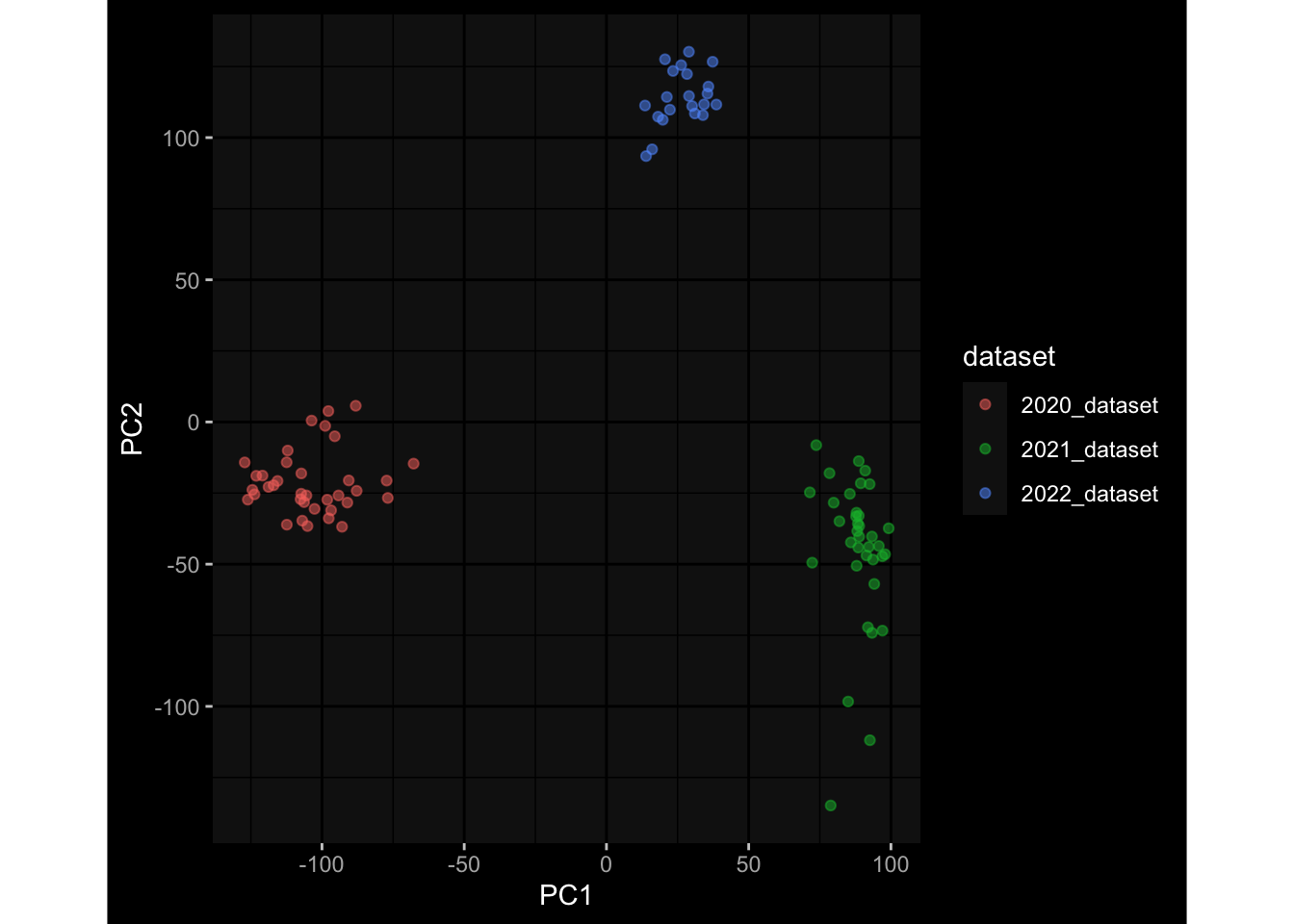

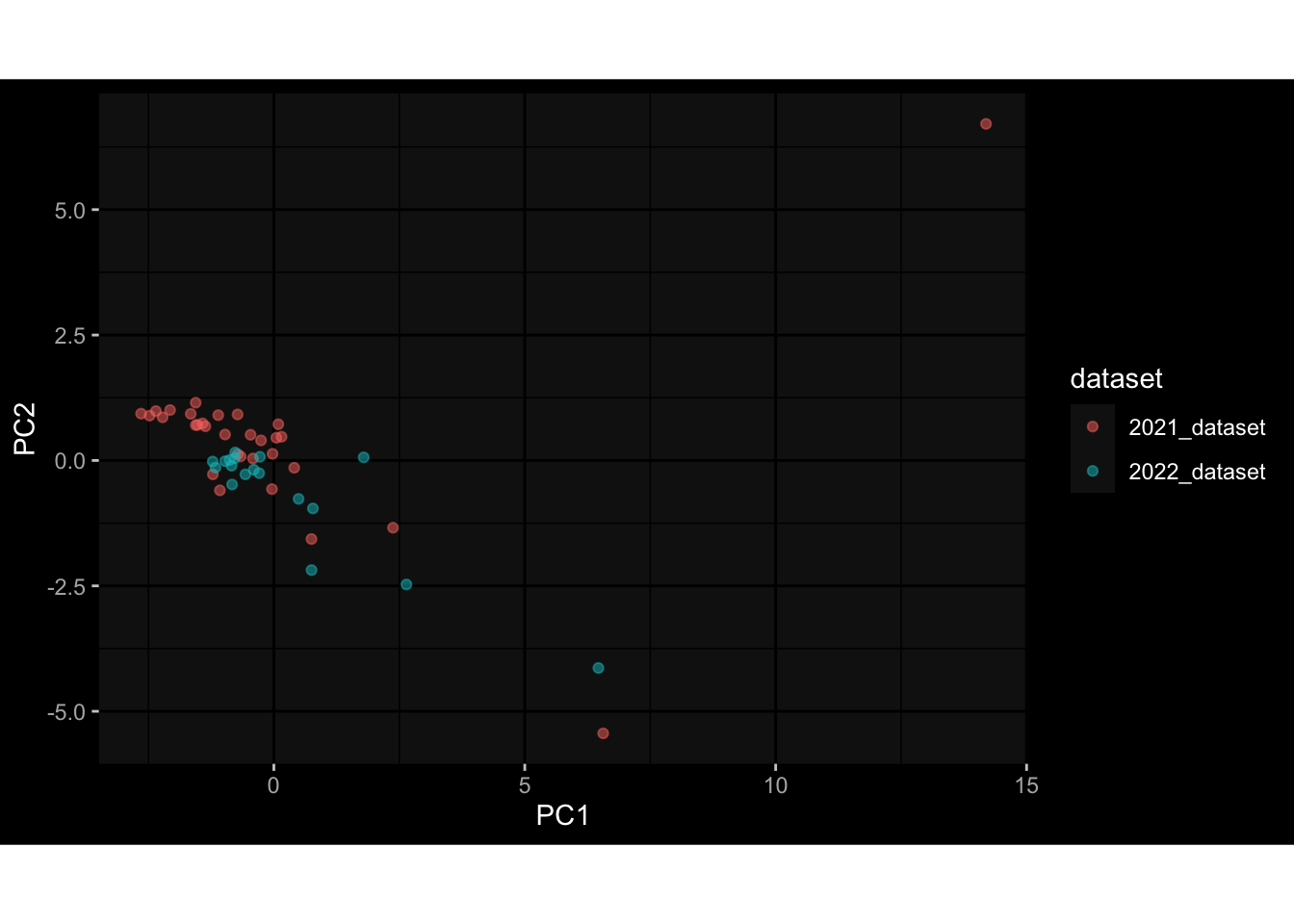

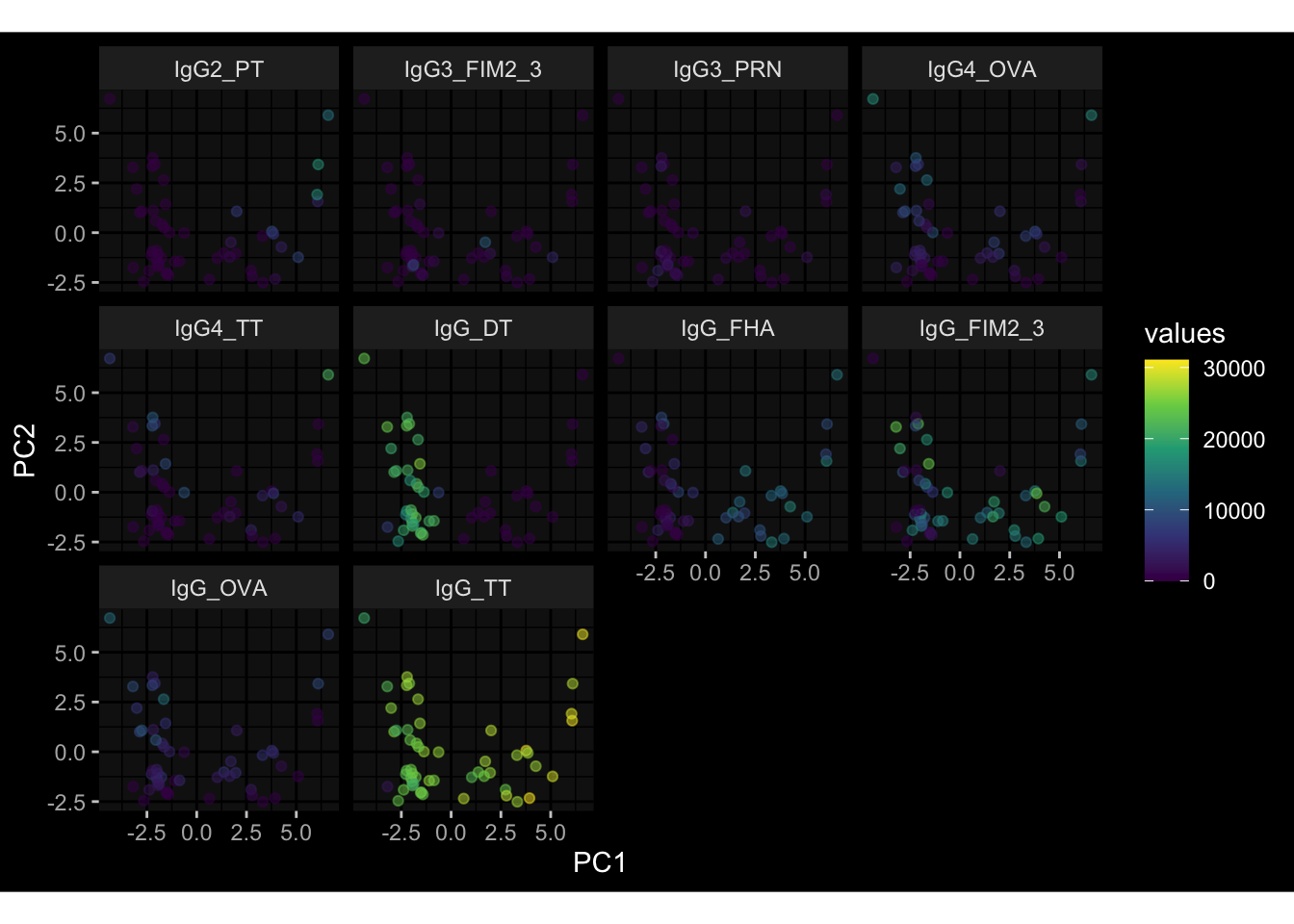

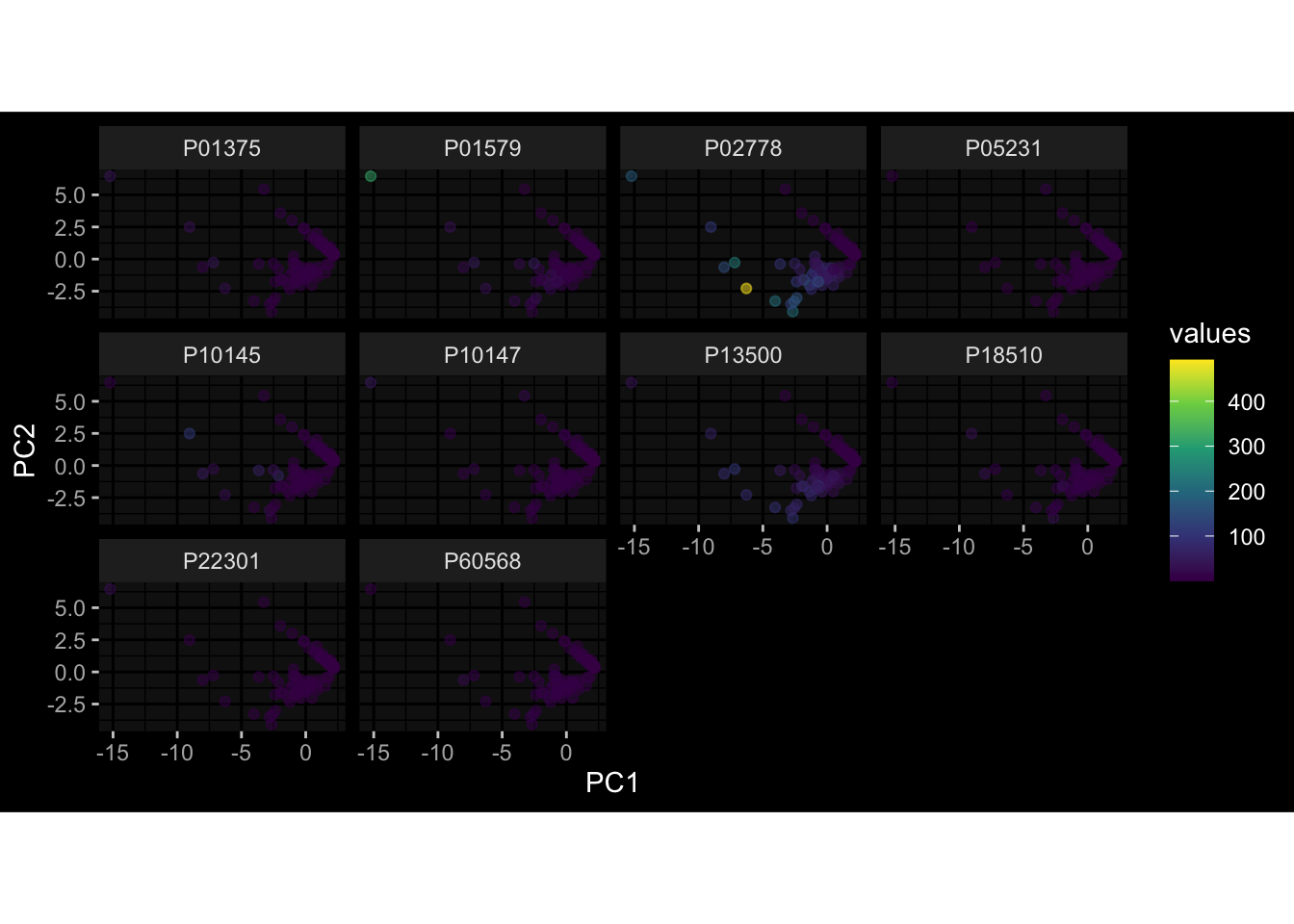

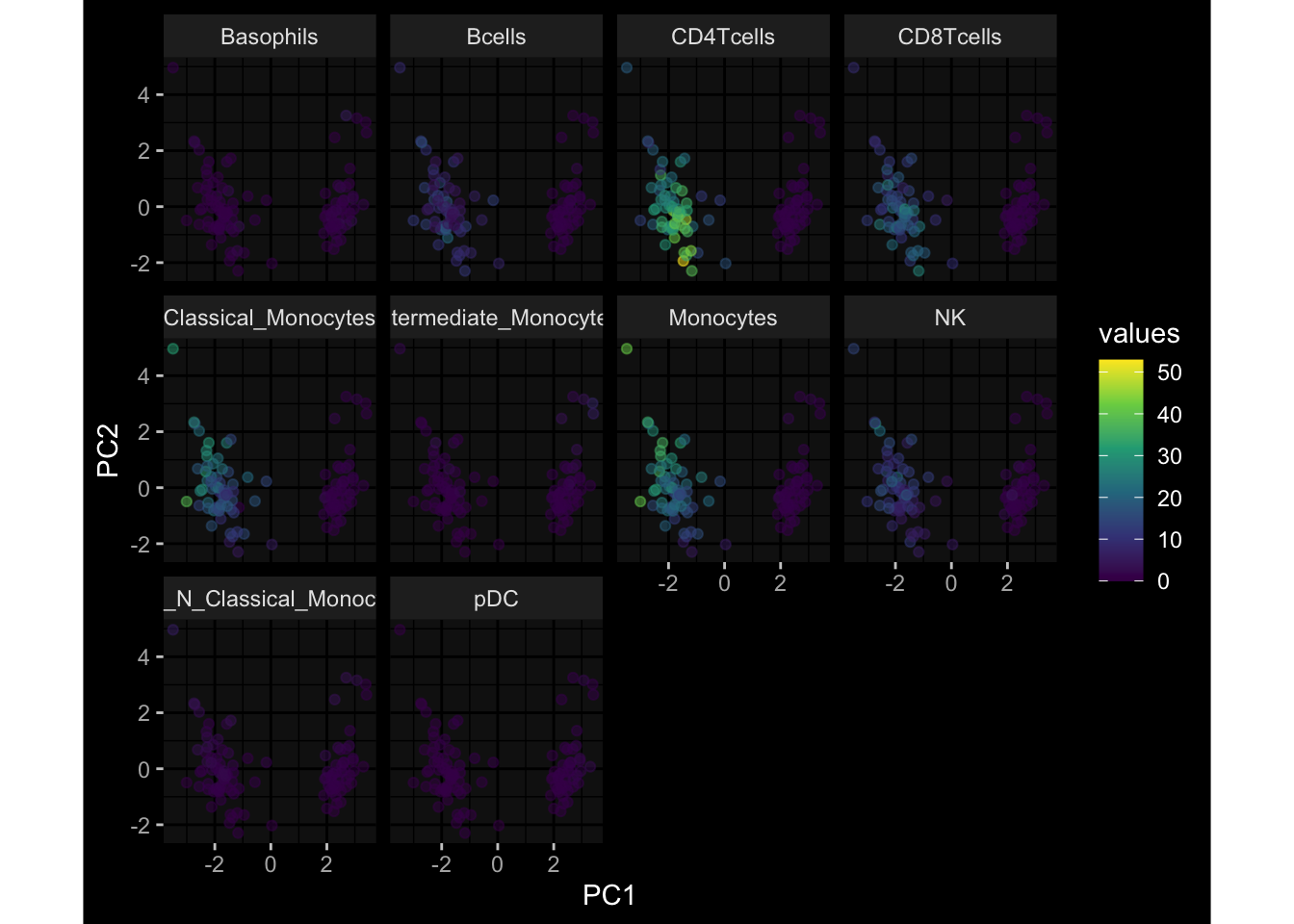

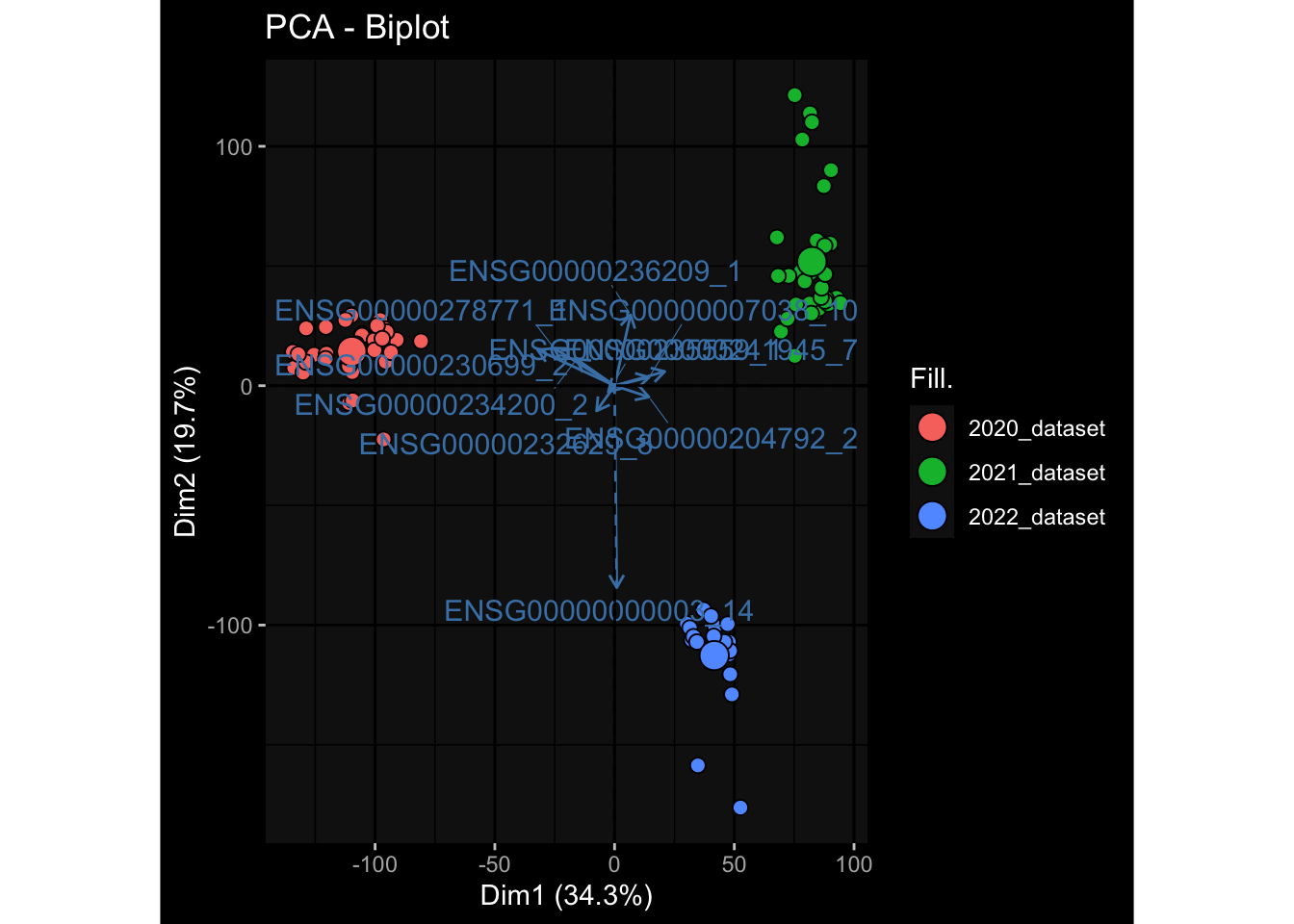

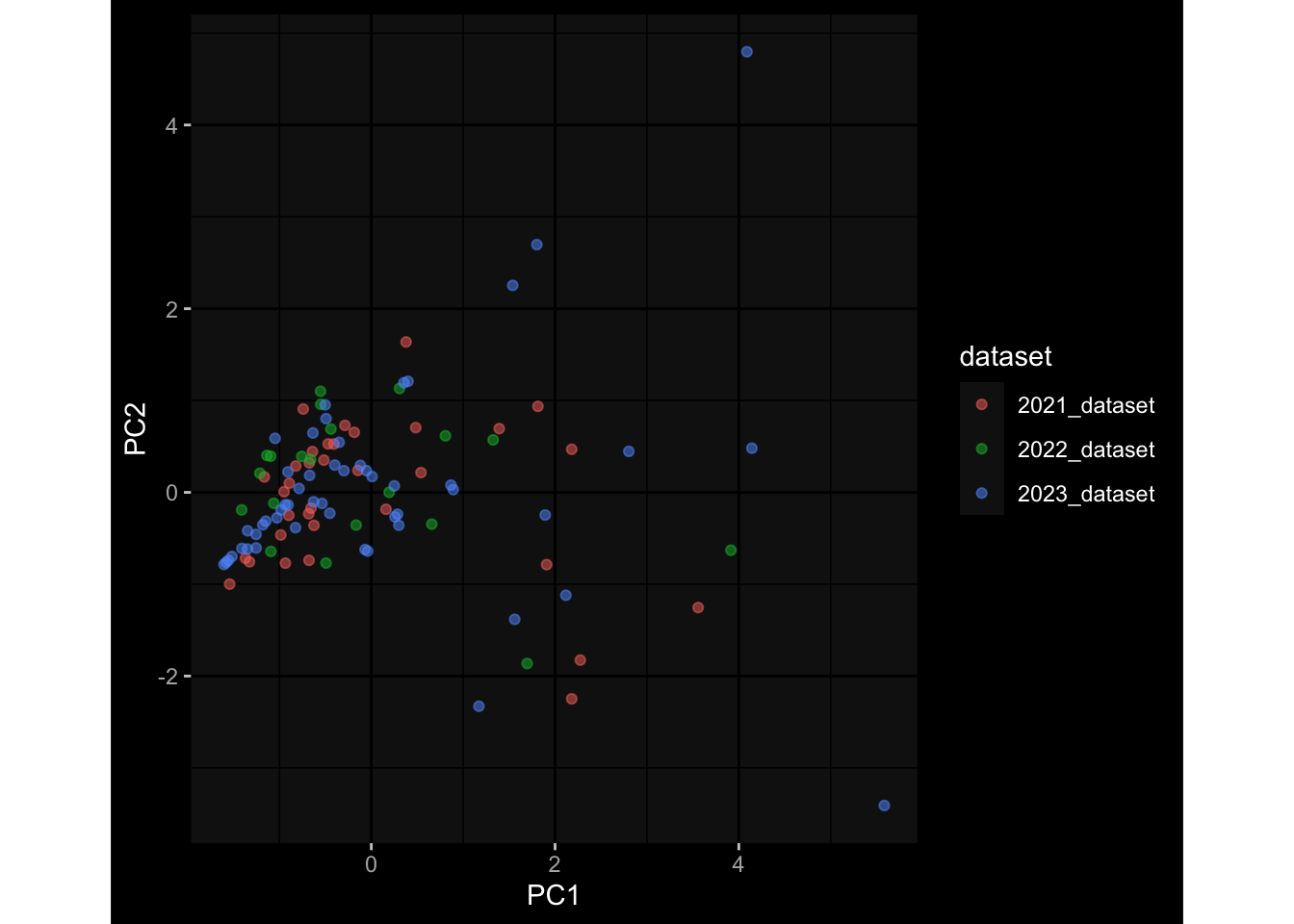

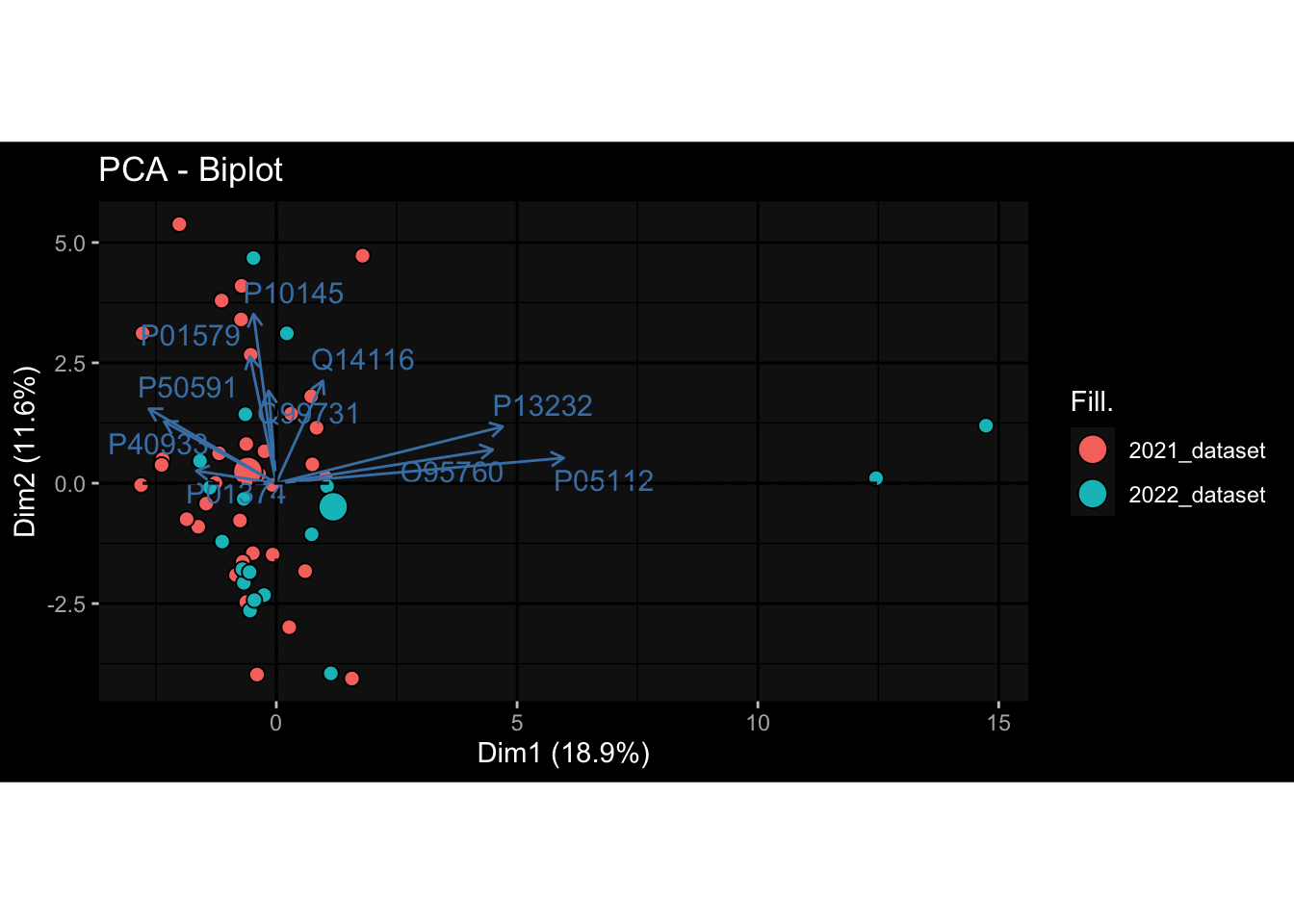

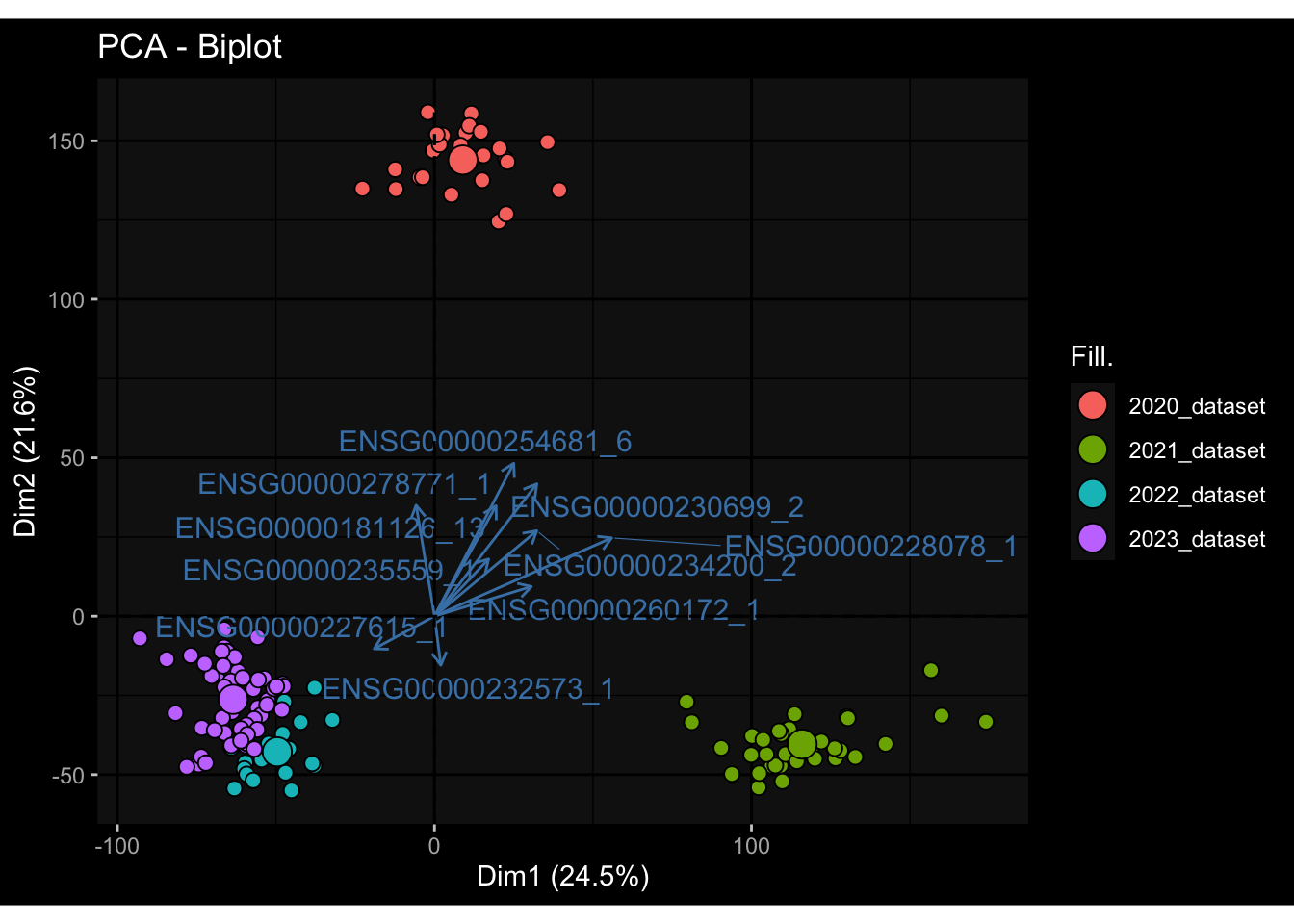

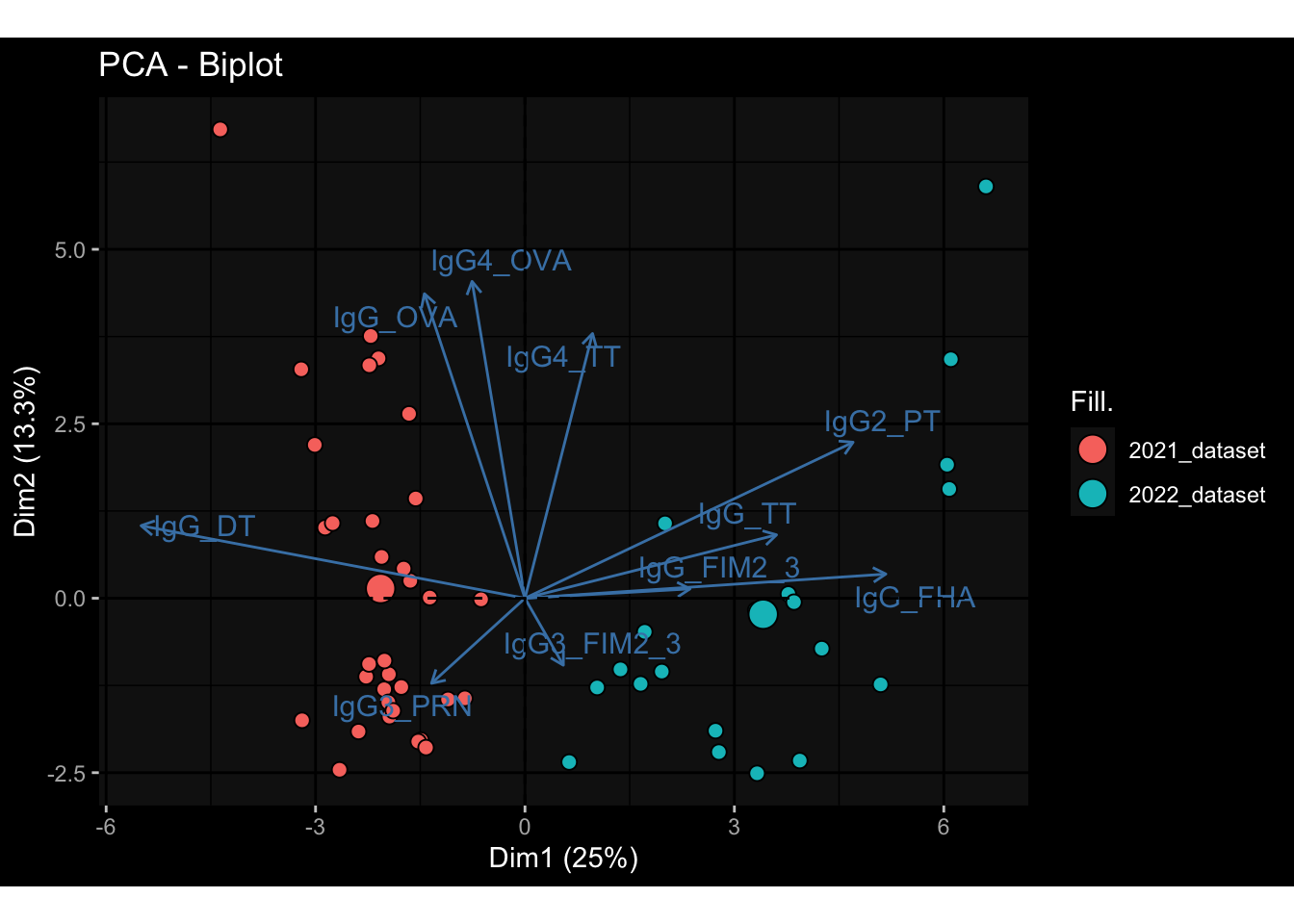

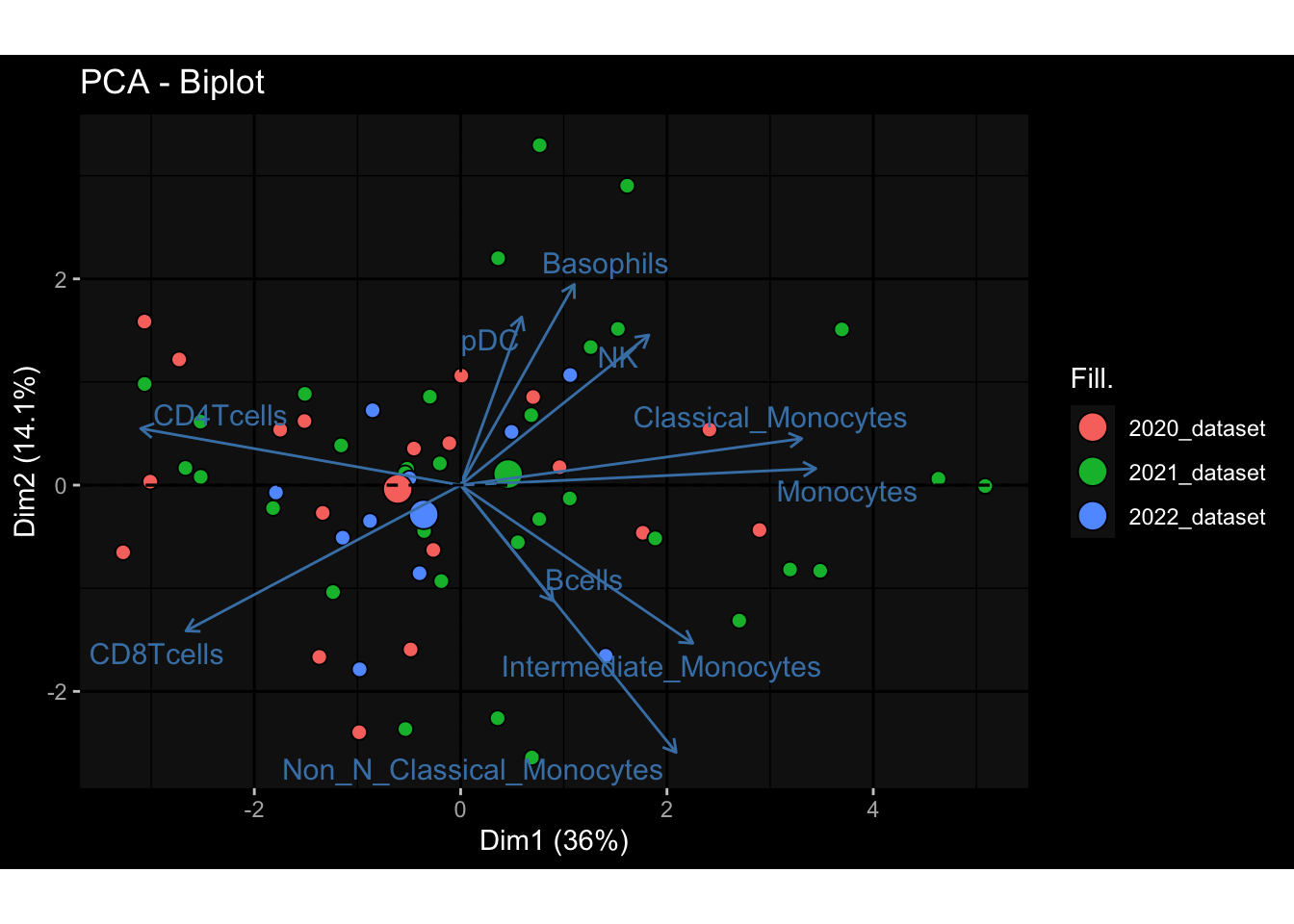

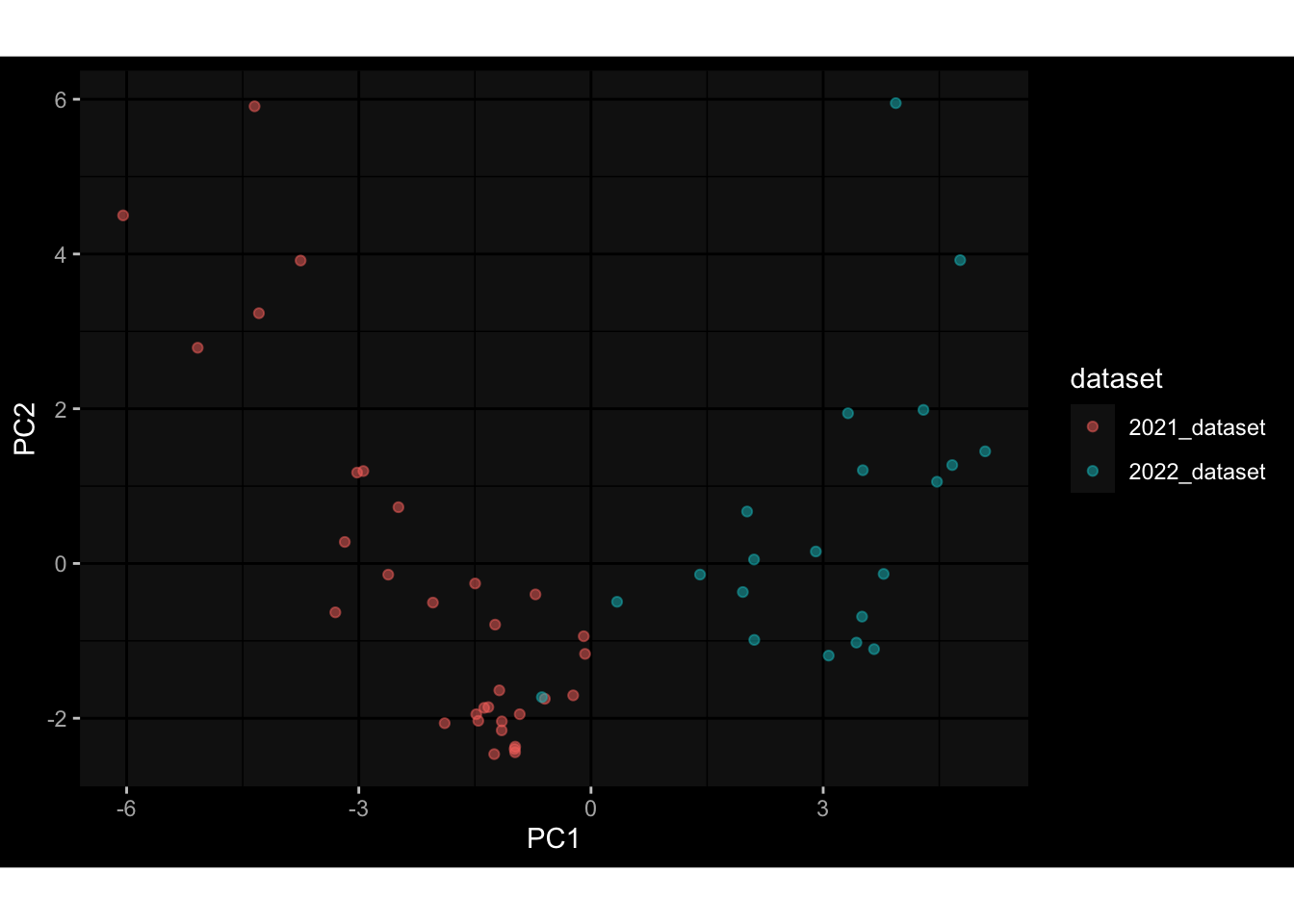

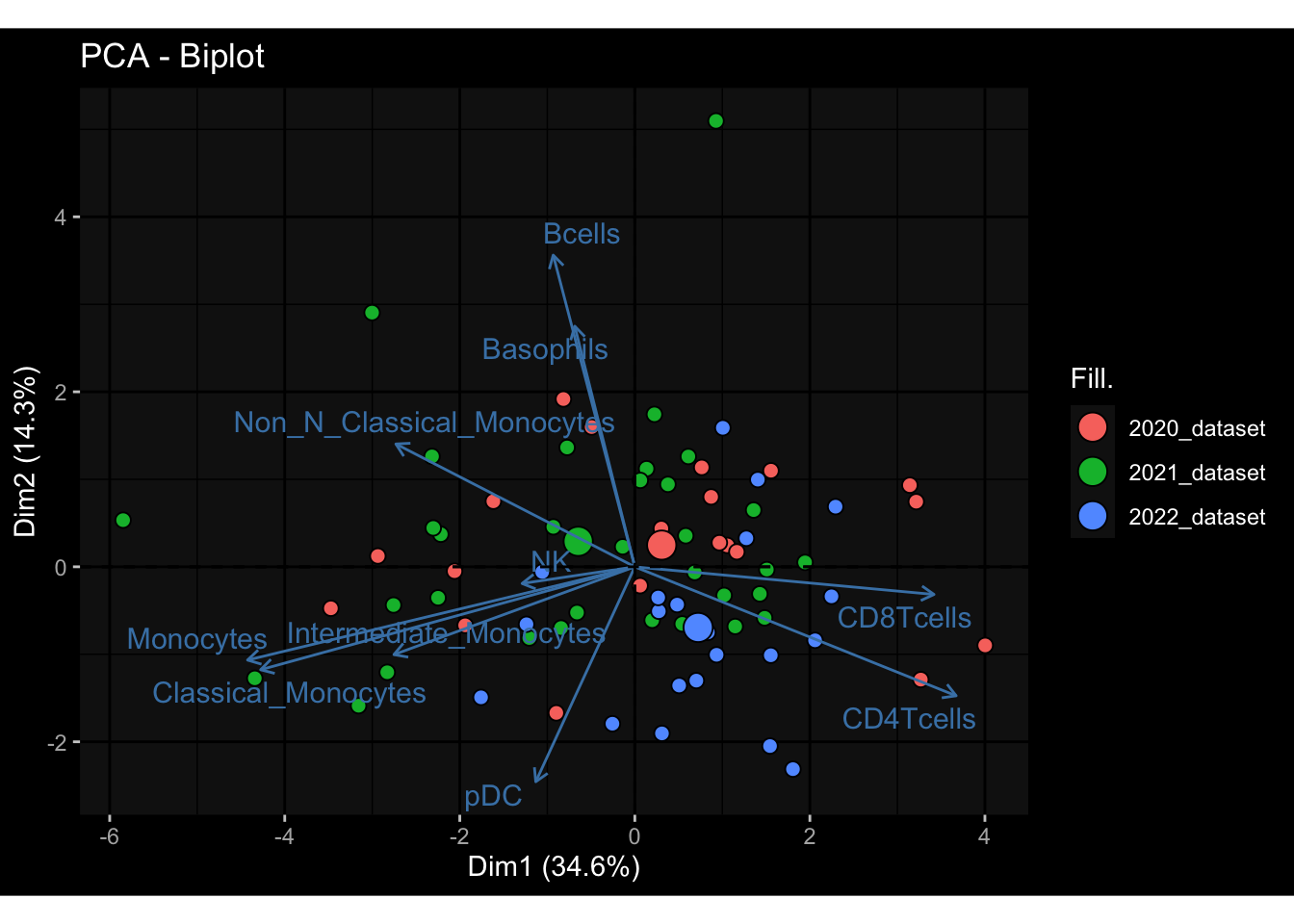

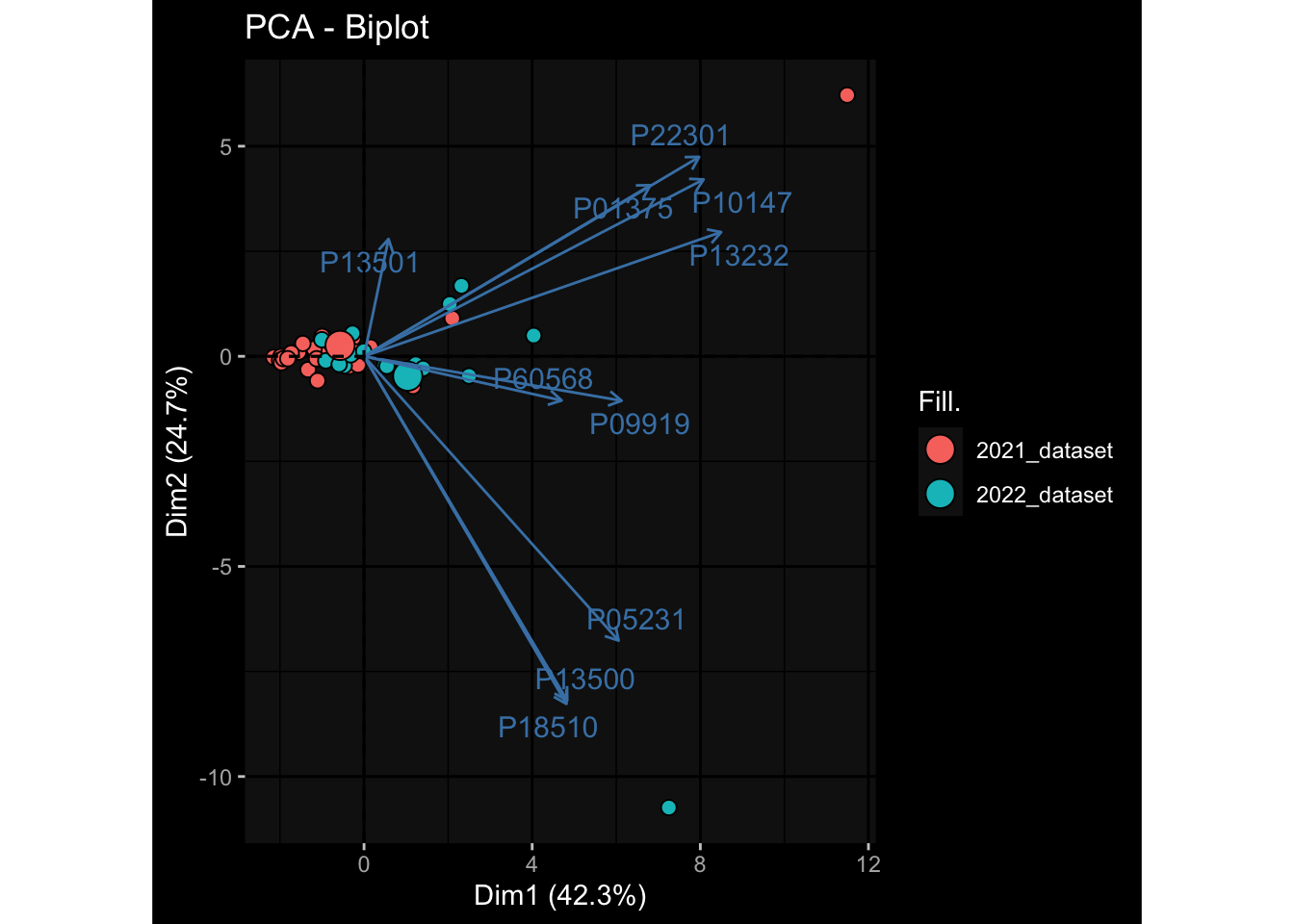

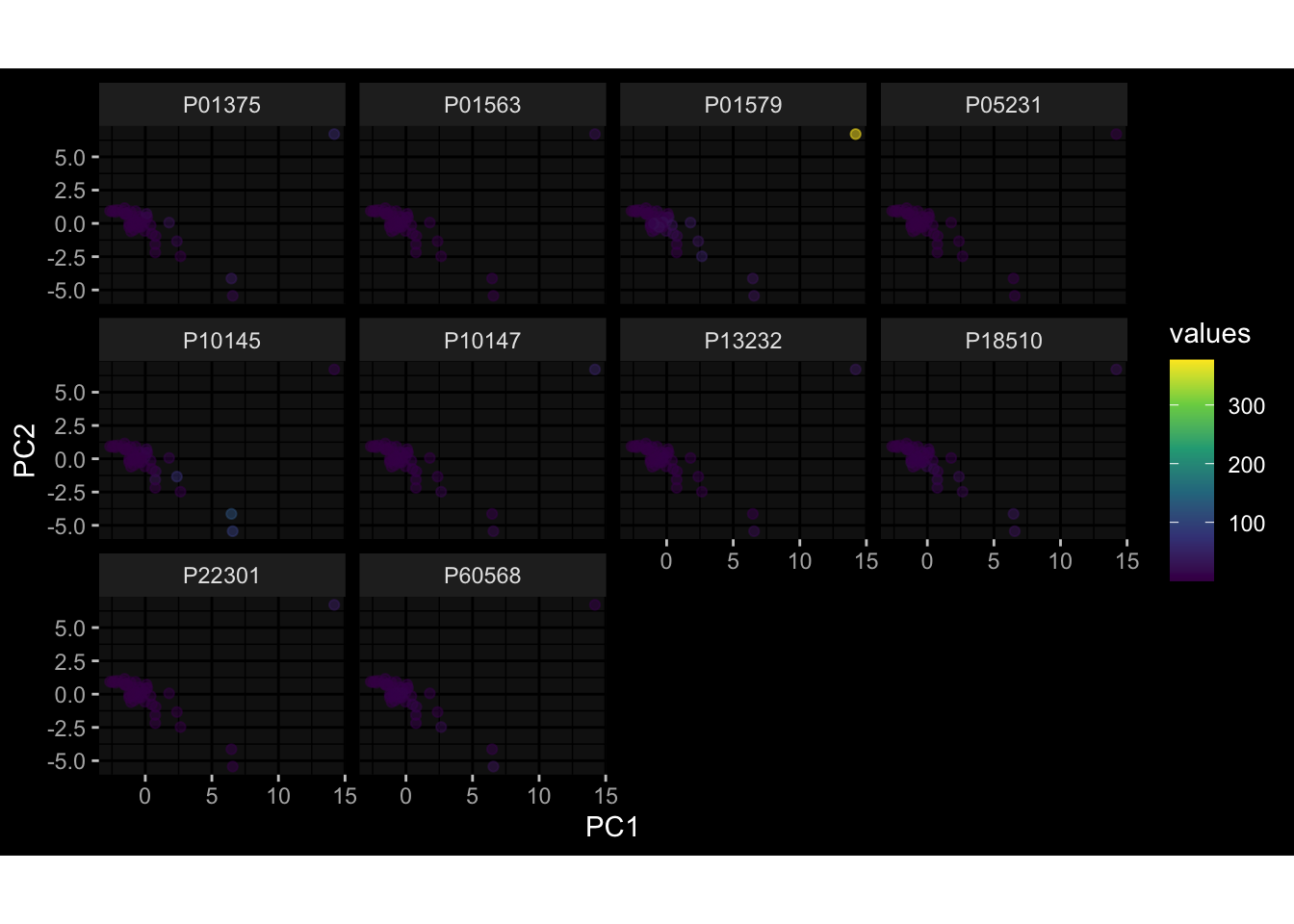

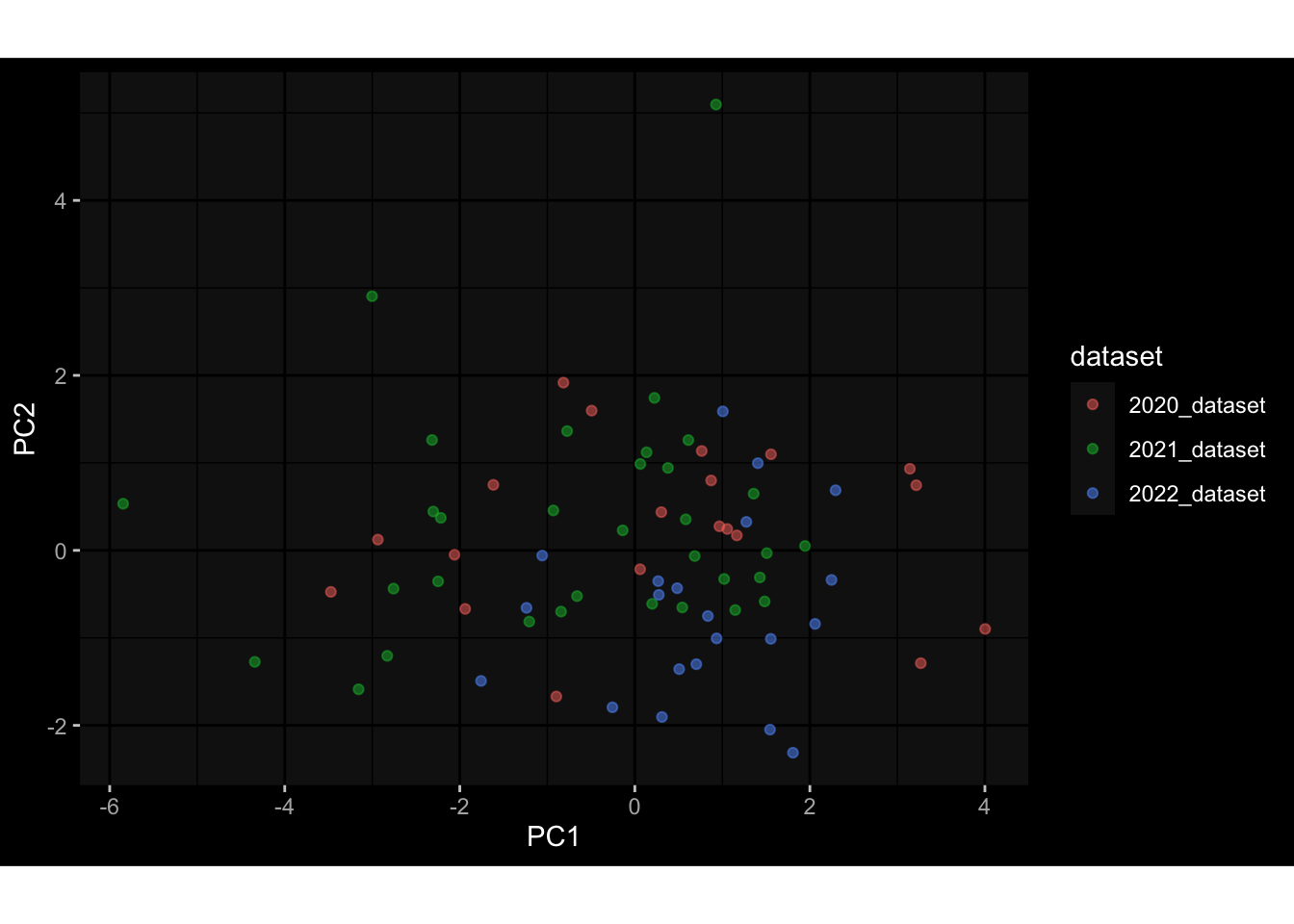

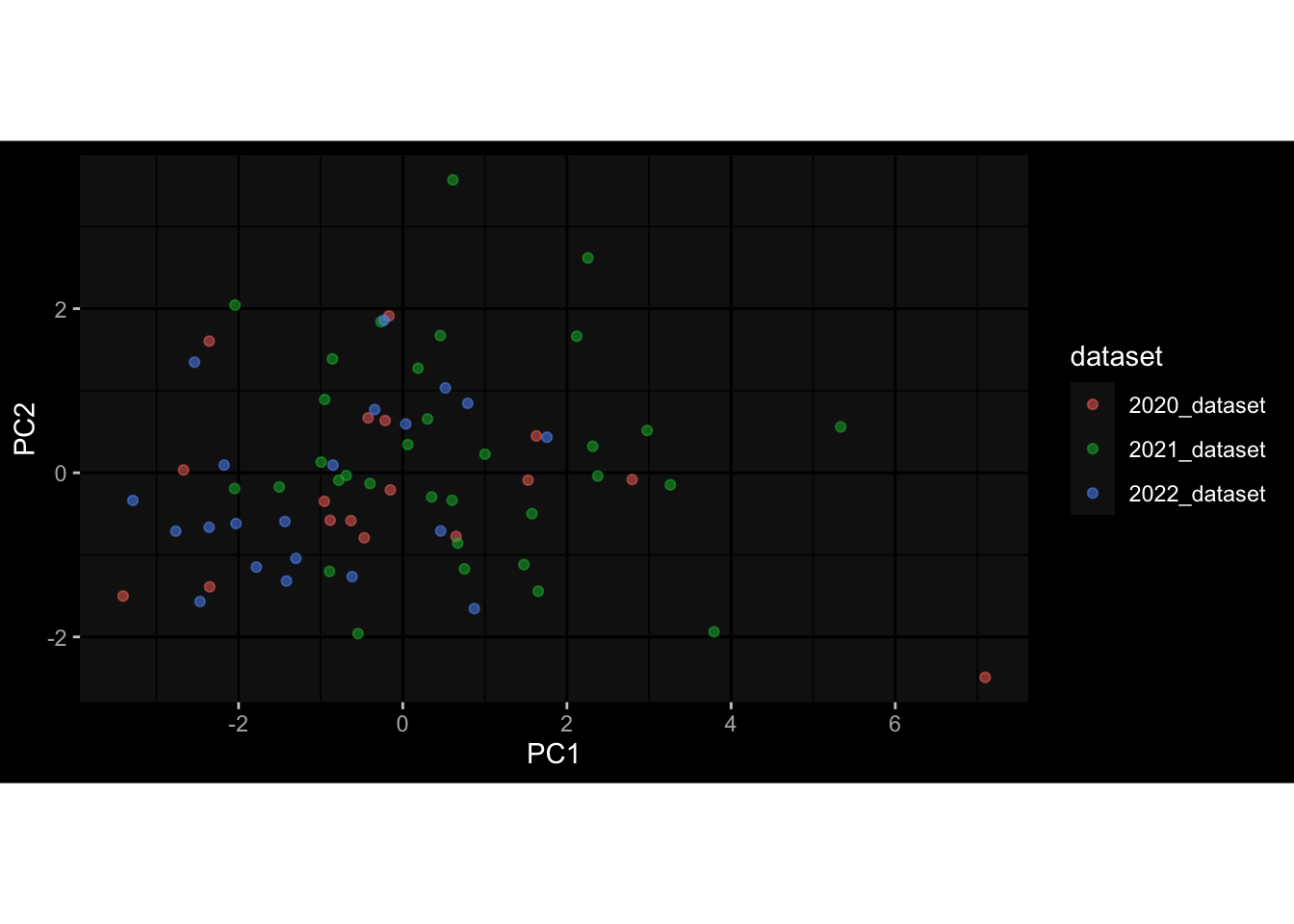

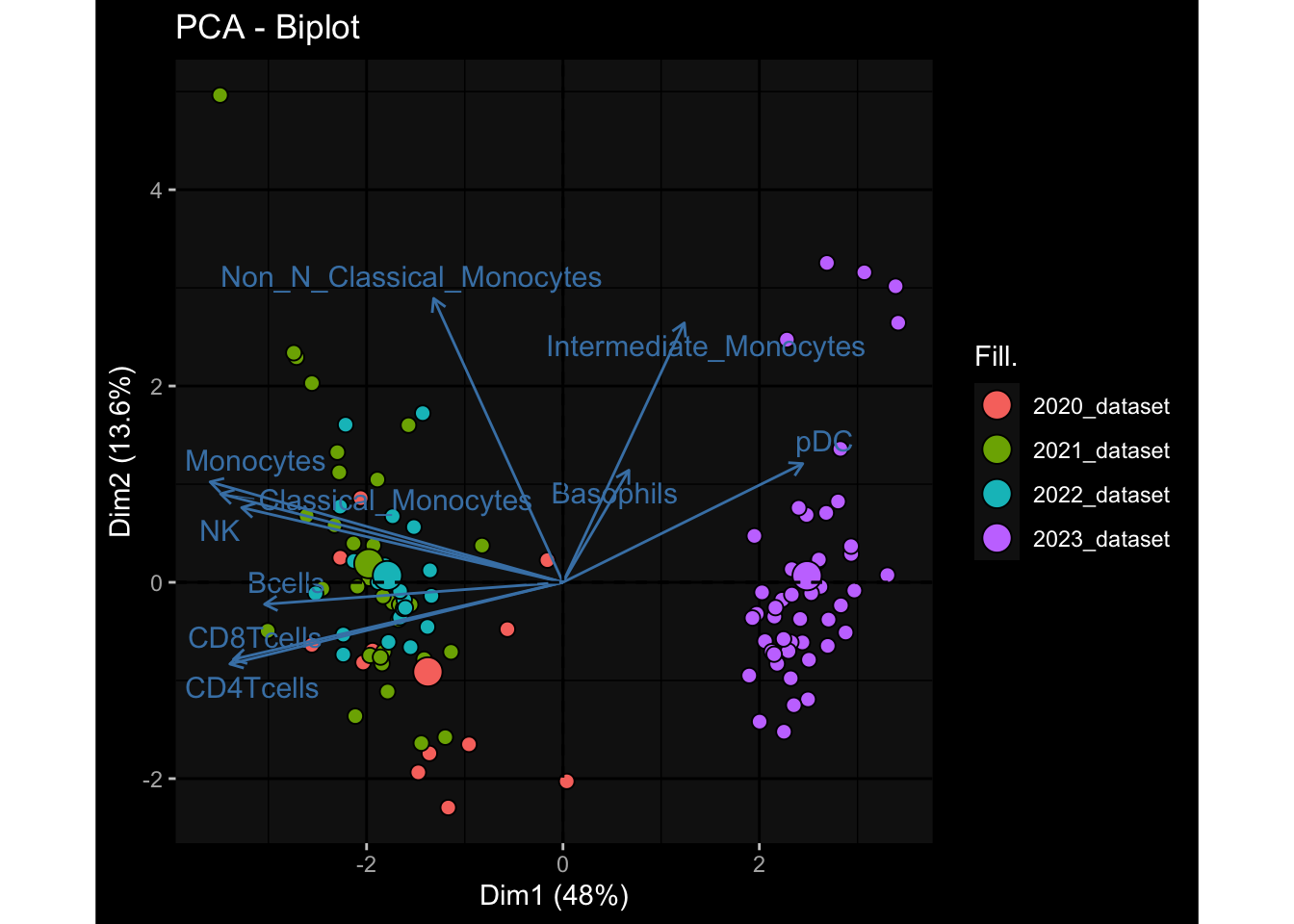

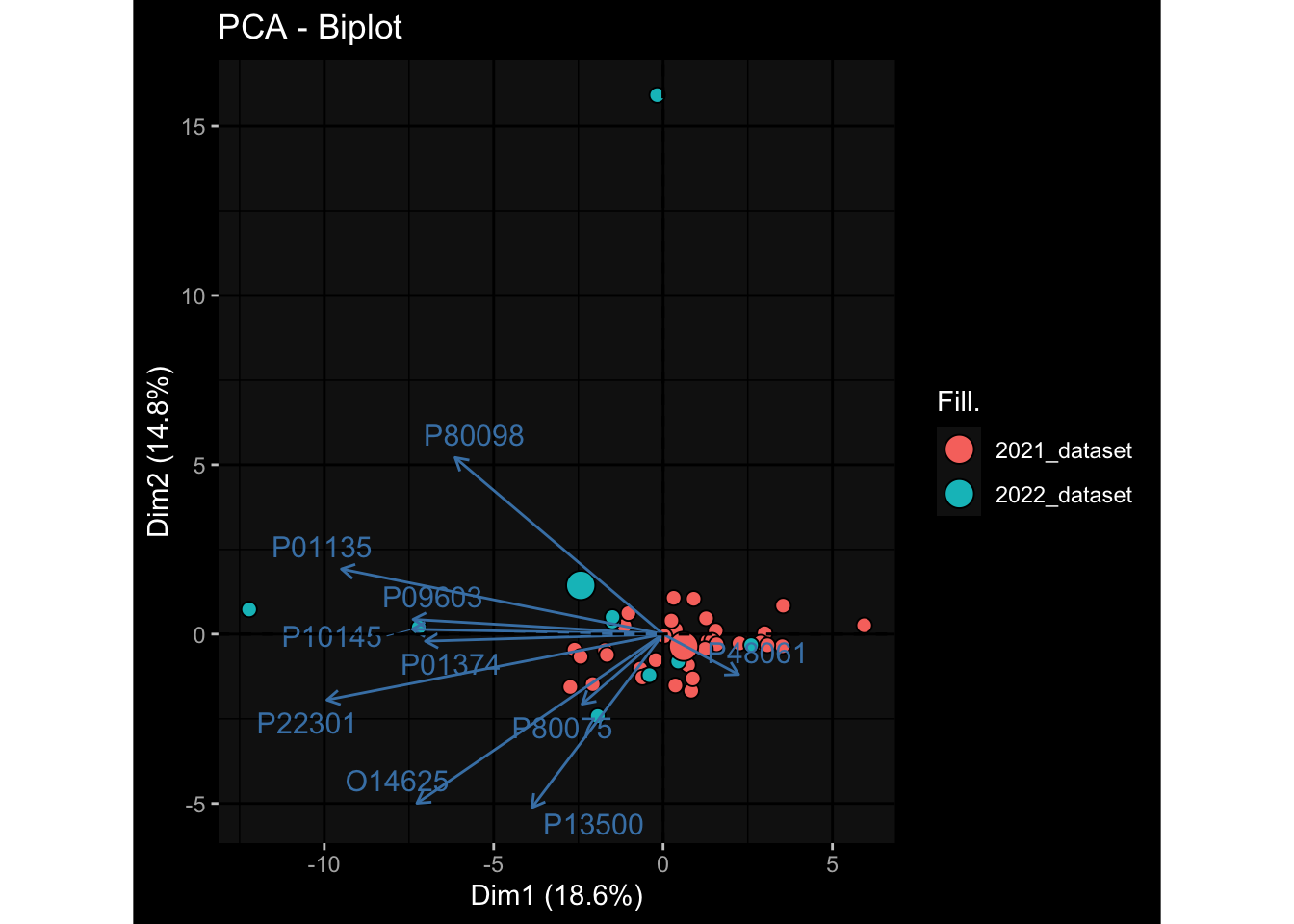

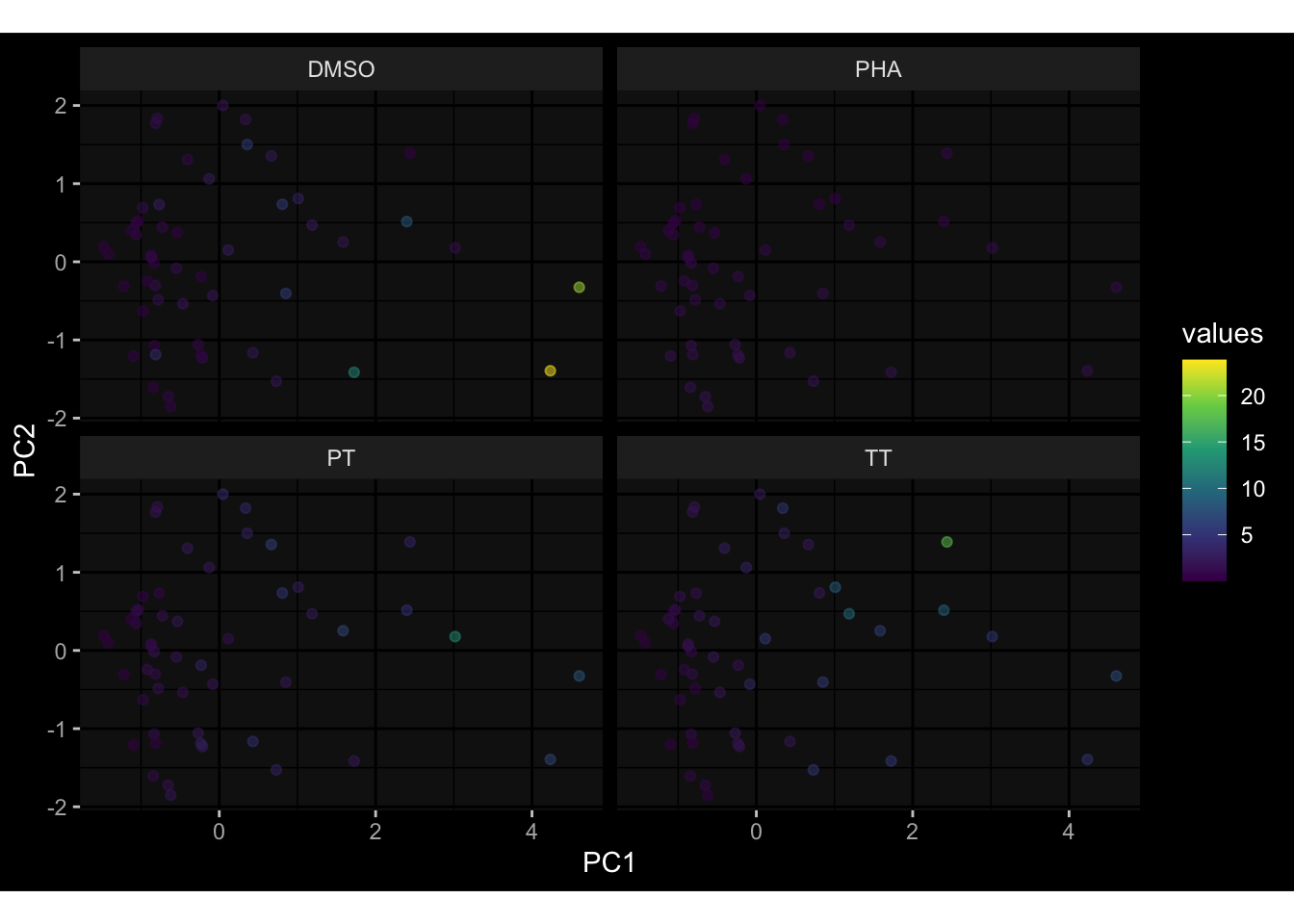

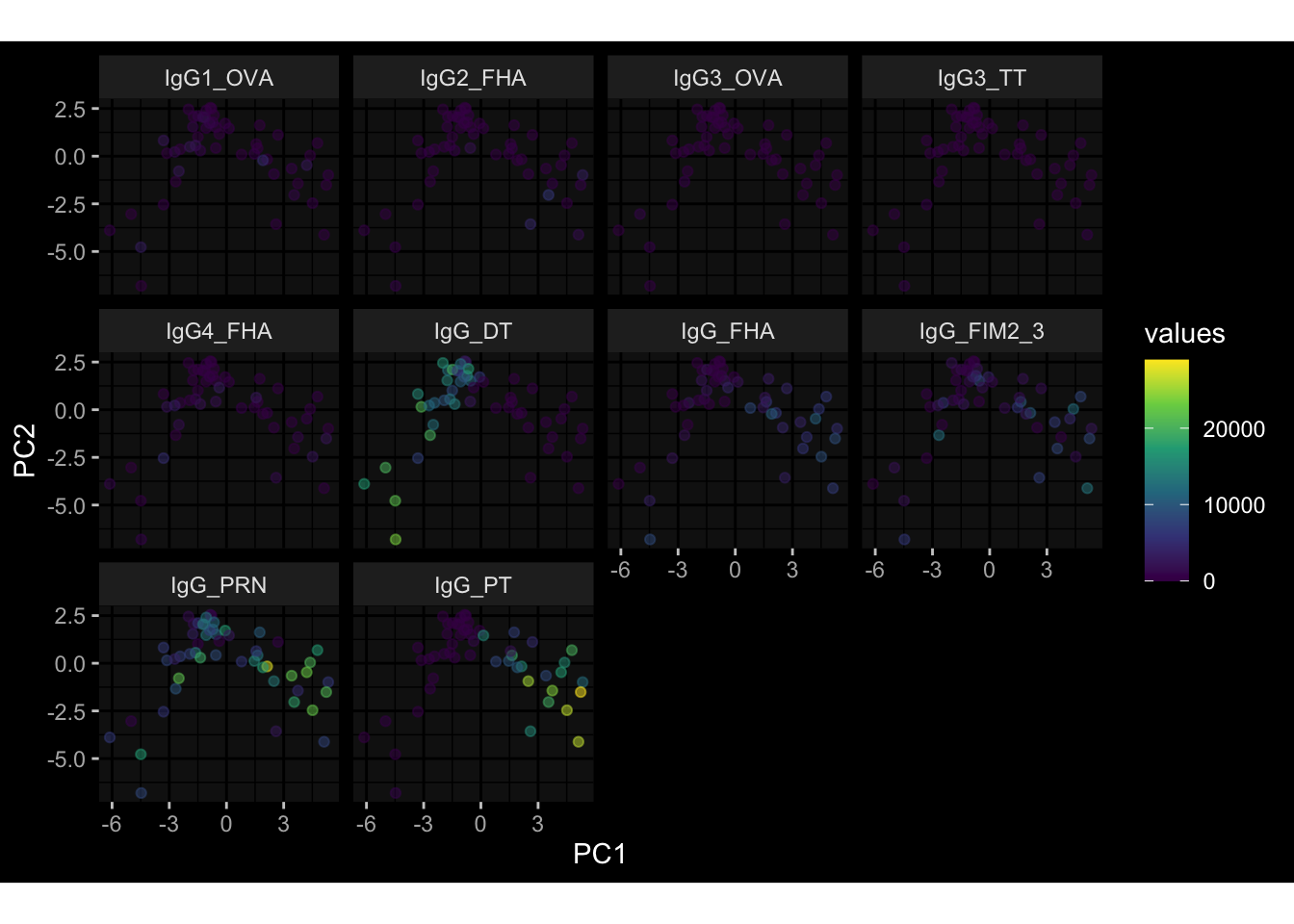

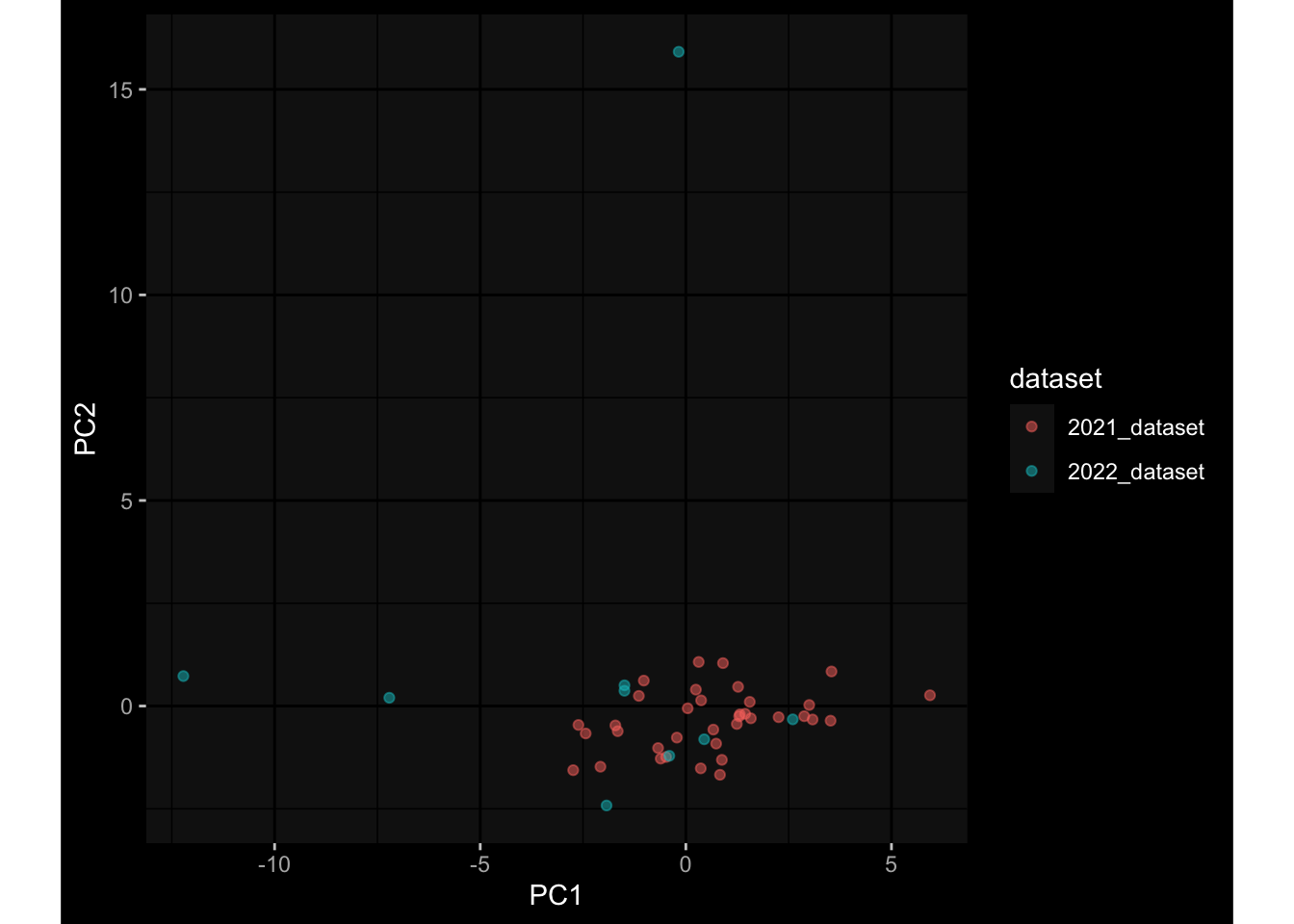

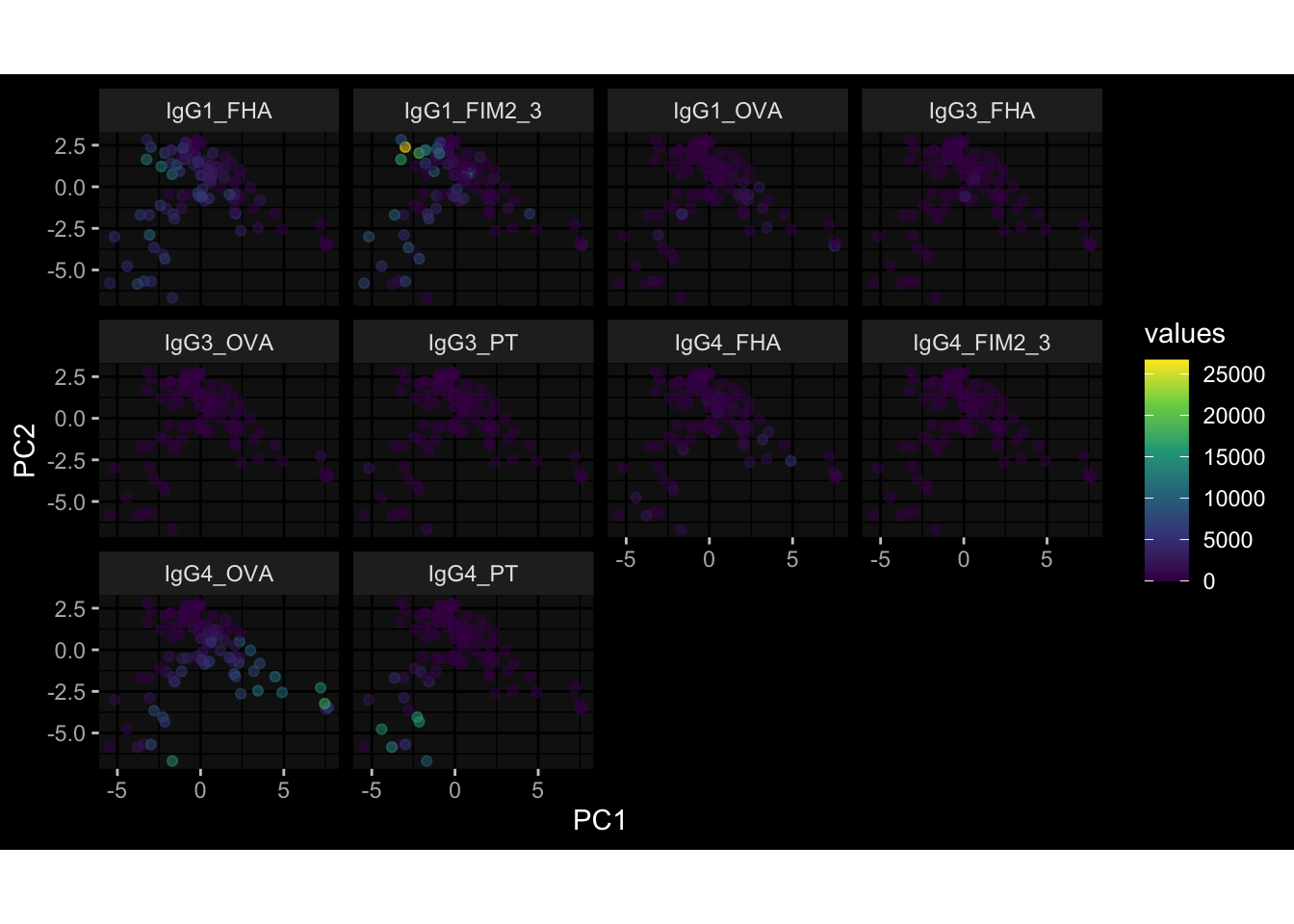

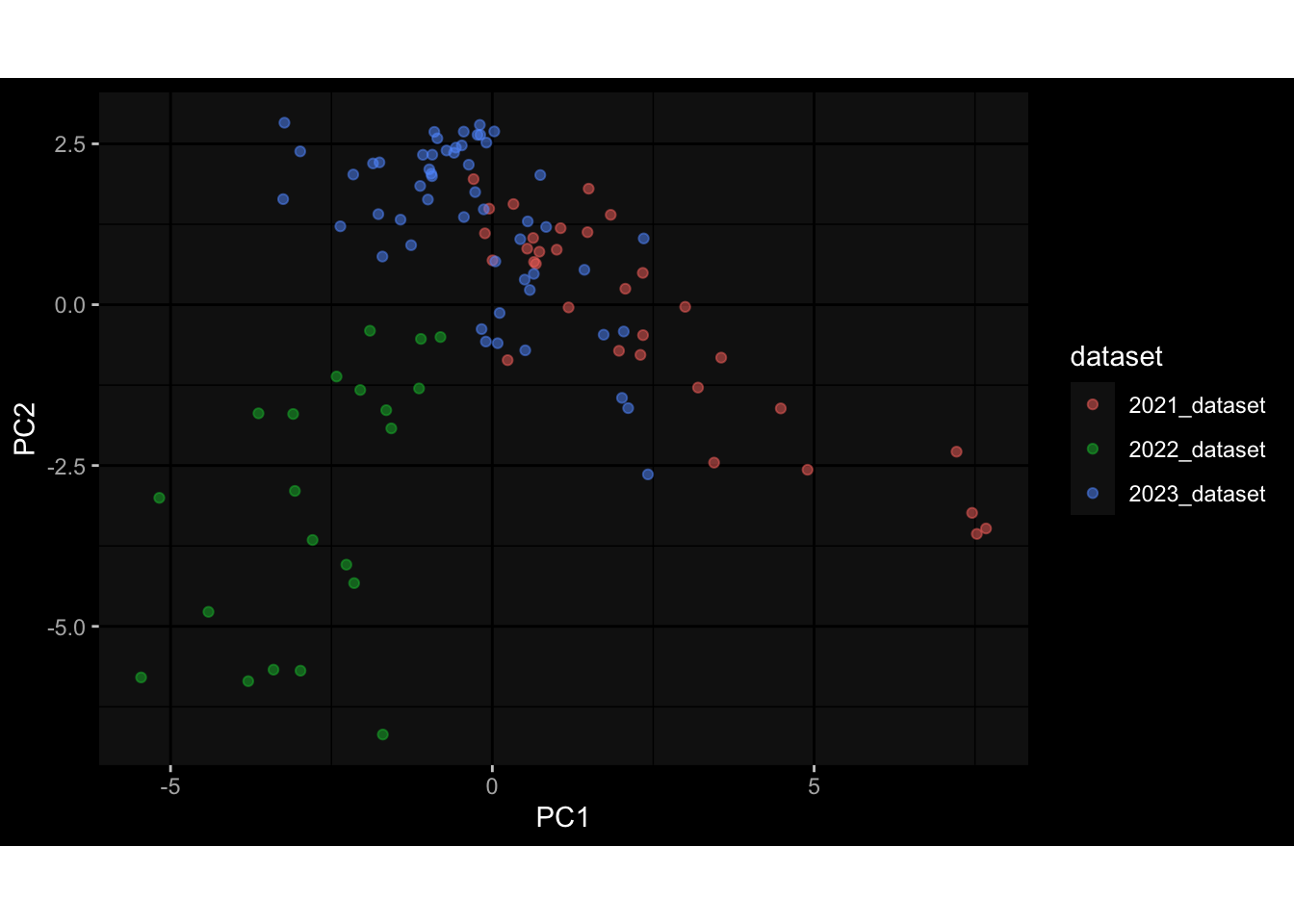

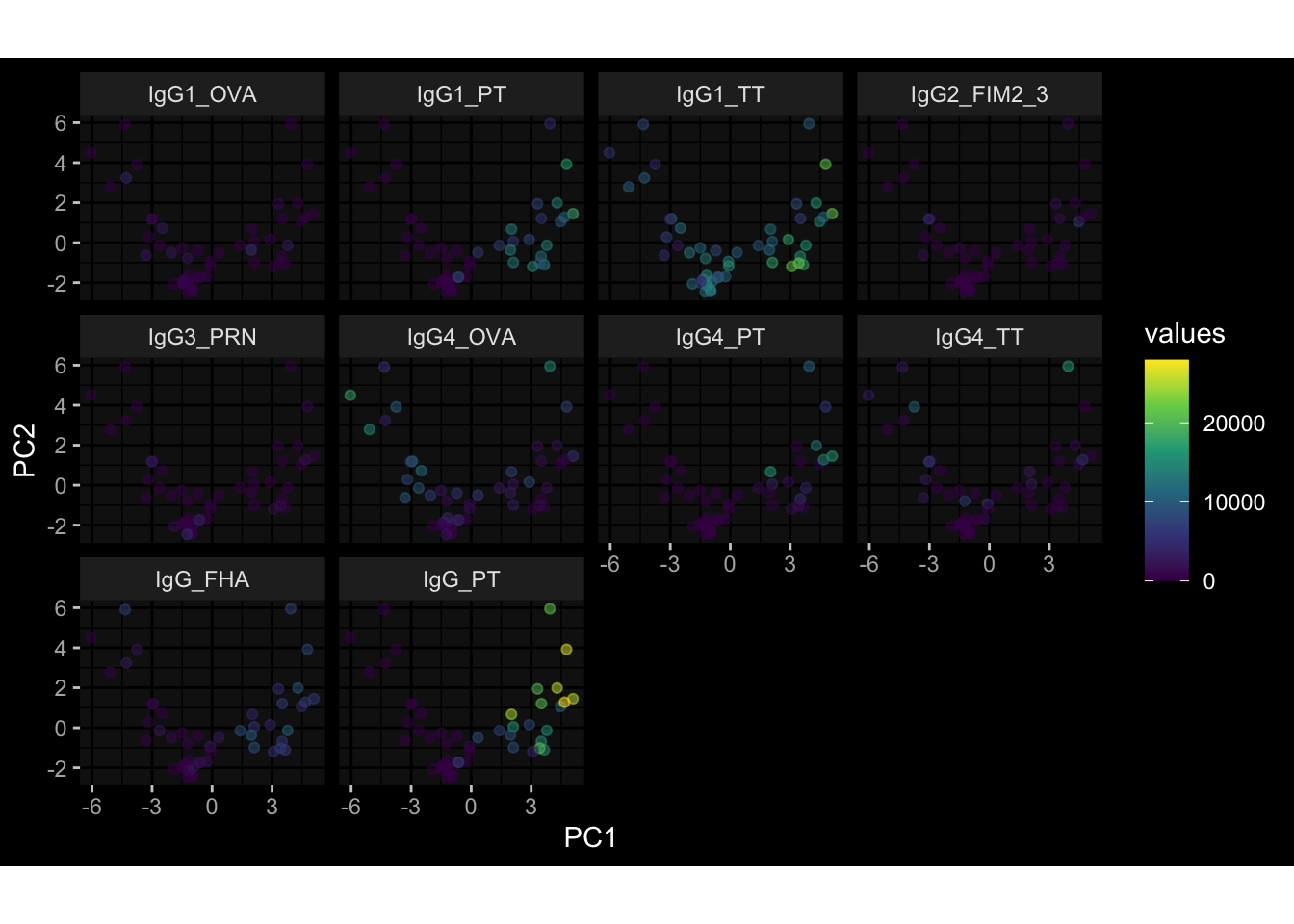

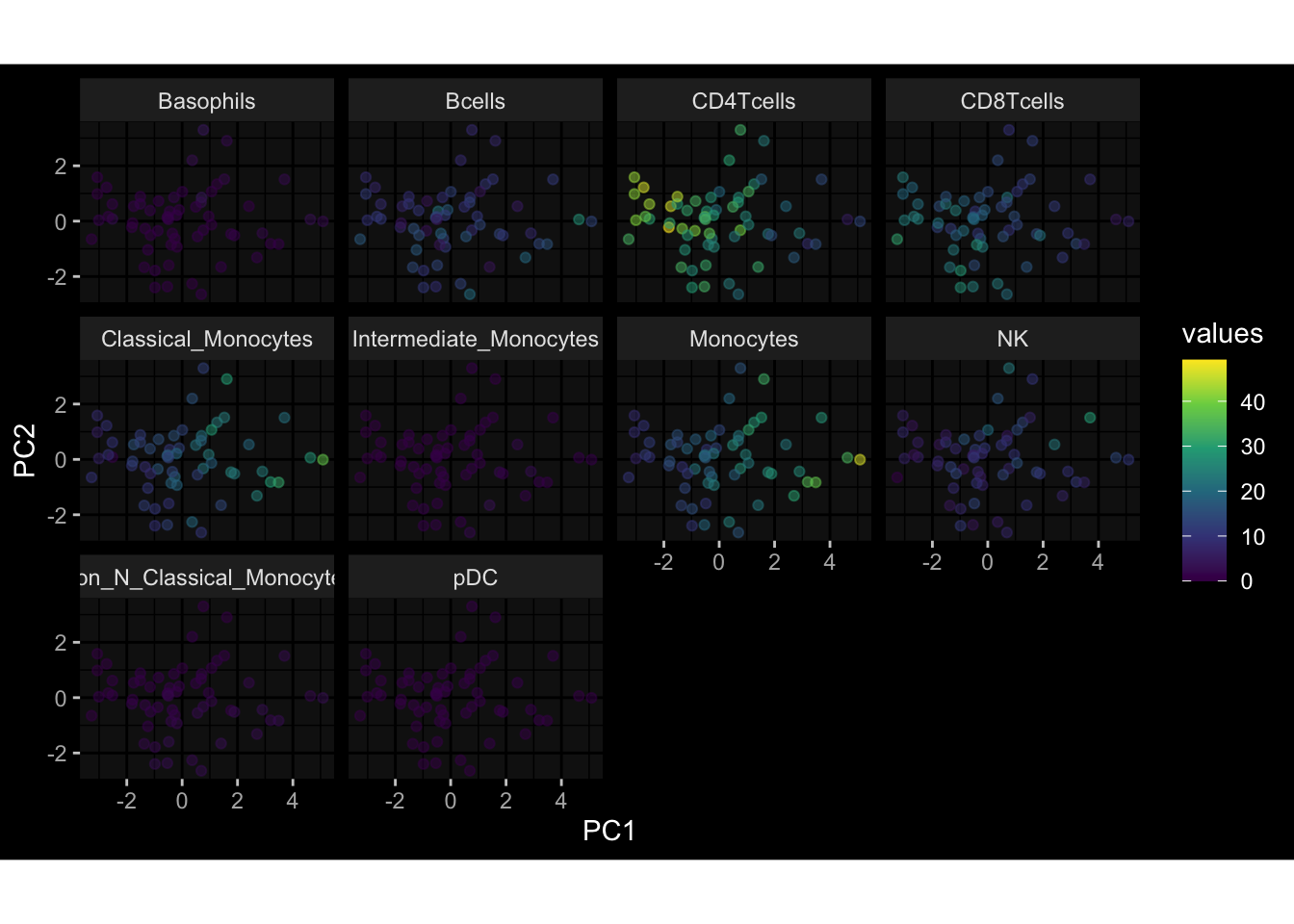

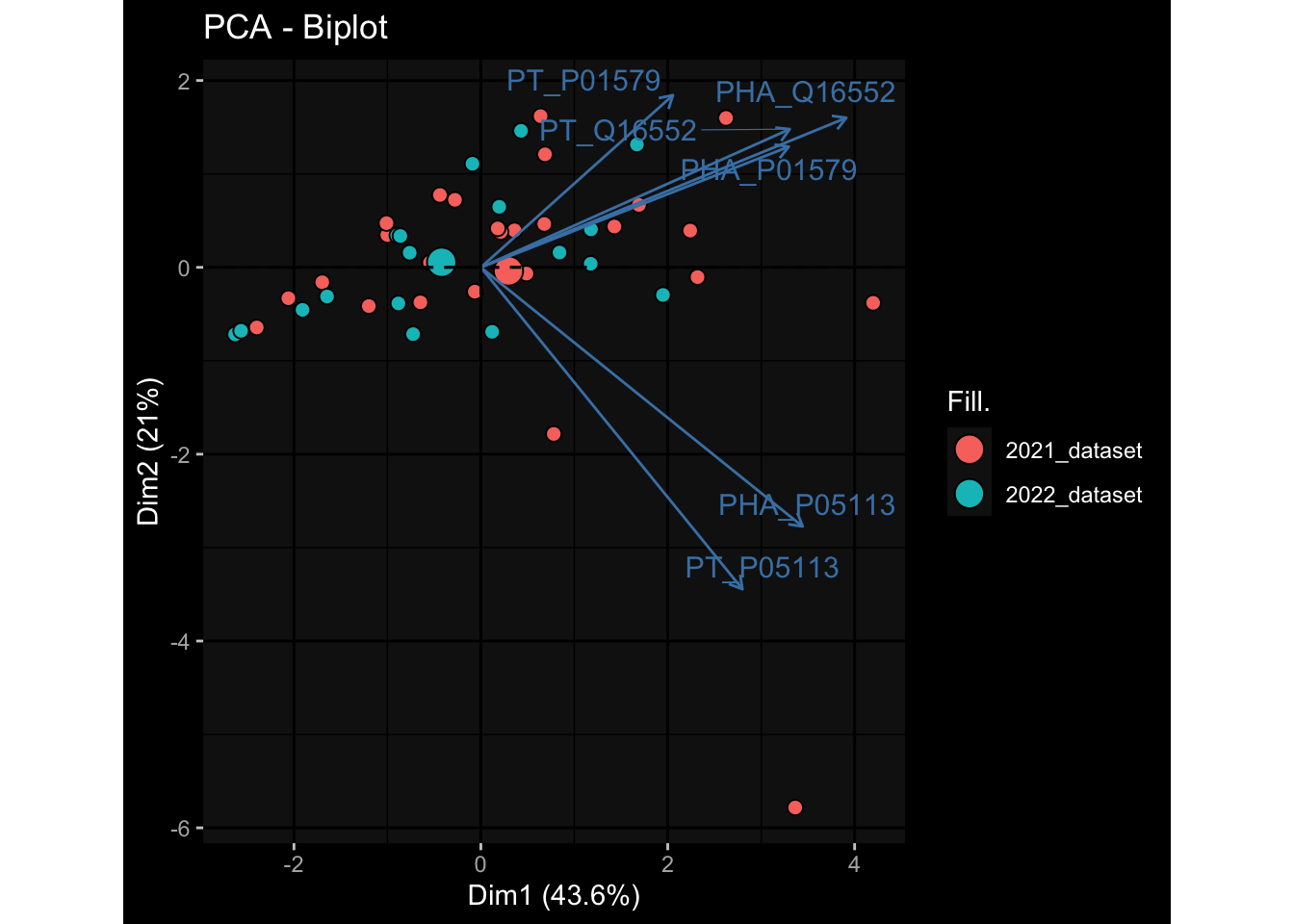

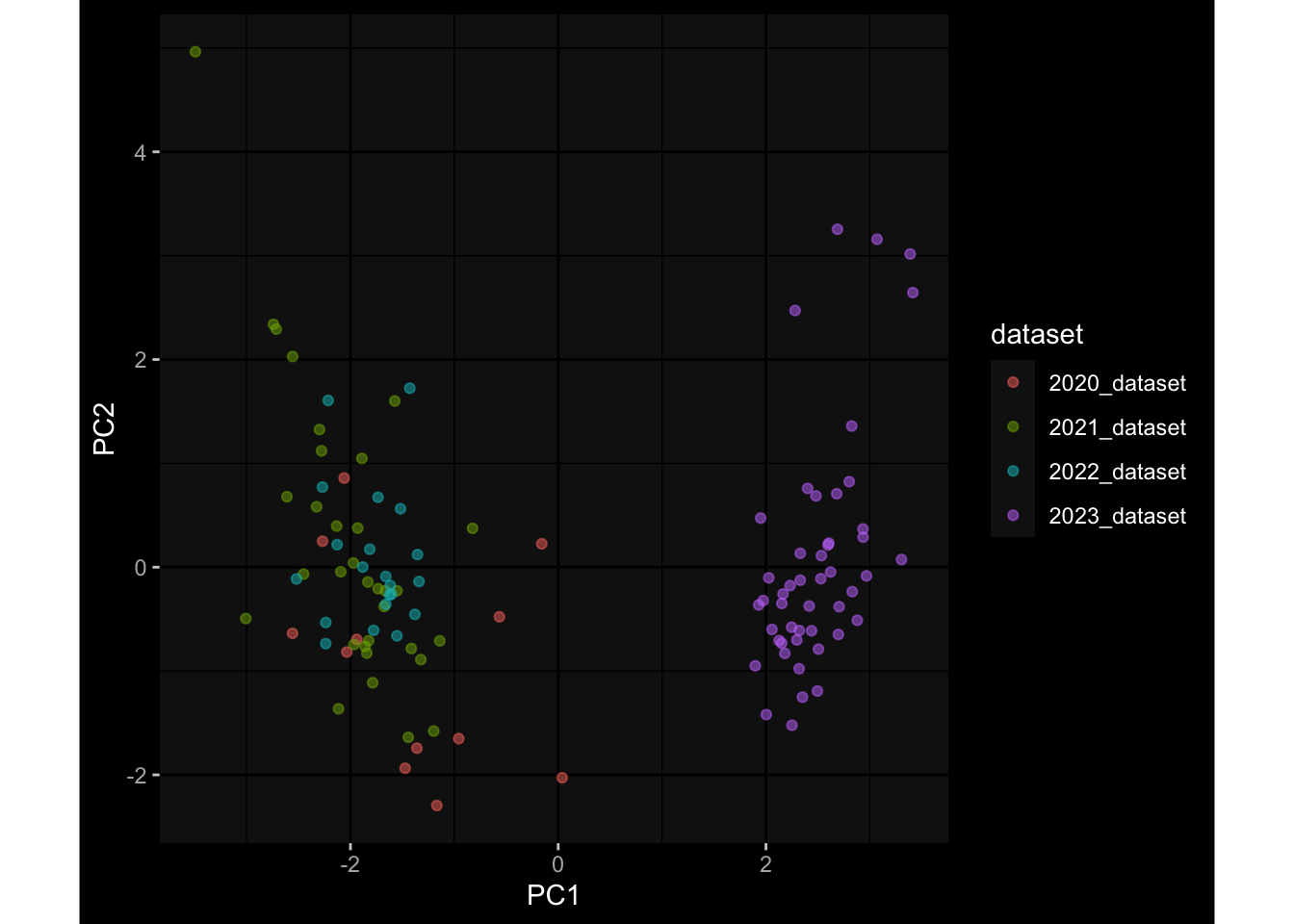

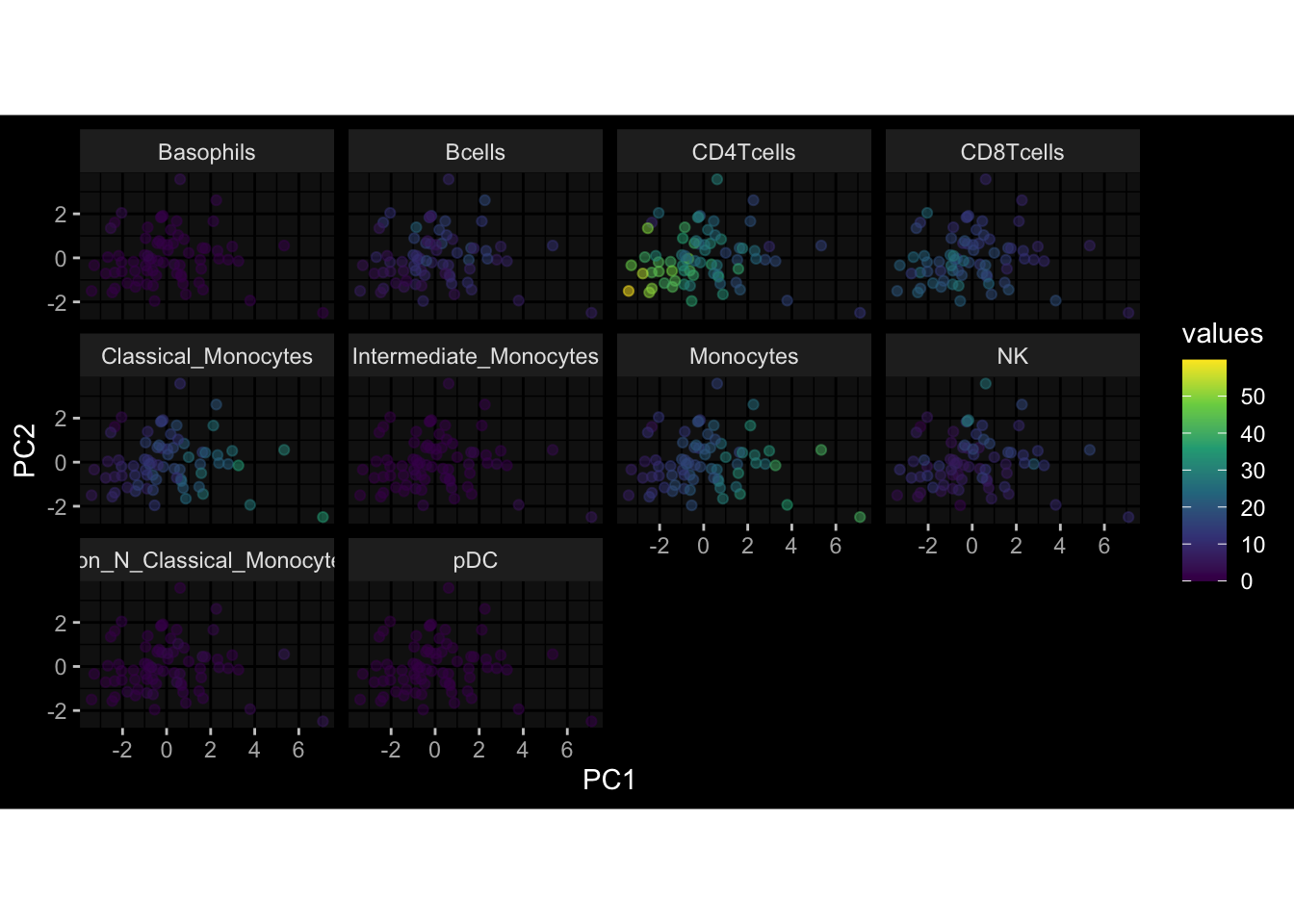

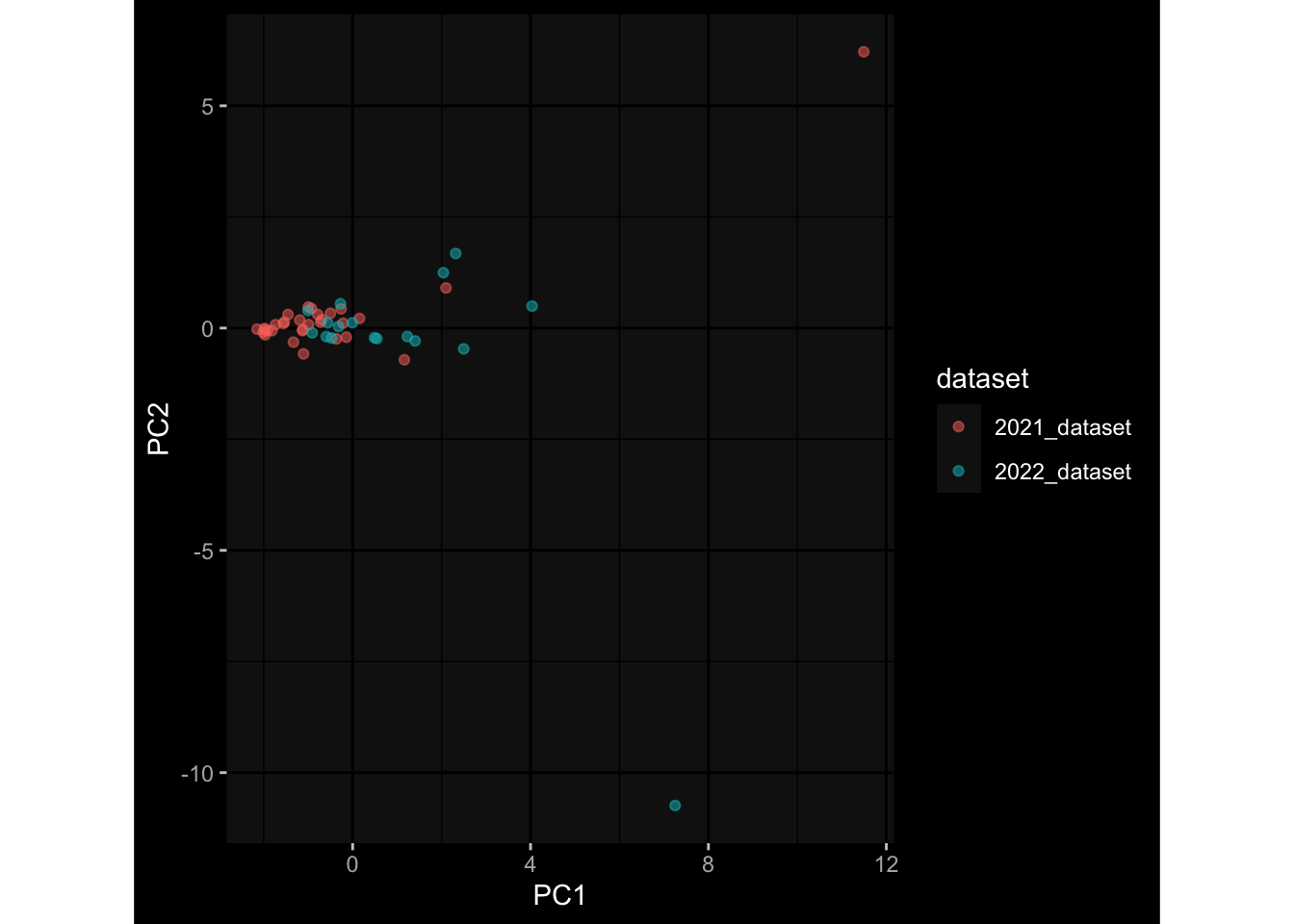

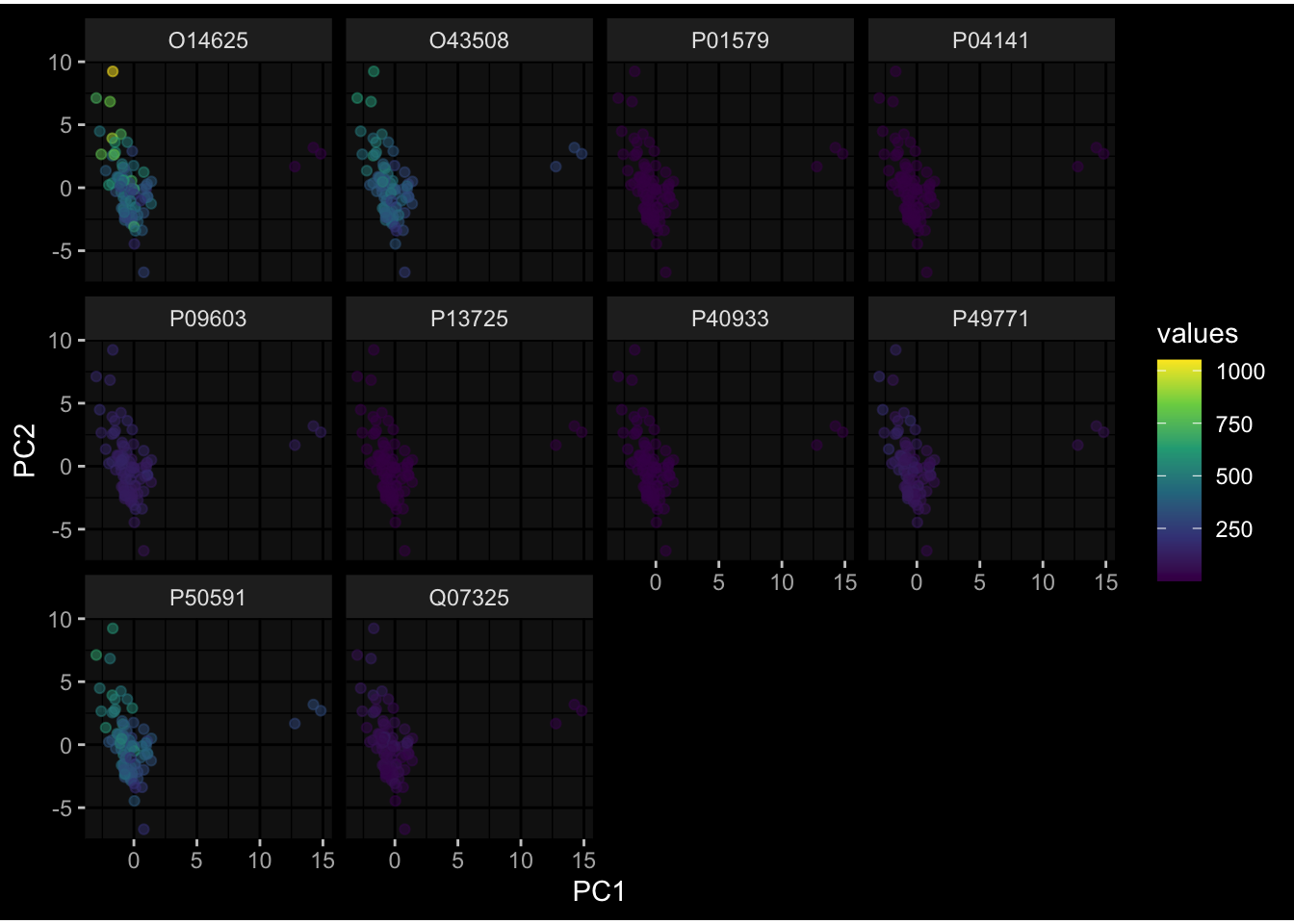

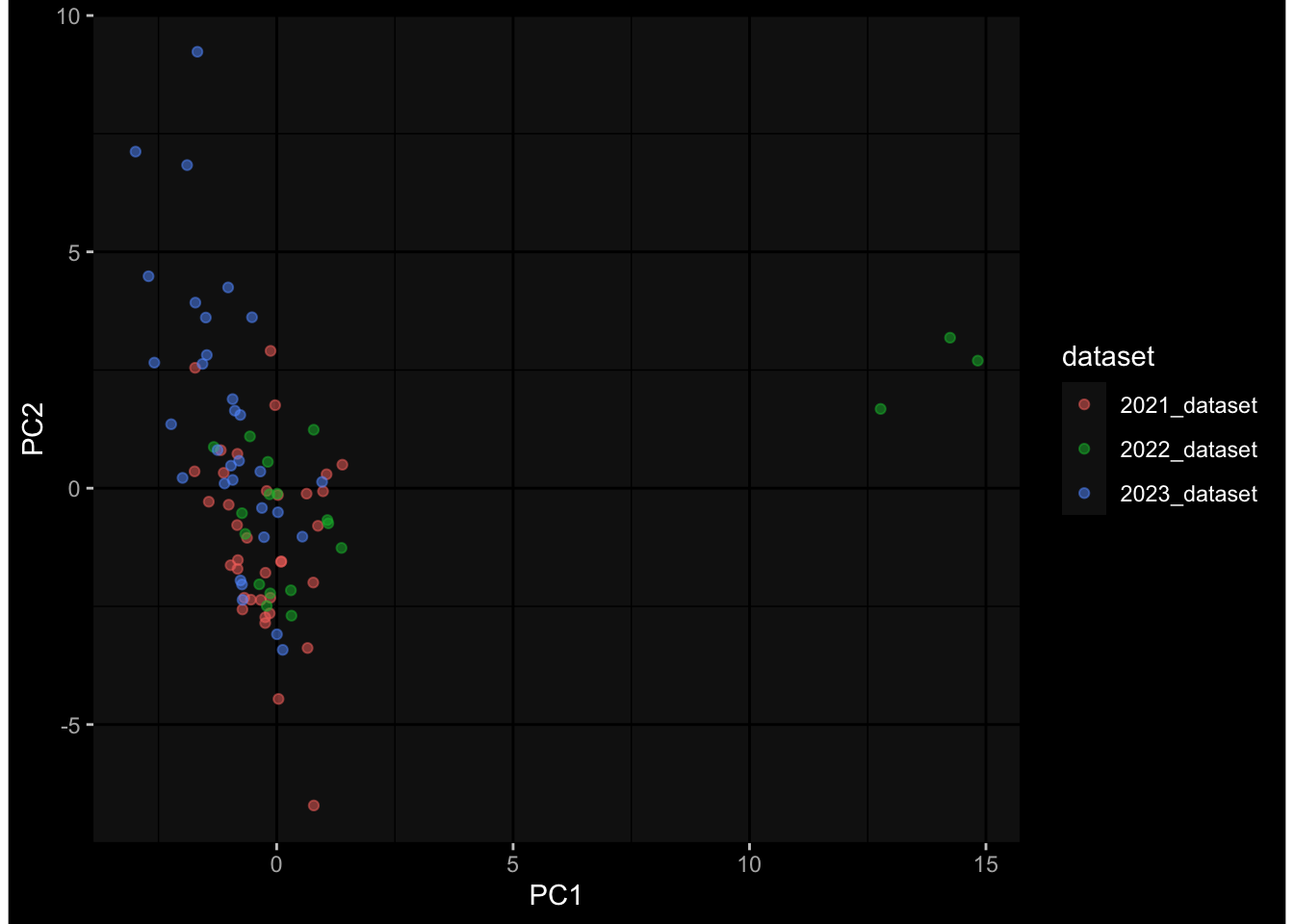

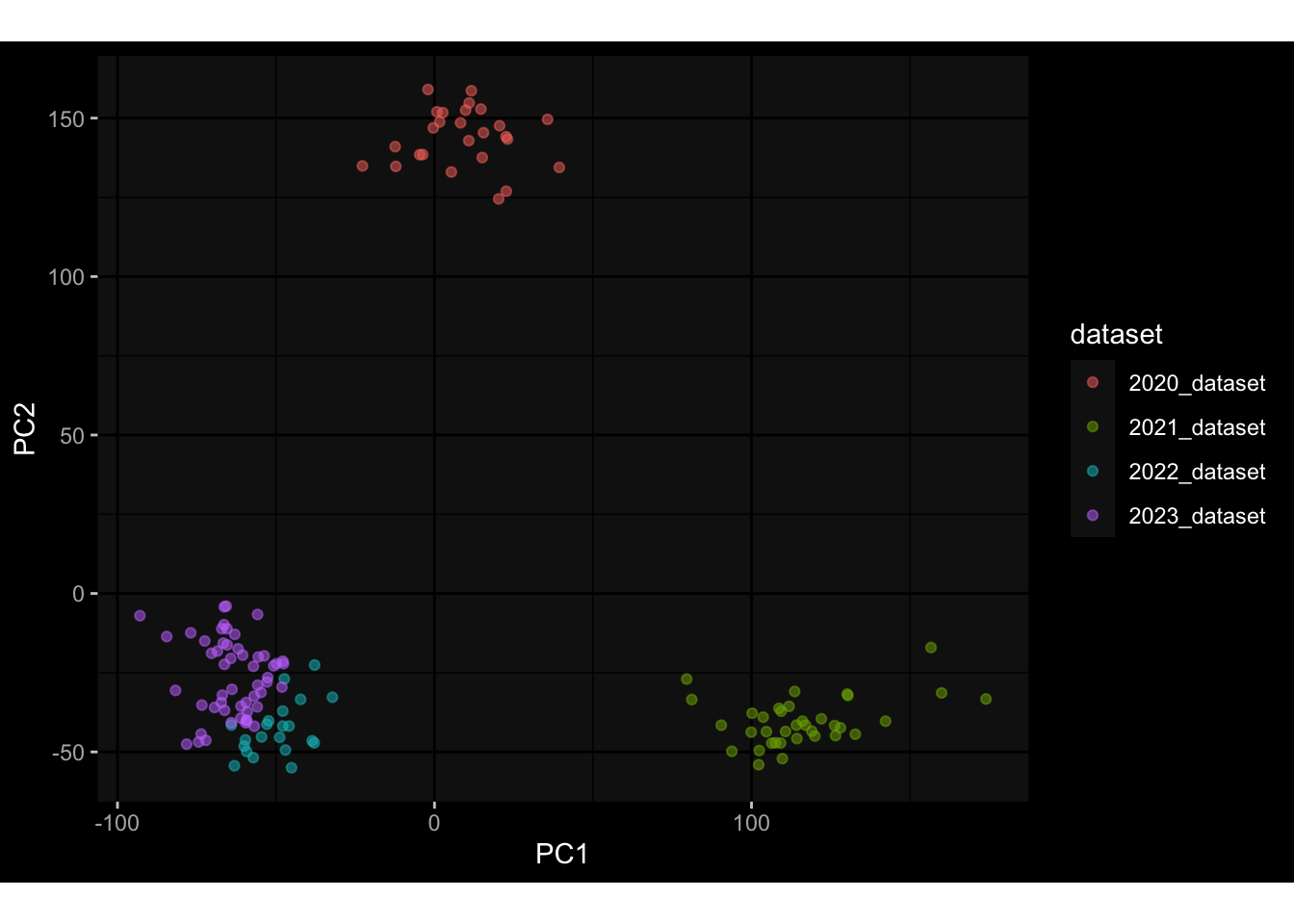

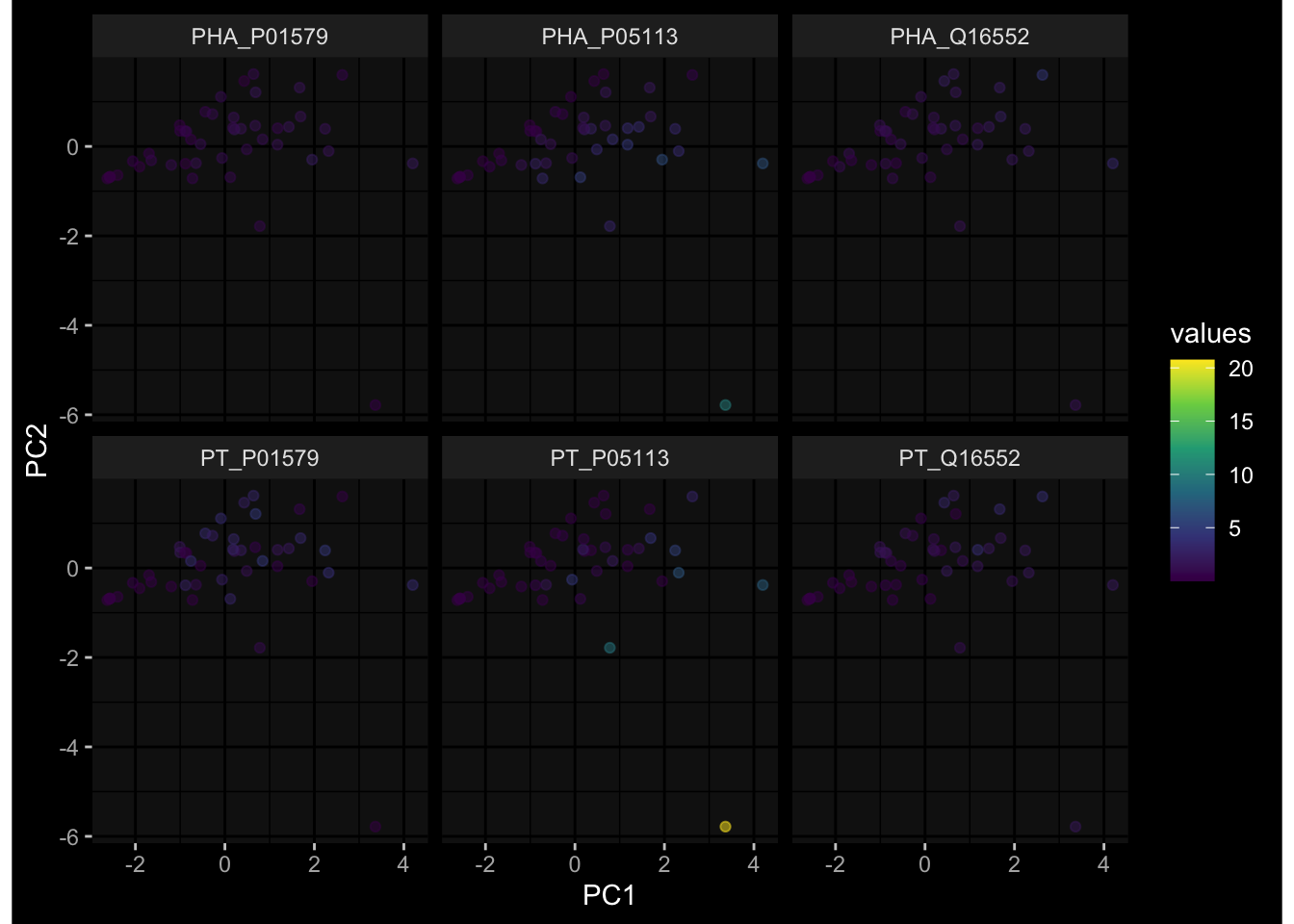

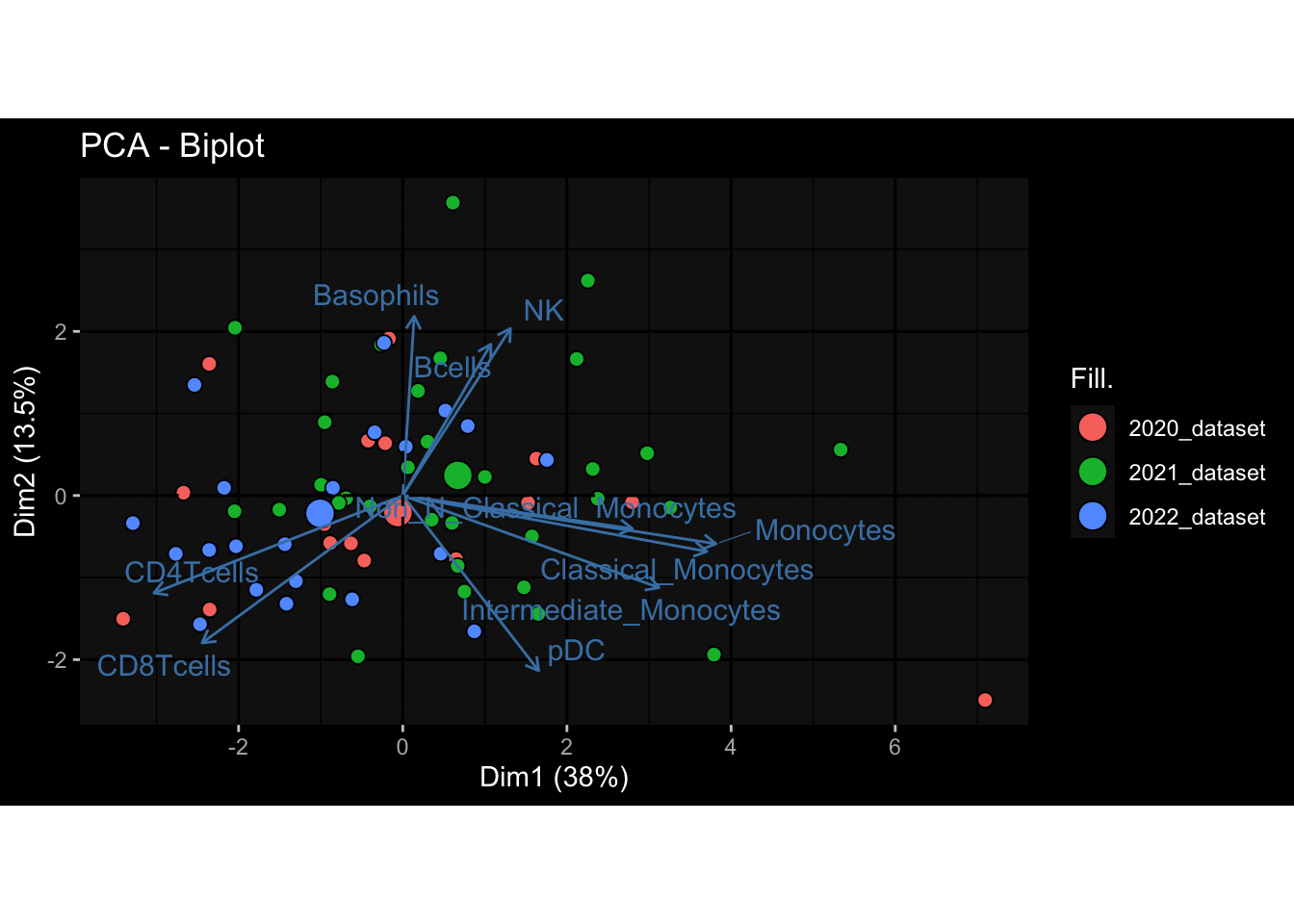

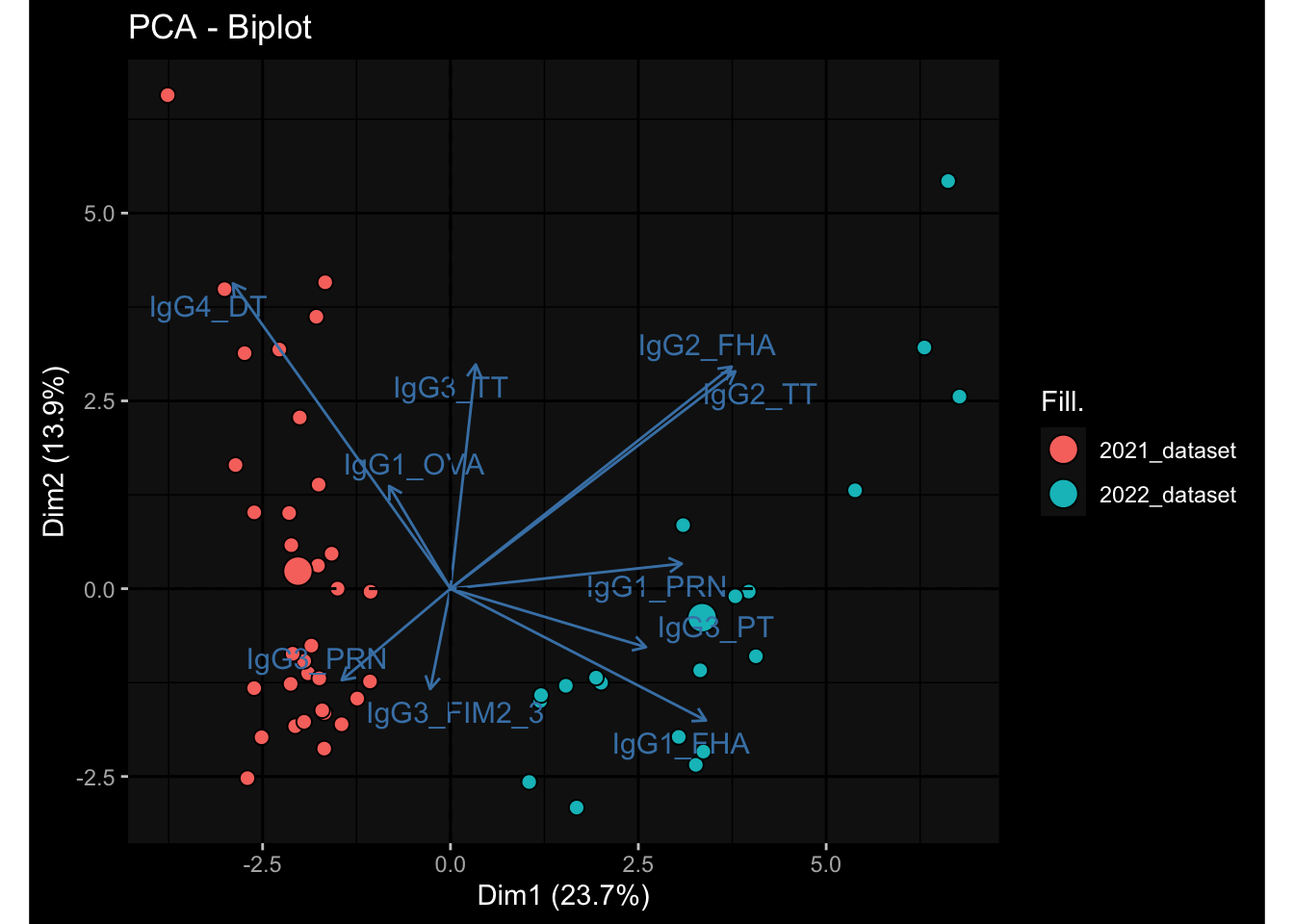

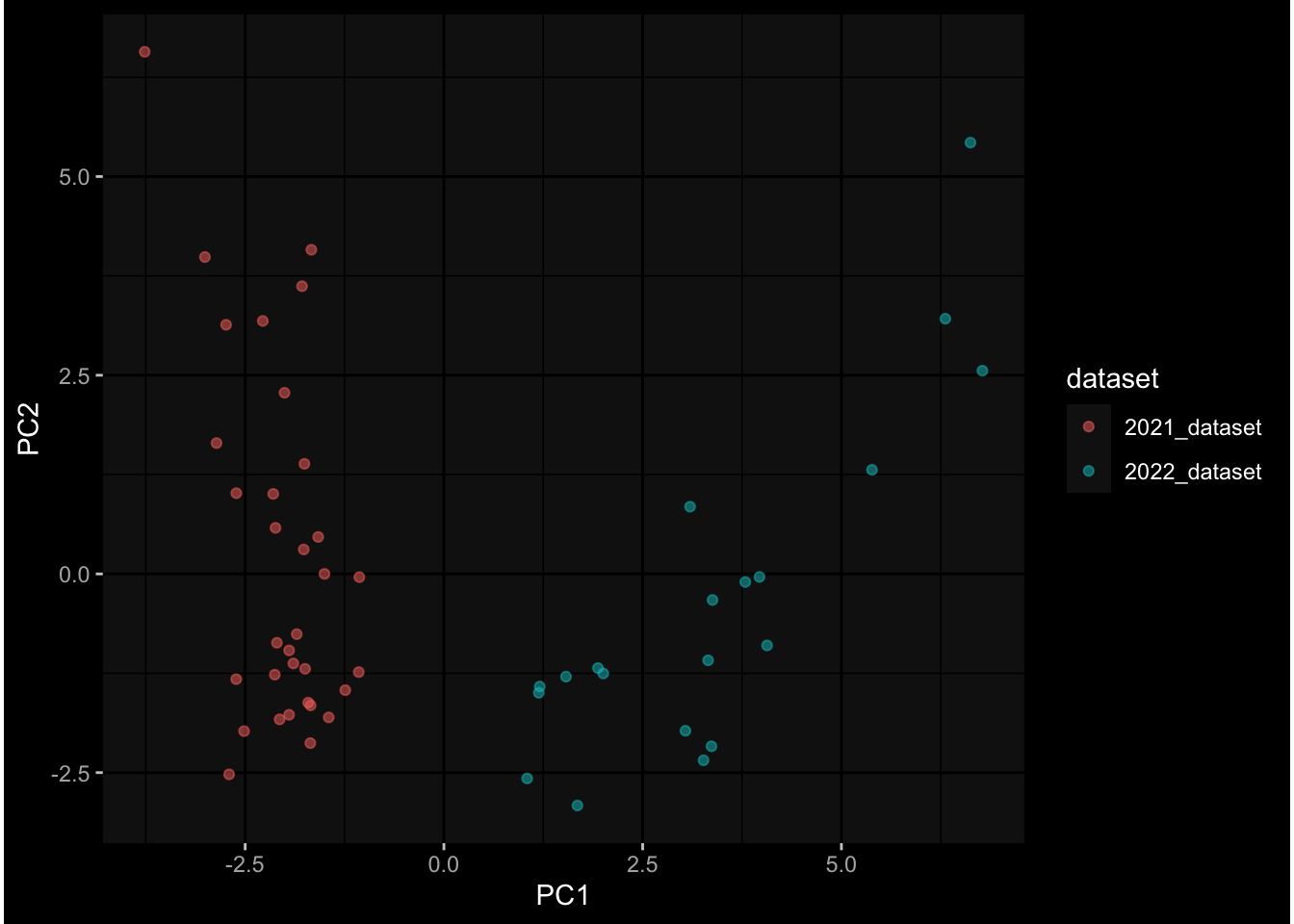

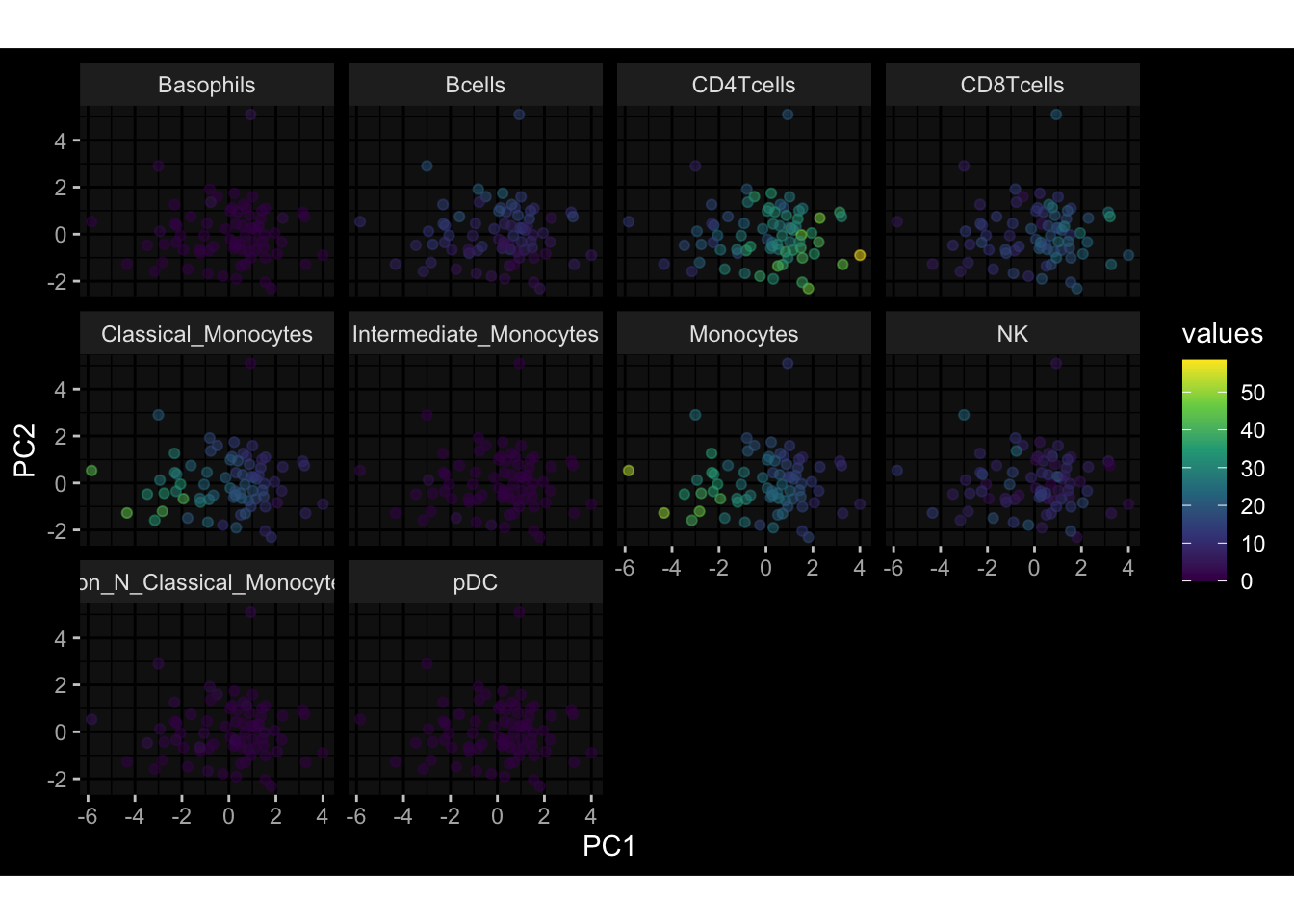

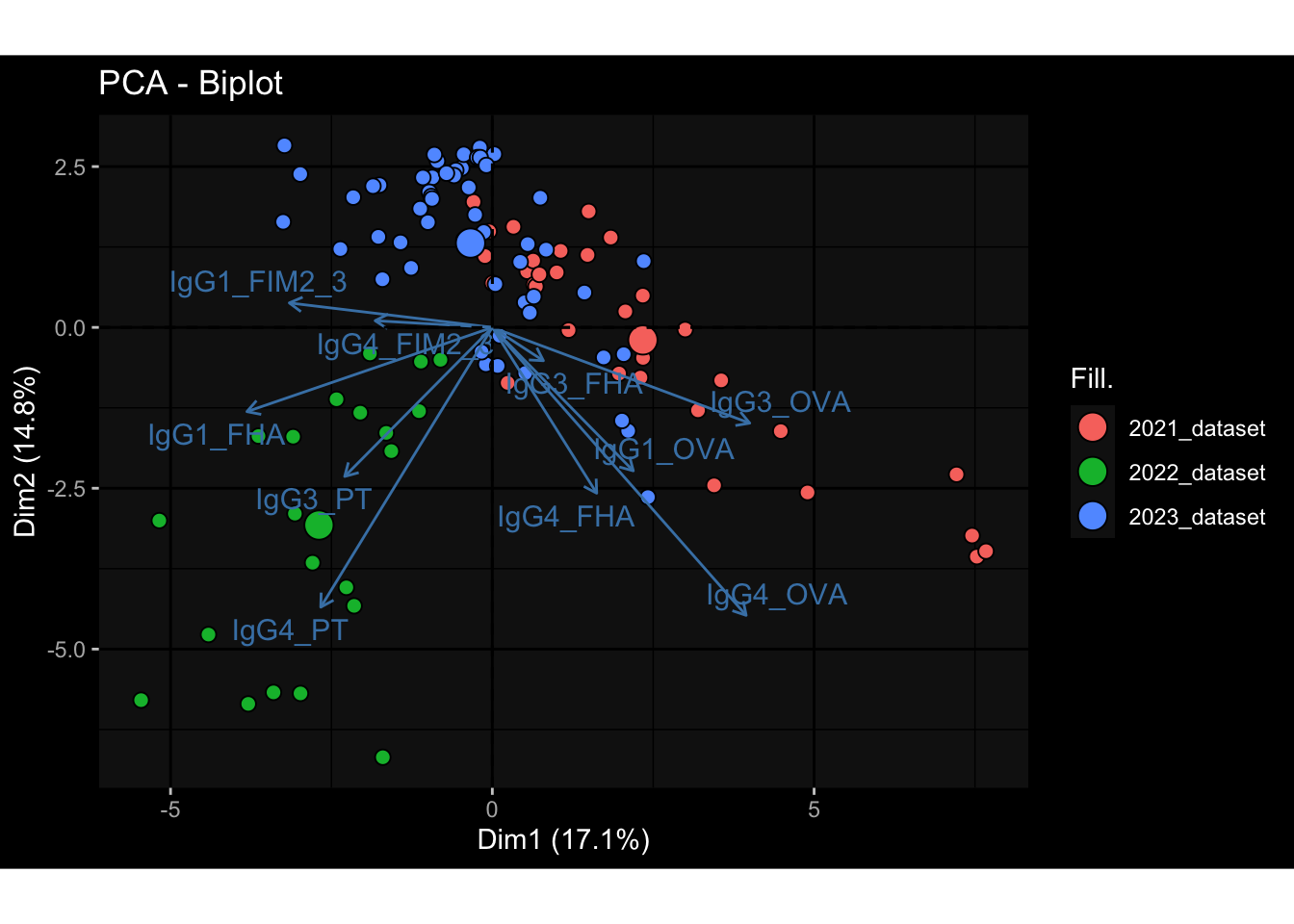

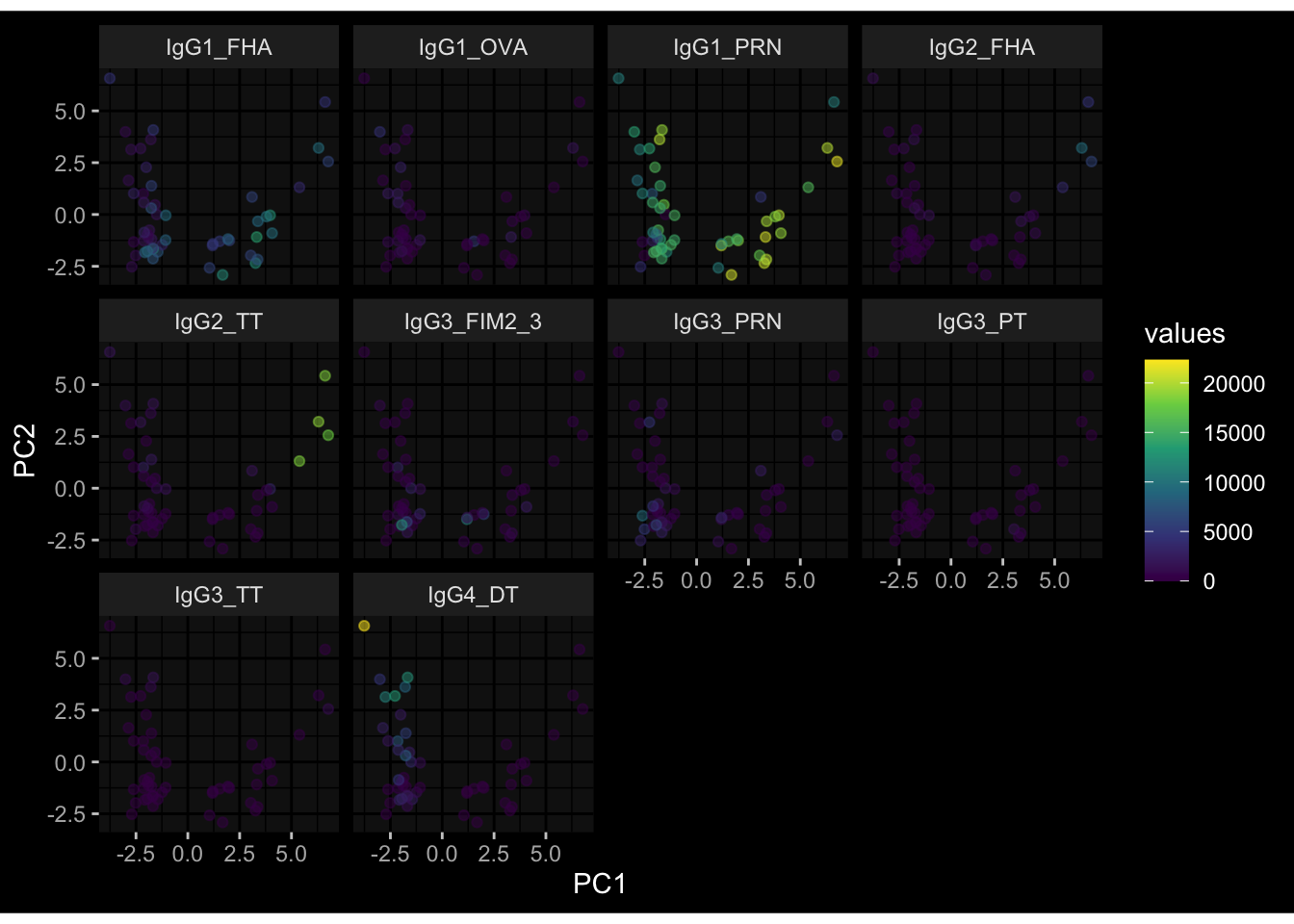

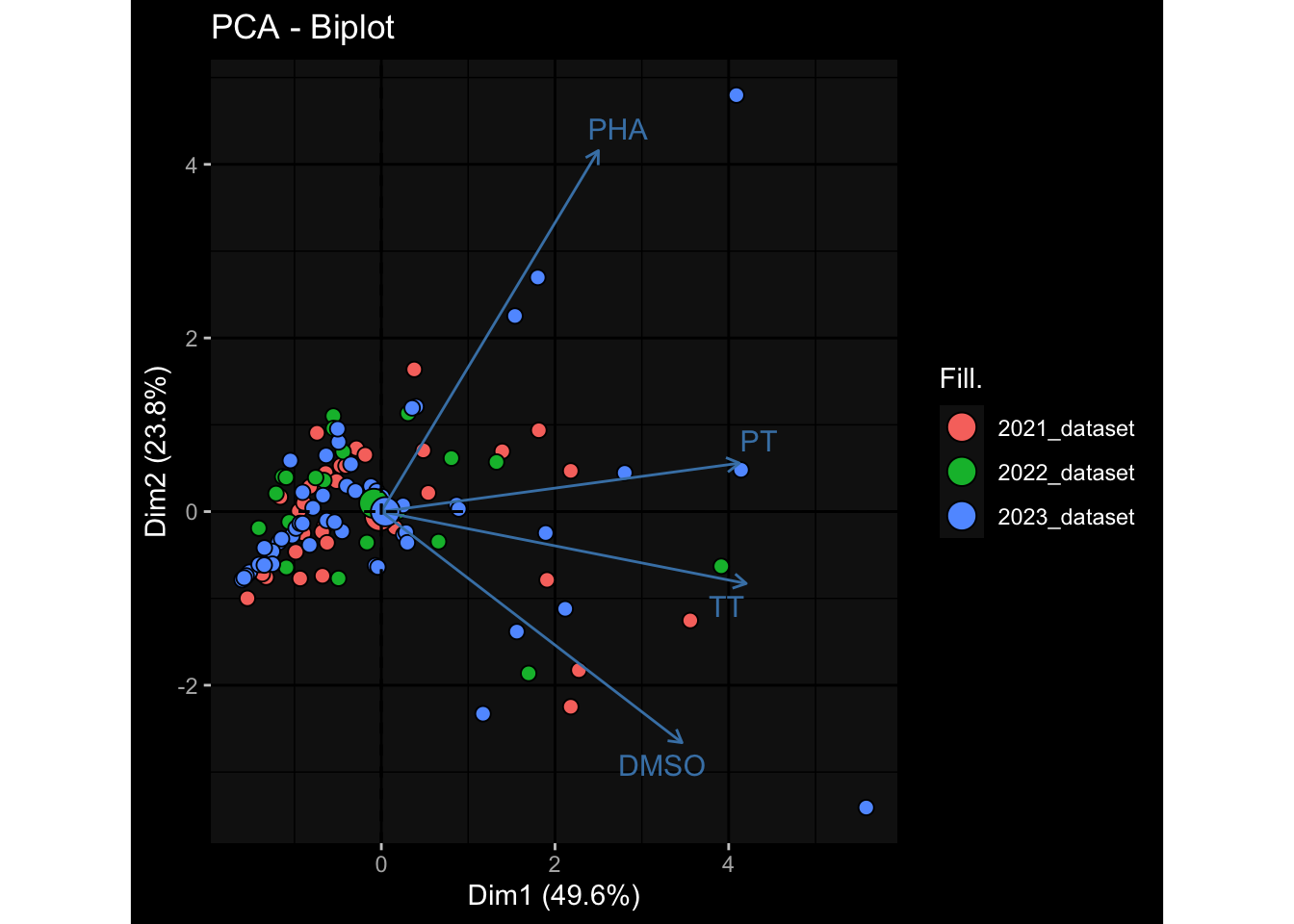

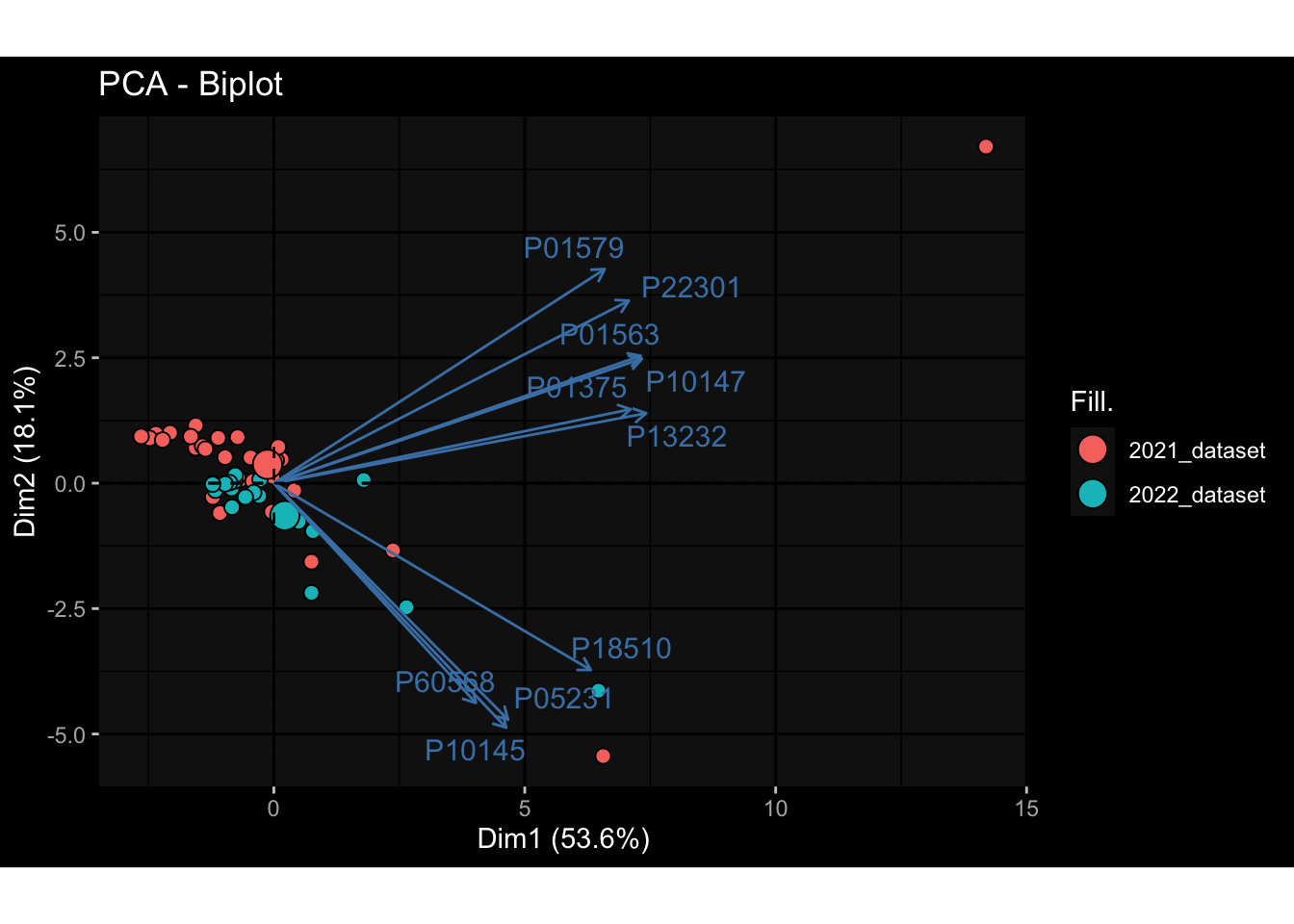

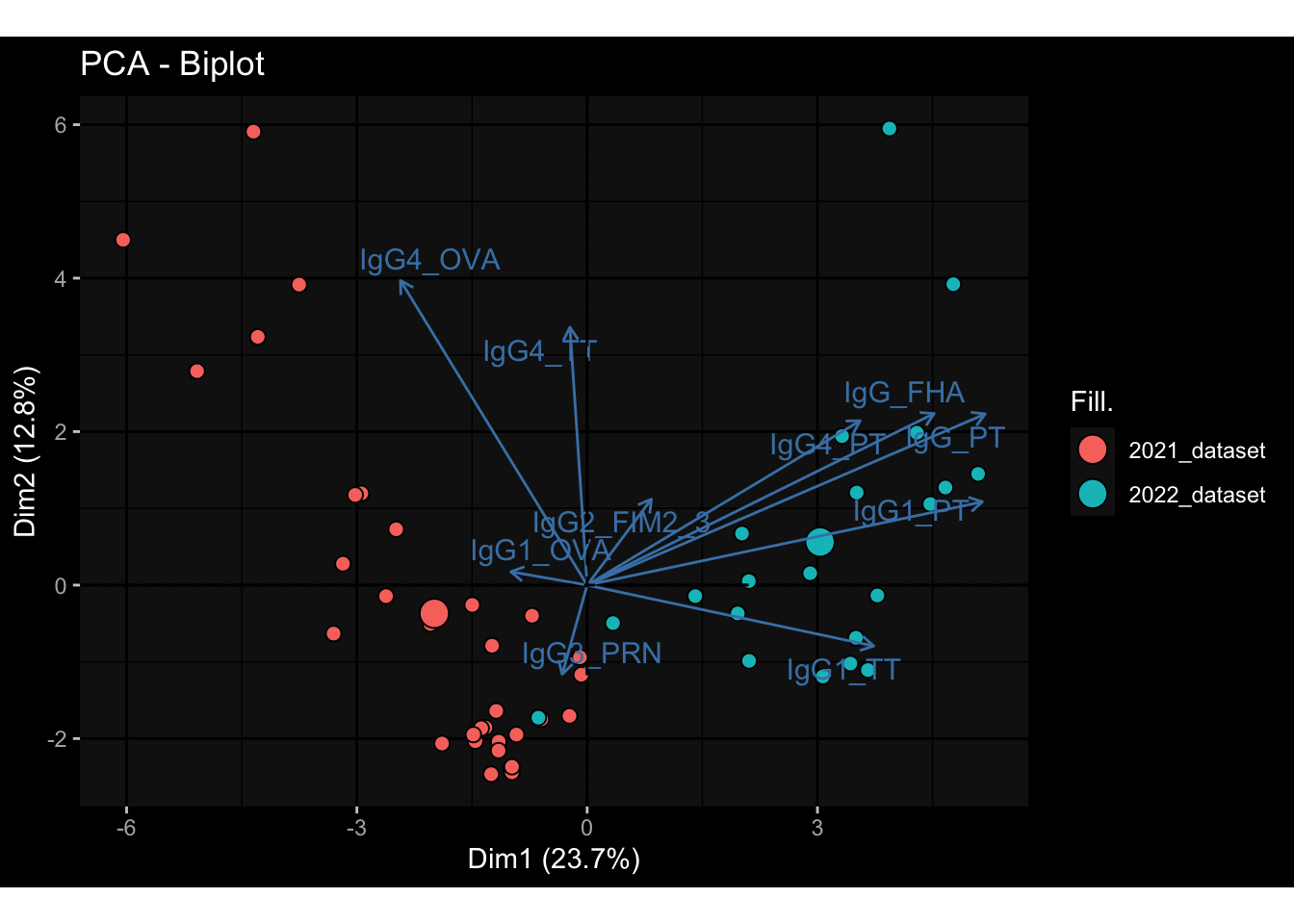

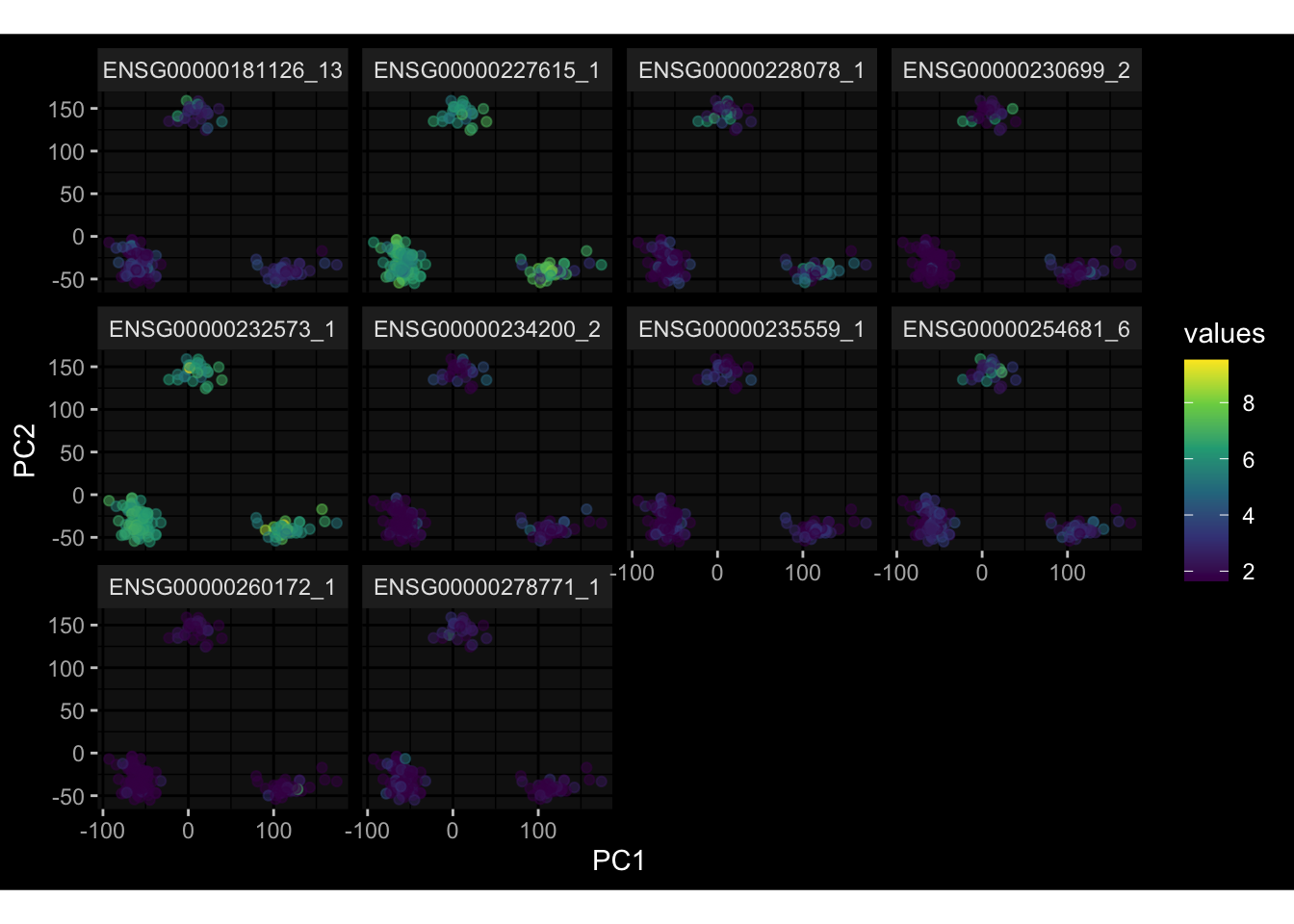

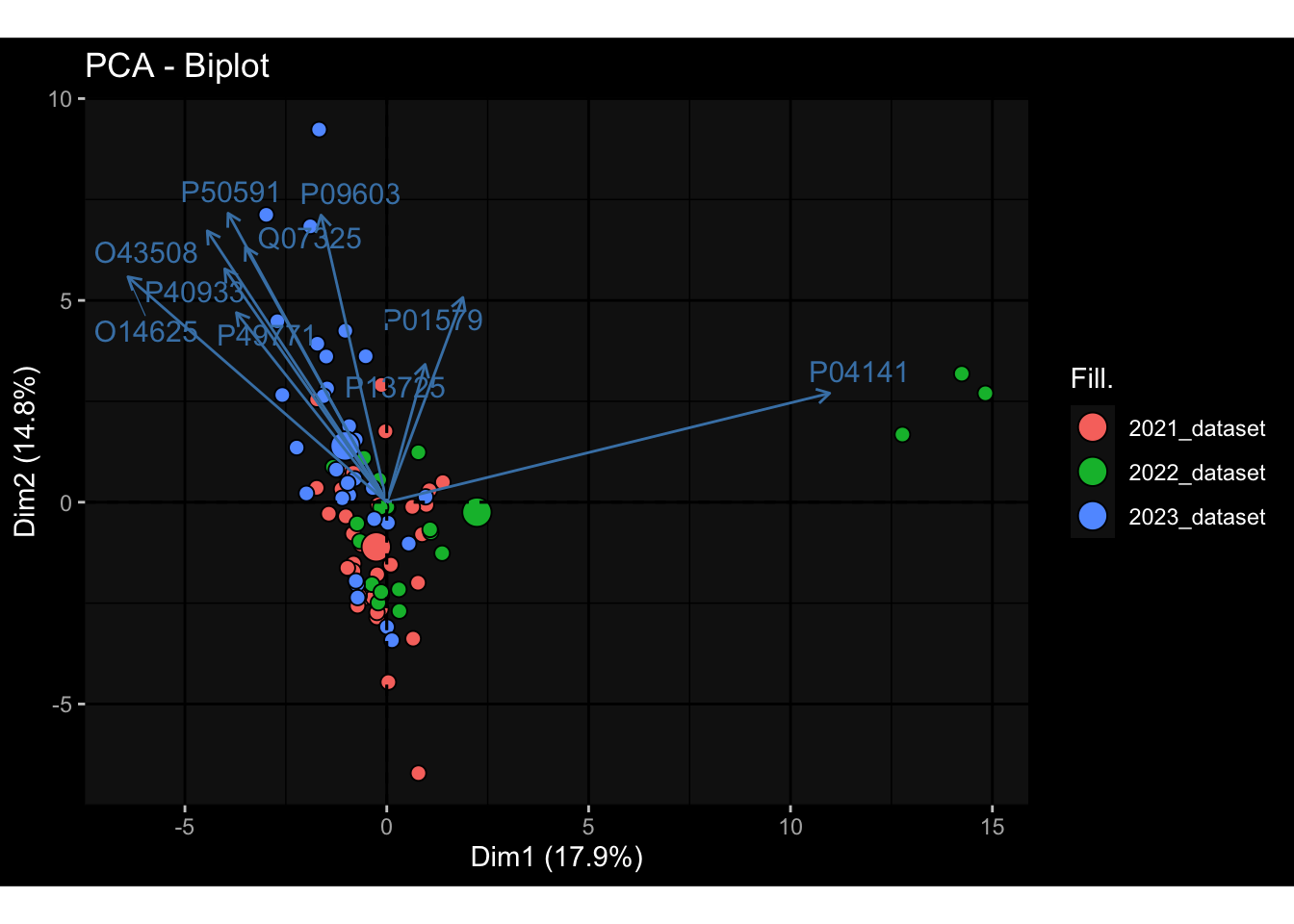

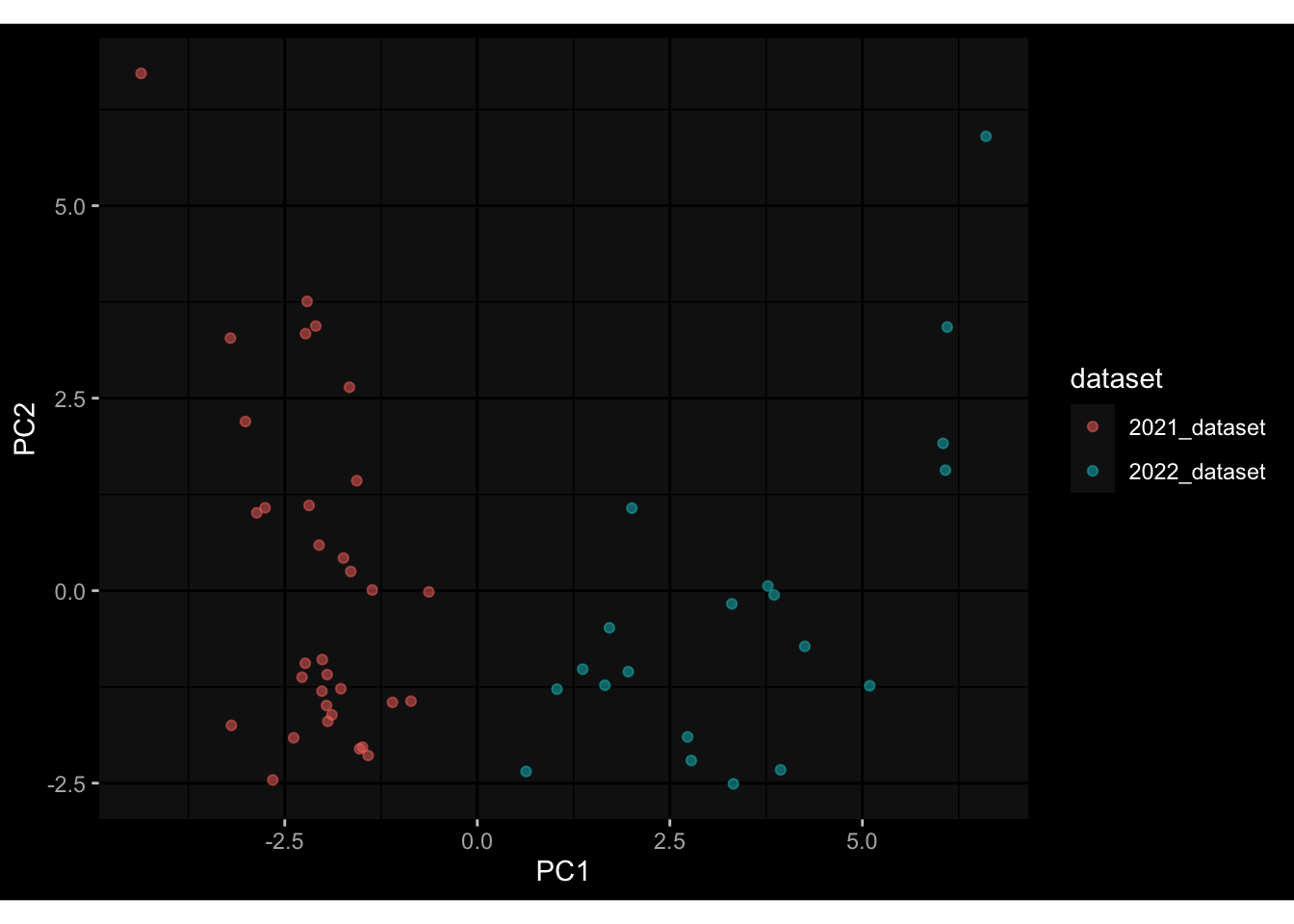

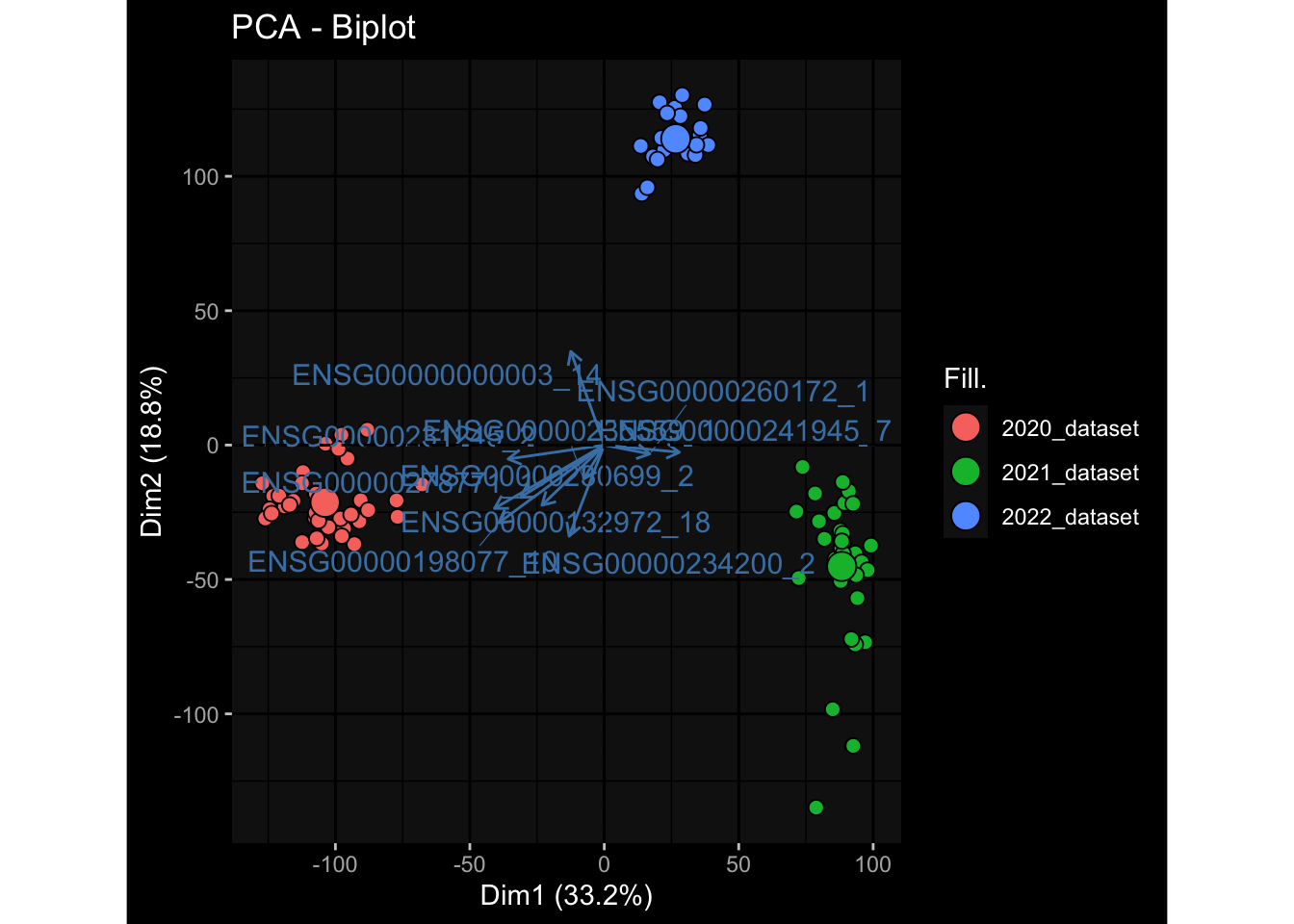

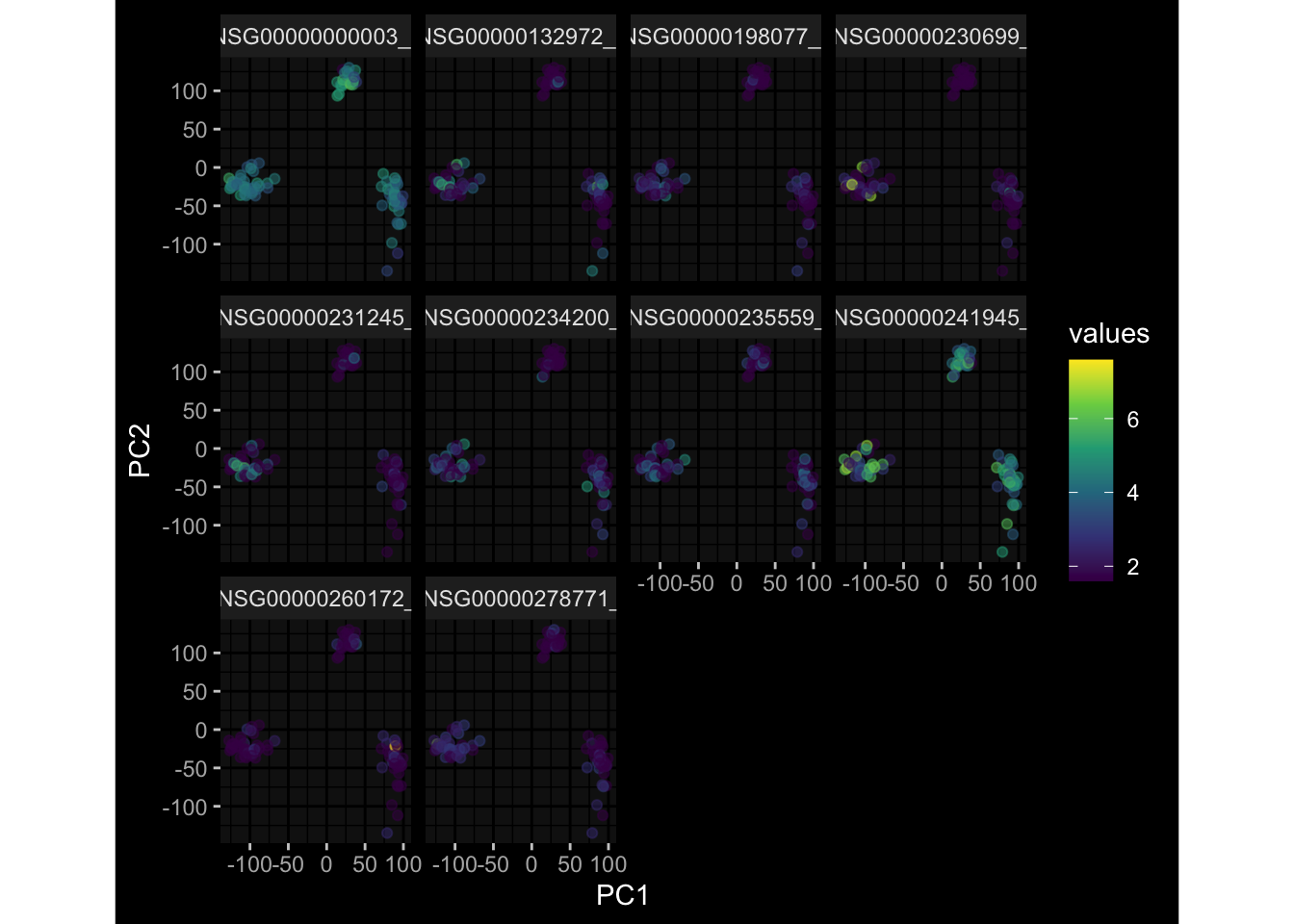

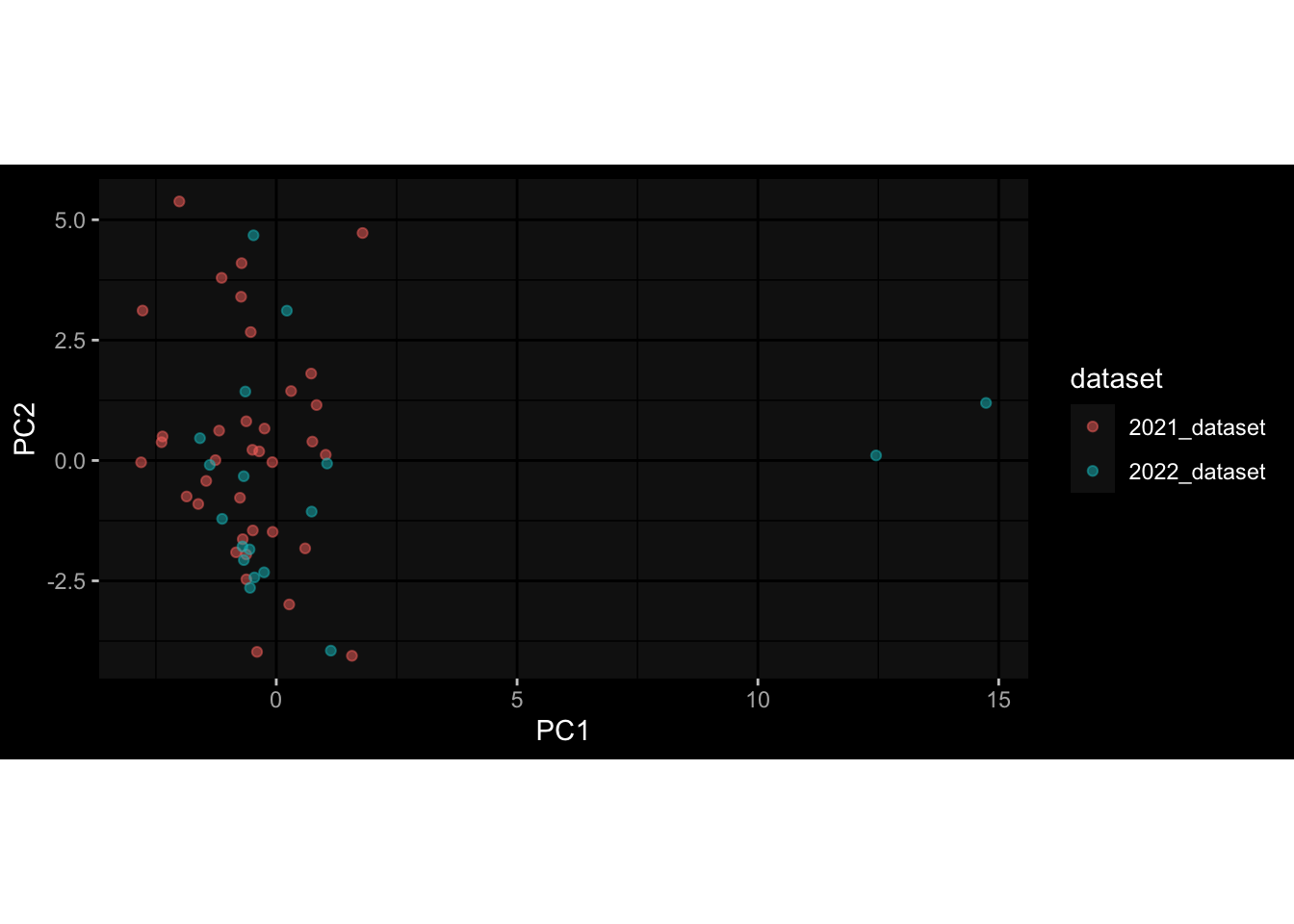

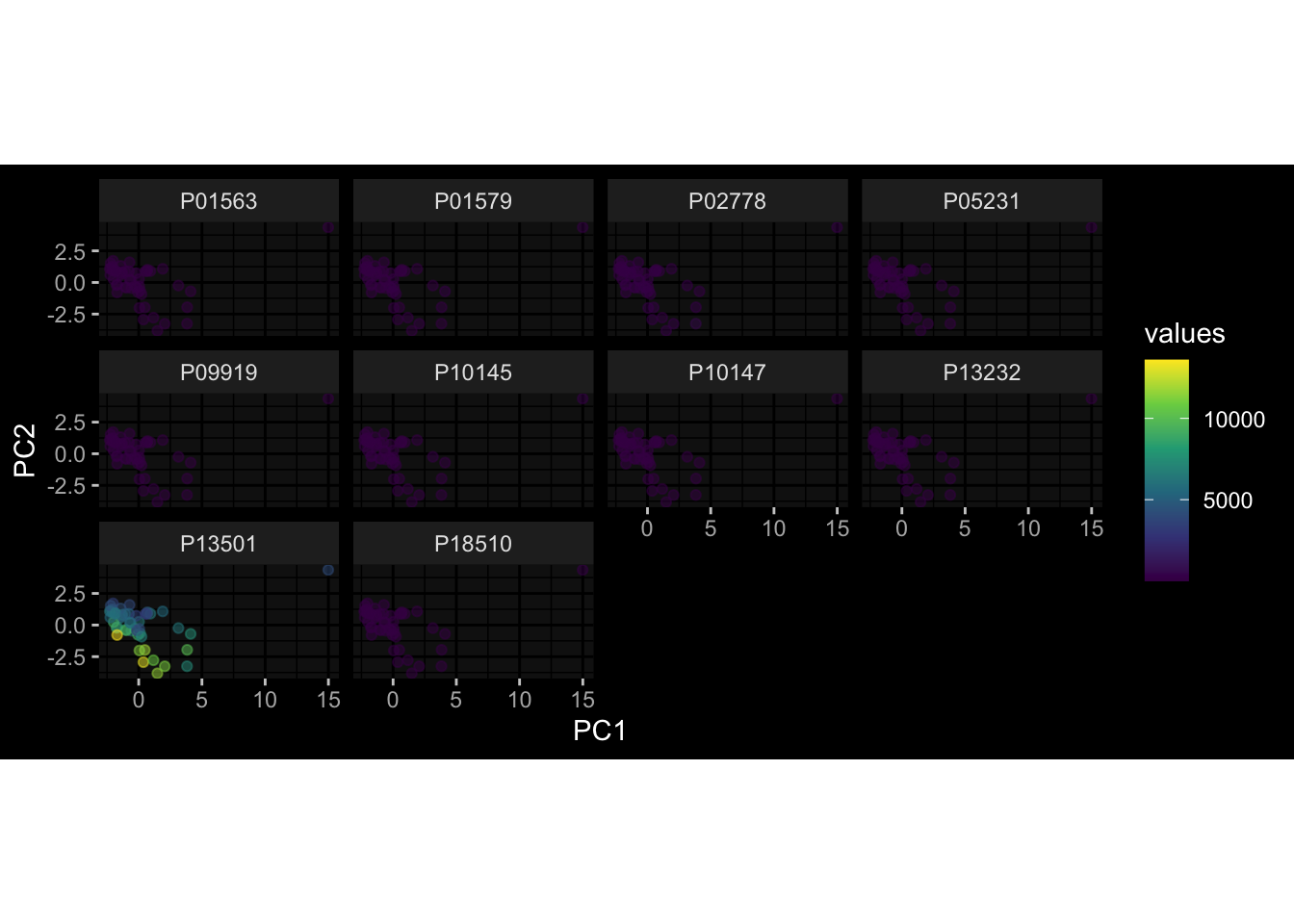

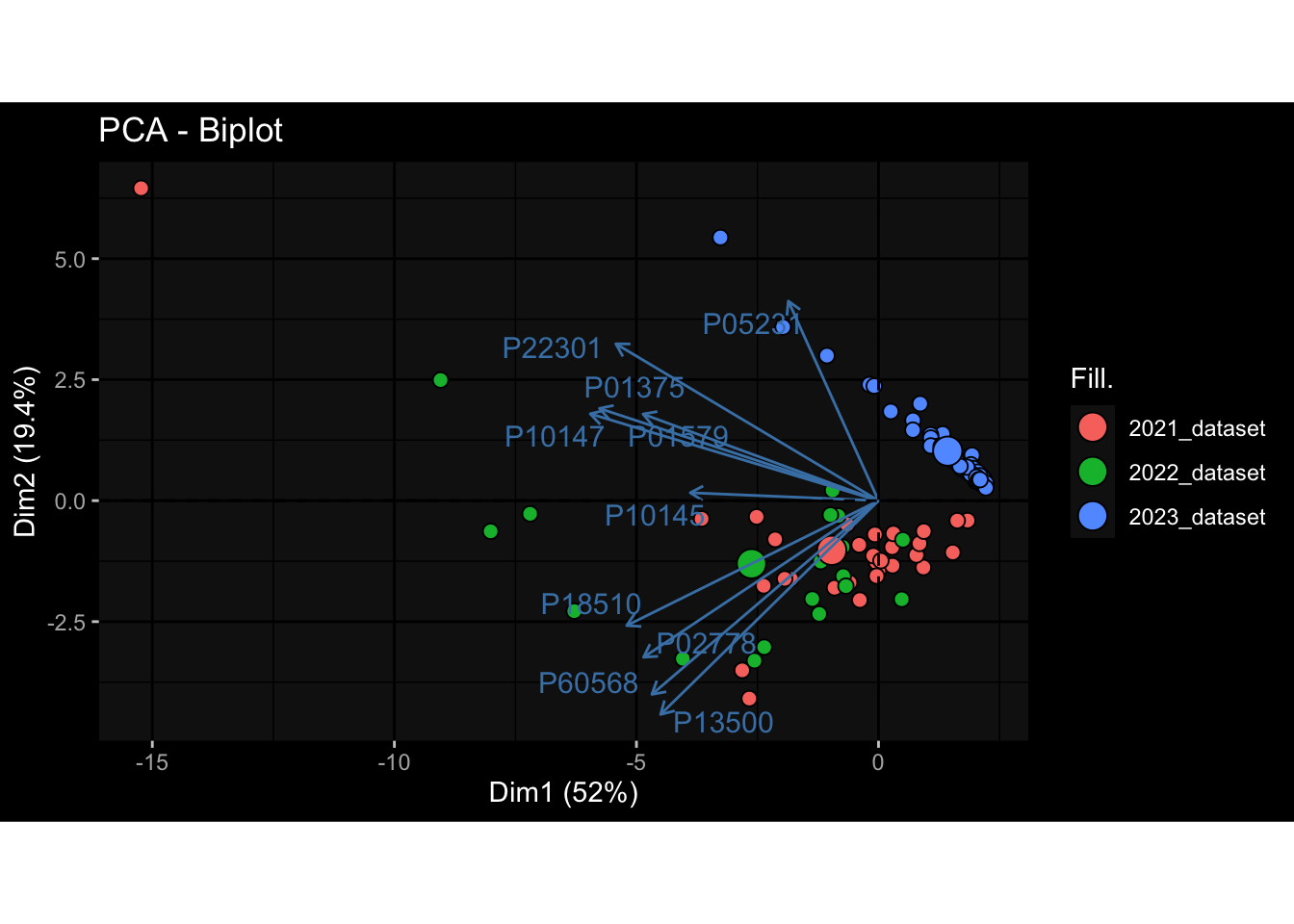

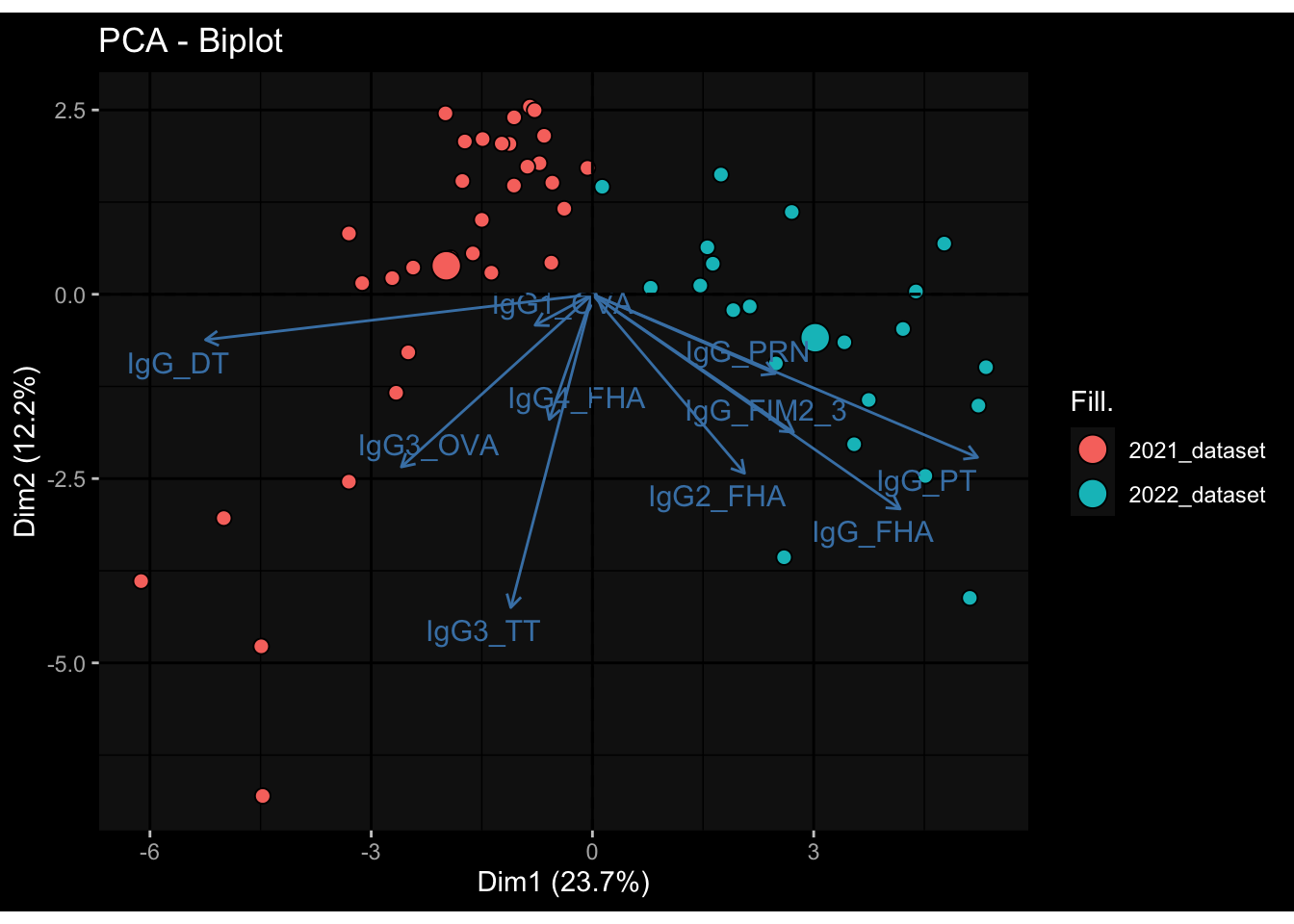

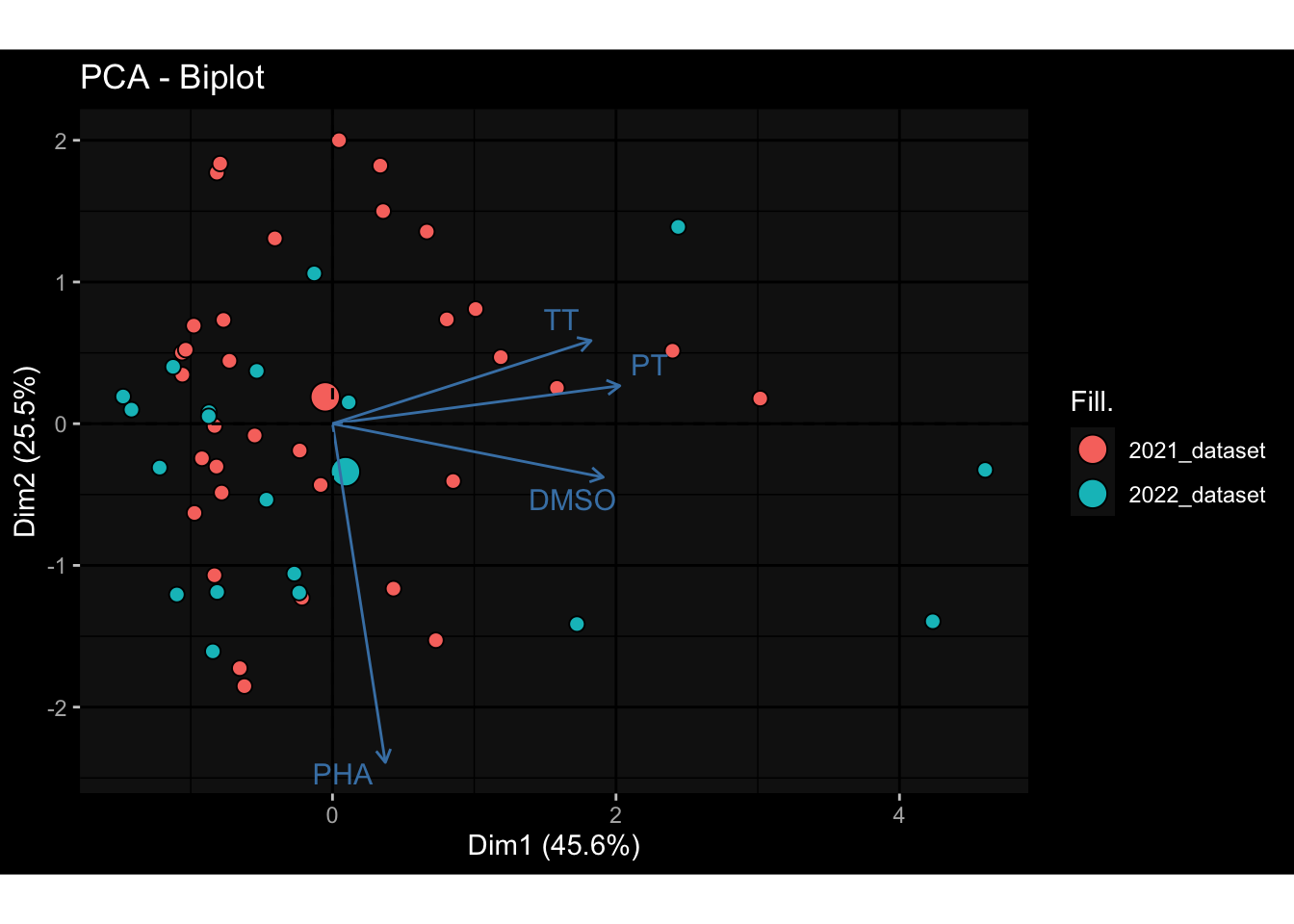

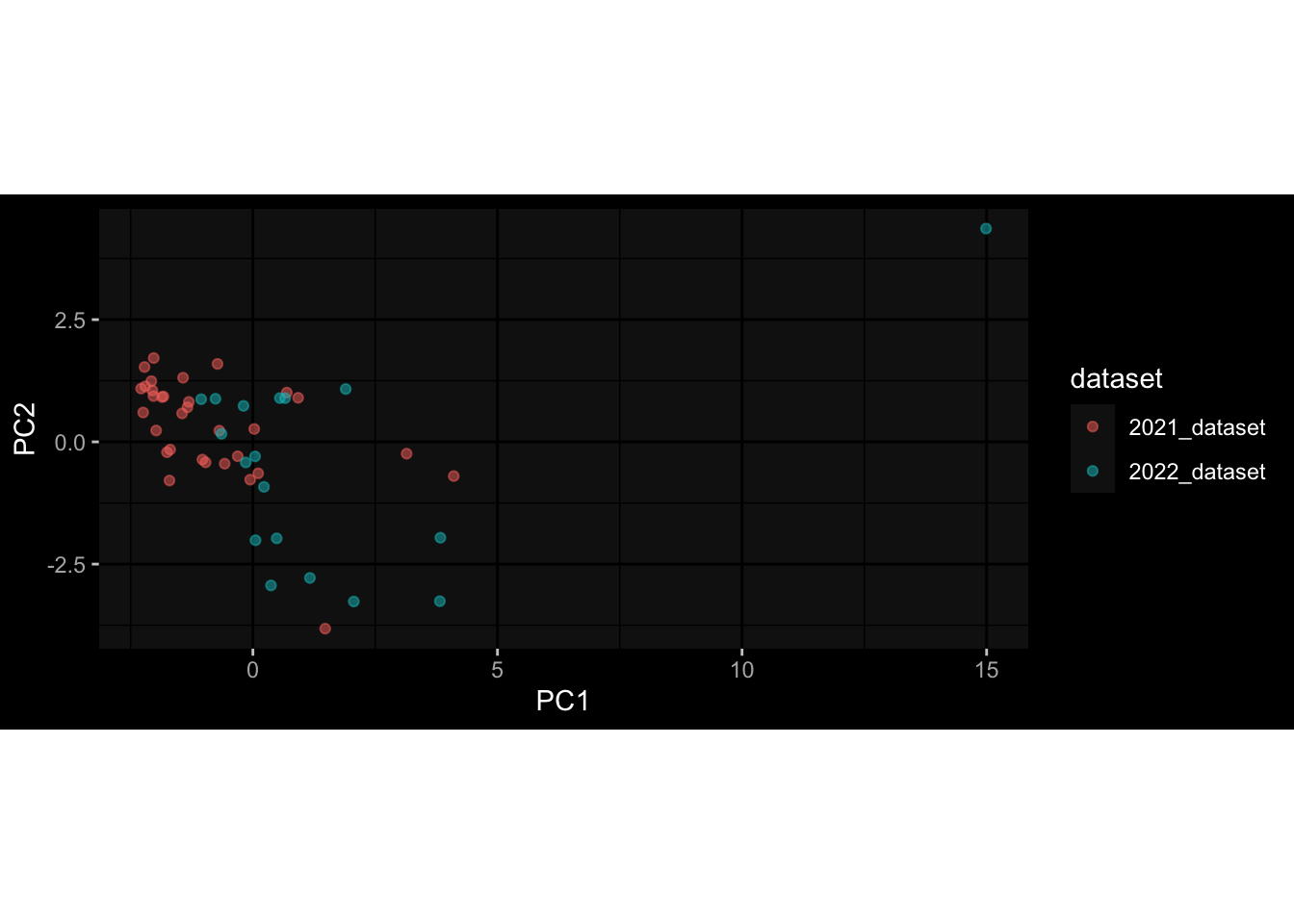

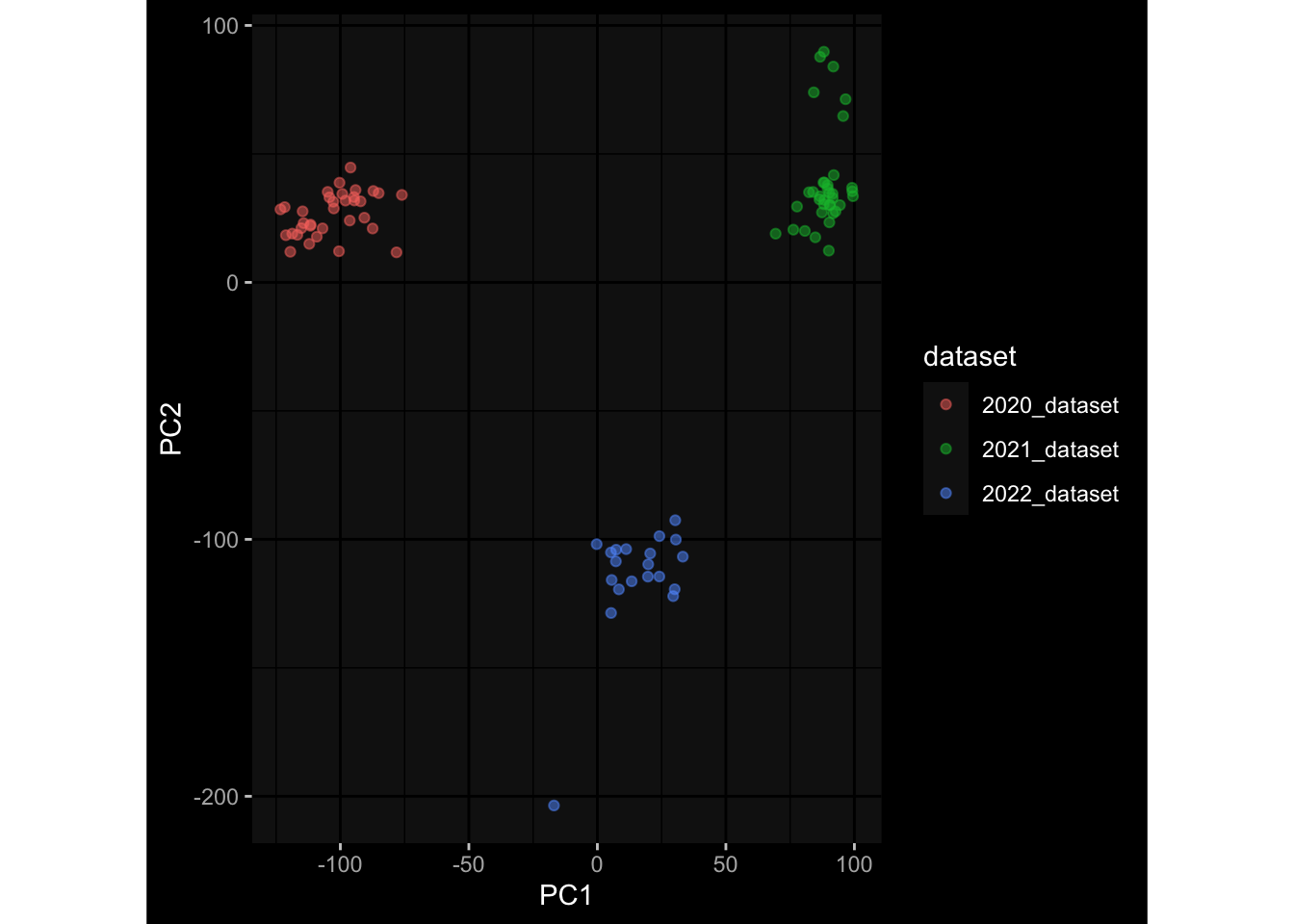

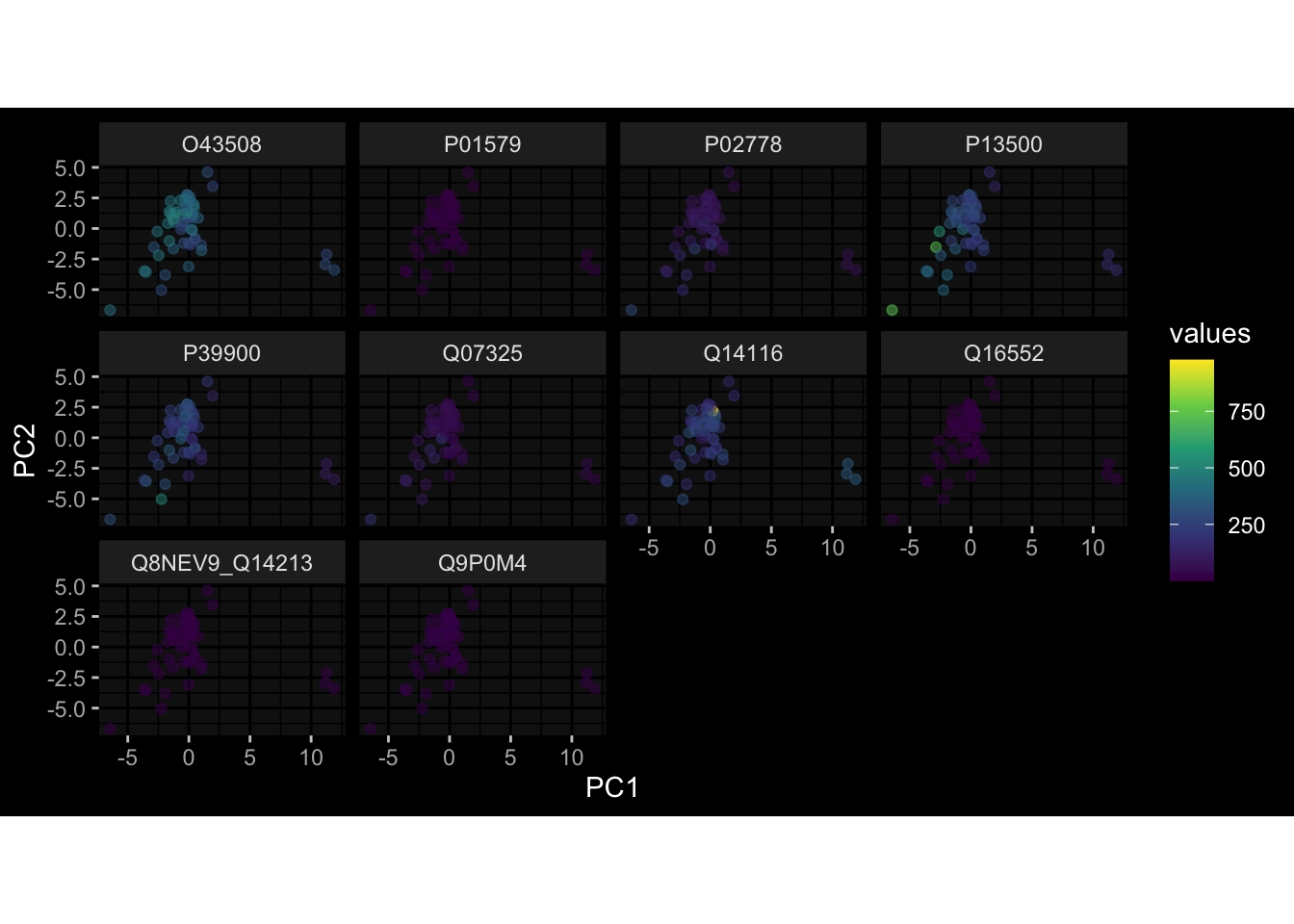

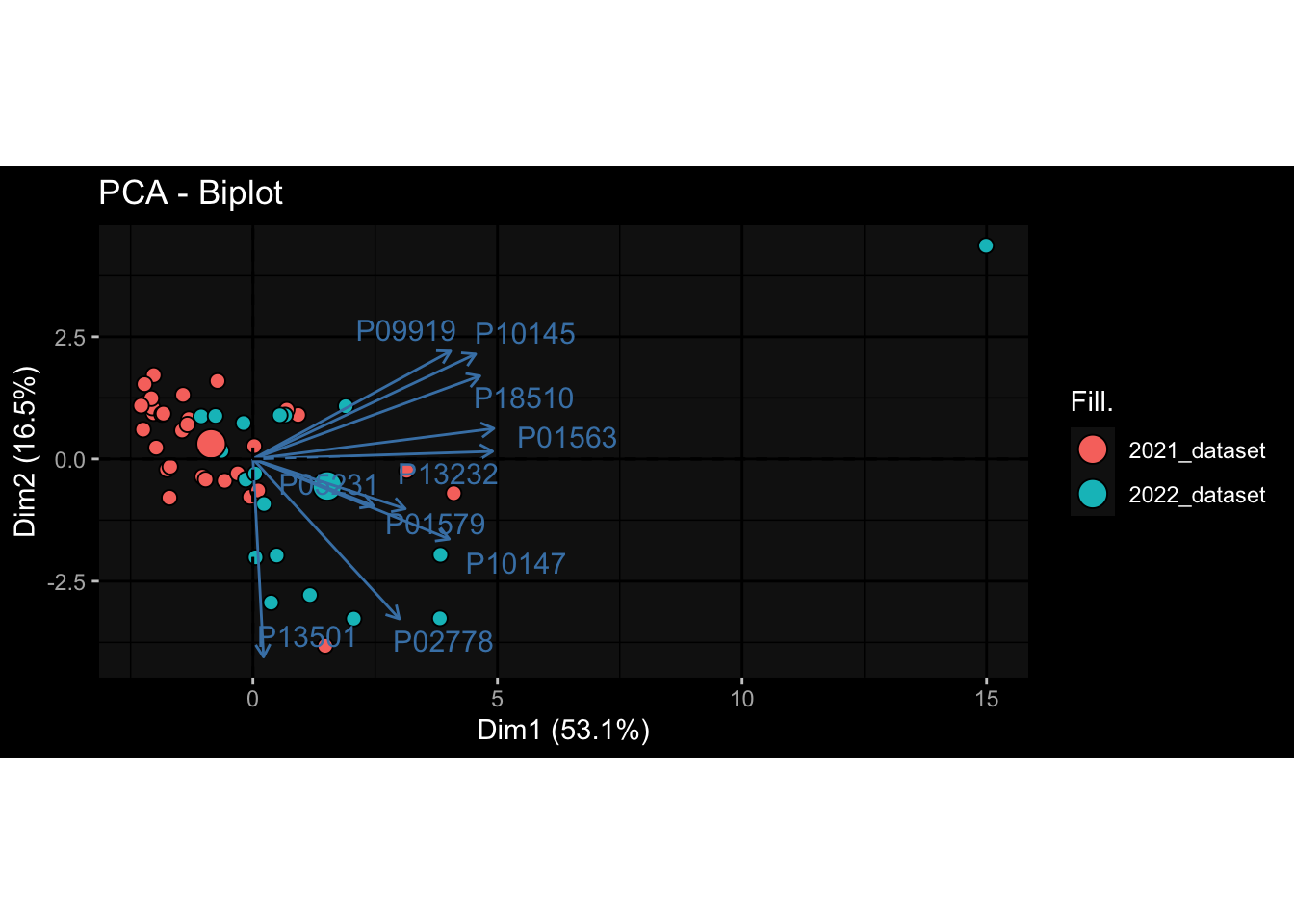

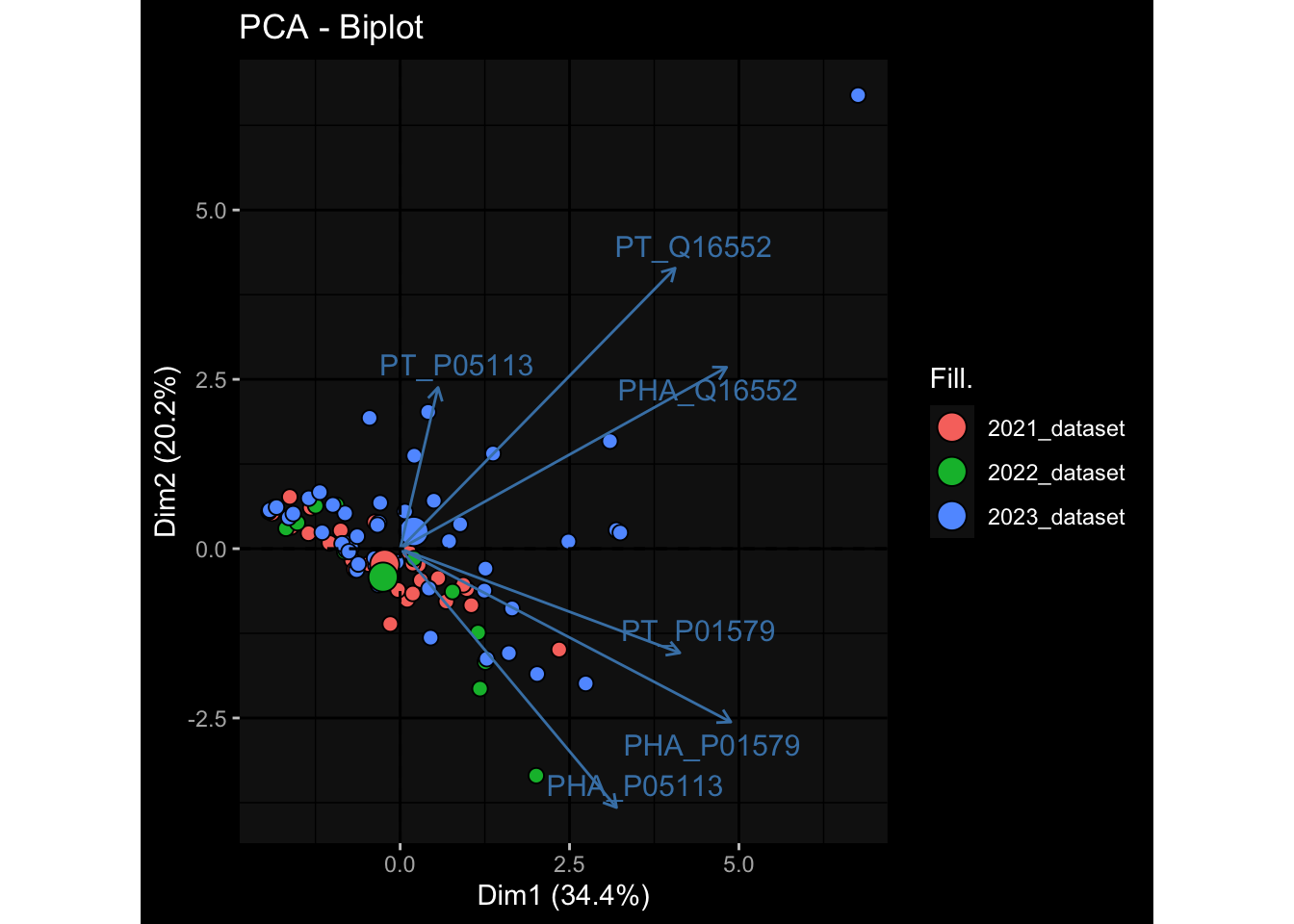

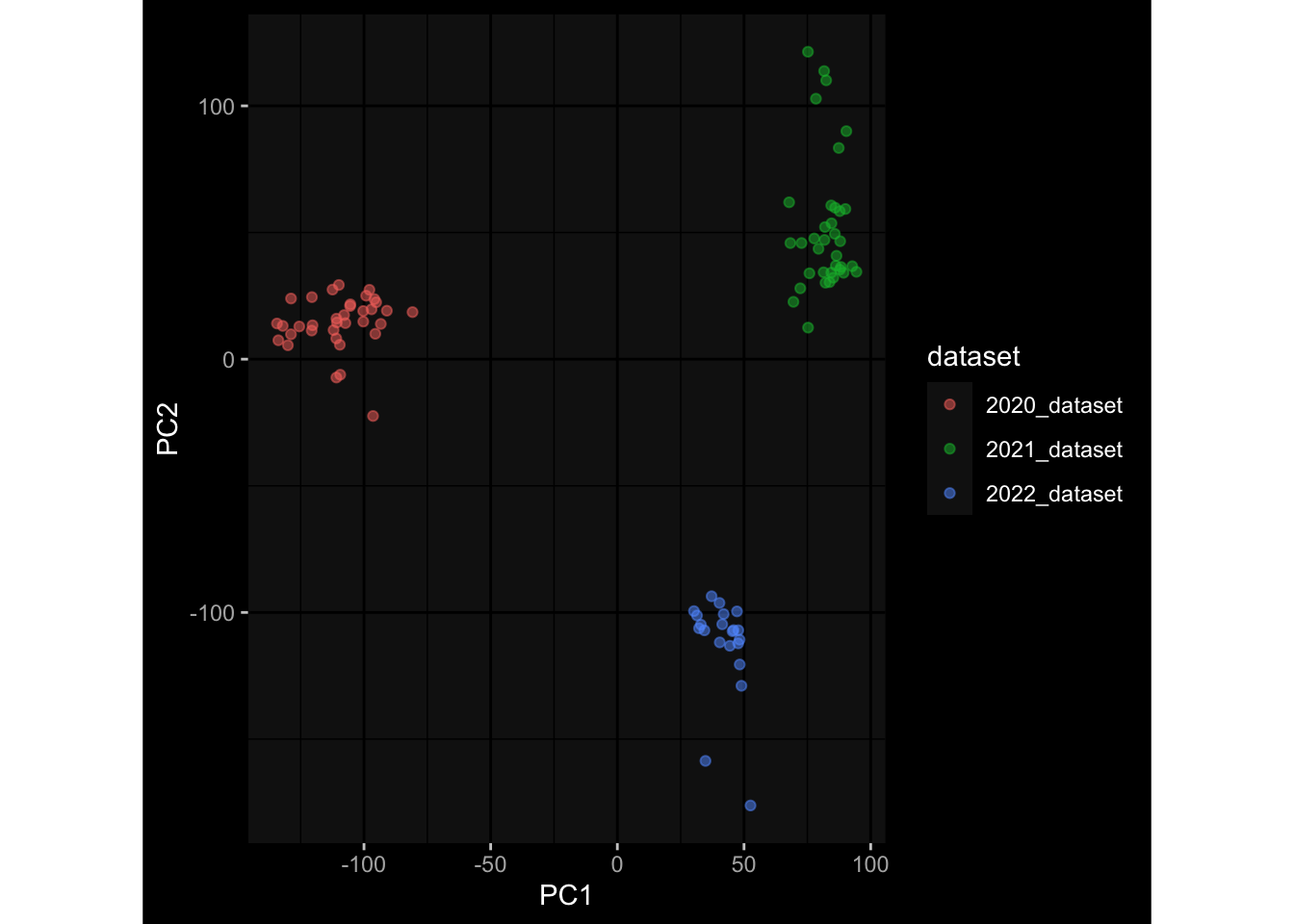

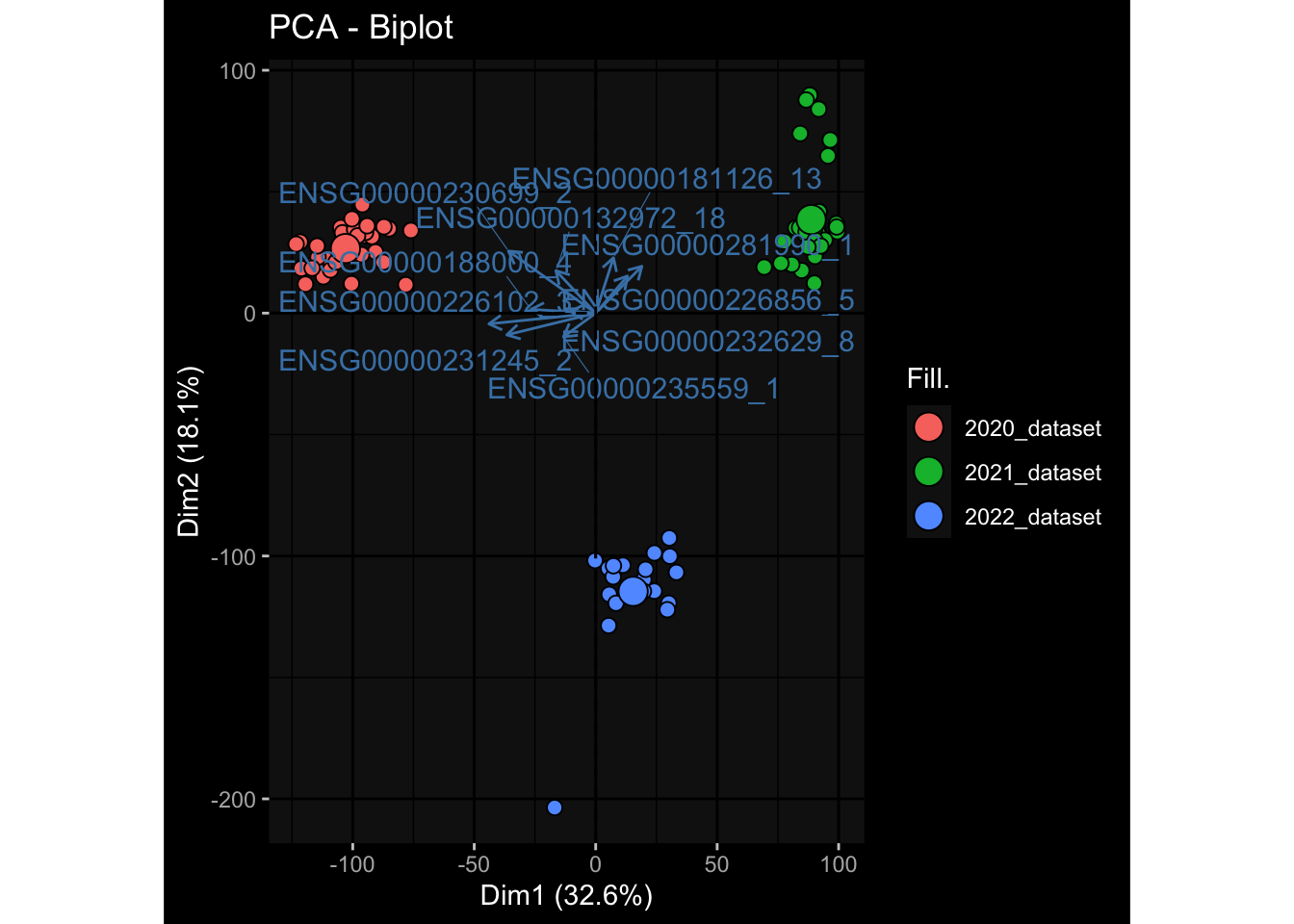

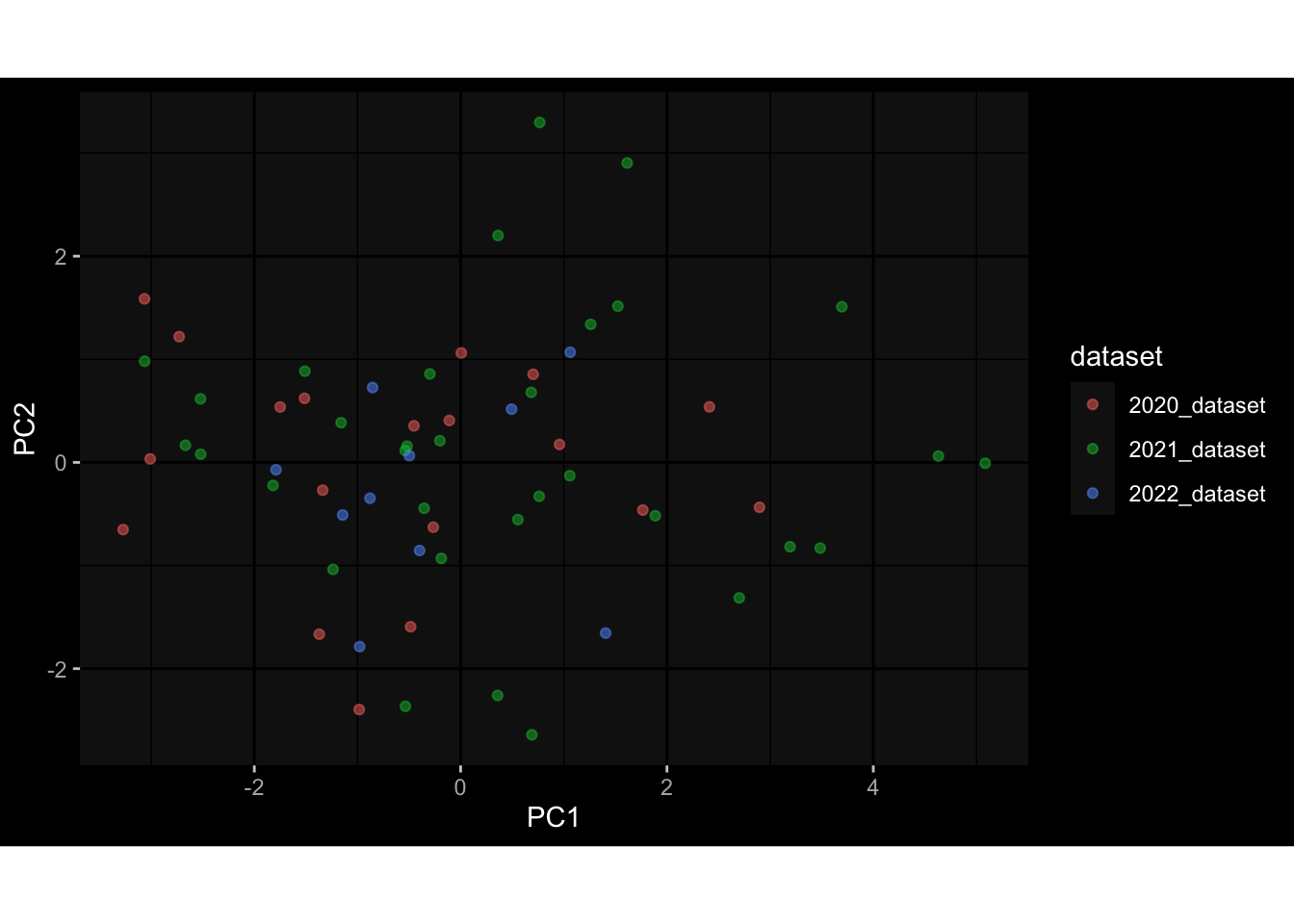

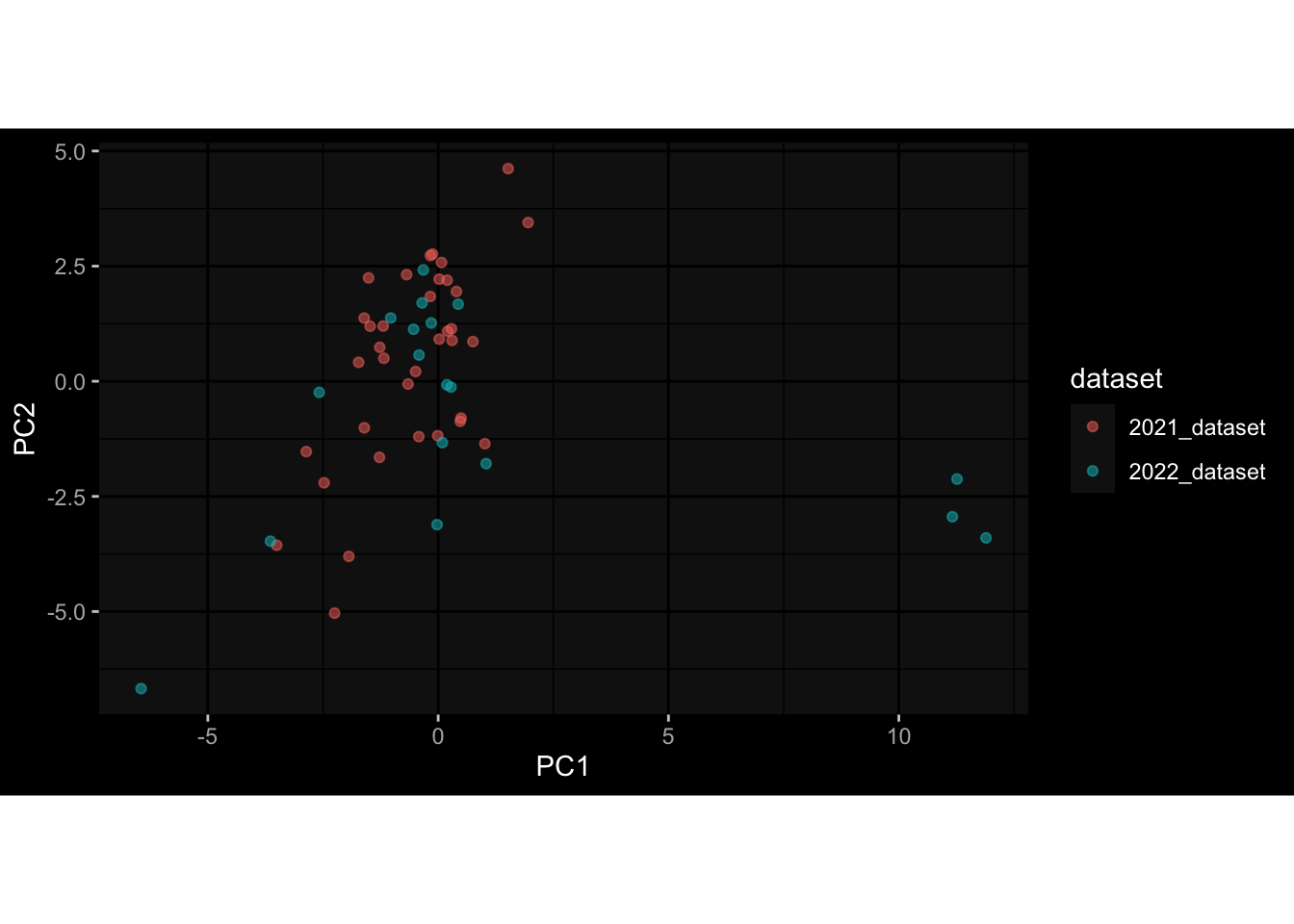

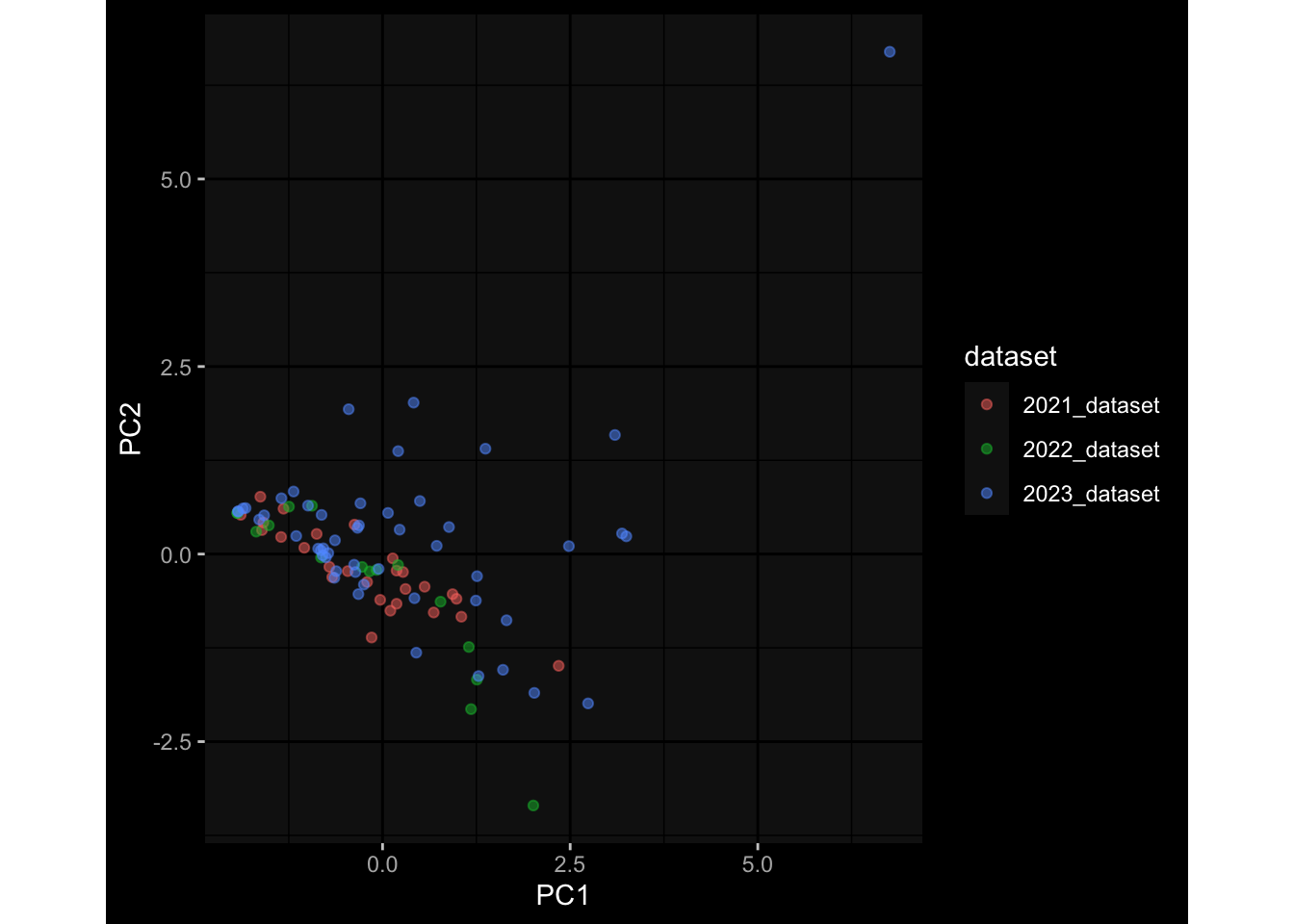

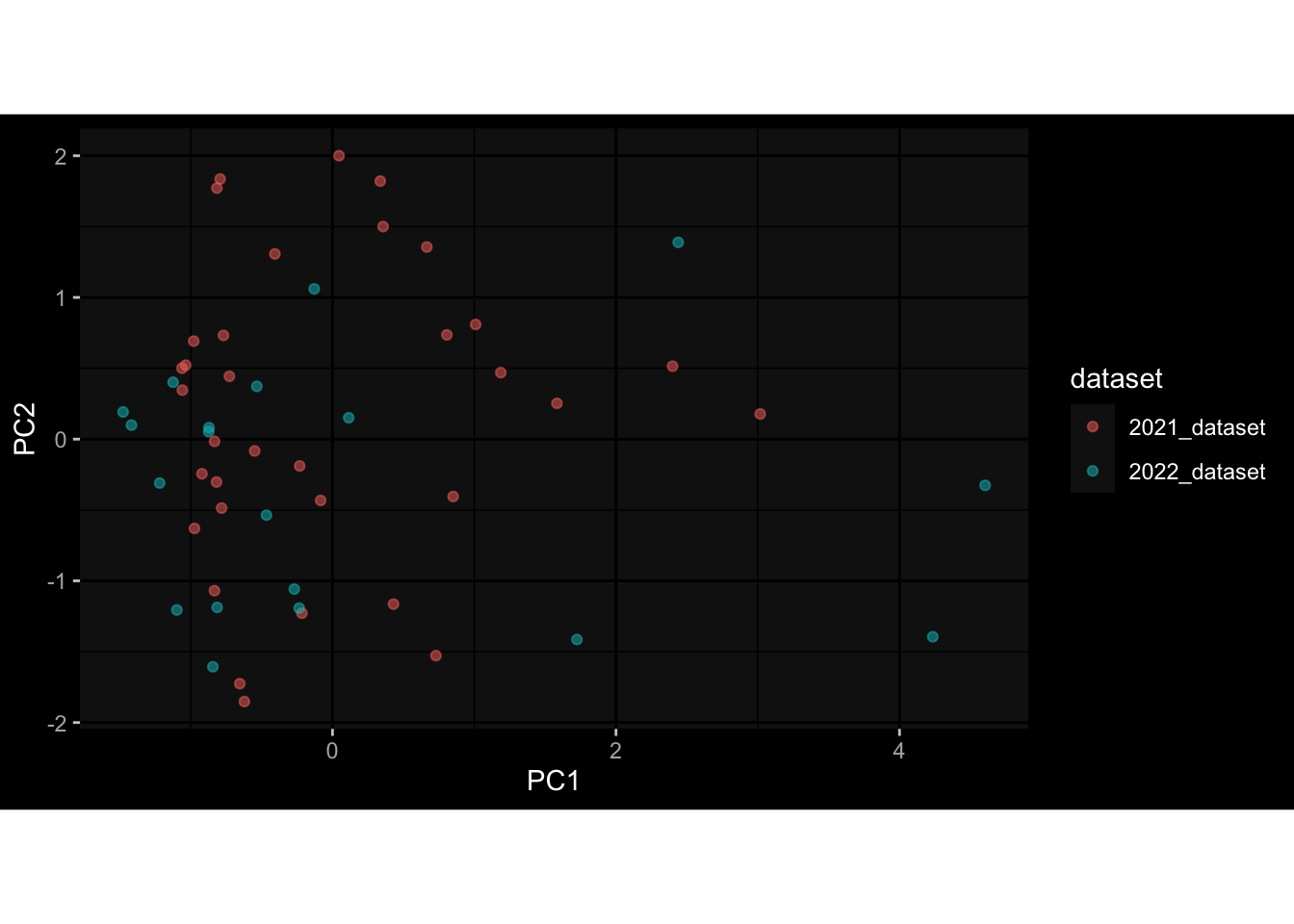

plist <- generate_pca_plots(assay_mtx_wide=assay_mtx_wide,
meta_data=meta_data)
print(plist$p1)
print(plist$p2)
print(plist$p3)
}
cat(paste0("\n\n"))
}
}
converting counts to integer mode
Non-zero fraction of NAs: 0.0039
Non-zero fraction of NAs: 0.059
Non-zero fraction of NAs: 0.0106
converting counts to integer mode
Non-zero fraction of NAs: 0.0038
Fewer than 3 specimen for this combination of assay and day available
Fewer than 3 specimen for this combination of assay and day available
converting counts to integer mode
Non-zero fraction of NAs: 8e-04
Fewer than 3 specimen for this combination of assay and day available
Fewer than 3 specimen for this combination of assay and day available
converting counts to integer mode
Non-zero fraction of NAs: 0.0025
Fewer than 3 specimen for this combination of assay and day available
Fewer than 3 specimen for this combination of assay and day available
Fewer than 3 specimen for this combination of assay and day available
Fewer than 3 specimen for this combination of assay and day available
Fewer than 3 specimen for this combination of assay and day available
Fewer than 3 specimen for this combination of assay and day available
Non-zero fraction of NAs: 0.0435
